Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306

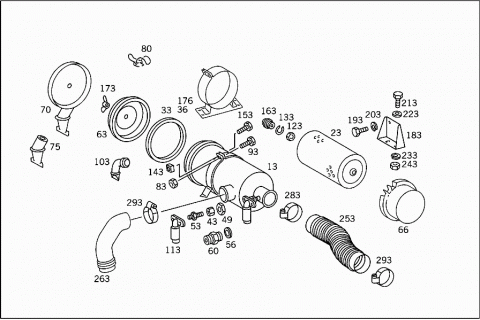

Grupė: 52 AIR CLEANER - 001 SHEET METAL,AIR INTAKE

#	Kodas	Pavadinimas
013	A 3450948002	AIR CLEANER
		"MANN DO BRASIL"
013	A 3450947802	AIR CLEANER
		"FRAM DO BRASIL"
023	A 0010945204	FILTER ELEMENT
		TO 345 094 80 02
023	A 3440947104	FILTER ELEMENT
		TO 344 094 78 02
033	A 0010948080	GASKET
		TO 344 094 78 02
036	A 0010947980	GASKET
	Repalced by: A 0000941027
036	A 0000941027	BRACKET
		TO 345 094 78 02
036	A 0000940927	BRACKET
		TO 345 094 80 02
043	A 0000940158	ADAPTER FITTING
		TO 345 094 78 02
049	A 0009908654	NUT
		TO 345 094 80 02
053	A 0000940167	THREADED NIPPLE
		TO 345 094 78 02
056	A 0010944480	GASKET
		TO 345 094 80 02
060	A 0009972075	THREADED UNION
		TO 345 094 80 02
063	A 0000948203	FILTER BOWL
		TO 345 094 78 02
063	A 3440947006	COVER
		TO 345 094 78 02
066	A 3440947003	FILTER BOWL
		CYCLONE
		TO 345 094 80 02
070	A 0000948703	FILTER BOWL
		TO 345 094 80 02
075	A 3760947165	VALVE
		TO 345 094 80 02
080	A 0010940055	FASTENER
		TO 345 094 80 02
083	A 0000940572	NUT
		TO 345 094 78 02
093	A 0000942171	SCREW
		TO 345 094 78 02
103	A 0000941405	SEPARATOR
		TO 345 094 78 02
113	A 0000942668	VACUUM BOX
		TO 345 094 78 02
113	A 3450947068	VACUUM BOX
		TO 345 094 80 02
123	A 0000940472	NUT
		TO 345 094 78 02
123	N 913002008001	NUT
		TO 345 094 80 02
133	A 0000940173	LOCK
		TO 345 094 78 02
143	A 1109900052	NUT
		TO 345 094 80 02
153	N 000084008172	SCREW
		TO 345 094 80 02
163	A 0000941360	SEAL RING
		TO 345 094 78 02
173	A 0000940375	NUT
		TO 345 094 78 02
176	A 0000940927	BRACKET
		TO 345 094 80 02
183	A 3525282440	BRACKET
		AIR CLEANER
193	N 304017008012	SCREW
		BRACKET TO FRONT PANEL
203	N 912004008100	LOCK WASHER
		BRACKET TO FRONT PANEL
213	N 000933010294	SCREW
		AIR CLEANER TO BRACKET
223	N 000125010517	WASHER
		AIR CLEANER TO BRACKET
233	N 000127010202	LOCK WASHER
		AIR CLEANER TO BRACKET
243	N 000934010000	NUT
		AIR CLEANER TO BRACKET
253	A 3455287082	HOSE
263	A 0000941809	INTAKE PIPE
		FROM INTAKE PIPE TO AIR CLEANER
283	A 3449979790	CLAMP
		AS REQUIRED
283	A 3459979790	CLAMP
		AS REQUIRED
293	A 3449979890	CLAMP
293	A 3459979890	CLAMP
