Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306
Grupė: 42 BRAKES

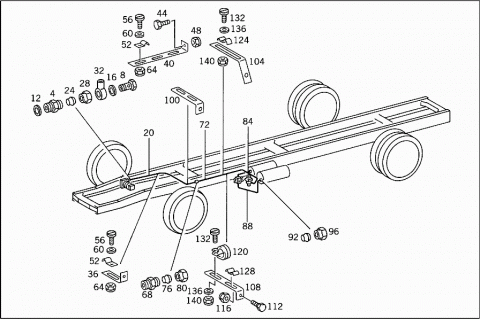

43605

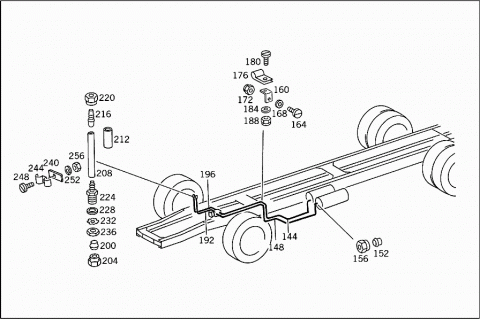

43606

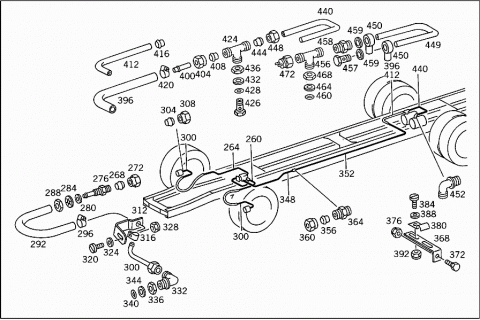

43607

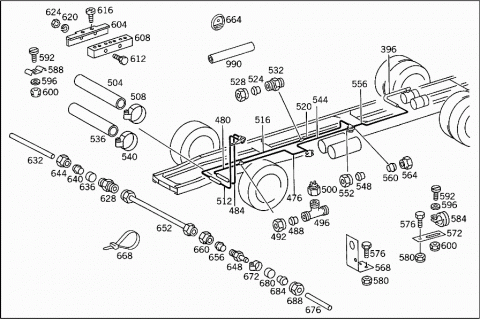

43608

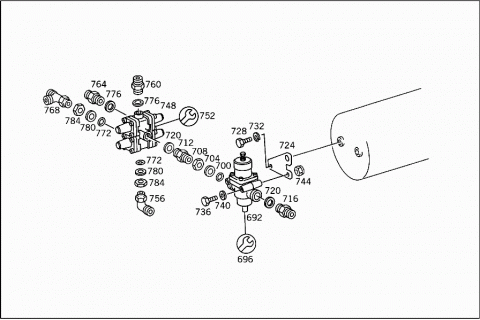

43609

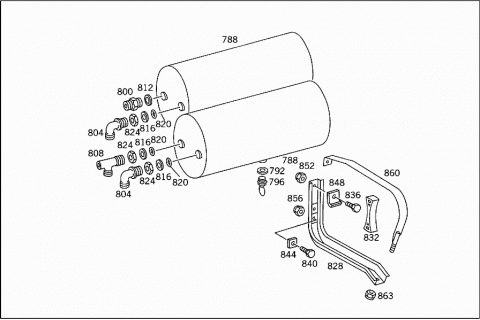

43610

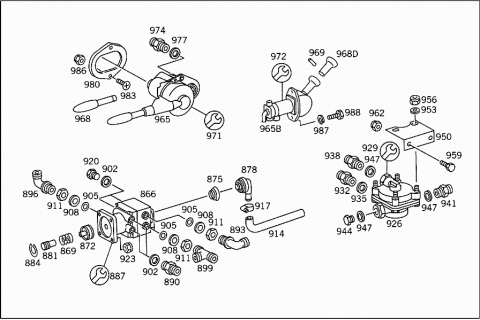

43611
# Kodas Pavadinimas
004 A 3454298336 CONNECTOR
AT AIR COMPRESSOR
008 N 915036018101 HOLLOW SCREW
AT AIR COMPRESSOR
012 N 007603022102 SEAL RING
AT AIR COMPRESSOR
016 N 007603022105 SEAL RING
AT AIR COMPRESSOR
020 A 3444207630 LINE
FROM AIR COMPRESSOR TO FITTING
15X1.5 MM
020 A 3764209133 LINE
FROM AIR COMPRESSOR TO FITTING
024 N 003861015004 GLAND
028 N 915017015100 UNION NUT
032 A 3764767024 CONNECTOR
036 A 3454297840 BRACKET
COMPRESSED AIR LINE TO BELL HOUSING
040 A 3454288140 BRACKET
COMPRESSED AIR LINE TO CROSS MEMBER
044 N 000933008288 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
048 N 913004008001 NUT
COMPRESSED AIR LINE TO CROSS MEMBER
052 A 3049950220 CLAMP
COMPRESSED AIR LINE TO BRACKET
056 N 007985006502 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X20
060 N 000125006420 WASHER
COMPRESSED AIR LINE TO BRACKET
064 N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
068 N 003902015001 CONNECTION FITTING
072 A 3454208135 LINE
FROM FITTING TO PRESSURE REGULATOR
15X1.5 MM
076 N 003861015004 GLAND
080 N 915017015100 UNION NUT
084 A 3454209832 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
"I",12X1 MM
088 A 3454209932 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
"II",12X1 MM
092 N 003861012007 GLAND
096 N 915017012100 UNION NUT
100 A 3464295940 BRACKET
COMPRESSED AIR LINE MOUNTING
104 A 3454287740 BRACKET
COMPRESSED AIR LINE MOUNTING
108 A 3454288540 BRACKET
COMPRESSED AIR LINE MOUNTING
108 A 3454288040 BRACKET
COMPRESSED AIR LINE MOUNTING
112 N 000933008288 SCREW
BRACKET TO SIDE MEMBER
116 N 913004008001 NUT
BRACKET TO SIDE MEMBER
120 N 916016008200 CLAMP
COMPRESSED AIR LINE TO BRACKET
120 A 3049951520 CLAMP
COMPRESSED AIR LINE TO BRACKET
Repalced by: A 1009950420
120 A 1009950420 CLAMP
COMPRESSED AIR LINE TO BRACKET
124 A 3444290240 CLAMP
COMPRESSED AIR LINE TO BRACKET
128 A 3379950032 CLAMP
COMPRESSED AIR LINE TO BRACKET
132 N 007985006515 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X16
136 N 000125006420 WASHER
COMPRESSED AIR LINE TO BRACKET
140 N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
144 A 3454209132 LINE
FROM AIR RESERVOIR I TO SERVICE BRAKE VALVE,CONNECTION:
"12",12X1 MM
148 A 3454209232 LINE
FROM AIR RESERVOIR II TO SERVICE BRAKE VALVE,CONNECTION:
"11",12X1 MM
152 N 003861012007 GLAND
156 N 915017012100 UNION NUT
160 A 3464295840 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
164 N 000933010174 SCREW
COMPRESSED AIR LINE TO SIDE MEMBER
168 N 000125010517 WASHER
COMPRESSED AIR LINE TO SIDE MEMBER
172 N 913004010004 NUT
COMPRESSED AIR LINE TO SIDE MEMBER
176 N 916016012200 CLAMP
COMPRESSED AIR LINES TO CROSS MEMBER
176 A 3459957901 CLAMP
COMPRESSED AIR LINES TO CROSS MEMBER
176 A 3459957901 CLAMP
COMPRESSED AIR LINE TO SIDE MEMBER
180 N 000084006137 SCREW
COMPRESSED AIR LINES TO CROSS MEMBER
180 N 007985006515 SCREW
COMPRESSED AIR LINE TO SIDE MEMBER
184 N 009021006103 WASHER
COMPRESSED AIR LINES TO CROSS MEMBER
184 N 000125006420 WASHER
COMPRESSED AIR LINE TO SIDE MEMBER
188 N 913004006001 NUT
COMPRESSED AIR LINES TO CROSS MEMBER
188 N 913004006001 NUT
COMPRESSED AIR LINE TO SIDE MEMBER
192 A 3445407961 ELECTRIC CABLE
FROM SERVICE BRAKE VALVE TO FITTING ON FIRE WALL,CONNECTION:
"11,"6X0.7 MM
192 A 3765407661 ELECTRIC CABLE
FROM SERVICE BRAKE VALVE TO FITTING ON FIRE WALL,CONNECTION:
"11"
196 A 3445408061 ELECTRIC CABLE
FROM SERVICE BRAKE VALVE TO FITTING ON FIRE WALL,CONNECTION:
"12",6X0.7 MM
196 A 3765407561 ELECTRIC CABLE
FROM SERVICE BRAKE VALVE TO FITTING ON FIRE WALL,CONNECTION:
"12"
200 N 003861006007 GLAND
204 N 915017006100 UNION NUT
208 A 0089976082 HOSE
FROM FIRE WALL TO INSTRUMENT CLUSTER
6X1 MM
212 N 040621012200 INSULATING HOSE
216 A 0019975072 FITTING
220 N 915017006200 UNION NUT
224 A 0019973772 FITTING
228 N 000125013012 WASHER
HOSE TO FRONT PANEL
232 N 006797012153 TOOTHED WASHER
HOSE TO FRONT PANEL
236 N 000936012016 NUT
HOSE TO FRONT PANEL
240 A 3215422340 BRACKET
PRESSURE GAUGE LINE
244 A 3129950332 CLAMP
PRESSURE GAUGE LINE
248 N 007985005171 SCREW
PRESSURE GAUGE LINE
AM 5X16
252 N 000127005001 LOCK WASHER
PRESSURE GAUGE LINE
256 N 000934005008 NUT
PRESSURE GAUGE LINE
260 A 3454208832 LINE
FROM SERVICE BRAKE VALVE TO FRONT AXLE HOSE FITTING
12X1 MM
260 A 3444206536 LINE
FROM SERVICE BRAKE VALVE TO FRONT AXLE HOSE FITTING
264 A 3444207229 LINE
FROM SERVICE BRAKE VALVE TO FRONT AXLE HOSE FITTING
12X1 MM
264 A 3444206436 LINE
FROM SERVICE BRAKE VALVE TO FRONT AXLE HOSE FITTING
264 A 3444206937 LINE
FROM SERVICE BRAKE VALVE TO FRONT AXLE HOSE FITTING
12X1 MM
268 N 003861012007 GLAND
272 N 915017012100 UNION NUT
276 A 3454307379 CONNECTOR
280 N 000125017010 WASHER
HOSE FITTING TO FRONT AXLE SIDE MEMBER
284 N 006797016152 TOOTHED WASHER
HOSE FITTING TO FRONT AXLE SIDE MEMBER
288 N 000936016003 NUT
HOSE FITTING TO FRONT AXLE SIDE MEMBER
292 N 916027011005 HOSE
FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEELS
11X350 MM
296 A 3459977990 LOOM TIE
Repalced by: A 3459978890
296 A 3459978890 CLAMP
BRAKE HOSE TO FITTING
300 A 3454208632 LINE
FROM BRAKE HOSE TO FRONT AXLE DIAPHRAGM CYLINDER
12X1 MM
304 N 003861012007 GLAND
308 N 915017012100 UNION NUT
312 A 3454287840 BRACKET
RIGHT BRAKE HOSE
312 A 3454288240 BRACKET
LEFT BRAKE HOSE
316 N 916016012200 CLAMP
AT DIAPHRAGM CYLINDER BRACKET
316 A 3459957901 CLAMP
AT DIAPHRAGM CYLINDER BRACKET
320 N 007985006515 SCREW
AT DIAPHRAGM CYLINDER BRACKET
M 6X16
324 N 000125006420 WASHER
AT DIAPHRAGM CYLINDER BRACKET
328 N 913004006001 NUT
AT DIAPHRAGM CYLINDER BRACKET
332 A 3089907171 ELBOW FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
336 N 000936016003 NUT
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
340 A 0009971548 SEAL RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
344 A 0004290927 THRUST RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
348 A 3454209032 LINE
FROM SERVICE BRAKE VALVE TO FITTING
12X1 MM
352 A 3454208132 LINE
FROM FITTING TO BRAKE HOSE
12X1 MM
352 A 3454208032 LINE
FROM FITTING TO BRAKE HOSE
12X1 MM
352 A 3454207932 LINE
FROM FITTING TO BRAKE HOSE
12X1 MM
352 A 3454207832 LINE
FROM FITTING TO BRAKE HOSE
12X1 MM
356 N 003861012007 GLAND
360 N 915017012001 UNION NUT
364 N 003910012001 BULKHEAD FITTING
364 A 0029971672 FITTING
368 A 3454288540 BRACKET
LINE TO SIDE MEMBER
372 N 000933008288 SCREW
LINE TO SIDE MEMBER
376 N 913004008001 NUT
LINE TO SIDE MEMBER
380 A 3049951520 CLAMP
COMPRESSED AIR LINE TO BRACKET
Repalced by: A 1009950420
380 A 1009950420 CLAMP
COMPRESSED AIR LINE TO BRACKET
384 N 007985006515 SCREW
COMPRESSED AIR LINE TO BRACKET
388 N 000125006420 WASHER
COMPRESSED AIR LINE TO BRACKET
392 N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
396 N 916027011008 HOSE
RIGHT COMBINATION CYLINDER,CONNECTION:
"11":"12",11X630 MM
396 N 916027011008 HOSE
RIGHT COMBINATION CYLINDER,CONNECTION:
"11":"12",11X630 MM
396 N 916027011010 HOSE
RIGHT COMBINATION CYLINDER,CONNECTION:
"11","12",11X750 MM
400 A 0004290541 FITTING
Repalced by: A 3454297041
400 A 3454297041 FITTING
RIGHT COMBINATION CYLINDER,CONNECTION:
"11","12"
404 N 915017012100 UNION NUT
RIGHT COMBINATION CYLINDER,CONNECTION:
"11","12"
408 N 003861012007 GLAND
RIGHT COMBINATION CYLINDER,CONNECTION:
"11","12"
412 A 3504208935 LINE
RIGHT COMBINATION CYLINDER,CONNECTION:
"11","12"
416 N 003861012007 GLAND
RIGHT COMBINATION CYLINDER,CONNECTION:
"11","12"
420 A 3459977990 LOOM TIE
Repalced by: A 3459978890
420 A 3459978890 CLAMP
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
424 A 0009904270 T-FITTING
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
424 A 0009904270 T-FITTING
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
424 A 0019905370 T-FITTING
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
426 N 915036012200 HOLLOW SCREW
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
428 N 007603016103 SEAL RING
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
428 A 0009971548 SEAL RING
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
432 A 0004290927 THRUST RING
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
436 N 000936016003 NUT
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
440 A 3454203749 LINE
LEFT AND RIGHT COMBINATION CYLINDERS; CONNECTION:
"11","12",12X1 MM
440 A 3454203749 LINE
LEFT AND RIGHT COMBINATION CYLINDERS; CONNECTION:
"11","12",12X1 MM
440 A 3504208735 LINE
FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION:
"11",12X1 MM
440 A 3504208635 LINE
FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION:
"12",12X1 MM
444 N 003861012007 GLAND
444 N 003861012007 GLAND
448 N 915017012001 UNION NUT
448 N 915017012001 UNION NUT
449 A 0109975982 HOSE
Repalced by: A 0009872827
449 A 0009872827 PLASTIC PIPE
Repalced by: A 0009875027
449 A 0009875027 PLASTIC PIPE
FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION:
12 X 1.5 MM
449 A 0009875027 PLASTIC PIPE
FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION:
"12",310 MM
450 N 915052009000 BANJO UNION
452 A 3089907171 ELBOW FITTING
LEFT COMBINATION CYLINDER;CONNECTION:
"11"
452 A 3089907171 ELBOW FITTING
LEFT COMBINATION CYLINDER;CONNECTION:
"11"
456 A 0009904770 T-FITTING
LEFT COMBINATION CYLINDER;CONNECTION:
"12"
456 A 0009904770 T-FITTING
LEFT COMBINATION CYLINDER;CONNECTION:
"12"
457 N 915036012200 HOLLOW SCREW
LEFT COMBINATION CYLINDER;CONNECTION:
"11"
458 N 915039012200 HOLLOW SCREW FITTING
LEFT COMBINATION CYLINDER;CONNECTION:
"12"
459 N 007603016103 SEAL RING
LEFT COMBINATION CYLINDER;CONNECTION:
"12,12"
460 A 0009971548 SEAL RING
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
460 A 0009971548 SEAL RING
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
464 A 0004290927 THRUST RING
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
464 A 0004290927 THRUST RING
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
468 N 000936016003 NUT
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
468 N 000936016003 NUT
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
472 A 0005455414 SWITCH
472 A 3445457214 SWITCH
476 A 3454209532 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING
8X0.7 MM
480 A 3504207526 LINE
FROM T-FITTING TO COMPRESSED AIR HOSE
8X0.7 MM
484 A 3454204426 LINE
FROM COMPRESSED AIR HOSE TO HAND BRAKE VALVE,CONNECTION "1"
8X0.7 MM
488 N 003861008005 GLAND
492 N 915017008100 UNION NUT
496 A 3454297132 T-FITTING
496 A 0009901070 T-FITTING
M14X1,5 / M14X1,5 / M12X1,5
500 A 0005455414 SWITCH
500 A 3445457214 SWITCH
504 A 3524290035 BRAKE HOSE
508 N 916017011000 CLAMP
Repalced by: N 000000000665
508 N 000000000665 CLAMP
COMPRESSED AIR HOSE TO COMPRESSED AIR LINE
512 A 3454202926 LINE
FROM HAND BRAKE VALVE TO COMPRESSED AIR HOSE
516 A 3454208235 LINE
FROM COMPRESSED AIR HOSE TO FITTING
8X0.7 MM
520 A 3454208335 LINE
FROM FITTING TO RELAY VALVE
8X0.7 MM
520 A 3454208435 LINE
FROM FITTING TO RELAY VALVE
8X0.7 MM
520 A 3454208535 LINE
FROM FITTING TO RELAY VALVE
8X0.7 MM
520 A 3454209432 LINE
FROM FITTING TO RELAY VALVE
8X0.7 MM
524 N 003861008005 GLAND
528 N 915017008100 UNION NUT
532 N 003910008001 BULKHEAD FITTING
532 A 0019972772 FITTING
536 A 3524290035 BRAKE HOSE
540 N 916017011000 CLAMP
Repalced by: N 000000000665
540 N 000000000665 CLAMP
COMPRESSED AIR HOSE TO COMPRESSED AIR LINE
544 A 3454208432 LINE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION:
"1",12X1 MM
544 A 3454208332 LINE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION:
"1",12X1 MM
544 A 3454208532 LINE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION:
"1",12X1 MM
544 A 3454208232 LINE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION:
"1",12X1 MM
548 N 003861012007 GLAND
552 N 003870012001 UNION NUT
556 A 3454209332 LINE
FROM RELAY VALVE,"Z" CONNECTION,TO BRAKE HOSE
12X1 MM
560 N 003861012007 GLAND
564 N 915017012001 UNION NUT
568 A 3454298040 BRACKET
COMPRESSED AIR LINE MOUNTING
572 A 3444297040 BRACKET
COMPRESSED AIR LINE MOUNTING
576 N 000933010174 SCREW
BRACKET TO CROSS MEMBER
580 N 913004010004 NUT
BRACKET TO CROSS MEMBER
584 N 916016012200 CLAMP
COMPRESSED AIR LINE TO BRACKET
584 A 3459957901 CLAMP
COMPRESSED AIR LINE TO BRACKET
584 N 916016006201 CLAMP
COMPRESSED AIR LINE TO BRACKET
584 A 3459957801 CLAMP
COMPRESSED AIR LINE TO BRACKET
588 A 3449950132 CLAMP
COMPRESSED AIR LINE TO BRACKET
588 A 3049951520 CLAMP
COMPRESSED AIR LINE TO BRACKET
Repalced by: A 1009950420
588 A 1009950420 CLAMP
COMPRESSED AIR LINE TO BRACKET
588 A 3609950201 CLAMP
Repalced by: A 3604300143
588 A 3604300143 CLAMP
Repalced by: N 916016008200
588 N 916016008200 CLAMP
COMPRESSED AIR LINE TO BRACKET
592 N 000084006137 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X20
596 N 000125006420 WASHER
600 N 913004006001 NUT
604 A 3226840075 BLOCK
COMPRESSED AIR LINE MOUNTING
608 A 3226840096 PAD
COMPRESSED AIR LINE MOUNTING
612 N 000931006200 SCREW
COMPRESSED AIR LINE MOUNTING
M 6X60
616 N 007985006228 SCREW
COMPRESSED AIR LINE MOUNTING
MB 6X35
620 N 000127006203 LOCK WASHER
COMPRESSED AIR LINE MOUNTING
624 N 000934006006 NUT
COMPRESSED AIR LINE MOUNTING
628 A 3509977672 FITTING
LINE CONNECTION TO FIRE WALL
628 A 3459978272 FITTING
LINE CONNECTION TO FIRE WALL
632 A 0089979082 HOSE
Repalced by: A 0009874927
632 A 0009874927 PLASTIC PIPE
BULKHEAD FITTING
8X6 MM
636 A 0019976672 FITTING
Repalced by: N 915062006000
636 N 915062006000 SLEEVE
BULKHEAD FITTING
640 N 003861008005 GLAND
BULKHEAD FITTING
644 N 915017008100 UNION NUT
BULKHEAD FITTING
648 N 003902008001 CONNECTION FITTING
652 A 3824209226 LINE
FROM BULKHEAD FITTING TO CONNECTION FITTING
652 A 3824209326 LINE
656 N 003861008005 GLAND
660 N 915017008100 UNION NUT
664 A 3816820086 BRACKET
PLASTIC LINE TO CAB
668 A 0019978590 LOOM TIE
PLASTIC LINE TO CAB
672 N 916016008200 CLAMP
COMPRESSED AIR LINE TO CAB
676 A 0089979082 HOSE
Repalced by: A 0009874927
676 A 0009874927 PLASTIC PIPE
AT FITTING
8X6 MM
676 A 0009874927 PLASTIC PIPE
AT T-FITTING
8X6 MM
680 A 0019976672 FITTING
Repalced by: N 915062006000
680 N 915062006000 SLEEVE
684 N 003861008005 GLAND
688 N 915017008100 UNION NUT
692 A 0014319806 PRESSURE REGULATOR
"KNORR"
692 A 0014310006 PRESSURE REGULATOR
"WESTINGHOUSE"
696 A 0025866743 REPAIR KIT
Repalced by: A 0004201371
696 A 0004201371 REPAIR KIT
TO 001 431 98 06
696 A 0015864343 REPAIR KIT
TO 001 431 00 06
700 A 0009870446 O-RING
AT PRESSURE REGULATOR
704 A 0004290227 THRUST RING
Repalced by: A 0009940203
704 A 0009940203 THRUST RING
AT PRESSURE REGULATOR
708 N 074305022202 NUT
AT PRESSURE REGULATOR
712 A 3454298336 CONNECTOR
AT PRESSURE REGULATOR
716 A 0019972372 FITTING
AT PRESSURE REGULATOR
720 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
724 A 3454318640 BRACKET
PRESSURE REGULATOR
728 N 000933008268 SCREW
PRESSURE REGULATOR TO ELBOW FITTING
732 N 912004008100 LOCK WASHER
PRESSURE REGULATOR TO ELBOW FITTING
736 N 000931008370 SCREW
PRESSURE REGULATOR TO BRACKET
740 N 000125008417 WASHER
PRESSURE REGULATOR TO BRACKET
744 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
748 A 0024310106 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
"KNORR"
748 A 0014318906 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
752 A 0004301068 REPAIR KIT
Repalced by: A 0004201571
752 A 0004201571 REPAIR KIT
TO 002 431 01 06
752 A 0035860943 REPAIR KIT
TO 001 431 89 06
756 A 3089907171 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
760 N 003901012005 SCREW-IN FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
760 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
764 N 074313006101 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
764 A 0029978172 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
768 N 074317012200 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
768 A 0009904970 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
772 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,23"
776 N 007603016102 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22,24"
780 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,23"
784 N 000936016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,23"
788 A 3214300205 RESERVOIR
Repalced by: A 3454308205
788 A 3454308205 RESERVOIR
792 N 007603022102 SEAL RING
796 A 0004320807 VALVE
DRAIN
796 A 3644327107 VALVE
DRAIN
800 N 074313012100 FITTING
AT AIR RESERVOIR
800 A 0029971172 FITTING
Repalced by: A 3454307879
800 A 3454307879 CONNECTOR
AT AIR RESERVOIR
804 N 074315012101 FITTING
AT AIR RESERVOIR
804 A 0009907771 ELBOW FITTING
AT AIR RESERVOIR
808 A 3444297338 ELBOW FITTING
Repalced by: A 3454307779
808 A 3454307779 CONNECTOR
AT AIR RESERVOIR
812 N 007603022102 SEAL RING
AT AIR RESERVOIR
816 A 0004290227 THRUST RING
Repalced by: A 0009940203
816 A 0009940203 THRUST RING
AT AIR RESERVOIR
820 A 0009870446 O-RING
AT AIR RESERVOIR
824 N 074305022202 NUT
AT AIR RESERVOIR
828 A 3454307911 CONSOLE
AIR RESERVOIR
832 A 3354320218 BASE
AIR RESERVOIR
836 N 000961012106 SCREW
CONSOLE TO SIDE MEMBER
12X1.5X35
840 N 000963012011 SCREW
CONSOLE TO SIDE MEMBER
12X35
844 A 3454320076 WASHER
CONSOLE TO SIDE MEMBER
848 A 3454320026 PLATE
CONSOLE TO SIDE MEMBER
852 N 913004012006 NUT
CONSOLE TO SIDE MEMBER
M 12X1.5
856 N 913004012012 NUT
CONSOLE TO SIDE MEMBER
M 12
860 A 3604300040 STRAP
AIR RESERVOIR
863 N 913004010004 NUT
STRAP AND AIR RESERVOIR TO CONSOLE
866 A 0024312705 BRAKE VALVE
Repalced by: A 3454317005
866 A 3454317005 BRAKE VALVE
SERVICE BRAKE
KNORR
866 A 0014318305 BRAKE VALVE
Repalced by: A 3454317105
866 A 3454317105 BRAKE VALVE
SERVICE BRAKE
WABCO
869 A 0014317193 SPRING
TO 002 431 27 05,345 431 70 05
869 A 0014317293 SPRING
TO 002 431 27 05,345 431 70 05
A 0014317393 SPRING
TO 001 431 83 05
869 A 0014317493 SPRING
TO 001 431 83 05,345 431 71 05
872 A 0004318683 PISTON
TO 001 431 83 05,345 431 71 05
872 A 0004319483 PISTON
TO 002 431 27 05, 345 431 70 05
872 A 0004318783 PISTON
TO 002 431 27 05
875 A 0004312185 FILLER RING
TO 001 431 83 05
878 A 0004310273 BREATHER PIPE
TO 001 431 83 05
881 A 0004318883 PISTON
TO 002 431 27 05
881 A 0004318383 PISTON
TO 001 431 83 05
884 A 0049949941 LOCK
TO 345 431 70 05, 002 431 27 05
884 N 000984038000 LOCK RING
TO 345 431 71 05,001 431 83 05
884 N 000472045000 LOCK RING
TO 345 431 71 05,001 431 83 05
884 N 000472047001 LOCK RING
TO 345 431 71 05,001 431 83 05
884 N 000472060000 LOCK RING
TO 345 431 71 05,001 431 83 05
887 A 0014301160 REPAIR KIT
SMALL SCOPE
TO 001 431 83 05,345 431 71 05
887 A 0014301260 REPAIR KIT
SMALL SCOPE
TO 002 431 27 05,345 431 70 05
887 A 0004306260 REPAIR KIT
LARGE SCOPE
TO 001 431 83 05,345 431 71 05
887 A 0004307160 REPAIR KIT
Repalced by: A 0004304206
887 A 0004304206 REPAIR KIT
LARGE SCOPE
TO 002 431 27 05, 345 431 70 05
890 N 003901012005 SCREW-IN FITTING
SERVICE BRAKE VALVE,CONNECTION:
"11,21"
890 A 0029971572 FITTING
SERVICE BRAKE VALVE,CONNECTION:
"11,21"
893 A 3459907471 ELBOW FITTING
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
896 A 3089907171 ELBOW FITTING
SERVICE BRAKE VALVE,CONNECTION:
"12"
899 A 0019903570 T-FITTING
SERVICE BRAKE VALVE,CONNECTION:
"22"
902 N 007603016103 SEAL RING
SERVICE BRAKE VALVE,CONNECTION:
"11,21,22"
905 A 0009971548 SEAL RING
SERVICE BRAKE VALVE,CONNECTION:
"11,12,22"
908 A 0004290927 THRUST RING
SERVICE BRAKE VALVE,CONNECTION:
"11,12,22"
911 N 000936016003 NUT
SERVICE BRAKE VALVE,CONNECTION:
"11,12","22"
914 A 3459978282 HOSE
BREATHER LINE
TO 002 431 27 05,001 431 83 05
917 A 3449977490 CLAMP
BREATHER LINE
TO 002 431 27 05,001 431 83 05
920 N 000908016001 SCREW PLUG
SERVICE BRAKE VALVE,CONNECTION:
"21","22"
923 N 913004008001 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
926 A 0014296844 VALVE
(RELAY VALVE)
"WESTINGHOUSE"
926 A 0034293044 VALVE
(RELAY VALVE)
"KNORR"
929 H 983455860842 REPAIR KIT
Repalced by: A 0004205555
929 A 0004205555 REPAIR KIT
SMALL SCOPE
TO 001 429 68 44
929 A 0005865742 REPAIR KIT
LARGE SCOPE
TO 001 429 68 44
929 A 0004305360 REPAIR KIT
Repalced by: A 0004201471
929 A 0004201471 REPAIR KIT
TO 003 429 30 44
932 N 074313012100 FITTING
RELAY VALVE,CONNECTION "1"
932 A 0029971172 FITTING
Repalced by: A 3454307879
932 A 3454307879 CONNECTOR
RELAY VALVE,CONNECTION "1"
935 N 007603022102 SEAL RING
RELAY VALVE,CONNECTION "1"
938 N 074313008102 FITTING
RELAY VALVE,CONNECTION "4"
938 A 0029979572 FITTING
RELAY VALVE,CONNECTION "4"
941 N 003901012005 SCREW-IN FITTING
RELAY VALVE,CONNECTION "2"
941 A 0029971572 FITTING
RELAY VALVE,CONNECTION "2"
944 N 007604016102 SCREW PLUG
RELAY VALVE,CONNECTION "2"
947 N 007603016103 SEAL RING
RELAY VALVE,CONNECTION:
"2,4"
950 A 3504311240 BRACKET
RELAY VALVE
953 N 000125008417 WASHER
RELAY VALVE TO BRACKET
956 N 913004008001 NUT
RELAY VALVE TO BRACKET
959 N 000933010092 SCREW
RELAY VALVE BRACKET TO SIDE MEMBER
962 N 913004010004 NUT
RELAY VALVE BRACKET TO SIDE MEMBER
965 A 3454307381 VALVE
HAND BRAKE VALVE
"WESTINGHOUSE"
965B A 3504307009 VALVE
HAND BRAKE VALVE
WABCO
968 A 0009973277 HANDLE
TO 345 430 73 81
968D A 0009974977 HANDLE
TO 350 430 70 09
969 A 0009911055 PIN
TO 350 430 70 09
A 0004305760 REPAIR KIT
TO 000 430 55 81
971 H 983455861043 REPAIR KIT
Repalced by: A 0034301181
971 A 0034301181 REPAIR KIT
SMALL SCOPE
TO 345 430 73 81
971 A 0005868043 REPAIR KIT
LARGE SCOPE
TO 345 430 73 81
972 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
972 A 0034303181 REPAIR KIT
TO 350 430 70 09
972 A 0024302360 REPAIR KIT
Repalced by: A 0004304006
972 A 0004304006 REPAIR KIT
TO 345 430 73 09
974 A 0039979972 FITTING
AT HAND BRAKE VALVE
977 N 007603014102 SEAL RING
AT HAND BRAKE VALVE
980 A 3454317184 SHIM
HAND BRAKE VALVE TO SEAT BOX
983 N 000963006030 SCREW
HAND BRAKE VALVE TO SEAT BOX
986 N 913004006001 NUT
HAND BRAKE VALVE TO SEAT BOX
987 N 912004008100 LOCK WASHER
HAND BRAKE VALVE TO CAB
988 N 007985008169 SCREW
HAND BRAKE VALVE TO CAB
990 A 3084299401 LINE
6X0.7 MM
990 A 3084299501 LINE
8X0.7 MM
990 A 0004293501 LINE
12X1 MM
990 A 0004295201 LINE
15X1.5 MM
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
