Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|

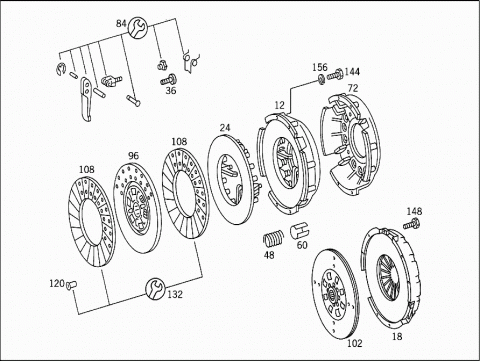

| 012 | A 3442500104 | CLUTCH PRESSURE PLATE |
| Repalced by: A 3442507104 | ||
| 012 | A 3442507104 | CLUTCH PRESSURE PLATE |
| 018 | A 0032509904 | CLUTCH PRESSURE PLATE |
| 024 | A 0002524312 | PRESSURE PLATE |
| TO 344 250 01 04 | ||
| 036 | A 0002522971 | SCREW |
| TO 344 250 01 04 | ||
| 048 | A 0002525120 | PRESSURE SPRING |
| TO 344 250 01 04 | ||
| 060 | A 0002520253 | SPACER TUBE |
| TO 344 250 01 04 | ||
| 072 | A 0002524432 | HOUSING |
| TO 344 250 01 04 | ||
| 084 | H 983455860025 | REPAIR KIT |
| TO 344 250 01 04 | ||
| 096 | A 3452507503 | CLUTCH DISC |
| 096 | A 0032508303 | CLUTCH DISC |
| 102 | A 0032508403 | CLUTCH DISC |
| 102 | A 0052505303 | CLUTCH DISC |
| 108 | A 0002529010 | CLUTCH LINING |
| TO 003 250 83 03 | ||
| 120 | A 0002521475 | RIVET |
| TO 003 250 83 03 | ||
| 120 | A 0002522175 | RIVET |
| TO 003 250 83 03 | ||
| 120 | A 0002522575 | RIVET |
| TO 003 250 83 03 | ||
| 132 | A 3455867025 | REPAIR KIT |
| TO 345 250 75 03 | ||
| 144 | N 000933008275 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 8X35 | ||
| 148 | N 000931008086 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 8X50 | ||
| 156 | N 912004008100 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||

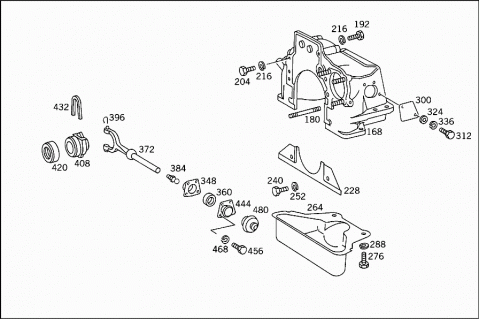

| 168 | A 3452510501 | BELL HOUSING |
| Repalced by: A 3452511401 | ||
| 168 | A 3452511401 | BELL HOUSING |
| 174 | A 3812510501 | BELL HOUSING |
| Repalced by: A 3512510201 | ||
| 174 | A 3512510201 | BELL HOUSING |
| Repalced by: A 6822510101 | ||
| 174 | A 6822510101 | BELL HOUSING |
| 176 | A 3812540240 | BRACKET |
| 180 | A 0009902605 | STUD |
| Repalced by: A 0009904805 | ||
| 180 | A 0009904805 | STUD |
| 180 | N 000939010116 | STUD BOLT |
| M 10X60 | ||
| 186 | A 0009945341 | LOCK |
| 192 | N 000931012277 | SCREW |
| BELL HOUSING TO ENGINE | ||
| M 12X135 | ||
| 196 | N 000931012206 | SCREW |
| BELL HOUSING TO ENGINE | ||
| M 12X145 | ||
| 204 | N 900170012005 | SCREW |
| BELL HOUSING TO ENGINE | ||
| M 12X35 | ||
| 216 | N 000127012201 | LOCK WASHER |
| BELL HOUSING TO ENGINE | ||
| 228 | A 3522510106 | PROTECTIVE PLATE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 352 250 00 55 | ||
| 240 | N 000933006223 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| M 6X12 | ||
| 252 | N 000137006203 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 264 | A 3812510102 | BELL HOUSING |
| BOTTOM | ||
| 270 | A 3812501005 | HOUSING |
| BOTTOM | ||
| 270 | A 3812510902 | BELL HOUSING |
| BOTTOM | ||
| A 3452500405 | HOUSING | |
| BOTTOM | ||
| 270 | A 3452510002 | BELL HOUSING |
| BOTTOM | ||
| 276 | N 000933006223 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| M 6X12 | ||
| 288 | N 000137006203 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 300 | A 3522510004 | END COVER |
| 312 | N 000933008282 | SCREW |
| COVER TO BELL HOUSING | ||
| M 8X20 | ||
| 324 | N 000125008417 | WASHER |
| COVER TO BELL HOUSING | ||
| 336 | N 912004008100 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 339 | A 3812500243 | BRACKET |
| OUTSIDE | ||
| 339 | A 3452507043 | BRACKET |
| OUTSIDE | ||
| 342 | N 000933008282 | SCREW |
| BRACKET TO BELL HOUSING | ||
| M 8X20 | ||
| 345 | N 912004008100 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 348 | A 3522540040 | BRACKET |
| INSIDE | ||
| 354 | A 3812540540 | BRACKET |
| INSIDE | ||
| 360 | A 3522540135 | BEARING |
| 361 | A 3802540035 | BEARING |
| 361 | A 3802540135 | BEARING |
| 363 | A 3802540059 | SEAL RING |
| RELEASE YOKE | ||
| 363 | A 3802540259 | SEAL RING |
| 363 | A 3802540159 | SEAL RING |
| 363 | A 3802540359 | SEAL RING |
| 372 | A 3402500013 | RELEASE LEVER |
| 378 | A 3812500213 | RELEASE LEVER |
| 384 | A 3029910015 | BALL PIVOT |
| 396 | A 3402540013 | SPRING LOCK |
| RELEASE LEVER TO RELEASE COLLAR | ||
| 396 | A 3812540113 | SPRING LOCK |
| RELEASE LEVER TO RELEASE COLLAR | ||
| 408 | A 3402500215 | RELEASE BEARING |
| WITH BEARING | ||
| 420 | A 0002540020 | RELEASE BEARING |
| 420 | A 0002540120 | RELEASE BEARING |
| 420 | A 3452547020 | RELEASE BEARING |
| 426 | A 3812501415 | RELEASE BEARING |
| 426 | A 0002504615 | RELEASE BEARING |
| 426 | A 0002504215 | RELEASE BEARING |
| 432 | A 3409830010 | STRIP |
| 433 | N 071428004102 | SCREW-IN FITTING |
| 434 | N 003871004100 | UNION SCREW |
| RELEASE BEARING | ||
| 435 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING | ||
| 436 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING | ||
| 437 | N 003411002001 | GREASE CUP |
| RELEASE BEARING | ||
| 438 | N 000127014201 | LOCK WASHER |
| RELEASE BEARING | ||
| 439 | A 3072510208 | INTERMEDIATE PIECE |
| RELEASE BEARING | ||
| 440 | N 000936014010 | NUT |
| RELEASE BEARING | ||
| 441 | A 3059971982 | HOSE |
| RELEASE BEARING | ||
| 444 | A 3452500043 | BRACKET |
| OUTSIDE | ||
| 456 | N 000933008282 | SCREW |
| BRACKET TO BELL HOUSING | ||
| M 8X20 | ||
| 468 | N 912004008100 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 480 | A 3142540197 | BOOT |
| 492 | A 6152540097 | BOOT |

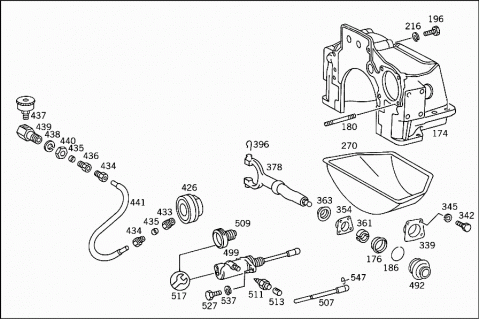

| 499 | A 0002957207 | SLAVE CYLINDER |
| Repalced by: A 0012959407 | ||
| 499 | A 3452957107 | SLAVE CYLINDER |
| Repalced by: A 0012959407 | ||
| 499 | A 0012959407 | SLAVE CYLINDER |
| Repalced by: A 3842957107 | ||
| 499 | A 3842957107 | SLAVE CYLINDER |
| Repalced by: A 3842957307 | ||
| 499 | A 3842957307 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| "VARGA" | ||
| 507 | A 0002950233 | ROD |
| TO 000 295 72 07 | ||
| 507 | A 3842907939 | ROD |
| TO 384 295 73 07 | ||
| 509 | A 0002952983 | BOOT |
| TO 000 295 72 07 | ||
| 511 | A 3454317165 | VALVE |
| TO 000 295 72 07 | ||
| 513 | A 3454317287 | PROTECTIVE CAP |
| TO 000 295 72 07 | ||
| 517 | A 0005864329 | REPAIR KIT |
| Repalced by: A 0002900811 | ||
| 517 | A 0002900811 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| TO 000 295 72 07 | ||
| 517 | A 0002901311 | REPAIR KIT |
| Repalced by: A 0002901611 | ||
| 517 | A 0002901711 | REPAIR KIT |
| 527 | N 000933010129 | SCREW |
| CLUTCH SLAVE CYLINDER TO SUPPORTING ARM | ||
| 537 | N 000127010202 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO SUPPORTING ARM | ||
| 547 | N 071805016402 | CIRCLIP |
| CLUTCH SLAVE CYLINDER TO RELEASE YOKE | ||
