Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306

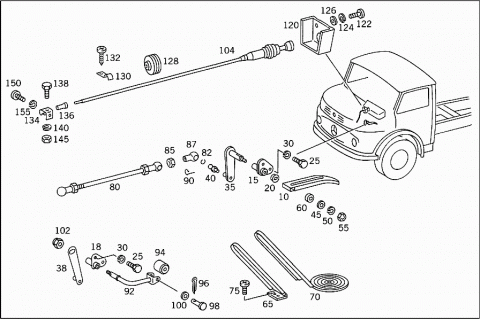

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3523000802 | PLATE |
| 015 | A 3453000021 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 018 | A 3453007221 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 020 | A 3223010054 | GUARD PLATE |
| 025 | N 000933008317 | SCREW |
| BEARING TUBE TO FIRE WALL | ||
| M 8X18 | ||
| 030 | N 912004008100 | LOCK WASHER |
| BEARING TUBE TO FIRE WALL | ||
| 035 | A 3453007025 | LEVER |
| 038 | A 3453008525 | LEVER |
| 040 | N 071803010209 | BALL PIVOT |
| 045 | N 000433008403 | WASHER |
| PEDAL PLATE TO SHAFT | ||
| 050 | N 912004008100 | LOCK WASHER |
| PEDAL PLATE TO SHAFT | ||
| 055 | N 000934008010 | NUT |
| PEDAL PLATE TO SHAFT | ||
| 060 | A 3523010088 | COVERING |
| 065 | A 3453007002 | PLATE |
| ACCELERATOR PEDAL CONTROL | ||
| 070 | A 3443010082 | PAD |
| ACCELERATOR PEDAL CONTROL | ||
| 075 | N 007985006137 | SCREW |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| 080 | A 3604301892 | ROD |
| FROM CONTROL SHAFT TO INTERMEDIATE SHAFT | ||
| 080 | A 3453008515 | ROD |
| FROM CONTROL SHAFT TO INTERMEDIATE SHAFT | ||
| 082 | N 071805010302 | SNAP RING |
| 085 | N 000934006006 | NUT |
| 087 | A 0009912422 | BALL SOCKET |
| 090 | N 071805010402 | CIRCLIP |
| 092 | A 3503007225 | LEVER |
| 094 | A 3443000006 | ROLLER |
| 096 | N 000094001609 | COTTER PIN |
| ROLLER TO LEVER | ||
| 098 | N 001444006224 | PIN |
| ROLLER TO LEVER | ||
| 100 | N 000125006420 | WASHER |
| ROLLER TO LEVER | ||
| 102 | N 913004008001 | NUT |
| LEVER TO SHAFT | ||
| 104 | A 3453008307 | KNOB |
| Repalced by: A 3453009007 | ||
| 104 | A 3453009007 | KNOB |
| WITH SPINDLE | ||
| 104 | A 3453008407 | KNOB |
| Repalced by: A 3453009607 | ||
| 104 | A 3453009607 | KNOB |
| WITH SPINDLE | ||
| 120 | A 3453007340 | BRACKET |
| MANUAL CONTROL | ||
| 122 | N 007985006197 | SCREW |
| BRACKET TO WINDOW SILL | ||
| M 6X12 | ||
| 124 | N 000127006203 | LOCK WASHER |
| BRACKET TO WINDOW SILL | ||
| 126 | N 000125006420 | WASHER |
| BRACKET TO WINDOW SILL | ||
| 128 | A 3459977581 | GROMMET |
| WIRE CABLE THRU FIRE WALL | ||
| 130 | N 072571001024 | CLAMP |
| WIRE CABLE TO WINDOW SILL GIRDER | ||
| 132 | N 007981004240 | SHEET METAL SCREW |
| WIRE CABLE TO WINDOW SILL GIRDER | ||
| 4.2X9.5 | ||
| 134 | A 3523020020 | CLAMP |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 136 | A 3453027091 | GROMMET |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 138 | N 000933006223 | SCREW |
| WIRE CABLE TO MOUNTING CLAMP | ||
| M 6X10 | ||
| 140 | N 000127006203 | LOCK WASHER |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 145 | N 000934006006 | NUT |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 150 | N 007985006512 | SCREW |
| MOUNTING CLAMP TO CYLINDER CRANKCASE, RIGHT REAR | ||
| M 6X12 | ||
| 155 | N 000127006203 | LOCK WASHER |
| MOUNTING CLAMP TO CYLINDER CRANKCASE, RIGHT REAR | ||
