Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306
Grupė: 54 ELEKTRICAL EQUIPMENT AND INSTRUMENTS - 001 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

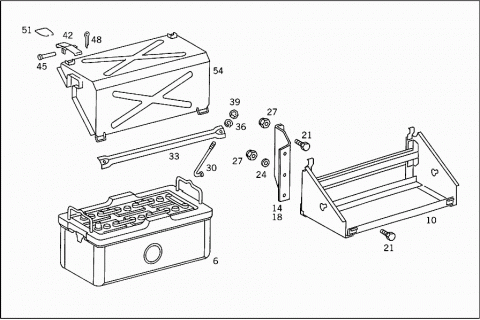

| 006 | A 0005418101 | BATTERY |
| LESS ACID | ||
| 12V/135 AH | ||
| 010 | A 3445407014 | BATTERY CASE |
| 014 | A 3455417640 | BRACKET |
| REAR | ||
| 018 | A 3455417740 | BRACKET |
| FRONT | ||
| 021 | N 000961014101 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 024 | A 3209901840 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 027 | N 913004014005 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 030 | A 3455417222 | HOOK |
| BATTERY CASE | ||
| 033 | A 3445417213 | MOUNTING RAIL |
| BATTERY CASE | ||
| 036 | N 000127008203 | LOCK WASHER |
| BATTERY CASE | ||
| 039 | N 000315008007 | NUT |
| BATTERY CASE | ||
| 039 | N 000315008004 | NUT |
| BATTERY CASE | ||
| 039 | A 3449907062 | NUT |
| BATTERY CASE | ||
| 042 | A 3445400019 | MOUNTING BOW |
| BATTERY CASE | ||
| 045 | N 001444005211 | PIN |
| BRACKET TO BOX COVER | ||
| 048 | N 000094001203 | COTTER PIN |
| BRACKET TO BOX COVER | ||
| 051 | A 3445410026 | BRACKET |
| 054 | A 3445407282 | COVER |
| BATTERY | ||

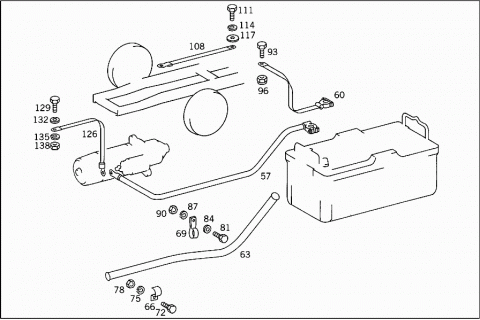

| 057 | A 3455407830 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 060 | A 3445407031 | NEG. CABLE |
| FROM BATTERY TO SIDE MEMBER | ||
| 063 | A 3445467085 | PROTECTIVE TUBE |
| ELECTRIC CABLE | ||
| 066 | A 3449957020 | CLAMP |
| CABLE CONDUIT | ||
| 069 | A 3449957035 | CLAMP |
| CABLE CONDUIT | ||
| 072 | N 000933006223 | SCREW |
| CABLE CONDUIT | ||
| 075 | N 000127006203 | LOCK WASHER |
| CABLE CONDUIT | ||
| 078 | N 000934006006 | NUT |
| CABLE CONDUIT | ||
| 081 | N 000933008282 | SCREW |
| CABLE CONDUIT | ||
| 084 | N 000125008417 | WASHER |
| CABLE CONDUIT | ||
| 087 | N 000127008203 | LOCK WASHER |
| CABLE CONDUIT | ||
| 090 | N 000934008010 | NUT |
| CABLE CONDUIT | ||
| 093 | N 000961012040 | SCREW |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 096 | N 913004012003 | NUT |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 099 | A 0021545006 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021546206 | ||
| 099 | A 0021546206 | REGULATOR AND CUT-OUT |
| (ELECTRONIC FIELD REGULATOR) | ||
| 102 | N 000933006223 | SCREW |
| REGULATOR MOUNTING | ||
| 105 | N 000127006203 | LOCK WASHER |
| REGULATOR MOUNTING | ||
| 108 | A 3455407241 | GROUND STRAP |
| FROM CAB CROSS MEMBER TO BELL HOUSING | ||
| 111 | N 000933010174 | SCREW |
| GROUND STRAP TO FRONT RIGHT CROSS MEMBER | ||
| 114 | N 000127010202 | LOCK WASHER |
| GROUND STRAP TO FRONT RIGHT CROSS MEMBER | ||
| 117 | N 009021010102 | WASHER |
| GROUND STRAP TO FRONT RIGHT CROSS MEMBER | ||
| 120 | N 007985006515 | SCREW |
| GROUND CABLE TO CAB WINDOW SILL | ||
| 123 | N 000127006203 | LOCK WASHER |
| GROUND CABLE TO CAB WINDOW SILL | ||
| 126 | A 3455400041 | GROUND STRAP |
| FROM RIGHT SIDE MEMBER TO STARTING MOTOR | ||
| 129 | N 000933010092 | SCREW |
| GROUND STRAP TO SIDE MEMBER | ||
| 132 | N 009021010102 | WASHER |
| GROUND STRAP TO SIDE MEMBER | ||
| 135 | N 000127010202 | LOCK WASHER |
| GROUND STRAP TO SIDE MEMBER | ||
| 138 | N 913004010004 | NUT |
| GROUND STRAP TO SIDE MEMBER | ||

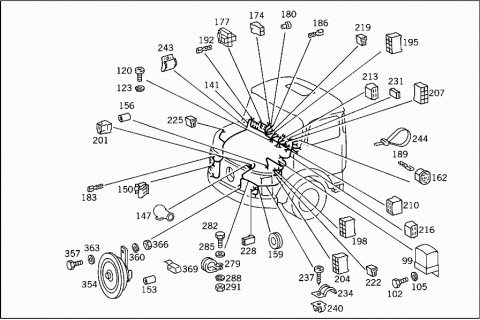

| 141 | A 3455407006 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 147 | A 0005460035 | BOOT |
| 150 | A 0005440156 | CONTACT PIECE |
| HEADLAMP | ||
| 153 | A 3449977181 | GROMMET |
| HORN | ||
| 156 | A 0009970381 | GROMMET |
| 156 | A 0009970581 | GROMMET |
| 159 | A 1109970481 | GROMMET |
| HEADLAMP | ||
| 162 | A 3455457028 | PIN BUSHING HOUSING |
| HAZARD WARNING LIGHT SWITCH | ||
| 174 | A 0015457028 | PLUG HOUSING |
| Repalced by: A 0015457928 | ||
| 174 | A 0015457928 | PLUG HOUSING |
| HEATING CONTROL LIGHTING | ||
| 177 | A 3445457228 | PLUG HOUSING |
| CONTACTOR | ||
| 180 | A 0015456728 | PLUG HOUSING |
| CIGAR LIGHTER; BIPOLAR | ||
| 183 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 186 | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 186 | A 0005453726 | PIN BUSHING |
| CIGAR LIGHTER; BIPOLAR | ||
| 2.5 MM2 | ||
| 189 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 192 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 195 | A 0025459628 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 198 | A 0015453028 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 201 | A 0025459528 | PIN BUSHING HOUSING |
| Repalced by: A 0385452528 | ||
| 201 | A 0385452528 | PLUG |
| 204 | A 0035455128 | PLUG |
| 8-POLE | ||
| 207 | A 0045459328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 210 | A 0015452628 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 213 | A 0035459528 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 216 | A 0015455928 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 219 | A 0015459528 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 222 | A 0025458428 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 225 | A 0015451028 | PIN BUSHING HOUSING |
| Repalced by: A 0015458728 | ||
| 225 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 228 | A 0005451745 | BOOT |
| TO 345 540 70 06 | ||
| 231 | A 3645457145 | PIN BUSHING HOUSING |
| 234 | A 3449957120 | CLAMP |
| MAIN CABLE TO LEFT SIDE PART | ||
| 234 | A 1369950137 | CLAMP |
| MAIN CABLE TO LEFT SIDE PART | ||
| 237 | N 007981004226 | SHEET METAL SCREW |
| MAIN CABLE TO LEFT SIDE PART | ||
| 240 | A 0009941845 | LOCK |
| MAIN CABLE TO LEFT SIDE PART | ||
| 240 | A 3449947045 | LOCK |
| MAIN CABLE TO LEFT SIDE PART | ||
| 243 | A 3089880078 | CLIP |
| MAIN CABLE TO RIGHT SIDE PART | ||
| 244 | A 3509978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||

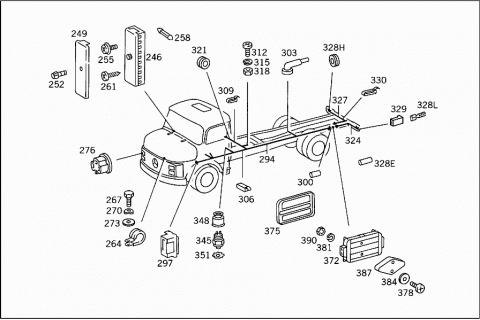

| 246 | A 3455457701 | FUSE BOX |
| 12-POLE | ||
| 246 | A 3455457801 | FUSE BOX |
| 12-POLE | ||
| 249 | A 3455407182 | COVER |
| 252 | A 3455457071 | SCREW |
| 255 | N 914028004100 | COMBINATION BOLT |
| ELECTRIC CABLE TO FUSE BOX | ||
| 258 | A 3085450234 | FUSE |
| 8A | ||
| 258 | A 3085450334 | FUSE |
| 15A | ||
| 261 | N 007981004252 | SHEET METAL SCREW |
| FUSE BOX MOUNTING | ||
| 264 | N 916016020201 | CLAMP |
| ELECTRIC CABLE TO ALTERNATOR | ||
| 267 | N 000933005034 | SCREW |
| BRACKET TO ALTERNATOR | ||
| 270 | N 000137005101 | SPRING WASHER |
| BRACKET TO ALTERNATOR | ||
| 273 | N 009021005104 | WASHER |
| BRACKET TO ALTERNATOR | ||
| 276 | A 3445447060 | PLUG SOCKET HOUSING |
| HEADLAMP | ||
| 279 | N 916016020201 | CLAMP |
| MAIN CABLE HARNESS TO CROSS MEMBER | ||
| 282 | N 000933006221 | SCREW |
| CLAMP TO CROSS MEMBER | ||
| M 6X18 | ||
| 285 | N 000125006420 | WASHER |
| CLAMP TO CROSS MEMBER | ||
| 288 | N 000127006203 | LOCK WASHER |
| CLAMP TO CROSS MEMBER | ||
| 291 | N 000934006006 | NUT |
| CLAMP TO CROSS MEMBER | ||
| 294 | A 3455408832 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 294 | A 3455408932 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 294 | A 3455408732 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 294 | A 3455409032 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 297 | A 0015453228 | PLUG HOUSING |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 300 | A 0009970381 | GROMMET |
| 303 | A 0005400181 | PLUG SOCKET |
| 306 | A 3529950040 | CLAMP |
| MAIN CABLE TO LEFT SIDE MEMBER | ||
| 306 | A 3529950040 | CLAMP |
| MAIN CABLE TO RIGHT SIDE MEMBER | ||
| 309 | A 3219950040 | CLAMP |
| MAIN CABLE TO NO.3 CROSS MEMBER | ||
| 309 | A 3219950040 | CLAMP |
| FUEL-GAUGE-SENDER-UNIT CABLE TO FUEL TANK | ||
| 312 | N 007985006515 | SCREW |
| MAIN CABLE TO NO.3 CROSS MEMBER | ||
| 315 | N 000127006203 | LOCK WASHER |
| MAIN CABLE TO NO.3 CROSS MEMBER | ||
| 318 | N 000934006006 | NUT |
| MAIN CABLE TO NO.3 CROSS MEMBER | ||
| 321 | A 3129970481 | GROMMET |
| FUEL-GAUGE-SENDER-UNIT CABLE THRU SIDE MEMBER | ||
| 324 | A 3085400427 | ELECTRIC CABLE |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 324 | A 3455407207 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 327 | A 3455400727 | ELECTRIC CABLE |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 327 | A 3455407307 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 327 | A 3085400527 | ELECTRIC CABLE |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 328E | A 0009970381 | GROMMET |
| FROM JUNCTION BOX TO TAIL LAMP | ||
| 328E | A 0009970381 | GROMMET |
| FROM JUNCTION BOX TO TAIL LAMP | ||
| TO 345 540 72 07,73 07 | ||
| 328H | A 8339970281 | GROMMET |
| TO 345 540 72 07,73 07 | ||
| 328L | A 0005453726 | PIN BUSHING |
| TO 345 540 72 07,73 07 | ||
| 329 | A 0005451745 | BOOT |
| TO 345 540 72 07,73 07 | ||
| 330 | A 3529950040 | CLAMP |
| ELECTRIC CABLE TO REAR CROSS MEMBER | ||

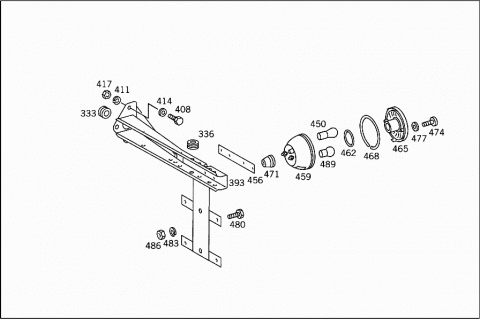

| 333 | A 3559970081 | GROMMET |
| ELECTRIC CABLE THU SIDE MEMBER | ||
| 336 | A 3529970181 | GROMMET |
| ELECTRIC CABLE THU SIDE MEMBER | ||

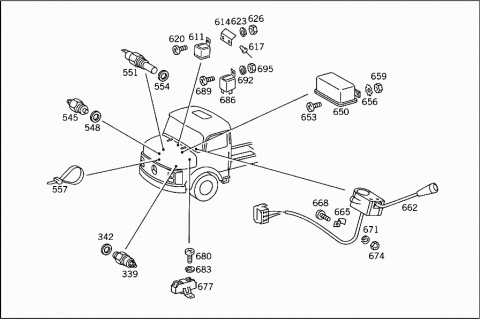

| 339 | A 0015426917 | SENDER UNIT |
| Repalced by: A 0015427017 | ||
| 339 | A 0015427017 | SENDER UNIT |
| OIL PRESSURE | ||
| 339 | A 3455427117 | SENDER UNIT |
| OIL PRESSURE | ||
| 342 | N 007603014402 | SEAL RING |
| OIL PRESSURE GAUGE SENDER UNIT | ||
| 345 | A 0005457009 | SWITCH |
| STOP LIGHT | ||
| 348 | A 3465450045 | BOOT |
| STOP LIGHT SWITCH | ||
| 351 | N 006797016152 | TOOTHED WASHER |
| STOP LIGHT SWITCH TO BRACKET | ||
| 354 | A 3445427120 | HORN |
| 354 | A 3445427520 | HORN |
| 354 | A 3445427720 | HORN |
| 357 | N 000933010129 | SCREW |
| HORN TO ENGINE CROSS MEMBER | ||
| 360 | N 000127010202 | LOCK WASHER |
| HORN TO ENGINE CROSS MEMBER | ||
| 363 | N 000125010517 | WASHER |
| HORN TO ENGINE CROSS MEMBER | ||
| 366 | N 000934010000 | NUT |
| HORN TO ENGINE CROSS MEMBER | ||
| 369 | A 3219950040 | CLAMP |
| HORN CABLE TO RADIATOR FRAME | ||
| 372 | A 0005466141 | CABLE CONNECTOR |
| 6-POLE; REAR | ||
| 375 | A 0005460781 | COVERING |
| WITH GASKET | ||
| 378 | N 007985004129 | SCREW |
| PLUG MOUNTING | ||
| M 4 X20 MM | ||
| 378 | N 007985004160 | SCREW |
| PLUG MOUNTING | ||
| M 4 X 40 MM | ||
| 381 | N 912004004102 | LOCK WASHER |
| PLUG MOUNTING | ||
| 384 | N 009021004103 | WASHER |
| PLUG MOUNTING | ||
| 387 | A 3275425038 | SHIM |
| PLUG MOUNTING | ||
| 390 | N 000934004014 | NUT |
| PLUG MOUNTING | ||
| 393 | A 3455400673 | BRACKET |
| LEFT TAIL LAMP | ||
| 393 | A 3455400773 | BRACKET |
| RIGHT TAIL LAMP | ||
| 408 | N 000933010174 | SCREW |
| TAIL LAMP BRACKET TO FRAME | ||
| M 10X25 | ||
| 408 | N 000933010129 | SCREW |
| TAIL LAMP BRACKET TO FRAME | ||
| M 10X28 | ||
| 411 | N 000127010202 | LOCK WASHER |
| TAIL LAMP BRACKET TO FRAME | ||
| 414 | N 000125010517 | WASHER |
| TAIL LAMP BRACKET TO FRAME | ||
| 417 | N 000934010000 | NUT |
| TAIL LAMP BRACKET TO FRAME | ||

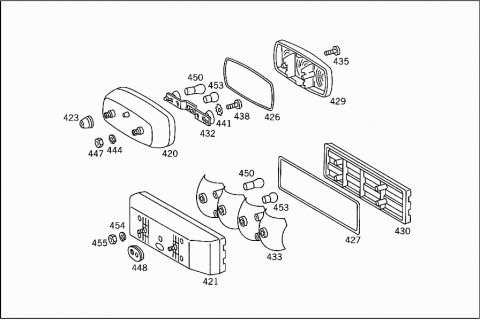

| 420 | A 3455447003 | TAIL LAMP |
| TAIL AND LICENSE PLATE LAMPS | ||
| "IAM" | ||
| 420 | A 3455447203 | TAIL LAMP |
| TAIL AND LICENSE PLATE LAMPS | ||
| "BIANCO SAVINO" | ||
| 420 | A 3455447503 | TAIL LAMP |
| TAIL AND LICENSE PLATE LAMPS | ||
| "POLIMATIC" | ||
| 420 | A 3455447103 | TAIL LAMP |
| RIGHT | ||
| "IAM" | ||
| 420 | A 3455447303 | TAIL LAMP |
| RIGHT | ||
| "BIANCO SAVINO" | ||
| 420 | A 3455447603 | TAIL LAMP |
| RIGHT | ||
| "POLIMATIC" | ||
| 421 | A 0025442403 | TAIL LAMP |
| LEFT | ||
| "HELLA" | ||
| 421 | A 6885447103 | TAIL LAMP |
| LEFT | ||
| "ARTEB" | ||
| 421 | A 0025440803 | TAIL LAMP |
| RIGHT | ||
| "HELLA" | ||
| 421 | A 6885447203 | TAIL LAMP |
| RIGHT | ||
| "ARTEB" | ||
| 423 | A 0445440081 | GROMMET |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 426 | A 0085440080 | GASKET |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 426 | A 0005449380 | GASKET |
| TO 345 544 72 03,73 03;BIANCO SAVINO | ||
| 426 | A 0005449280 | GASKET |
| TO 345 544 75 03,76 03;POLIMATIC | ||
| 427 | A 0005449480 | GASKET |
| TO 002 544 08 03,24 03"HELLA" | ||
| 427 | A 0005449780 | GASKET |
| TO 688 544 71 03,72 03"ARTEB" | ||
| 429 | A 0085440090 | LENS |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 426 | A 0025440390 | LENS |
| TO 345 544 72 03,73 03;BIANCO SAVINO | ||
| 429 | A 0025440290 | LENS |
| TO 345 544 75 03,76 03;POLIMATIC | ||
| 430 | A 0025440790 | LENS |
| WITH SCREWS | ||
| TO 002 544 08 03,24 03"HELLA" | ||
| 430 | A 0025441890 | LENS |
| TO 688 544 71 03,72 03"ARTEB" | ||
| 432 | A 0085440093 | LAMP SOCKET |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 433 | A 0005448492 | REFLECTOR |
| LEFT | ||
| TO 688 544 71 03,"ARTEB" | ||
| 433 | A 0005448592 | REFLECTOR |
| RIGHT | ||
| TO 688 544 72 03,"ARTEB" | ||
| 435 | N 007985006240 | SCREW |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 438 | N 007985004181 | SCREW |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 441 | N 006797004132 | TOOTHED WASHER |
| TO 345 544 70 03,345 544 71 03;IAM | ||
| 444 | N 000127008206 | LOCK WASHER |
| 447 | N 000934008000 | NUT |
| 448 | A 6675460137 | GROMMET |
| TAIL LAMP | ||
| 450 | N 072601012190 | BULB |
| 12V/21W | ||
| 450 | N 072601012190 | BULB |
| 12V/21W | ||
| 453 | N 072601012702 | BULB |
| 12V/10W | ||
| 453 | N 072601012702 | BULB |
| 12V/10W | ||
| A 6885447076 | WASHER | |
| TAIL LAMP TO BRACKET | ||
| N 009021008102 | WASHER | |
| TAIL LAMP TO BRACKET | ||
| 454 | N 000127008203 | LOCK WASHER |
| TAIL LAMP TO BRACKET | ||
| 455 | N 000934008013 | NUT |
| TAIL LAMP TO BRACKET | ||
| 456 | A 3445447038 | BRACKET |
| TAIL LIGHT | ||
| 459 | A 0005445503 | TAIL LAMP |
| STOP LIGHT AND LICENSE PLATE | ||
| HELLA | ||
| 459 | A 3445447003 | TAIL LAMP |
| STOP LIGHT AND LICENSE PLATE | ||
| IAM | ||
| 459 | A 0005445603 | TAIL LAMP |
| BLINKER AND STOP LIGHTS | ||
| HELLA | ||
| 459 | A 3445447103 | TAIL LAMP |
| STOP AND BLINKER LAMPS | ||
| IAM | ||
| 462 | A 0445440080 | GASKET |
| HELLA | ||
| 465 | A 0445440089 | RIM |
| HELLA | ||
| 468 | A 0445440180 | GASKET |
| HELLA | ||
| 471 | A 0445440081 | GROMMET |
| HELLA | ||
| 474 | N 007985005140 | SCREW |
| HELLA | ||
| 477 | N 000125005313 | WASHER |
| HELLA | ||
| 480 | N 000933010129 | SCREW |
| TAIL LAMP TO SIDE MEMBER | ||
| 483 | N 000127010202 | LOCK WASHER |
| TAIL LAMP TO SIDE MEMBER | ||
| 486 | N 000934010000 | NUT |
| TAIL LAMP TO SIDE MEMBER | ||
| 489 | N 072601012701 | BULB |
| 12V/5 W | ||
| 489 | A 3085440394 | BULB |
| 12V/5 W | ||
| 492 | A 3085427106 | SPEEDOMETER |
| HORASA | ||
| 492 | A 3085427006 | SPEEDOMETER |
| VDO | ||
| 492D | A 3445427410 | TACHOGRAPH |
| VDO | ||
| 493 | A 0005400366 | SOCKET |
| 494 | A 0015443894 | BULB |
| A 3445427194 | DIAGRAM PAPER | |
| SET = 10 PACKS OF 7 PIECES | ||

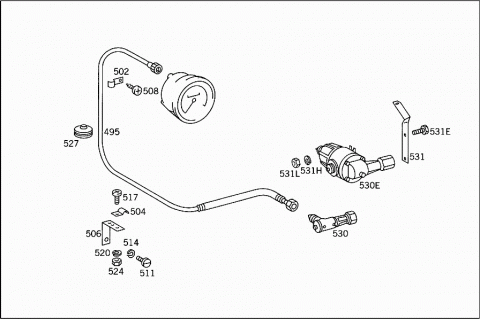

| 495 | A 3085427007 | FLEXIBLE SHAFT |
| 495 | A 0035426907 | FLEXIBLE SHAFT |
| 502 | A 3129952020 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 502 | A 3049951520 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| Repalced by: A 1009950420 | ||
| 502 | A 1009950420 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 504 | A 3049950220 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 506 | A 3525420440 | BRACKET |
| FLEXIBLE SHAFT MOUNTING | ||
| 508 | N 007981004226 | SHEET METAL SCREW |
| FLEXIBLE SHAFT MOUNTING | ||
| 511 | N 007985006515 | SCREW |
| FLEXIBLE SHAFT MOUNTING | ||
| 514 | N 000127006203 | LOCK WASHER |
| FLEXIBLE SHAFT MOUNTING | ||
| 517 | N 007985005168 | SCREW |
| FLEXIBLE SHAFT MOUNTING | ||
| 520 | N 000127005001 | LOCK WASHER |
| FLEXIBLE SHAFT MOUNTING | ||
| 524 | N 000934005008 | NUT |
| FLEXIBLE SHAFT MOUNTING | ||
| 527 | A 3459977481 | GROMMET |
| FLEXIBLE SHAFT THRU TOEBOARD | ||
| 530 | A 3455420530 | ANGLE DRIVE |
| 530 | A 3455420330 | ANGLE DRIVE |
| 530E | A 0015425630 | REDUCTION GEARING |
| 531 | A 3375425140 | BRACKET |
| REDUCTION GEARING | ||
| 531E | N 000933005122 | SCREW |
| REDUCTION GEARING TO BRACKET | ||
| 531H | N 000127005001 | LOCK WASHER |
| REDUCTION GEARING TO BRACKET | ||
| 531L | N 000934005008 | NUT |
| REDUCTION GEARING TO BRACKET | ||

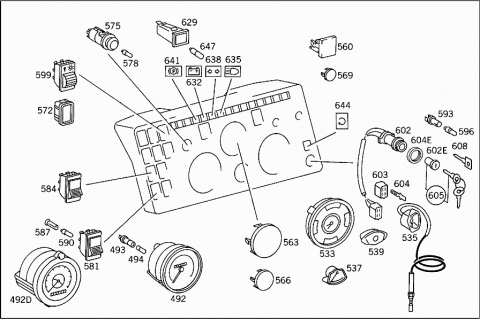

| 533 | A 3455407248 | INSTRUMENT CLUSTER |
| VDO | ||
| 533 | A 3455407848 | INSTRUMENT CLUSTER |
| HORASA | ||
| 535 | A 0035428405 | TEMPERATURE GAUGE |
| TO 345 540 72 48 | ||
| 537 | A 0015422908 | AIR PRESSURE GAUGE |
| TO 345 540 72 48 | ||
| 539 | A 0025428903 | FUEL GAUGE DASH UNIT |
| TO 345 540 72 48 | ||
| 545 | A 0025425917 | SENDER UNIT |
| COOLING WATER TEMPERATURE | ||
| 545 | A 3455427717 | SENDER UNIT |
| COOLING WATER TEMPERATURE | ||
| 545 | A 3455427517 | SENDER UNIT |
| COOLING WATER TEMPERATURE | ||
| 545 | A 3455427417 | SENDER UNIT |
| COOLING WATER TEMPERATURE | ||
| 548 | N 007603014402 | SEAL RING |
| TEMPERATURE GAUGE SENDER UNIT | ||
| 551 | A 0025456324 | SWITCH,AUTOMATIC |
| COOLING WATER | ||
| 551 | A 3455457824 | SWITCH,AUTOMATIC |
| COOLING WATER | ||
| 551 | A 3455458224 | SWITCH,AUTOMATIC |
| COOLING WATER | ||
| 554 | N 007603014402 | SEAL RING |
| TEMPERATURE SWITCH | ||
| 557 | A 3459977290 | LOOM TIE |
| RADIATOR BASE FRAME | ||
| 560 | A 3319977035 | PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 563 | A 3316897008 | COVERING |
| TACHOMETER | ||
| 566 | A 3316897108 | COVERING |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 569 | A 3316897208 | COVERING |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 572 | A 3645457083 | CAP |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 575 | A 3645457524 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT SWITCH | ||
| 578 | N 072601012800 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 581 | A 3505457214 | SWITCH |
| PANE WIPER | ||
| 584 | A 3505458214 | SWITCH |
| (LIGHT SWITCH) | ||
| 587 | A 0005446293 | LAMP SOCKET |
| PUSHBUTTON SWITCH | ||
| KOSTAL | ||
| 590 | N 072601012230 | BULB |
| Repalced by: A 6885447093 | ||
| 590 | A 6885447093 | LAMP SOCKET |
| PUSHBUTTON SWITCH | ||
| 593 | A 3455440193 | LAMP SOCKET |
| HEATING CONTROL LIGHTING | ||
| 593 | A 3455447093 | LAMP SOCKET |
| HEATING CONTROL LIGHTING | ||
| 596 | N 072601012800 | BULB |
| HEATING CONTROL LIGHTING | ||
| 599 | A 3645427325 | POTENTIOMETER |
| Repalced by: A 3645427525 | ||
| 599 | A 3645427525 | POTENTIOMETER |
| INSTRUMENT PANEL | ||
| 602 | A 3455457213 | SWITCH |
| IGNITION/STARTING SWITCH | ||
| 602E | A 0005450042 | FOLLOWER |
| IGNITION/STARTING SWITCH | ||
| 603 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 604 | A 0025451428 | PLUG |
| 604E | A 0005422172 | NUT |
| IGNITION/STARTING SWITCH | ||
| TO 345 545 72 13 | ||
| 605 | A 3458937003 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| "HAGA" | ||
| 605 | A 3458937103 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| "UNIVEL" | ||
| 608 | A 0007668306 | KEY |
| BLANK | ||
| "HAGA" | ||
| 608 | A 0007668506 | KEY |
| BLANK | ||
| "UNIVEL" | ||
| 611 | A 3445427119 | RELAY |
| STARTING MOTOR | ||
| 611 | A 3455427019 | RELAY |
| STARTING MOTOR | ||
| 614 | A 3505407073 | BRACKET |
| DECLUTCHING START RELAY | ||
| 617 | A 3449908197 | RIVET |
| BRACKET TO WINDOW LEVEL GIRDER UPPER PART | ||
| 620 | N 007985005183 | SCREW |
| RELAY TO BRACKET | ||
| 623 | N 000127005001 | LOCK WASHER |
| RELAY TO BRACKET | ||
| 626 | N 000934005008 | NUT |
| RELAY TO BRACKET | ||
| 629 | A 3455457115 | TELL-TALE LAMP |
| LESS LENS | ||
| 632 | A 3445458290 | LENS |
| CHARGE CONTROL | ||
| 632 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 635 | A 3445458890 | LENS |
| HIGH BEAM | ||
| 638 | A 3445457990 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 641 | A 3445458390 | LENS |
| PARKING BRAKE | ||
| 644 | A 3455457790 | LENS |
| SWITCH BOX | ||
| 647 | N 072601012800 | BULB |
| TELL-TALE LAMP | ||
| 647 | N 072601012800 | BULB |
| CHARGE CONTROL | ||
| 647 | N 072601012900 | BULB |
| CHARGE CONTROL | ||
| 650 | A 3085447132 | SENDER UNIT |
| BLINKER SYSTEM | ||
| 653 | N 007985006127 | SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 656 | N 006797006145 | TOOTHED WASHER |
| BLINKER SENDER UNIT MOUNTING | ||
| 659 | N 000934006006 | NUT |
| BLINKER SENDER UNIT MOUNTING | ||
| 662 | A 3455457524 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 665 | A 3129952020 | CLAMP |
| BRIGHT LIGHT CABLE TO STEERING COLUMN | ||
| 668 | N 007985005168 | SCREW |
| BRIGHT LIGHT CABLE TO STEERING COLUMN | ||
| 671 | N 000127005001 | LOCK WASHER |
| BRIGHT LIGHT CABLE TO STEERING COLUMN | ||
| 674 | N 000934005008 | NUT |
| BRIGHT LIGHT CABLE TO STEERING COLUMN | ||
| 677 | A 3455457018 | RESISTOR |
| 680 | N 000933006223 | SCREW |
| RESISTOR | ||
| 683 | N 912004006100 | LOCK WASHER |
| RESISTOR | ||
| 686 | A 3445427119 | RELAY |
| HIGH BEAM | ||
| 686 | A 3455427019 | RELAY |
| HIGH BEAM | ||
| 689 | N 007985005183 | SCREW |
| CONTACTOR | ||
| 692 | N 000127005001 | LOCK WASHER |
| CONTACTOR | ||
| 695 | N 000934005008 | NUT |
| CONTACTOR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
