Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306

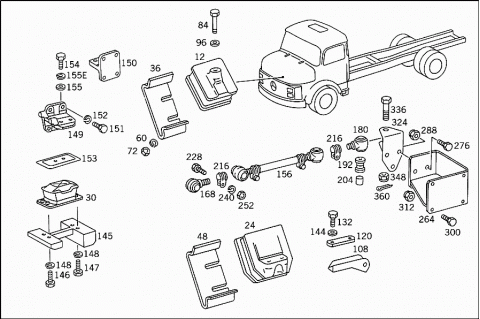

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 3522400417 | RUBBER MOUNTING |
| FRONT | ||
| 012 | A 3452400317 | RUBBER MOUNTING |
| FRONT | ||
| 012 | A 3452407017 | RUBBER MOUNTING |
| ENGINE SUSPENSION | ||
| 024 | A 3522400318 | RUBBER MOUNTING |
| REAR | ||
| 024 | A 3452400018 | RUBBER MOUNTING |
| REAR | ||
| 030 | A 3812400618 | RUBBER MOUNTING |
| ENGINE MOUNTING | ||
| 030 | A 3812400718 | RUBBER MOUNTING |
| ENGINE MOUNTING | ||
| 036 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 048 | A 3522420409 | ENGINE STAY |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 060 | N 000127012201 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 060 | N 000127012201 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 072 | N 000934012004 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 072 | N 000934012004 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 084 | N 000960016036 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M 16X60 | ||
| 096 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 108 | A 3442410035 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 120 | A 3529940032 | LOCK |
| ENGINE TO REAR RUBBER MOUNTING | ||
| 132 | N 000961014069 | SCREW |
| ENGINE TO REAR RUBBER MOUNTING | ||
| M 14X45 | ||
| 144 | A 3609901840 | WASHER |
| ENGINE TO REAR RUBBER MOUNTING | ||
| 145 | A 3762400026 | INTERMEDIATE PIECE |
| ENGINE MOUNTING TO CONSOLE | ||
| 146 | N 000961012209 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M12X50 | ||
| 147 | N 000961012212 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M12X75 | ||
| 148 | N 912004012100 | LOCK WASHER |
| ENGINE MOUNTING TO CONSOLE | ||
| 149 | A 3812420205 | SUPPORTING ARM |
| ENGINE LEFT REAR MOUNTING | ||
| 150 | A 3812420305 | SUPPORTING ARM |
| ENGINE RIGHT REAR MOUNTING | ||
| 151 | N 000961016098 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M16X40 | ||
| 152 | N 912004016101 | LOCK WASHER |
| SUPPORTING ARM TO BELL HOUSING | ||
| 153 | A 3812420034 | SCREENING PLATE |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 154 | N 000961014101 | SCREW |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| M14X45 | ||
| 155 | A 3459907340 | WASHER |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 155E | N 912004014100 | LOCK WASHER |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 156 | A 3452407125 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 352 240 02 25 | ||
| 168 | A 3459967140 | ROD END |
| 180 | A 3459967040 | ROD END |
| LEFT | ||
| 192 | A 3452427013 | RUBBER MOUNTING |
| 204 | A 3452427050 | BUSHING |
| 216 | A 3459957044 | CLAMP |
| 228 | N 000960008002 | SCREW |
| M 8X40 | ||
| 240 | N 000127008203 | LOCK WASHER |
| 252 | N 000934008007 | NUT |
| 264 | A 3452407040 | BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 276 | N 000933012122 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| M 12X30 | ||
| 288 | N 913004012012 | NUT |
| BEARING BRACKET TO BRACKET | ||
| 300 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 312 | N 913004010004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 324 | A 3452400035 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 336 | A 3522420071 | SCREW |
| PULL ROD TO BEARING BRACKET | ||
| 348 | N 000979016000 | NUT |
| PULL ROD TO BEARING BRACKET | ||
| 360 | N 000094004056 | COTTER PIN |
| PULL ROD TO BEARING BRACKET | ||
| 4X28 MM |
