Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306

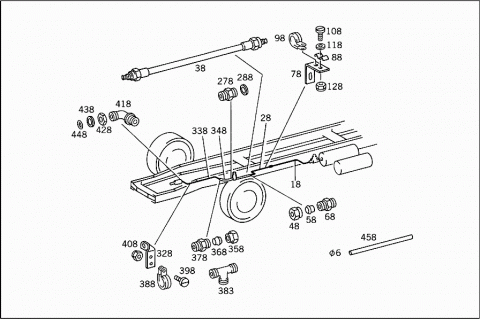

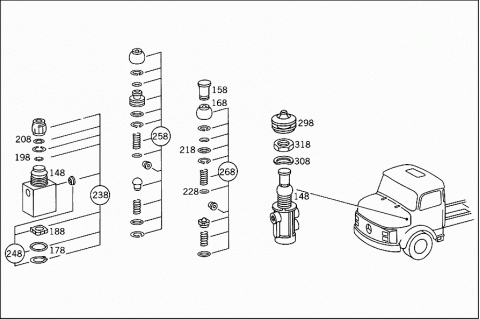

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
018	A 3454209732	LINE
		FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24",TO FITTING
		6X0.7 M
028	A 3454307165	LINE
		FROM FITTING TO VENT VALVE,CONNECTION:
		"1",6X0.7 MM
038	A 3454200048	BRAKE HOSE
		FROM FITTING TO FITTING
048	N 915017006100	UNION NUT
058	N 003861006007	GLAND
068	N 003902006001	CONNECTION FITTING
078	A 3255460343	BRACKET
		COMPRESSED AIR LINE MOUNTING
088	A 3379950032	CLAMP
		COMPRESSED AIR LINE MOUNTING
098	N 916016006201	CLAMP
		COMPRESSED AIR LINE MOUNTING
098	A 3459957801	CLAMP
		COMPRESSED AIR LINE MOUNTING
108	N 007985005171	SCREW
		COMPRESSED AIR LINE MOUNTING
118	N 000125005315	WASHER
		COMPRESSED AIR LINE MOUNTING
128	N 913004005001	NUT
		COMPRESSED AIR LINE MOUNTING
148	A 0004343001	VALVE
		VENT VALVE
		"KNORR"
148	A 3454347101	VALVE
		VENT VALVE
		"WABCO DO BRASIL"
158	A 0009972077	HANDLE
		TO 000 434 24 01
168	A 0004340586	CUP
		TO 000 434 24 01
168	A 0004317387	PROTECTIVE CAP
		TO 000 434 08 01,345 434 71 01
178	A 0109970948	SEAL RING
		TO 000 434 30 01
188	A 0109971048	SEAL RING
		TO 000 434 30 01
198	A 0109971148	SEAL RING
		TO 000 434 30 01
208	A 0109971248	SEAL RING
218	A 0079972448	SEAL RING
		TO 000 434 24 01
228	A 0079972548	SEAL RING
		TO 000 434 24 01
238	A 0014301360	REPAIR KIT
	Repalced by: A 0004304106
238	A 0004304106	REPAIR KIT
		LARGE SCOPE
		TO 000 434 30 01
248	A 0014301460	REPAIR KIT
		SMALL SCOPE
		TO 000 434 30 01
258	H 983455860943	REPAIR KIT
	Repalced by: A 0034301281
258	A 0034301281	REPAIR KIT
		SMALL SCOPE
		TO 345 434 71 01
258	A 0005869743	REPAIR KIT
		LARGE SCOPE
		TO 345 434 71 01
268	A 0025869843	REPAIR KIT
		TO 000 434 24 01
278	A 3454298136	CONNECTOR
		VENT VALVE
288	N 007603012106	SEAL RING
		VENT VALVE
298	A 3459977081	GROMMET
		VENT VALVE TO SIDE MEMBER SHELL
308	N 000137027201	SPRING WASHER
		VENT VALVE TO SIDE MEMBER SHELL
318	N 074305026202	NUT
		VENT VALVE TO SIDE MEMBER SHELL
328	A 3525420840	BRACKET
		COMPRESSED AIR LINE MOUNTING
338	A 3454208035	LINE
		FROM CONNECTION FITTING TO COMPRESSED AIR CYLINDER
		6X0.7 MM
348	A 3454200048	BRAKE HOSE
		FROM VENT VALVE CONNECTION "2" TO FITTING
358	N 915017006100	UNION NUT
368	N 003861006007	GLAND
378	N 003902006001	CONNECTION FITTING
383	A 0009903470	T-FITTING
		TWO-SPEED REAR AXLE CONTROL
383	N 003908006001	T-FITTING
		TWO-SPEED REAR AXLE CONTROL
388	N 916016006201	CLAMP
		COMPRESSED AIR LINE MOUNTING
388	A 3459957801	CLAMP
		COMPRESSED AIR LINE MOUNTING
398	N 007985006515	SCREW
		COMPRESSED AIR LINE MOUNTING
408	N 913004006001	NUT
		COMPRESSED AIR LINE MOUNTING
418	A 3454297438	ELBOW FITTING
		AT COMPRESSED AIR CYLINDER,ENGINE
428	N 080705012003	NUT
		AT COMPRESSED AIR CYLINDER,ENGINE
438	A 0004290827	THRUST RING
	Repalced by: A 0009940103
438	A 0009940103	THRUST RING
		AT COMPRESSED AIR CYLINDER,ENGINE
448	A 0019875046	SEALING CORD
		AT COMPRESSED AIR CYLINDER,ENGINE
458	A 3084299401	LINE
		6 X 0.7 MM
