Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306

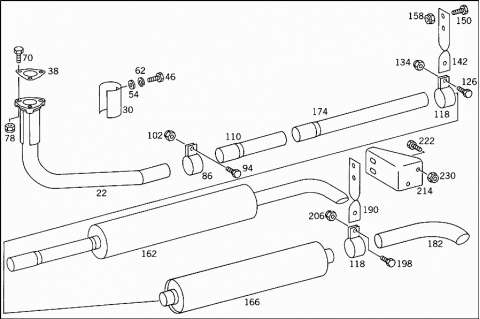

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 022 | A 3454908319 | EXHAUST PIPE |
| FRONT | ||
| 022 | A 3454909319 | EXHAUST PIPE |
| FRONT | ||
| 030 | A 3224920530 | PROTECTIVE PLATE |
| 038 | A 3444920080 | FLANGE GASKET |
| 046 | N 000933006223 | SCREW |
| HEAT SHIELD MOUNTING | ||
| 054 | N 000125006420 | WASHER |
| HEAT SHIELD MOUNTING | ||
| 062 | N 000127006203 | LOCK WASHER |
| HEAT SHIELD MOUNTING | ||
| 070 | N 000931012251 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 078 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 086 | N 071555075500 | CLAMP |
| EXHAUST PIPE | ||
| 094 | N 000933010269 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 102 | N 913004010004 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 110 | A 3604920107 | CONNECTOR |
| FRONT | ||
| 118 | N 071555075500 | CLAMP |
| EXHAUST PIPE | ||
| 126 | N 000933010269 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 134 | N 913004010004 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 142 | A 3454927341 | BRACKET |
| EXHAUST PIPE | ||
| 150 | N 000933008288 | SCREW |
| BRACKET TO SUPPORT | ||
| 158 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 162 | A 3454908515 | EXHAUST MUFFLER WITH PIPE |
| 166 | A 3604900001 | EXHAUST MUFFLER |
| 166 | A 3454907801 | EXHAUST MUFFLER |
| 174 | A 3454927402 | FRONT EXHAUST PIPE |
| 182 | A 3454927904 | REAR EXHAUST PIPE |
| 190 | A 3454927341 | BRACKET |
| EXHAUST PIPE | ||
| 198 | N 000933008288 | SCREW |
| BRACKET TO SUPPORT | ||
| 206 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 214 | A 3454917316 | SUPPORT |
| EXHAUST PIPE | ||
| 222 | N 000933008288 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 230 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER |
