Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306

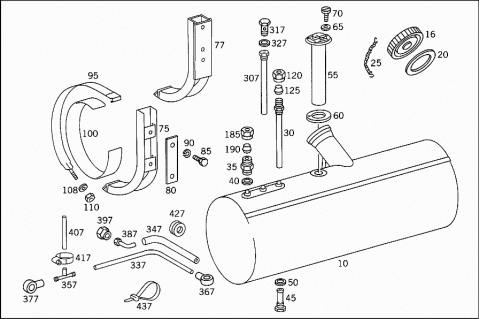

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3444709001 | FUEL TANK |
| LESS SENDER UNIT | ||
| 140 L | ||
| 010 | A 3444707902 | FUEL TANK |
| LESS SENDER UNIT | ||
| 140 L | ||
| 010 | A 3444706101 | FUEL TANK |
| LESS SENDER UNIT | ||
| 016 | A 3444700205 | FILLER CAP |
| 020 | A 3444710679 | SEAL RING |
| 025 | A 3034700031 | CHAIN |
| 030 | A 3444700126 | RISING PIPE |
| 035 | A 3214710220 | FITTING |
| 040 | N 007603016301 | SEAL RING |
| RISING PIPE AND SCREW FITTING TO FUEL TANK | ||
| 045 | A 3504700006 | FUEL STRAINER |
| 050 | A 0029977245 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 055 | A 0015426117 | SENDER UNIT |
| Repalced by: A 3455427617 | ||
| 055 | A 3455427617 | SENDER UNIT |
| Repalced by: A 3455427917 | ||
| 055 | A 3455427917 | SENDER UNIT |
| TANK | ||
| 055 | A 3445427217 | SENDER UNIT |
| TANK | ||
| 060 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 065 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 070 | N 007985005171 | SCREW |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 075 | A 3224700542 | SUPPORT |
| FUEL TANK | ||
| 077 | A 3444708042 | SUPPORT |
| FUEL TANK | ||
| 080 | A 3224750184 | SHIM |
| CONSOLE TO SIDE MEMBER | ||
| 085 | N 000961014106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 090 | N 000127014201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 095 | A 3454700140 | STRAP |
| FUEL TANK | ||
| 100 | A 3459837391 | CARDBOARD |
| FUEL TANK TO CONSOLE | ||
| 100 | A 3454757384 | SHIM |
| FUEL TANK TO CONSOLE | ||
| 108 | N 000125013012 | WASHER |
| FUEL TANK TO CONSOLE | ||
| 110 | N 000934012004 | NUT |
| FUEL TANK TO CONSOLE | ||
| 115 | A 3454709364 | LINE |
| FROM FUEL TANK TO RUBBER HOSE | ||
| 120 | N 915017010200 | UNION NUT |
| 125 | A 3449907067 | SEAL CONE |
| 130 | A 3444760126 | HOSE |
| CONNECTION OF FUEL LINES ONE BELOW THE OTHER | ||
| 135 | N 900288017000 | CLAMP |
| 135 | A 3509970290 | CLAMP |
| 140 | A 3440700032 | LINE |
| FROM RUBBER HOSE TO FEED PUMP | ||
| 142 | A 3454767024 | CONNECTOR |
| FUEL LINE TO FEED PUMP | ||
| 145 | N 915036010100 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 150 | N 007603014104 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 155 | A 3444702864 | LINE |
| FROM FUEL FILTER TO RUBBER HOSE | ||
| 160 | N 915017010200 | UNION NUT |
| 165 | A 3449907067 | SEAL CONE |
| 170 | A 3444760126 | HOSE |
| CONNECTION OF FUEL LINES ONE BELOW THE OTHER | ||
| 175 | N 900288017000 | CLAMP |
| 175 | A 3509970290 | CLAMP |
| 180 | A 3454709664 | LINE |
| FROM RUBBER HOSE TO FUEL TANK | ||
| 185 | N 915017010200 | UNION NUT |
| 190 | A 3449907067 | SEAL CONE |
| 195 | A 3440780081 | HOSE |
| Repalced by: A 3769978182 | ||
| 195 | A 3769978182 | HOSE |
| FUEL LINE TO CYLINDER HEAD | ||
| 200 | N 916002010100 | CLAMP |
| FUEL LINE TO CYLINDER HEAD | ||
| 205 | A 3444708665 | LINE |
| FROM CYLINDER HEAD TO RUBBER HOSE | ||
| 210 | A 3444760126 | HOSE |
| CONNECTION OF FUEL LINES ONE BELOW THE OTHER | ||
| 215 | N 900288017000 | CLAMP |
| 215 | A 3509970290 | CLAMP |
| 220 | A 3454709764 | LINE |
| FROM RUBBER HOSE TO FUEL TANK | ||
| 225 | N 915017010200 | UNION NUT |
| 230 | A 3449907067 | SEAL CONE |
| 235 | A 3444760336 | BRACKET |
| FUEL LINE | ||
| 240 | A 3125420038 | SHIM |
| Repalced by: A 3184924841 | ||
| 240 | A 3184924841 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 245 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 245 | N 000933010174 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 245 | N 000933010294 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X20 | ||
| 250 | N 000125010517 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 255 | N 000127010202 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 260 | N 000934010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 265 | A 3124761236 | BRACKET |
| FUEL LINE | ||
| 270 | A 3129950232 | CLAMP |
| LINES TO BRACKET | ||
| 270 | A 0009950805 | CLAMP |
| LINES TO BRACKET | ||
| 273 | A 0009950905 | CLAMP |
| LINE MOUNTING | ||
| 275 | N 007985006502 | SCREW |
| CLAMP TO BRACKET | ||
| 278 | N 000933006221 | SCREW |
| CLAMP TO BRACKET | ||
| 280 | N 000127006203 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 283 | N 009021006103 | WASHER |
| CLAMP TO BRACKET | ||
| 285 | N 000934006006 | NUT |
| CLAMP TO BRACKET | ||
| 292 | N 913004006001 | NUT |
| CLAMP TO BRACKET | ||
| 297 | A 3444297040 | BRACKET |
| FUEL LINE | ||
| 297 | A 3464295840 | BRACKET |
| FUEL LINE | ||
| 297 | A 3524290740 | BRACKET |
| FUEL LINE | ||
| 302 | N 000933008288 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 305 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 307 | A 3444707226 | RISING PIPE |
| 317 | N 915036012150 | HOLLOW SCREW |
| 327 | N 007603016301 | SEAL RING |
| 327 | N 007603016301 | SEAL RING |
| 327 | N 007603016105 | SEAL RING |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PLASTIC PIPING | ||
| 337 | A 0089975482 | HOSE |
| FROM FUEL TANK TO ENGINE | ||
| 347 | N 040621012208 | INSULATING HOSE |
| 10 MM | ||
| 347 | N 040621012207 | INSULATING HOSE |
| 10 MM | ||
| 357 | A 3084767023 | DISTRIBUTOR |
| 367 | A 0009905088 | BANJO UNION |
| 377 | N 915052008006 | BANJO UNION |
| 8/14 MM | ||
| 387 | A 3084767124 | CONNECTOR |
| 397 | N 915017010200 | UNION NUT |
| 407 | A 3084767026 | HOSE |
| Repalced by: A 3449977582 | ||
| 407 | A 3449977582 | HOSE |
| Repalced by: A 3769978182 | ||
| 407 | A 3769978182 | HOSE |
| 407 | A 3449977582 | HOSE |
| Repalced by: A 3769978182 | ||
| 407 | A 3769978182 | HOSE |
| 417 | N 916002010100 | CLAMP |
| 417 | N 916002010100 | CLAMP |
| 427 | A 4069975081 | GROMMET |
| 437 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 437 | A 3459977390 | LOOM TIE |
| 195 MM | ||
