Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306

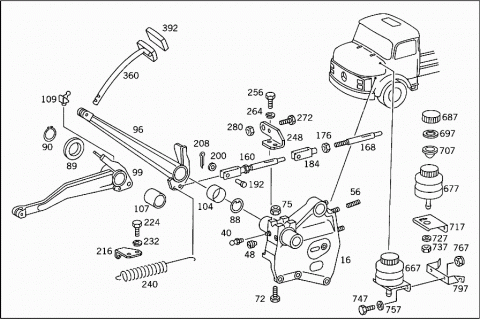

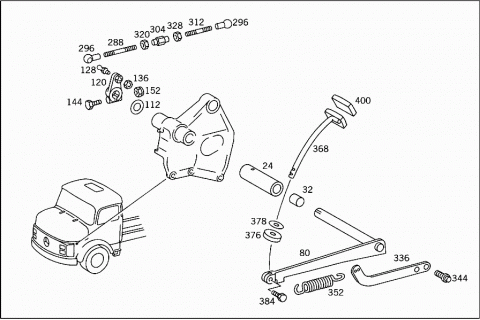

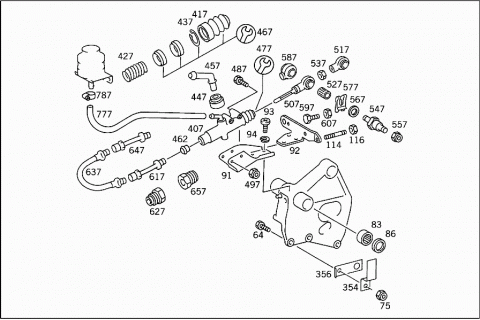

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 016 | A 3452907419 | BEARING BRACKET |
| Repalced by: A 3452907619 | ||
| 016 | A 3452907619 | BEARING BRACKET |
| 016 | A 3762907019 | BEARING BRACKET |
| 024 | A 3442907036 | BEARING TUBE |
| 032 | A 3442940150 | BUSHING |
| 040 | N 071412010100 | GREASE NIPPLE |
| 048 | A 3529900080 | SCREW |
| 056 | N 000835008061 | STUD |
| 064 | N 000933010258 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 10X40 | ||
| 064 | N 000933010261 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 10X45 | ||
| 064 | N 000933010261 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 10X45 | ||
| 064 | N 000933010273 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 10X50 | ||
| 072 | N 000933010269 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 072 | N 000933010129 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 075 | N 913004010004 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 080 | A 3452907016 | PEDAL |
| CLUTCH PEDAL | ||
| 080 | A 3762907016 | PEDAL |
| CLUTCH PEDAL | ||
| 083 | A 3769817010 | NEEDLE BEARING |
| 086 | A 3769977047 | SEAL RING |
| 088 | A 3202940051 | SPACER RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 088 | A 3202940151 | SPACER RING |
| AS REQUIRED | ||
| 3.25 MM | ||
| 088 | A 3202940251 | SPACER RING |
| AS REQUIRED | ||
| 3.50 MM | ||
| 089 | A 3762920052 | SPACER WASHER |
| PEDAL TO BEARING BRACKET | ||
| 090 | N 000471040002 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 090 | N 000471025002 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 091 | A 3762920004 | BEARING BRACKET |
| 092 | A 3762920130 | STOP |
| 092 | A 3762920030 | STOP |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 093 | N 007984010035 | SCREW |
| BEARING TO PEDAL BEARING BRACKET | ||
| 094 | N 007980010003 | LOCK WASHER |
| BEARING TO PEDAL BEARING BRACKET | ||
| 096 | A 3452907118 | PEDAL |
| BRAKE PEDAL | ||
| 099 | A 3762901118 | PEDAL |
| BRAKE PEDAL | ||
| 099 | A 3762900918 | PEDAL |
| BRAKE PEDAL | ||
| 104 | A 3452927050 | BUSHING |
| 107 | A 3442920150 | BUSHING |
| 109 | N 071412010200 | GREASE NIPPLE |
| 112 | A 3039910345 | RING |
| 114 | N 900190012005 | THREADED PIN |
| STOP LIGHT SWITCH | ||
| 116 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 116 | N 000936012005 | NUT |
| STOP LIGHT SWITCH | ||
| 120 | A 3762900034 | LEVER |
| CLUTCH | ||
| 128 | A 3529910415 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 128 | A 3029910015 | BALL PIVOT |
| 136 | N 000934012000 | NUT |
| 144 | N 000931010080 | SCREW |
| CLUTCH LEVER TO CLUTCH PEDAL LEVER | ||
| 152 | N 913004010004 | NUT |
| CLUTCH LEVER TO CLUTCH PEDAL LEVER | ||
| 160 | A 3452908439 | ROD |
| BRAKE LEVER | ||
| 168 | A 3762950033 | ROD |
| BRAKE LEVER | ||
| 176 | N 000934012009 | NUT |
| BRAKE LEVER | ||
| 184 | A 3769960001 | YOKE |
| BRAKE LEVER | ||
| 192 | A 3529910007 | PIN |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 200 | N 000433010500 | WASHER |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 208 | N 000094003212 | COTTER PIN |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 216 | A 3452920040 | BRACKET |
| RELEASE SPRING | ||
| 216 | A 3762910040 | BRACKET |
| RELEASE SPRING | ||
| 224 | N 000933008268 | SCREW |
| BATTERY TO LEFT CAB CONSOLE | ||
| 232 | N 912004008100 | LOCK WASHER |
| BATTERY TO LEFT CAB CONSOLE | ||
| 240 | A 3609930210 | SPRING |
| BRAKE PEDAL | ||
| 240 | A 3529931010 | SPRING |
| BRAKE PEDAL | ||
| 248 | A 3452920130 | STOP |
| BRAKE PEDAL | ||
| 256 | N 000933010294 | SCREW |
| STOP TO BEARING BRACKET | ||
| 264 | N 000127010202 | LOCK WASHER |
| STOP TO BEARING BRACKET | ||
| 272 | N 000933010174 | SCREW |
| BRAKE PEDAL CONTROL | ||
| 280 | N 000934010035 | NUT |
| BRAKE PEDAL CONTROL | ||
| 288 | A 3219961425 | ROD |
| FRONT | ||
| 296 | N 071805016101 | BALL SOCKET |
| CLUTCH OPERATION | ||
| 304 | N 001479010000 | TURNBUCKLE |
| 312 | A 3219961525 | ROD |
| REAR | ||
| 320 | N 000934010000 | NUT |
| LEFT | ||
| 328 | N 000934010000 | NUT |
| CLUTCH OPERATION | ||
| 336 | A 3522910732 | LEVER |
| Repalced by: A 3762907034 | ||
| 336 | A 3762907034 | LEVER |
| RELEASE SPRING | ||
| 336 | A 3762910032 | LEVER |
| CLUTCH PEDAL | ||
| 344 | A 3452917074 | PIN |
| Repalced by: A 3509917020 | ||
| 344 | A 3509917020 | BALL PIVOT |
| RELEASE SPRING | ||
| 344 | A 3522910674 | PIN |
| LEVER TO PEDAL BEARING BRACKET | ||
| 352 | A 3529931310 | SPRING |
| CLUTCH PEDAL | ||
| 352 | A 3129931510 | SPRING |
| CLUTCH PEDAL | ||
| 354 | A 3762910741 | STOP |
| PEDAL BEARING BRACKET | ||
| 356 | A 3762910240 | BRACKET |
| PEDAL BEARING BRACKET | ||
| 360 | A 3452907224 | PEDAL PLATE |
| BRAKE PEDAL | ||
| 360 | A 3452907524 | PEDAL PLATE |
| BRAKE PEDAL | ||
| 368 | A 3452907024 | PEDAL PLATE |
| CLUTCH PEDAL | ||
| 368 | A 3452907724 | PEDAL PLATE |
| CLUTCH PEDAL | ||
| 368 | A 3452907824 | PEDAL PLATE |
| CLUTCH PEDAL | ||
| 376 | A 3122911197 | SEAL WASHER |
| CAB FLOOR SEALING | ||
| 378 | A 3222930077 | WASHER |
| 384 | N 000933010174 | SCREW |
| PEDAL TO PEDAL LEVER | ||
| 392 | A 3202925082 | PAD |
| (CLUTCH PEDAL) | ||
| 392 | A 3452917082 | PAD |
| (CLUTCH PEDAL) | ||
| 400 | A 3052910182 | PAD |
| (BRAKE PEDAL) | ||
| 407 | A 0002958206 | MASTER CYLINDER |
| CLUTCH | ||
| 407 | A 3452957006 | MASTER CYLINDER |
| CLUTCH | ||
| 417 | A 0002955483 | BOOT |
| TO 345 295 70 06 | ||
| 427 | A 0049936001 | SPRING |
| TO 000 295 82 06 | ||
| 437 | N 000472024000 | LOCK RING |
| TO 000 295 82 06 | ||
| 447 | A 0009971186 | PLUG |
| TO 000 295 82 06 | ||
| 457 | A 0002950436 | INTERMEDIATE PIECE |
| TO 000 295 82 06 | ||
| 457 | A 0029901671 | ELBOW FITTING |
| TO 345 295 70 06 | ||
| 462 | A 0009978635 | PLUG |
| TO 345 295 70 06 | ||
| 467 | A 0005863529 | REPAIR KIT |
| LESS PISTON | ||
| TO 000 295 82 06 | ||
| 477 | A 0002902667 | REPAIR KIT |
| TO 345 295 70 06 | ||
| 487 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 497 | N 913004006001 | NUT |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 507 | A 3812900739 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 517 | A 0009961045 | ARTICULATION PIECE |
| 517 | A 0009961145 | ARTICULATION PIECE |
| 527 | A 0059814410 | NEEDLE BEARING |
| 527 | A 0059813810 | NEEDLE BEARING |
| 527 | A 0089811210 | NEEDLE BEARING |
| 527 | A 0139818210 | NEEDLE BEARING |
| 537 | N 000934008013 | NUT |
| 547 | A 3762910274 | PIN |
| 557 | N 913004012003 | NUT |
| GUIDE BOLT TO CLUTCH PEDAL LEVER | ||
| 567 | N 000433008403 | WASHER |
| PISTON ROD TO GUIDE BOLT | ||
| 577 | N 912002008001 | LOCK |
| PISTON ROD TO GUIDE BOLT | ||
| 577 | A 3502937073 | LOCK |
| PISTON ROD TO GUIDE BOLT | ||
| 587 | A 3182950383 | BOOT |
| ON PISTON ROD AND PIN | ||
| 597 | N 000933010269 | SCREW |
| STOP | ||
| 607 | N 000934010005 | NUT |
| BEARING COVER TO TRANSMISSION CASE REAR COVER | ||
| 617 | A 3762900513 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 627 | A 0004281072 | UNION SCREW |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 637 | A 0002951735 | HOSE |
| 647 | A 3762900613 | LINE |
| FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER | ||
| 657 | A 0004281072 | UNION SCREW |
| FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER | ||
| 667 | A 3504317002 | RESERVOIR |
| Repalced by: A 3504317102 | ||
| 667 | A 3504317102 | RESERVOIR |
| (RESERVOIR) | ||
| VARGA | ||
| 677 | A 0084310502 | RESERVOIR |
| 687 | A 3084317033 | FILLER CAP |
| Repalced by: A 3644317033 | ||
| 687 | A 3644317033 | FILLER CAP |
| SENSOR TO COVER | ||
| 697 | A 0089970240 | SEAL RING |
| 707 | A 3084317034 | STRAINER |
| 717 | H 983084310140 | BRACKET |
| 727 | H 983084310176 | WASHER |
| 737 | N 000934018012 | NUT |
| 747 | N 000933006220 | SCREW |
| RESERVOIR TO BRACKET | ||
| 757 | N 000125006420 | WASHER |
| RESERVOIR TO BRACKET | ||
| 767 | N 913004006001 | NUT |
| RESERVOIR TO BRACKET | ||
| 777 | A 0009978952 | HOSE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 787 | A 3449977490 | CLAMP |
| 797 | A 3762937040 | BRACKET |
| RESERVOIR TO BRACKET | ||
