Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas

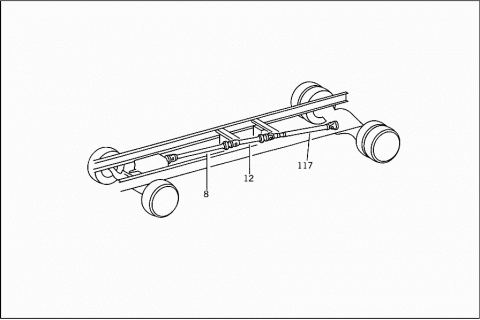

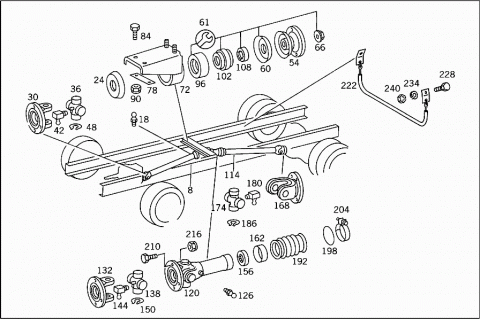

008	A 3444100104	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1436 MM
008	A 3444100204	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1946 MM
008	A 3444100004	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		837 MM
012	A 3444101701	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
		1531 MM
018	N 071412008100	GREASE NIPPLE
024	A 3524130061	PROTECTIVE CAP
030	A 3524110011	DRIVE FLANGE
036	A 3454107031	UNIVERSAL JOINT CROSS
036	A 0004101431	UNIVERSAL JOINT CROSS
042	N 071412008300	GREASE NIPPLE
042	A 3459977288	GREASE NIPPLE
048	A 3449947135	SNAP RING
		AS REQUIRED
		2.500 MM
048	A 3129941135	SNAP RING
		AS REQUIRED
		2.500 MM
048	A 3449947235	SNAP RING
		AS REQUIRED
		2.525 MM
048	A 3449947335	SNAP RING
		AS REQUIRED
		2.550 MM
048	A 3129941635	SNAP RING
		AS REQUIRED
		2.550 MM
048	A 3449947435	SNAP RING
		AS REQUIRED
		2.575 MM
048	A 3449947535	SNAP RING
		AS REQUIRED
		2.600 MM
048	A 3129941335	SNAP RING
		AS REQUIRED
		2.600 MM
048	A 3449947635	SNAP RING
		AS REQUIRED
		2.625 MM
048	A 3449947735	SNAP RING
		AS REQUIRED
		2.650 MM
048	A 3129941435	SNAP RING
		AS REQUIRED
		2.650 MM
048	A 3449947835	SNAP RING
		AS REQUIRED
		2.675 MM
048	A 3449947935	SNAP RING
		AS REQUIRED
		2.7000 MM
048	A 3129941535	SNAP RING
		AS REQUIRED
		2.7000 MM
048	A 3449948035	SNAP RING
		AS REQUIRED
		2.725 MM
048	A 3449948135	SNAP RING
		AS REQUIRED
		2.750 MM
048	A 3129941735	SNAP RING
		AS REQUIRED
		2.750 MM
054	A 3524100130	CENTERING FLANGE
060	A 3524130061	PROTECTIVE CAP
061	A 3084100010	INTERMEDIATE BEARING
		REPAIR KIT
066	A 3449907050	NUT
		FOLLOWER FLANGE TO PROPELLER SHAFT
072	A 3454107340	BRACKET
		INTERMEDIATE BEARING
		"1"
072	A 3454107340	BRACKET
		INTERMEDIATE BEARING
		"2"
072	A 3454107540	BRACKET
		INTERMEDIATE BEARING
		"1"
072	A 3454107540	BRACKET
		INTERMEDIATE BEARING
		"1"
	A 3454100340	BRACKET
	Repalced by: A 3764100040
072	A 3764100040	BRACKET
		INTERMEDIATE BEARING
072	A 3764100040	BRACKET
		INTERMEDIATE BEARING
078	A 3524130011	REINFORCEMENT
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
084	N 000961010039	SCREW
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
090	N 913002010010	NUT
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
096	A 3524130012	RUBBER MOUNTING
102	A 3524100051	BALL BEARING
102	A 3454100051	BALL BEARING
108	A 3124131231	BEARING RING
114	A 3444101402	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1652 MM
114	A 3444101602	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1775 MM
114	A 3444102502	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1618 MM
117	A 3444101802	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING II TO REAR AXLE
		1703 MM
120	A 3444100008	UNIVERSAL JOINT YOKE
126	N 071412008100	GREASE NIPPLE
132	A 3524110011	DRIVE FLANGE
138	A 3454107031	UNIVERSAL JOINT CROSS
138	A 0004101431	UNIVERSAL JOINT CROSS
144	N 071412008300	GREASE NIPPLE
144	A 3459977288	GREASE NIPPLE
150	A 3449947135	SNAP RING
		AS REQUIRED
		2.500 MM
150	A 3129941135	SNAP RING
		AS REQUIRED
		2.500 MM
150	A 3449947235	SNAP RING
		AS REQUIRED
		2.525 MM
150	A 3449947335	SNAP RING
		AS REQUIRED
		2.550 MM
150	A 3129941635	SNAP RING
		AS REQUIRED
		2.550 MM
150	A 3449947435	SNAP RING
		AS REQUIRED
		2.575 MM
150	A 3449947535	SNAP RING
		AS REQUIRED
		2.600 MM
150	A 3129941335	SNAP RING
		AS REQUIRED
		2.600 MM
150	A 3449947635	SNAP RING
		AS REQUIRED
		2.625 MM
150	A 3449947735	SNAP RING
		AS REQUIRED
		2.650 MM
150	A 3129941435	SNAP RING
		AS REQUIRED
		2.650 MM
150	A 3449947835	SNAP RING
		AS REQUIRED
		2.675 MM
150	A 3449947935	SNAP RING
		AS REQUIRED
		2.700 MM
150	A 3129941535	SNAP RING
		AS REQUIRED
		2.700 MM
150	A 3449948035	SNAP RING
		AS REQUIRED
		2.725 MM
150	A 3449948135	SNAP RING
		AS REQUIRED
		2.750 MM
150	A 3129941735	SNAP RING
		AS REQUIRED
		2.750 MM
156	A 3374130080	SEAL RING
162	A 3214110158	SEAL HOLDER
168	A 3524110011	DRIVE FLANGE
174	A 3454107031	UNIVERSAL JOINT CROSS
174	Q 0004101431	PART NAME MISSING
180	N 071412008300	GREASE NIPPLE
180	A 3459977288	GREASE NIPPLE
186	A 3449947135	SNAP RING
		AS REQUIRED
		2.500 MM
186	A 3129941135	SNAP RING
		AS REQUIRED
		2.500 MM
186	A 3449947235	SNAP RING
		AS REQUIRED
		2.525 MM
186	A 3449947335	SNAP RING
		AS REQUIRED
		2.550 MM
186	A 3129941635	SNAP RING
		AS REQUIRED
		2.550 MM
186	A 3449947435	SNAP RING
		AS REQUIRED
		2.575 MM
186	A 3449947535	SNAP RING
		AS REQUIRED
		2.600 MM
186	A 3129941335	SNAP RING
		AS REQUIRED
		2.600 MM
186	A 3449947635	SNAP RING
		AS REQUIRED
		2.625 MM
186	A 3449947735	SNAP RING
		AS REQUIRED
		2.650 MM
186	A 3129941435	SNAP RING
		AS REQUIRED
		2.650 MM
186	A 3449947835	SNAP RING
		AS REQUIRED
		2.675 MM
186	A 3449947935	SNAP RING
		AS REQUIRED
		2.700 MM
186	A 3129941535	SNAP RING
		AS REQUIRED
		2.700 MM
186	A 3449948035	SNAP RING
		AS REQUIRED
		2.725 MM
186	A 3449948135	SNAP RING
		AS REQUIRED
		2.750 MM
186	A 3129941735	SNAP RING
		AS REQUIRED
		2.750 MM
192	A 3524100080	BOOT
192	A 3454107280	BOOT
198	A 3214110053	WIRE RING
204	A 3449979790	CLAMP
204	A 3459979790	CLAMP
210	A 3529900401	SCREW
	Repalced by: A 3529904701
210	A 3529904701	SCREW
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
		M 10 X 1 MM
216	N 913004010014	NUT
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
222	A 3454137244	REBOUND STRAP
228	N 000933010174	SCREW
		RETAINING STRAP TO SIDE MEMBER
234	N 000127010202	LOCK WASHER
		RETAINING STRAP TO SIDE MEMBER
240	N 000934010000	NUT
		RETAINING STRAP TO SIDE MEMBER
