Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306

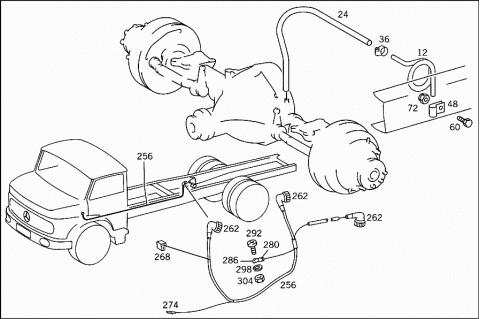

Grupė: 35 REAR AXLE

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		AXLE BREATHING
012	A 3443517066	PIPE
		REAR AXLE
024	A 3449977582	HOSE
	Repalced by: A 3769978182
024	A 3769978182	HOSE
		AXLE BREATHING
036	N 916002010100	CLAMP
048	A 3129951401	CLAMP
		BREATHER PIPE TO SIDE MEMBER
060	N 000933006220	SCREW
		BREATHER PIPE TO SIDE MEMBER
072	N 913004006001	NUT
		BREATHER PIPE TO SIDE MEMBER
	X XXXXXXXXXXXX	PART NAME MISSING

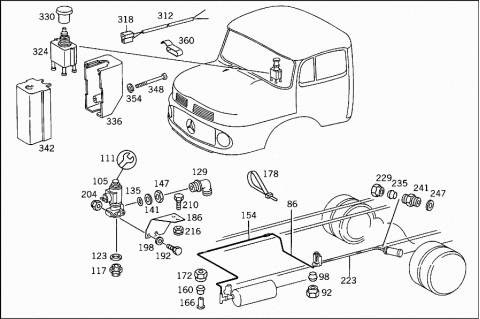

		TWO-SPEED REAR AXLE CONTROL
086	A 3453507480	LINE
		FROM OVERFLOW VALVE TO THREE-WAY VALVE
092	N 915017006100	UNION NUT
098	N 003861006007	GLAND
	A 0019971836	VALVE
	Repalced by: A 0039971736
105	A 0039971736	VALVE
		(3/2-WAY SOLENOID VALVE)
111	A 0015863843	REPAIR KIT
		TO 001 997 18 36
111	A 0004305660	REPAIR KIT
		TO 003 997 17 36,WABCO 472 123 11 10
117	A 0019972572	FITTING
		AT VALVE
117	N 003901008001	SCREW-IN FITTING
		AT VALVE
123	N 007603012113	SEAL RING
		AT VALVE
129	A 3454297438	ELBOW FITTING
		AT VALVE
135	A 0019875046	SEALING CORD
		AT VALVE
141	A 0004290827	THRUST RING
	Repalced by: A 0009940103
141	A 0009940103	THRUST RING
		AT VALVE
147	N 080705012003	NUT
		AT VALVE
154	A 3504207229	LINE
		FROM T-FITTING TO 3/2-WAY SOLENOID VALVE
160	N 003861006007	GLAND
166	N 915062004000	SLEEVE
166	A 0009920105	BUSHING
172	N 915017006100	UNION NUT
178	A 3449977290	LOOM TIE
	Repalced by: A 3459977390
178	A 3459977390	LOOM TIE
		COMPRESSED AIR LINE MOUNTING
186	A 3453537140	BRACKET
		(3/2-WAY SOLENOID VALVE)
192	N 000933008296	SCREW
		SOLENOID VALVE TO BRACKET
198	N 000125008417	WASHER
		SOLENOID VALVE TO BRACKET
204	N 913004008001	NUT
		SOLENOID VALVE TO BRACKET
210	N 000933008282	SCREW
		BRACKET TO CROSS MEMBER
216	N 913004008001	NUT
		BRACKET TO CROSS MEMBER
223	A 3523500379	HOSE
		FROM 3/2-WAY VALVE TO CYLINDER
229	N 915017008100	UNION NUT
235	N 003861008005	GLAND
241	N 003901008001	SCREW-IN FITTING
		ONE-CHAMBER COMPRESSED AIR CYLINDER
241	A 0019972572	FITTING
		ONE-CHAMBER COMPRESSED AIR CYLINDER
247	N 007603012113	SEAL RING
		ONE-CHAMBER COMPRESSED AIR CYLINDER
256	A 3455407337	ELECTRIC CABLE
		TWO-SPEED REAR AXLE CONTROL
262	A 0005400181	PLUG SOCKET
268	A 0025458428	PIN BUSHING HOUSING
		BIPOLAR
274	A 0015458628	PLUG
280	A 0009970381	GROMMET
286	N 046225006102	CABLE SHOE
292	N 007985006515	SCREW
		LINE TO CROSS MEMBER
298	N 000127006203	LOCK WASHER
		LINE TO CROSS MEMBER
304	N 000934006006	NUT
		LINE TO CROSS MEMBER
312	A 3455407236	ELECTRIC CABLE
318	A 0015457028	PLUG HOUSING
	Repalced by: A 0015457928
318	A 0015457928	PLUG HOUSING
		BIPOLAR
324	A 3445457111	SWITCH
		TWO-SPEED REAR AXLE CONTROL
330	A 3765457037	BUTTON
		TWO-SPEED REAR AXLE CONTROL
336	A 0005451245	BOOT
342	A 0005451345	BOOT
348	N 007985004129	SCREW
		HOUSING TO TRANSMISSION SHIFT LEVER
354	N 912004004102	LOCK WASHER
		HOUSING TO TRANSMISSION SHIFT LEVER
360	A 3219950040	CLAMP
		LINE TO CROSS MEMBER
