Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

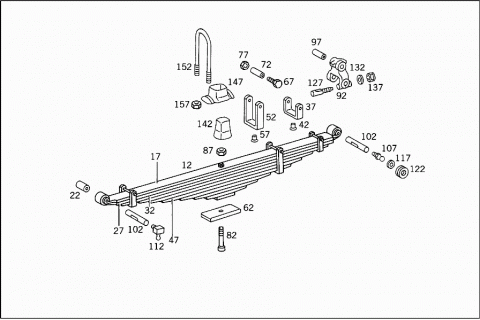

| 012 | A 3523201302 | FRONT SPRING |
| 8-LEAF | ||
| 012 | A 3603200102 | FRONT SPRING |
| 9-LEAF | ||
| 017 | A 3523201294 | SPRING LEAF |
| NO.1 | ||
| 017 | A 3603200394 | SPRING LEAF |
| NO.1 | ||
| 022 | A 3523220050 | BUSHING |
| 022 | A 3853220050 | BUSHING |
| 027 | A 3523210912 | SPRING LEAF |
| NO.2 | ||
| 027 | A 3603210112 | SPRING LEAF |
| NO.2 | ||
| 032 | A 3453207994 | SPRING LEAF |
| NO.3 | ||
| 032 | A 3603200494 | SPRING LEAF |
| NO.3 | ||
| 037 | A 0033212733 | SPRING CLAMP |
| 042 | N 910006008022 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 047 | A 3453207494 | SPRING LEAF |
| NO.6 | ||
| 047 | A 0453200794 | SPRING LEAF |
| NO.6 | ||
| 052 | A 0033213233 | SPRING CLAMP |
| 052 | A 0033212633 | SPRING CLAMP |
| 057 | N 910006008022 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 062 | A 3423220184 | SHIM |
| 062 | A 3603220184 | SHIM |
| 067 | N 000931008382 | SCREW |
| SPRING CLAMP TO SPRING LEAF | ||
| 072 | A 0003212353 | SPACER TUBE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 302 421 01 29 | ||
| 077 | N 000934008000 | NUT |
| SPRING CLAMP TO SPRING LEAF | ||
| 082 | N 004626012100 | SPRING BOLT |
| M 12X145 | ||
| 082 | N 004626012110 | SPRING BOLT |
| M 12X140 | ||
| 087 | N 000934012010 | NUT |
| 092 | A 3523200063 | SHACKLE |
| FRONT SPRING SUSPENSION,REAR | ||
| 097 | A 3523220050 | BUSHING |
| 097 | A 3853220050 | BUSHING |
| 102 | A 3453227030 | SHACKLE PIN |
| FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 107 | N 071412010100 | GREASE NIPPLE |
| FRONT SPRING SUSPENSION,REAR | ||
| 112 | N 071412010300 | GREASE NIPPLE |
| FRONT SPRING SUSPENSION,FRONT | ||
| 117 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 117 | A 3453230376 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 117 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 117 | A 3453230276 | WASHER |
| AS REQUIRED | ||
| 4.25 MM | ||
| 122 | A 0029973140 | SEAL RING |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 127 | A 3529900337 | BOLT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 132 | N 000125010517 | WASHER |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 137 | N 913004010004 | NUT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 142 | A 3523310044 | RUBBER BUFFER |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 147 | A 3523220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 147 | A 3453227224 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 152 | A 3523510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 18X210 MM | ||
| 152 | A 3403510325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 18X230 MM | ||
| 157 | N 000934018002 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

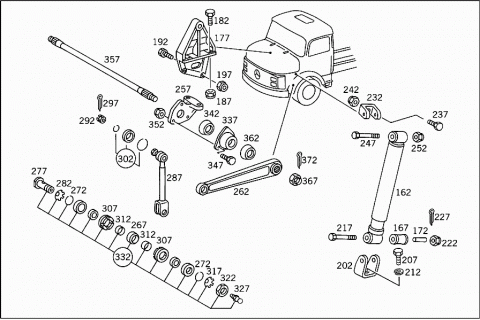

| 162 | A 3453230100 | SHOCK ABSORBER |
| FRONT | ||
| 162 | A 3453237000 | SHOCK ABSORBER |
| FRONT | ||
| 162 | A 3453237500 | SHOCK ABSORBER |
| FRONT | ||
| 167 | A 0003230585 | RUBBER MOUNTING |
| 172 | A 0003230453 | SPACER TUBE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 323 31 50 | ||
| 177 | A 3453230263 | BEARING BRACKET |
| Repalced by: A 3503237163 | ||
| 177 | A 3503237163 | BEARING BRACKET |
| SHOCK ABSORBER | ||
| 182 | N 000933010269 | SCREW |
| TOP BEARING BRACKET TO FRAME | ||
| M 10X35 | ||
| 187 | N 913004010004 | NUT |
| TOP BEARING BRACKET TO FRAME | ||
| 192 | N 000933010129 | SCREW |
| REINFORCEMENT TO FRAME | ||
| 197 | N 913004010004 | NUT |
| REINFORCEMENT TO FRAME | ||
| 202 | A 3523231663 | BEARING BRACKET |
| SHOCK ABSORBER MOUNTING,LEFT BOTTOM | ||
| 202 | A 3523231763 | BEARING BRACKET |
| SHOCK ABSORBER MOUNTING,RIGHT BOTTOM | ||
| 207 | N 000961012009 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 212 | N 000127012201 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 217 | A 3449909901 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 222 | N 913004016005 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 227 | N 000094004056 | COTTER PIN |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 232 | A 3523230340 | BRACKET |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 237 | A 3529903201 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 242 | N 913004020004 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 247 | N 000960016238 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 252 | N 913004016004 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 257 | A 3523231463 | BEARING BRACKET |
| HOLE SPACING: | ||
| 88 MM | ||
| 262 | A 3603230869 | LEVER |
| FRONT AXLE TORSION BAR | ||
| 267 | A 0009810731 | JOINT BEARING |
| TORSION BAR BEARING | ||
| 267 | A 0009810931 | JOINT BEARING |
| TORSION BAR BEARING | ||
| 267 | A 0009816631 | JOINT BEARING |
| TORSION BAR BEARING | ||
| 272 | N 009045035001 | SNAP RING |
| ROD TO LEVER | ||
| 277 | A 3603230274 | PIN |
| ROD TO LEVER | ||
| 282 | N 006797021201 | TOOTHED WASHER |
| ROD TO LEVER | ||
| 287 | A 3453207389 | ROD |
| FRONT AXLE TORSION BAR | ||
| 292 | N 000935014002 | NUT |
| TO 345 320 73 89 | ||
| 297 | N 000094003024 | COTTER PIN |
| TO 345 320 73 89 | ||
| 302 | A 3455867432 | REPAIR KIT |
| TO 345 320 73 89 | ||
| 307 | A 3603230460 | SEAL RING |
| ROD TO LEVER | ||
| 307 | A 3453237260 | SEAL RING |
| ROD TO LEVER | ||
| 312 | A 3603230153 | SPACER TUBE |
| ROD TO LEVER | ||
| 317 | N 006797021101 | TOOTHED WASHER |
| ROD TO LEVER | ||
| 322 | N 000439020203 | NUT |
| ROD TO LEVER | ||
| 327 | N 071412010100 | GREASE NIPPLE |
| TORSION BAR BEARING | ||
| 332 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||
| 337 | A 3523230283 | HOUSING |
| TORSION BAR BEARING | ||
| 342 | A 3453237085 | RUBBER MOUNTING |
| TORSION BAR BEARING | ||
| 347 | N 000933010258 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| M 10X38 | ||
| 352 | N 913004010004 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 357 | A 3603230065 | TORSION BAR |
| FRONT AXLE | ||
| 362 | A 3603230151 | SPACER RING |
| LEVER TO TORSION BAR | ||
| 367 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 372 | N 000094006317 | COTTER PIN |
| LEVER TO TORSION BAR | ||

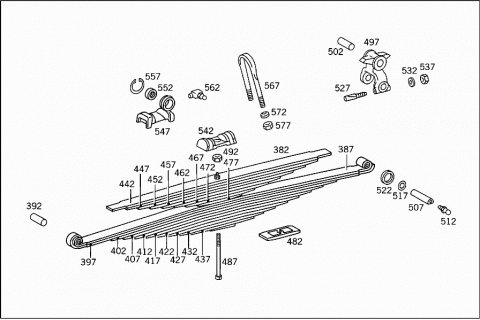

| 382 | A 3523201408 | REAR SPRING |
| 6-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 382 | A 3603200408 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 382 | A 3453207308 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 382 | A 3453200008 | REAR SPRING |
| 10-LEAF;WITH 8-LEAF HELPER SPRING | ||
| 387 | A 3523201693 | SPRING LEAF |
| NO.1 | ||
| 387 | A 3603200193 | SPRING LEAF |
| NO.1 | ||
| 387 | A 3453207193 | SPRING LEAF |
| NO.1 | ||
| 387 | A 3453207194 | SPRING LEAF |
| NO.1 | ||
| 392 | A 3523250150 | BUSHING |
| 392 | A 3853250050 | BUSHING |
| 397 | A 3523241812 | SPRING LEAF |
| NO.2 | ||
| 397 | A 3603240512 | SPRING LEAF |
| NO.2 | ||
| 397 | A 3453247112 | SPRING LEAF |
| NO.2 | ||
| 397 | A 3453240212 | SPRING LEAF |
| NO.2 | ||
| 402 | A 3523241813 | SPRING LEAF |
| NO.3 | ||
| 402 | A 3603240513 | SPRING LEAF |
| NO.3 | ||
| 402 | A 3453247113 | SPRING LEAF |
| NO.3 | ||
| 402 | A 3453240213 | SPRING LEAF |
| NO.3 | ||
| 407 | A 3523241714 | SPRING LEAF |
| NO.4 | ||
| 407 | A 3603240514 | SPRING LEAF |
| NO.4 | ||
| 407 | A 3453247114 | SPRING LEAF |
| NO.4 | ||
| 407 | A 3453240214 | SPRING LEAF |
| NO.4 | ||
| 412 | A 3523241715 | SPRING LEAF |
| NO.5 | ||
| 412 | A 3603240515 | SPRING LEAF |
| NO.5 | ||
| 412 | A 3453247115 | SPRING LEAF |
| NO.5 | ||
| 412 | A 3453240215 | SPRING LEAF |
| NO.5 | ||
| 417 | A 3523241716 | SPRING LEAF |
| NO.6 | ||
| 417 | A 3603240516 | SPRING LEAF |
| NO.6 | ||
| 417 | A 3453247116 | SPRING LEAF |
| NO.6 | ||
| 417 | A 3453240216 | SPRING LEAF |
| NO.6 | ||
| 422 | A 3603240417 | SPRING LEAF |
| NO.7 | ||
| 422 | A 3453247117 | SPRING LEAF |
| NO.7 | ||
| 422 | A 3453240217 | SPRING LEAF |
| NO.7 | ||
| 427 | A 3453240218 | SPRING LEAF |
| NO.8 | ||
| 432 | A 3453240219 | SPRING LEAF |
| NO.9 | ||
| 437 | A 3453240420 | SPRING LEAF |
| NO.10 | ||
| 442 | A 3523241140 | SPRING LEAF |
| HELPER SPRING | ||
| NO.1 | ||
| 442 | A 3603240440 | SPRING LEAF |
| HELPER SPRING | ||
| NO.1 | ||
| 442 | A 3453247040 | SPRING LEAF |
| HELPER SPRING | ||
| NO.1 | ||
| 442 | A 3453240040 | SPRING LEAF |
| HELPER SPRING | ||
| NO.1 | ||
| 447 | A 3523241141 | SPRING LEAF |
| HELPER SPRING | ||
| NO.2 | ||
| 447 | A 3603240441 | SPRING LEAF |
| HELPER SPRING | ||
| NO.2 | ||
| 447 | A 3453247041 | SPRING LEAF |
| HELPER SPRING | ||
| NO.2 | ||
| 447 | A 3453240041 | SPRING LEAF |
| HELPER SPRING | ||
| NO.2 | ||
| 452 | A 3523241042 | SPRING LEAF |
| HELPER SPRING | ||
| NO.3 | ||
| 452 | A 3603240442 | SPRING LEAF |
| HELPER SPRING | ||
| NO.3 | ||
| 452 | A 3453247042 | SPRING LEAF |
| HELPER SPRING | ||
| NO.3 | ||
| 452 | A 3453240042 | SPRING LEAF |
| HELPER SPRING | ||
| NO.3 | ||
| 457 | A 3523241043 | SPRING LEAF |
| HELPER SPRING | ||
| NO.4 | ||
| 457 | A 3603240443 | SPRING LEAF |
| HELPER SPRING | ||
| NO.4 | ||
| 457 | A 3453247043 | SPRING LEAF |
| HELPER SPRING | ||
| NO.4 | ||
| 457 | A 3453240043 | SPRING LEAF |
| HELPER SPRING | ||
| NO.4 | ||
| 462 | A 3523241044 | SPRING LEAF |
| HELPER SPRING | ||
| NO.5 | ||
| 462 | A 3603240444 | SPRING LEAF |
| HELPER SPRING | ||
| NO.5 | ||
| 462 | A 3453247043 | SPRING LEAF |
| HELPER SPRING | ||
| NO.5 | ||
| 462 | A 3453240044 | SPRING LEAF |
| HELPER SPRING | ||
| NO.5 | ||
| 467 | A 3523241045 | SPRING LEAF |
| HELPER SPRING | ||
| NO.6 | ||
| 467 | A 3603240345 | SPRING LEAF |
| HELPER SPRING | ||
| NO.6 | ||
| 467 | A 3453247045 | SPRING LEAF |
| HELPER SPRING | ||
| NO.6 | ||
| 467 | A 3453240045 | SPRING LEAF |
| HELPER SPRING | ||
| NO.6 | ||
| 472 | A 3603240246 | SPRING LEAF |
| HELPER SPRING | ||
| NO.7 | ||
| 472 | A 3453247046 | SPRING LEAF |
| HELPER SPRING | ||
| NO.7 | ||
| 472 | A 3453240046 | SPRING LEAF |
| HELPER SPRING | ||
| NO.7 | ||
| 477 | A 3453240047 | SPRING LEAF |
| HELPER SPRING | ||
| NO.8 | ||
| 482 | A 3523240135 | SPACER |
| 487 | N 004626012133 | SPRING BOLT |
| M 12X225 | ||
| 487 | N 004626012115 | SPRING BOLT |
| M 12X260 | ||
| 487 | A 0003220271 | SCREW |
| 492 | N 000934012010 | NUT |
| 497 | A 3523200163 | SHACKLE |
| REAR-SPRING REAR BRACKET | ||
| 502 | A 3523250150 | BUSHING |
| 502 | A 3853250050 | BUSHING |
| 507 | A 3453257030 | SHACKLE PIN |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 512 | N 071412010100 | GREASE NIPPLE |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 517 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 517 | A 3453230776 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 517 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 517 | A 3453230676 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 522 | A 0029973040 | SEAL RING |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 527 | A 3529900337 | BOLT |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 532 | N 000125010517 | WASHER |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 537 | N 913004010004 | NUT |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 542 | A 3833250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 547 | A 3523200035 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 552 | A 0009810831 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 552 | A 0009811231 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 557 | N 000472055000 | LOCK RING |
| JOINT BEARING TO PLATE | ||
| 562 | N 071412008300 | GREASE NIPPLE |
| TORSION BAR BEARING | ||
| 562 | A 3459977288 | GREASE NIPPLE |
| TORSION BAR BEARING | ||
| 567 | A 3403510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 410 MM | ||
| 567 | A 3583510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 420 MM | ||
| 567 | A 3603510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 440 MM | ||
| 567 | A 3603510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 440 MM | ||
| 567 | A 3273515425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 430 MM | ||
| 567 | A 3583510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 460 MM | ||
| 567 | A 3383515125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 480 MM | ||
| 567 | A 3603510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 500 MM | ||
| 572 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 577 | N 000934018002 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 582 | A 3453107240 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 587 | A 3123121557 | MOUNTING PLATE |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 592 | N 000933010129 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X28 | ||
| 592 | N 000933010129 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X30 | ||
| 597 | N 913004010004 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 602 | A 0013268500 | SHOCK ABSORBER |
| REAR | ||
| 602 | A 0013266500 | SHOCK ABSORBER |
| REAR | ||
| 602 | A 3453267200 | SHOCK ABSORBER |
| REAR | ||
| 602 | A 3453267700 | SHOCK ABSORBER |
| REAR | ||
| 607 | A 0003230785 | RUBBER MOUNTING |
| 612 | A 0003230553 | SPACER TUBE |
| 617 | A 3459908601 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 622 | N 913004020004 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 627 | A 3443267340 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 627 | A 3443267440 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 632 | N 000960014180 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| 637 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| 642 | N 000127014201 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 647 | A 3459908501 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 652 | N 913004020004 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 657 | A 3523260125 | PLATE |
| TORSION BAR TO FRAME | ||
| 662 | N 000961012154 | SCREW |
| PLATE TO FRAME | ||
| 667 | N 913004012003 | NUT |
| PLATE TO FRAME | ||
| 672 | A 3523230751 | SPACER RING |
| LEVER TO TORSION BAR | ||
| 672 | A 3403230051 | SPACER RING |
| LEVER TO TORSION BAR | ||
| 677 | A 3443260065 | TORSION BAR |
| REAR AXLE | ||
| 677 | A 3603260165 | TORSION BAR |
| REAR AXLE | ||
| 682 | A 3403260082 | HOUSING |
| OUTSIDE | ||
| 687 | A 3523260181 | RUBBER MOUNTING |
| OUTSIDE | ||
| 687 | A 3403260181 | RUBBER MOUNTING |
| OUTSIDE | ||
| 692 | A 3403260182 | HOUSING |
| INSIDE | ||
| 697 | A 3523260081 | RUBBER MOUNTING |
| INSIDE | ||
| 697 | A 3403260081 | RUBBER MOUNTING |
| INSIDE | ||
| 702 | N 000931010053 | SCREW |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| 707 | N 913004010004 | NUT |
| INSIDE & OUTSIDE RUBBER MOUNTING HOUSINGS TO PLATE & AUXILIARY FRAME | ||
| 712 | N 000937028000 | NUT |
| LEVER TO TORSION BAR | ||
| 712 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 717 | N 000094005016 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 717 | N 000094006317 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 722 | A 3523260116 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 722 | A 3523260216 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 727 | A 3453260269 | LEVER |
| STABILIZER | ||
| 727 | A 3453260169 | LEVER |
| STABILIZER | ||
| 732 | A 0009810831 | JOINT BEARING |
| TORSION BAR BEARING | ||
| 732 | A 0009811231 | JOINT BEARING |
| TORSION BAR BEARING | ||
| 737 | N 000472055000 | LOCK RING |
| BEARING TO LINK | ||
| 742 | N 071412008100 | GREASE NIPPLE |
| LEVER | ||
| 747 | A 3603230560 | SEAL RING |
| BEARING TO LINK | ||
| 747 | A 3453237160 | SEAL RING |
| BEARING TO LINK | ||
| 752 | A 3523260274 | PIN |
| LINK TO LEVER | ||
| 757 | N 070952035101 | LOCK PLATE |
| LINK TO LEVER | ||
| 762 | N 070852035000 | NUT |
| LINK TO LEVER | ||
| 767 | A 3523260153 | SPACER TUBE |
| LINK TO LEVER | ||
| 772 | A 3603200341 | REPAIR KIT |
| REAR STABILIZER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
