Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

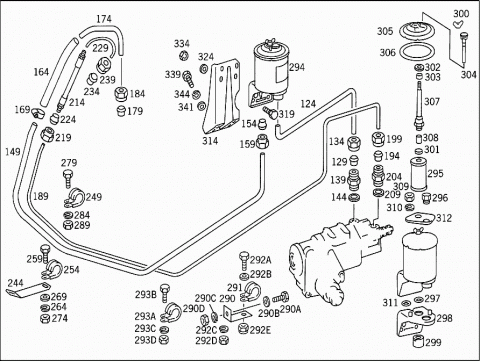

| HYDRAULIC POWER STEERING | ||
| 009 | A 3224600935 | BRACKET |
| 014 | A 3454617040 | STEERING SUPPORT |
| 019 | N 910005012017 | RIVET |
| STEERING TO FRAME | ||
| 024 | N 900170012001 | SCREW |
| STEERING TO FRAME | ||
| M 12X35 | ||
| 024 | A 3029900804 | SCREW |
| STEERING TO FRAME | ||
| 029 | N 000961012192 | SCREW |
| STEERING TO FRAME | ||
| M 12X52 | ||
| 029 | N 000961012192 | SCREW |
| STEERING TO FRAME | ||
| M 12X55 | ||
| 029 | N 000960012075 | SCREW |
| STEERING TO FRAME | ||
| M 12X60 | ||
| 029 | N 000960012385 | SCREW |
| STEERING TO FRAME | ||
| M 12X68 | ||
| 029 | N 000960012385 | SCREW |
| STEERING TO FRAME | ||
| M 12X70 | ||
| 034 | N 000935012003 | NUT |
| STEERING TO FRAME | ||
| 039 | N 000094003217 | COTTER PIN |
| STEERING TO FRAME | ||
| 044 | A 3279900114 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 049 | A 3229900514 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 054 | A 3529900202 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 059 | A 3529900302 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 064 | A 3279900050 | NUT |
| STEERING TO STEERING BRACKET | ||
| 069 | N 000094003217 | COTTER PIN |
| STEERING TO STEERING BRACKET | ||
| 074 | A 3524631201 | PITMAN ARM |
| 079 | A 3454630701 | PITMAN ARM |
| 084 | A 3454620401 | STEERING SHAFT |
| BOTTOM | ||
| 084 | A 3454620201 | STEERING SHAFT |
| BOTTOM | ||
| 089 | A 3444607057 | UNIVERSAL JOINT |
| 089 | A 3444607157 | UNIVERSAL JOINT |
| 089 | A 3444607257 | UNIVERSAL JOINT |
| 099 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 104 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 109 | A 3604620596 | BOOT |
| UNIVERSAL JOINT,TOP | ||
| 114 | N 000936022004 | NUT |
| 119 | N 006888005006 | WOODRUFF KEY |
| 124 | A 3444609024 | LINE |
| FROM STEERING TO OIL TANK | ||
| 124 | A 3444609924 | LINE |
| FROM STEERING TO OIL TANK | ||
| 129 | N 003861015004 | GLAND |
| 134 | N 915017015100 | UNION NUT |
| 139 | N 003901015000 | SCREW-IN FITTING |
| 144 | N 007603018101 | SEAL RING |
| 149 | A 3454607924 | LINE |
| FROM OIL TANK TO HOSE | ||
| 149 | A 3444609824 | LINE |
| FROM OIL TANK TO HOSE | ||
| 154 | N 003861022004 | GLAND |
| 159 | N 915017022100 | UNION NUT |
| 164 | A 3609970982 | HOSE |
| 164 | A 3459977982 | HOSE |
| 169 | N 916017025000 | CLAMP |
| Repalced by: A 3509978990 | ||
| 169 | A 3509978990 | CLAMP |
| HOSE TO OIL LINE | ||
| 169 | A 3509978190 | CLAMP |
| HOSE TO OIL LINE | ||
| 174 | A 3444608824 | LINE |
| LOW PRESSURE | ||
| 179 | N 003861022004 | GLAND |
| 184 | N 915017022100 | UNION NUT |
| 189 | A 3444608724 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 189 | A 3454607824 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 194 | N 003861012007 | GLAND |
| 199 | N 915017012100 | UNION NUT |
| 204 | N 003901012005 | SCREW-IN FITTING |
| 209 | N 007603016105 | SEAL RING |
| 214 | A 0019972652 | HOSE |
| HIGH PRESSURE | ||
| 214 | A 3459977382 | HOSE |
| HIGH PRESSURE | ||
| 219 | N 915017012100 | UNION NUT |
| 224 | N 003861012007 | GLAND |
| 229 | A 3444608624 | LINE |
| FROM OIL PUMP TO HIGH PRESSURE HOSE | ||
| 229 | A 3444607524 | LINE |
| FROM OIL PUMP TO HIGH PRESSURE HOSE | ||
| 234 | N 003861012007 | GLAND |
| 239 | N 915017012100 | UNION NUT |
| 244 | A 3444667140 | BRACKET |
| 249 | N 916016012201 | CLAMP |
| 249 | A 3459958501 | CLAMP |
| 254 | N 916016022202 | CLAMP |
| 254 | A 3459957601 | CLAMP |
| 259 | N 000933008288 | SCREW |
| LINES TO RADIATOR SUPPORT | ||
| 264 | N 912004008100 | LOCK WASHER |
| LINES TO RADIATOR SUPPORT | ||
| 269 | N 000125008417 | WASHER |
| LINES TO RADIATOR SUPPORT | ||
| 274 | N 000934008000 | NUT |
| LINES TO RADIATOR SUPPORT | ||
| 279 | N 000933008282 | SCREW |
| LINES TO BRACKET | ||
| 284 | N 912004008100 | LOCK WASHER |
| LINES TO BRACKET | ||
| 289 | N 000934008000 | NUT |
| LINES TO BRACKET | ||
| 290 | A 3454667440 | BRACKET |
| BRACKET TO FRAME | ||
| 290A | N 000933012131 | SCREW |
| BRACKET TO FRAME | ||
| 290B | N 000125013012 | WASHER |
| BRACKET TO FRAME | ||
| 290C | N 000127012201 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 290D | N 304032012003 | NUT |
| BRACKET TO FRAME | ||
| 291 | N 916016012201 | CLAMP |
| OIL LINE TO BRACKET | ||
| 12/20 | ||
| 291 | A 3459958501 | CLAMP |
| OIL LINE TO BRACKET | ||
| 12/20 | ||
| 291 | N 916016012200 | CLAMP |
| OIL LINE TO BRACKET | ||
| 12/15 | ||
| 291 | A 3459957901 | CLAMP |
| OIL LINE TO BRACKET | ||
| 12/15 | ||
| 291 | N 916016022202 | CLAMP |
| OIL LINE TO BRACKET | ||
| 22/20 | ||
| 291 | A 3459957601 | CLAMP |
| OIL LINE TO BRACKET | ||
| 22/20 | ||
| 291 | N 916016022203 | CLAMP |
| OIL LINE TO BRACKET | ||
| 22/15 | ||
| 291 | A 3459958301 | CLAMP |
| OIL LINE TO BRACKET | ||
| 22/15 | ||
| 292A | N 000933008288 | SCREW |
| OIL LINE TO BRACKET | ||
| M 8X25 | ||
| 292A | N 000933008282 | SCREW |
| OIL LINE TO BRACKET | ||
| M 8X20 | ||
| 292B | N 000125008417 | WASHER |
| OIL LINE TO BRACKET | ||
| 292B | N 000125008417 | WASHER |
| OIL LINE TO BRACKET | ||
| 292C | N 912004008100 | LOCK WASHER |
| OIL LINE TO BRACKET | ||
| 292D | N 000934008010 | NUT |
| OIL LINE TO BRACKET | ||
| 292E | N 913004008001 | NUT |
| LINES TO BRACKET | ||
| 293A | N 916016012201 | CLAMP |
| LINE MOUNTING | ||
| 293A | A 3459958501 | CLAMP |
| LINE MOUNTING | ||
| 293A | N 916016022202 | CLAMP |
| LINE MOUNTING | ||
| 293A | A 3459957601 | CLAMP |
| LINE MOUNTING | ||
| 293B | N 000933008282 | SCREW |
| LINE MOUNTING | ||
| 293C | N 912004008100 | LOCK WASHER |
| LINE MOUNTING | ||
| 293D | N 000934008010 | NUT |
| LINE MOUNTING | ||
| 294 | A 3454667102 | TANK |
| OIL TANK | ||
| 295 | A 0004660204 | FILTER |
| Repalced by: A 0001842225 | ||
| 295 | A 0001842225 | FILTER ELEMENT |
| 296 | A 0004660571 | FITTING |
| 297 | A 0059970848 | SEAL RING |
| 298 | A 0004661140 | BRACKET |
| 299 | A 0004660358 | CONNECTOR |
| 299 | A 0004660458 | CONNECTOR |
| 300 | A 0009901562 | NUT |
| Repalced by: A 0009901662 | ||
| 300 | A 0009901662 | NUT |
| 301 | A 0004660675 | CENTERING RING |
| 302 | A 0004660275 | WASHER |
| 303 | A 0004660153 | SPACER TUBE |
| 304 | A 0004660067 | OIL DIPSTICK |
| 305 | A 0004664405 | COVER |
| 306 | A 0004660260 | SEAL RING |
| 307 | A 0004610065 | FILTER SUPPORT |
| 308 | A 0009870643 | RUBBER SLEEVE |
| 309 | N 000934008035 | NUT |
| 310 | N 000127008205 | LOCK WASHER |
| 311 | A 0099970145 | SEAL RING |
| 312 | A 0004660095 | STRUT |
| 314 | A 3454667040 | BRACKET |
| 314 | A 3764607035 | BRACKET |
| 319 | N 000933010294 | SCREW |
| OIL TANK BRACKET TO BRACKET | ||
| M 10X20 | ||
| 324 | N 000125010517 | WASHER |
| OIL TANK BRACKET TO BRACKET | ||
| 334 | N 913004010004 | NUT |
| OIL TANK BRACKET TO BRACKET | ||
| 339 | N 000933010294 | SCREW |
| BRACKET TO STEERING | ||
| 341 | N 000125010517 | WASHER |
| BRACKET TO STEERING | ||
| 344 | N 000127010202 | LOCK WASHER |
| BRACKET TO STEERING | ||

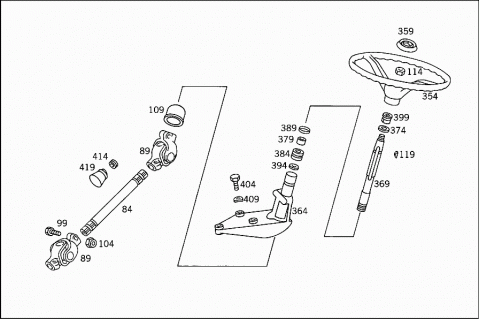

| 354 | A 3454607003 | STEERING WHEEL |
| 354 | A 0004641101 | STEERING WHEEL |
| 359 | A 0004642631 | CAP |
| 359 | A 3454647131 | CAP |
| 364 | A 3454607237 | BEARING |
| STEERING SHAFT | ||
| 369 | A 3454627201 | STEERING SHAFT |
| 374 | A 3764620075 | WASHER |
| 379 | A 3454627050 | BUSHING |
| 384 | A 3454627065 | RING |
| 389 | A 3454627023 | COVER |
| 394 | A 3454627028 | BEARING RING |
| 399 | A 3524620251 | RING |
| 404 | N 000933010129 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 409 | N 000137010103 | SPRING WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 414 | A 3214620060 | SEAL RING |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 419 | A 3354620096 | BOOT |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 419 | A 3524620196 | BOOT |

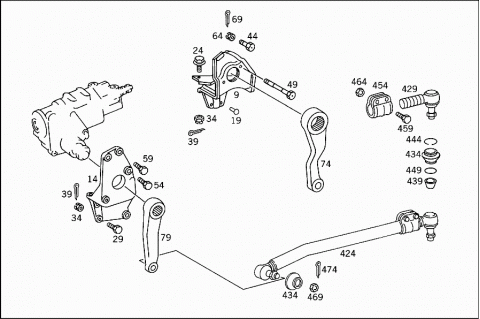

| 424 | A 3454608705 | DRAG LINK |
| GEMMER THOMPSON | ||
| 424 | A 3764600105 | DRAG LINK |
| 424 | A 3454608105 | DRAG LINK |
| 424 | A 3454608805 | DRAG LINK |
| 429 | A 0004600148 | DRAG LINK END |
| TO 376 460 01 05 | ||
| 429 | A 3453307135 | JOINT |
| TO 345 460 87 05 | ||
| 429 | A 3503307035 | JOINT |
| TO 345 460 81 05 | ||
| 434 | A 3443307085 | BOOT |
| TO 345 460 87 05 | ||
| 434 | A 3453307485 | BOOT |
| TO 345 460 87 05 | ||
| 434 | A 3643307085 | BOOT |
| TO 345 460 88 05 | ||
| 434 | A 3354600096 | BOOT |
| Repalced by: A 3503387056 | ||
| 434 | A 3503387056 | DUST CAP |
| TO 345 460 81 05,376 460 01 05 | ||
| 439 | A 3443387363 | CLAMPING RING |
| TO 345 460 87 05 | ||
| 444 | A 3503387063 | CLAMPING RING |
| TO 345 460 81 05,376 460 01 05 | ||
| 449 | A 3643387082 | RUBBER RING |
| Repalced by: A 0003381463 | ||
| 449 | A 0003381463 | CLAMPING RING |
| TO 345 460 87 05,345 460 88 05 | ||
| 454 | A 0003381445 | CLAMP |
| JOINT TO DRAG LINK | ||
| TO 345 460 88 05,376 460 01 05 | ||
| 454 | A 3453387745 | CLAMP |
| JOINT TO DRAG LINK | ||
| TO 345 460 87 05 | ||
| 454 | A 3503387045 | CLAMP |
| TO 345 460 81 05 | ||
| 459 | N 000961012079 | SCREW |
| CLAMP TO DRAG LINK | ||
| 464 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 464 | N 000936012005 | NUT |
| CLAMP TO DRAG LINK | ||
| 469 | N 000937018004 | NUT |
| BALL PIVOT TO STEERING ARM | ||
| 469 | N 000937020000 | NUT |
| BALL PIVOT TO STEERING ARM | ||
| 474 | N 000094004065 | COTTER PIN |
| BALL PIVOT TO STEERING ARM | ||
