Transporto priemonė: L 1518 ,LS 1518; VIN numerio dalis: 345306

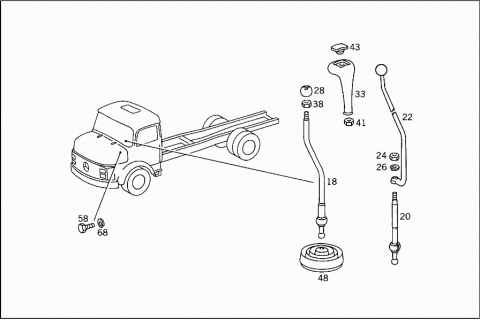

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 018 | A 3222601139 | SHIFT LEVER |
| 018 | A 3452609039 | SHIFT LEVER |
| 018 | A 3452609239 | SHIFT LEVER |
| 020 | A 3372601939 | SHIFT LEVER |
| LOWER PART | ||
| 022 | A 3452608139 | SHIFT LEVER |
| UPPER PART | ||
| 024 | N 000934012010 | NUT |
| SHIFT LEVER TO SHIFT LEVER LOWER PART | ||
| 026 | N 000127012201 | LOCK WASHER |
| SHIFT LEVER TO SHIFT LEVER LOWER PART | ||
| 028 | A 3222600040 | HANDLE |
| 028 | A 3222600040 | HANDLE |
| 028 | A 3442600040 | HANDLE |
| 028 | A 3442600040 | HANDLE |
| 028 | A 3452607140 | HANDLE |
| 028 | A 3452607140 | HANDLE |
| 033 | A 3642687042 | KNOB |
| 038 | N 000936010007 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 038 | N 000936010007 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 041 | N 000934010211 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| A 3102680050 | BUSHING | |
| BETWEEN SHIFT LEVER AND SHIFTING ROD | ||
| 043 | A 6202680557 | COVER |
| 048 | A 3452677096 | BOOT |
| Repalced by: A 6882677096 | ||
| 048 | A 6882677096 | BOOT |
| SHIFT LEVER TO CAB FLOOR | ||
| 058 | N 000933014050 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 068 | N 000127014201 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||

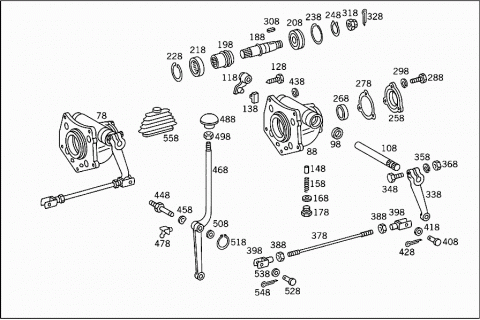

| 078 | A 3442607005 | P.T.O. |
| 088 | A 3212640501 | HOUSING |
| 098 | N 006503016100 | SEAL RING |
| 108 | A 3212640125 | SHIFTING ROD |
| 118 | A 3442647040 | LOCK-OUT |
| 128 | A 3122641071 | SCREW |
| 138 | A 1362630023 | COLLAR |
| 148 | A 3222840148 | INTERLOCK PIN |
| DETENT | ||
| 158 | A 3229931701 | SPRING |
| DETENT | ||
| 168 | N 007603014100 | SEAL RING |
| DETENT | ||
| 178 | A 3229970330 | SCREW PLUG |
| DETENT | ||
| 188 | A 3222640106 | DRIVE SHAFT |
| 198 | A 3222640023 | SLIDING COLLAR |
| 208 | N 000625506007 | GROOVED BALL BEARING |
| 218 | A 0019810010 | NEEDLE BEARING |
| 228 | N 000472062000 | LOCK RING |
| 238 | A 0009940034 | SNAP RING |
| 248 | N 900055035301 | LOCK RING |
| 258 | A 3222640111 | COVER |
| P.T.O. | ||
| 268 | N 006504035100 | RADIAL SEAL RING |
| 278 | A 3222640079 | GASKET |
| COVER TO P.T.O. CASE | ||
| 288 | N 000933008288 | SCREW |
| COVER TO P.T.O. CASE | ||
| 298 | N 912004008100 | LOCK WASHER |
| COVER TO P.T.O. CASE | ||
| 308 | N 006885008021 | KEY |
| COUPLING FLANGE TO P.T.O. | ||
| 318 | N 000937024001 | NUT |
| COUPLING FLANGE TO P.T.O. | ||
| 328 | N 000094005013 | COTTER PIN |
| COUPLING FLANGE TO P.T.O. | ||
| 338 | A 3442647019 | LEVER |
| SHIFTING SHAFT | ||
| 348 | N 000931008045 | SCREW |
| LEVER TO SHIFTING SHAFT | ||
| 358 | N 912004008100 | LOCK WASHER |
| LEVER TO SHIFTING SHAFT | ||
| 368 | N 000934008000 | NUT |
| LEVER TO SHIFTING SHAFT | ||
| 378 | N 900331008132 | PULL ROD |
| 388 | N 000934008000 | NUT |
| 398 | N 071752008000 | YOKE |
| 408 | N 001434008020 | PIN |
| PULL ROD TO SHIFTING SHAFT | ||
| 418 | N 000433008403 | WASHER |
| PULL ROD TO SHIFTING SHAFT | ||
| 428 | N 000094002033 | COTTER PIN |
| PULL ROD TO SHIFTING SHAFT | ||
| 438 | N 912004008100 | LOCK WASHER |
| P.T.O. TO TRANSMISSION | ||
| 448 | A 3212640074 | PIN |
| P.T.O. SHIFT LEVER | ||
| 458 | A 3129900148 | WASHER |
| LEVER TO PIN | ||
| 468 | A 3442607039 | SHIFT LEVER |
| P.T.O. | ||
| 478 | N 071412008300 | GREASE NIPPLE |
| 478 | A 3459977288 | GREASE NIPPLE |
| 488 | A 3442607040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 498 | N 000936010007 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 508 | N 000433015000 | WASHER |
| LEVER TO PIN | ||
| 518 | N 000471015000 | LOCK RING |
| LEVER TO PIN | ||
| 528 | N 001434008020 | PIN |
| PULL ROD TO SHIFT LEVER | ||
| 538 | N 000433008403 | WASHER |
| PULL ROD TO SHIFT LEVER | ||
| 548 | N 000094002033 | COTTER PIN |
| PULL ROD TO SHIFT LEVER | ||
| 558 | A 3442647096 | BOOT |
| SHIFT LEVER | ||
