Transporto priemonė: L 1521; VIN numerio dalis: 351019

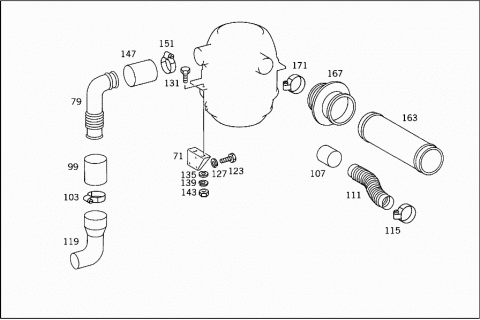

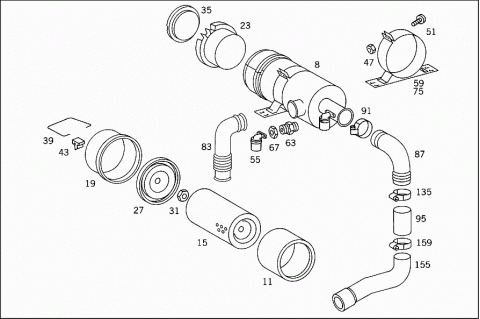

Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE

#	Kodas	Pavadinimas
008	A 0070946702	AIR CLEANER
008	A 3410947002	AIR CLEANER
		WITH BRACKET
008	A 3410947401	AIR CLEANER
		LESS BRACKET
008	A 3410947401	AIR CLEANER
		LESS BRACKET
008	A 3450947102	AIR CLEANER
011	A 3410947016	CARTRIDGE
		TO 341 094 70 02,341 094 74 01
015	A 3410947004	FILTER ELEMENT
	A 0010945204	FILTER ELEMENT
	Repalced by: A 3410947004
019	A 0000943317	DUST COLLECTOR BOWL
		TO 341 094 70 02,341 094 74 01
023	A 3440947003	FILTER BOWL
		TO 345 094 71 02,341 094 74 01
027	A 0000940605	SEPARATOR
		TO 341 094 70 02,341 094 74 01
031	A 3089907051	NUT
		TO 345 094 71 02
031	A 0000940272	NUT
		TO 341 094 70 02,341 094 74 01
035	H 983440940010	BOTTOM PARTITION
		TO 345 094 71 02
039	A 0000940425	SPRING CLIP
		TO 341 094 70 02,341 094 74 01
043	A 0000942055	FASTENER
		TO 341 094 70 02,341 094 74 01
047	A 1109900052	NUT
051	N 000084008108	SCREW
055	A 3450947068	VACUUM BOX
		TO 341 094 70 02,341 094 74 01
059	A 0000944741	BRACKET
063	A 3410947069	FITTING
		TO 341 094 70 02,341 094 74 01
067	A 3410947072	NUT
		TO 341 094 70 02,341 094 74 01
071	A 3525282440	BRACKET
		AIR CLEANER
071	A 3525282440	BRACKET
		AIR CLEANER
075	A 0000944741	BRACKET
		AIR CLEANER
		TO 341 094 70 02
075	A 3450947041	BRACKET
		AIR CLEANER
		TO 345 094 71 02
079	A 0000941709	INTAKE PIPE
		FROM AIR INTAKE PIPE TO OIL BATH AIR CLEANER
083	A 0000941809	INTAKE PIPE
	A 3455280008	AIR INTAKE PIPE
	Repalced by: A 3450947082
087	A 3450947082	HOSE
		FROM AIR CLEANER TO INTAKE FITTING
	A 3455280108	AIR INTAKE PIPE
	Repalced by: A 0010940182
087	A 0010940182	HOSE
		FROM AIR CLEANER TO INTAKE FITTING
091	N 916018090000	CLAMP
		FROM AIR CLEANER TO AIR INTAKE PIPE
		90 - 110 MM
091	N 916018110000	CLAMP
		FROM AIR CLEANER TO INTAKE FITTING
		110 - 130 MM
095	N 900271100005	HOSE
		80 MM
099	A 3529972782	HOSE
		FROM AIR CLEANER TO AIR INTAKE PIPE
		80 MM
099	A 3529972882	HOSE
		FROM AIR CLEANER TO AIR INTAKE PIPE
		100 MM
103	N 916018110000	CLAMP
103	N 916018110000	CLAMP
107	A 0000949782	HOSE
		AIR INTAKE PIPE TO AIR CLEANER AND TO CYLINDER HEAD COVER
111	A 0000948782	HOSE
		FROM OIL BATH AIR CLEANER TO EXHAUST GAS TURBINE
115	N 916018080000	CLAMP
115	N 916018080000	CLAMP
119	A 3525281307	PIPE ELBOW
119	A 3515280007	PIPE ELBOW
123	N 304017008012	SCREW
		BRACKET TO FIRE WALL
123	N 304017008012	SCREW
		BRACKET TO FIRE WALL
127	N 912004008104	LOCK WASHER
		BRACKET TO FIRE WALL
127	N 912004008104	LOCK WASHER
		BRACKET TO FIRE WALL
131	N 000933010011	SCREW
		OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL
131	N 000933010011	SCREW
		OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL
135	N 000125010518	WASHER
		OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL
135	N 000125010518	WASHER
		OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL
139	N 000127010205	LOCK WASHER
		OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL
139	N 000127010205	LOCK WASHER
		OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL
143	N 000934010000	NUT
		OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL
143	N 000934010000	NUT
		OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL
147	A 0009976352	HOSE
		FROM AIR CLEANER TO AIR COMPRESSOR
151	A 3509970490	LOOM TIE
	Repalced by: N 916017020000
151	N 916017020000	CLAMP
	Repalced by: N 000000000667
151	N 000000000667	CLAMP
		HOSE TO AIR CLEANER AND TO AIR COMPRESSOR
155	A 3455287182	HOSE
		PNEUMATIC VALVE
159	A 3509970590	LOOM TIE
		HOSE TO VALVE
159	N 916017020000	CLAMP
	Repalced by: N 000000000667
159	N 000000000667	CLAMP
		HOSE TO VALVE
163	A 3410947008	INTAKE PIPE
167	A 3220940091	BOOT
171	N 916018070000	CLAMP
