Transporto priemonė: L 1526; VIN numerio dalis: 351069

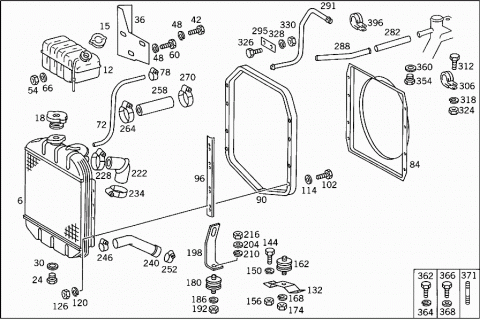

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 3455018001 | RADIATOR |
| 012 | A 3765000349 | TANK |
| EXPANSION TANK | ||
| 012 | A 3455007649 | TANK |
| EXPANSION TANK | ||
| 015 | A 3455017315 | RADIATOR CAP |
| TO 345 500 76 49 | ||
| 018 | A 3445010315 | RADIATOR CAP |
| 024 | A 1369970830 | SCREW PLUG |
| WATER DRAIN | ||
| 030 | N 007603018401 | SEAL RING |
| WATER DRAIN | ||
| 036 | A 3455007731 | BRACKET |
| EXPANSION TANK | ||
| 042 | N 000933008285 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 048 | N 912004008104 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 054 | N 000934008010 | NUT |
| EXPANSION TANK TO BRACKET | ||
| 060 | N 000933008271 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 066 | N 000125008413 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 072 | A 3459978682 | HOSE |
| FROM EXPANSION TANK TO RADIATOR | ||
| 078 | A 3449977490 | CLAMP |
| Repalced by: N 916017016000 | ||
| 078 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 078 | N 000000000666 | CLAMP |
| FROM EXPANSION TANK TO RADIATOR | ||
| 084 | A 3455057355 | FAN SHROUD |
| 090 | A 3455008527 | SUPPORT |
| RADIATOR | ||
| 096 | A 3225050024 | COVER PLATE |
| 102 | N 000933008036 | SCREW |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| M 8X20 | ||
| 102 | N 000933008153 | SCREW |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| M 8X30 | ||
| 114 | N 000125008413 | WASHER |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 120 | N 912004008104 | LOCK WASHER |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 126 | N 000934008000 | NUT |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 132 | A 3765047139 | ANGLE |
| LEFT | ||
| 132 | A 3765047239 | ANGLE |
| RIGHT | ||
| 144 | N 000961012067 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 150 | N 000127012203 | LOCK WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 156 | N 000934012004 | NUT |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 162 | A 3605040012 | RUBBER MOUNTING |
| RUBBER BUFFER TO BASE FRAME | ||
| 168 | N 000127010205 | LOCK WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 174 | N 000934010000 | NUT |
| RUBBER BUFFER TO BASE FRAME | ||
| 180 | A 0019873140 | RUBBER BUFFER |
| AT FRAME | ||
| 186 | N 000127010205 | LOCK WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 192 | N 000934010005 | NUT |
| RUBBER BUFFER TO BASE FRAME | ||
| 198 | A 3455048540 | BRACKET |
| RUBBER BUFFER TO BASE FRAME | ||
| 204 | N 000125010518 | WASHER |
| RADIATOR TO BRACKET | ||
| 210 | N 000127010205 | LOCK WASHER |
| RADIATOR TO BRACKET | ||
| 216 | N 000934010000 | NUT |
| RADIATOR TO BRACKET | ||
| 222 | A 3455010082 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 228 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 228 | N 000000000671 | CLAMP |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 234 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 234 | N 000000000673 | CLAMP |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 240 | A 3455010182 | HOSE |
| FROM RADIATOR TO OIL COOLER | ||
| 246 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 246 | N 000000000671 | CLAMP |
| FROM RADIATOR TO OIL COOLER | ||
| 246 | A 3419978990 | LOOM TIE |
| FROM RADIATOR TO OIL COOLER | ||
| 252 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 252 | N 000000000673 | CLAMP |
| FROM RADIATOR TO OIL COOLER | ||
| 252 | A 3419979890 | LOOM TIE |
| FROM RADIATOR TO OIL COOLER | ||
| 258 | A 3515017082 | HOSE |
| Repalced by: A 3515007175 | ||
| 258 | A 3515007175 | HOSE |
| FROM UPPER LINE TO HEATING SHUT-OFF COCK | ||
| 18X27X550 | ||
| 270 | A 3449977590 | CLAMP |
| Repalced by: N 916017020000 | ||
| 264 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 264 | N 000000000667 | CLAMP |
| 270 | A 3419979790 | LOOM TIE |
| N 900271028007 | HOSE | |
| PROTECTION AGAINST SCORING FOR UPPER COOLING WATER HOSE | ||
| TO 351 500 71 75 | ||
| 282 | N 900271018033 | HOSE |
| CONNECTOR TO WATER PUMP | ||
| 288 | A 3768327023 | HOSE |
| CONNECTOR TO WATER PUMP | ||
| 291 | A 3515067018 | CONNECTING PIPE |
| CONNECTOR TO WATER PUMP | ||
| 295 | A 3515067040 | BRACKET |
| HOSE TO WATER PUMP | ||
| 306 | N 916016018201 | CLAMP |
| 312 | N 000933006264 | SCREW |
| CLAMP TO BRACKET | ||
| 318 | N 007980006002 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 324 | N 000934006029 | NUT |
| CLAMP TO BRACKET | ||
| 326 | N 000933006264 | SCREW |
| BRACKET TO HEAT SHIELD | ||
| 328 | N 007980006002 | LOCK WASHER |
| BRACKET TO HEAT SHIELD | ||
| 330 | N 000934006029 | NUT |
| BRACKET TO HEAT SHIELD | ||
| 354 | N 007604018102 | SCREW PLUG |
| AT WATER PUMP | ||
| 360 | N 007603018401 | SEAL RING |
| AT WATER PUMP | ||
| 362 | N 000933008271 | SCREW |
| BRACKET TO AIR BAFFLE | ||
| 364 | N 912004008104 | LOCK WASHER |
| BRACKET TO AIR BAFFLE | ||
| 366 | N 000933008268 | SCREW |
| BRACKET TO HEAT SHIELD | ||
| 368 | N 000125008413 | WASHER |
| BRACKET TO HEAT SHIELD | ||
| 371 | N 000939008008 | STUD BOLT |
| BRACKET TO HEAT SHIELD | ||
| 396 | N 916016015201 | CLAMP |
| HOSE TO SUPPORT | ||
