Transporto priemonė: L 1621; VIN numerio dalis: 349301

Grupė: 30 CONTROL

#	Kodas	Pavadinimas

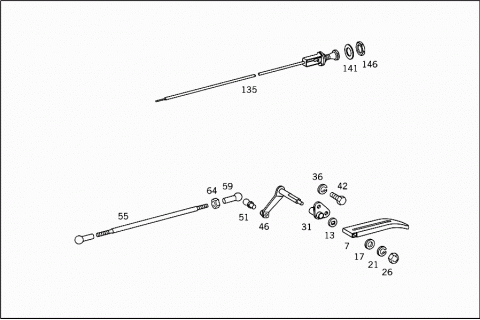

007	A 3213010002	PEDAL PLATE
	Repalced by: A 3523000802
007	A 3523000802	PLATE
		ACCELERATOR PEDAL
013	A 3223010054	GUARD PLATE
		PEDAL PLATE TO SHAFT
017	N 000125008418	WASHER
	Repalced by: N 000125008443
017	N 000125008443	WASHER
		PEDAL PLATE TO SHAFT
021	N 912004008102	LOCK WASHER
		PEDAL PLATE TO SHAFT
026	N 304032008006	NUT
		PEDAL PLATE TO SHAFT
031	A 3223000021	BEARING TUBE
		ACCELERATOR PEDAL CONTROL
031	A 3453000021	BEARING TUBE
	Repalced by: A 3223000021
036	N 912004008102	LOCK WASHER
		BEARING TUBE TO FIRE WALL
042	N 000933008145	SCREW
		BEARING TUBE TO FIRE WALL
046	A 3373000125	LEVER
		ACCELERATOR PEDAL CONTROL
051	A 3129910120	BALL PIVOT
	Repalced by: N 071803010209
051	N 071803010209	BALL PIVOT
	Repalced by: A 3129910120
051	A 3129910120	BALL PIVOT
055	A 3353010315	ROD
		FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE
059	A 0009910522	BALL SOCKET
	Repalced by: A 0009912422
059	A 0009912422	BALL SOCKET
		FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE
059	N 071805010204	BALL SOCKET
		FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE
	N 071805010302	SNAP RING
064	N 000934006007	NUT
		FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE
	N 071805010403	SECURING CLIP
		FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE
	N 071805010403	SECURING CLIP
		FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE

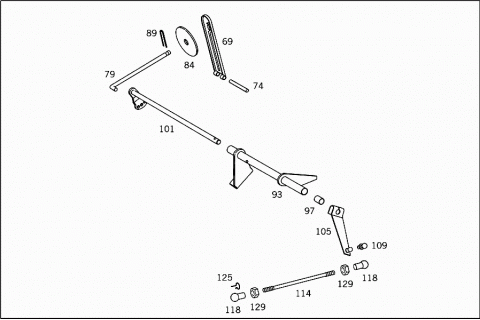

069	A 3223000302	PLATE
		ACCELERATOR PEDAL
074	A 3123011009	PIN
		ACCELERATOR PEDAL
	N 000094002059	COTTER PIN
		ACCELERATOR PEDAL
079	A 3363010115	ROD
	Repalced by: A 3223010015
079	A 3223010015	ROD
		ACCELERATOR PEDAL
	A 0009910522	BALL SOCKET
	Repalced by: A 0009912422
	A 0009912422	BALL SOCKET
		ACCELERATOR PEDAL
	N 071805010302	SNAP RING
		ACCELERATOR PEDAL
	N 071805010403	SECURING CLIP
		ACCELERATOR PEDAL
	N 000934006005	NUT
		ACCELERATOR PEDAL
	N 071803010301	BALL PIVOT
		ACCELERATOR PEDAL
	N 912004006102	LOCK WASHER
		ACCELERATOR PEDAL
	N 000934006005	NUT
		ACCELERATOR PEDAL
	N 000094003219	COTTER PIN
		ACCELERATOR PEDAL
084	A 3295110076	WASHER
		ACCELERATOR PEDAL
089	A 3033010007	SAFETY PIN
		ACCELERATOR PEDAL
093	A 3223001836	BEARING BRACKET
		CONTROL SHAFT
093	A 3383000036	BEARING BRACKET
		CONTROL SHAFT
097	A 3123011150	BUSHING
	Repalced by: A 3529921001
097	A 3529921001	BUSHING
	N 000933008212	SCREW
	Repalced by: N 304017008016
	N 304017008016	SCREW
		CONTROL SHAFT BEARING TO FIRE WALL
	N 912004008102	LOCK WASHER
		CONTROL SHAFT BEARING TO FIRE WALL
	N 304032008006	NUT
		CONTROL SHAFT BEARING TO FIRE WALL
101	A 3373000020	SHAFT
	Repalced by: A 3383000020
101	A 3383000020	SHAFT
		CONTROL
105	A 3373000525	LEVER
	Repalced by: A 3383000225
105	A 3383000225	LEVER
		CONTROL
109	N 071803010209	BALL PIVOT
	Repalced by: A 3129910120
109	A 3129910120	BALL PIVOT
	N 000931006118	SCREW
		LEVER TO SHAFT
	N 000934006007	NUT
		LEVER TO SHAFT
	A 3159960025	ROD
	Repalced by: N 900331006615
114	N 900331006615	PULL ROD
		FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE
118	N 071805010204	BALL SOCKET
		BRACKET TO SUBSTRUCTURE
	N 071805010302	SNAP RING
		FROM LEVER TO INTERMEDIATE LEVER AT ENGINE
125	N 071805010403	SECURING CLIP
		FROM LEVER TO INTERMEDIATE LEVER AT ENGINE
129	N 000934006005	NUT
		FROM LEVER TO INTERMEDIATE LEVER AT ENGINE
135	A 3353000026	MANUAL CONTROL
	Repalced by: A 3363000026
135	A 3363000026	MANUAL CONTROL
141	A 3359900240	WASHER
		MANUAL CONTROL TO BODY
146	A 3129901151	NUT
		MANUAL CONTROL TO BODY
