Transporto priemonė: L 1621; VIN numerio dalis: 349301

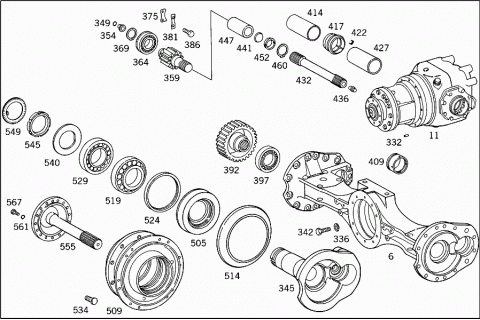

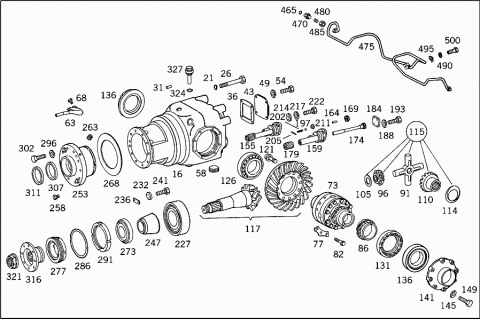

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3493500800 | REAR AXLE | |
| RATIO: | ||
| 1:5.17 | ||
| A 3493500700 | REAR AXLE | |
| RATIO: | ||
| 1:5.85 | ||
| 006 | A 3493510201 | AXLE CASING |
| 011 | A 3493500823 | DIFFERENTIAL GEAR |
| RATIO: | ||
| 23:10 | ||
| 016 | A 3353500741 | HOUSING |
| 021 | N 912004016101 | LOCK WASHER |
| 026 | N 000960016172 | SCREW |
| 031 | N 000007010239 | CYLINDRICAL PIN |
| Repalced by: N 000007010102 | ||
| 031 | N 000007010102 | CYLINDRICAL PIN |
| 036 | A 3153530080 | GASKET |
| 043 | A 3153530006 | COVER |
| 049 | N 912004010102 | LOCK WASHER |
| 054 | N 000933010128 | SCREW |
| 058 | A 3039970006 | PLUG |
| 063 | A 3153500163 | OIL COLLECTOR |
| 073 | A 3493500923 | DIFFERENTIAL GEAR |
| 068 | N 000933008123 | SCREW |
| Repalced by: N 304017008008 | ||
| 068 | N 304017008008 | SCREW |
| 077 | A 3353530073 | LOCK |
| 082 | N 000960012296 | SCREW |
| 086 | A 3353530068 | GEAR |
| 091 | A 3043530020 | DIFFERENTIAL SPIDER |
| 091 | A 3433530020 | DIFFERENTIAL SPIDER |
| 096 | A 3263530414 | DIFFERENTIAL PINION |
| 105 | A 3043530162 | THRUST WASHER |
| 110 | A 3353530015 | SIDE GEAR |
| 114 | A 3043530362 | THRUST WASHER |
| 115 | A 3435860135 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 117 | A 3493500439 | RING GEAR AND PINION |
| RATIO: | ||
| 23:10 | ||
| 121 | A 3269900003 | SCREW |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 126 | A 0009817205 | TAPERED ROLLER BEARING |
| RIGHT | ||
| 126 | A 0009819405 | TAPERED ROLLER BEARING |
| RIGHT | ||
| 126 | A 0069810605 | TAPERED ROLLER BEARING |
| RIGHT | ||
| 131 | A 0009810205 | TAPERED ROLLER BEARING |
| LEFT | ||
| 131 | A 0019818505 | TAPERED ROLLER BEARING |
| LEFT | ||
| 136 | A 3663530225 | SCREW COLLAR |
| 141 | A 3203570121 | END PIECE |
| 145 | N 912004010102 | LOCK WASHER |
| 149 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 149 | N 304017010002 | SCREW |
| 155 | A 3263500069 | OIL PUMP |
| A 3043500578 | PUMP HOUSING | |
| Repalced by: A 3433500078 | ||
| 159 | A 3433500078 | PUMP HOUSING |
| 164 | A 3049910101 | PIN |
| GEAR | ||
| 169 | A 3043530269 | GEAR |
| DRIVEN | ||
| A 3263530069 | GEAR | |
| Repalced by: A 3433530069 | ||
| 174 | A 3433530069 | GEAR |
| DRIVING | ||
| N 006888005012 | WOODRUFF KEY | |
| A 3353530168 | GEAR | |
| Repalced by: A 3433530068 | ||
| 179 | A 3433530068 | GEAR |
| DRIVEN | ||
| N 000471014000 | LOCK RING | |
| 184 | A 3043530167 | COVER |
| 188 | N 912004006102 | LOCK WASHER |
| 193 | N 000933006102 | SCREW |
| 197 | N 005401307000 | BALL |
| 202 | A 3049931001 | SPRING |
| A 3049970430 | SCREW PLUG | |
| 205 | N 007346002002 | CLAMPING SLEEVE |
| 211 | N 915042009000 | PLUG |
| 214 | N 000125010500 | WASHER |
| 217 | N 912004010102 | LOCK WASHER |
| 222 | N 000933010105 | SCREW |
| 227 | A 0019810701 | CYLINDR. ROLLER BEARING |
| DRIVE PINION | ||
| 232 | A 3269940010 | LOCK |
| CYLINDRICAL ROLLER BEARING OUTER RACE TO BEARING BODY | ||
| 236 | A 3159945030 | LOCK |
| CYLINDRICAL ROLLER BEARING OUTER RACE TO BEARING BODY | ||
| 241 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 241 | N 304017008016 | SCREW |
| CYLINDRICAL ROLLER BEARING OUTER RACE TO BEARING BODY | ||
| 247 | A 3263530144 | SPACER BUSHING |
| 253 | A 3153500250 | BUSHING |
| 258 | A 3469905001 | SCREW |
| 263 | N 000906014002 | SCREW PLUG |
| 268 | A 3263530152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 268 | A 3263530252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.25 MM | ||
| 268 | A 3263530352 | SPACER WASHER |
| Repalced by: A 3263530252 | ||
| 268 | A 3263530252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 268 | A 3263530452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 273 | A 0009810605 | TAPERED ROLLER BEARING |
| DRIVE PINION | ||
| 277 | A 3353500043 | SET COLLAR |
| 286 | A 3263530073 | LOCK |
| 291 | A 3263530026 | NUT |
| 296 | N 912004012100 | LOCK WASHER |
| 302 | N 000960012050 | SCREW |
| 307 | A 0039973846 | SEAL RING |
| INSIDE | ||
| 311 | A 0009975646 | SEAL RING |
| Repalced by: A 0179973047 | ||
| 311 | A 0179973047 | SEAL RING |
| OUTSIDE | ||
| 316 | A 3493530045 | FLANGE |
| 321 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 321 | A 3853510072 | NUT |
| Repalced by: A 3853510172 | ||
| 321 | A 3853510172 | NUT |
| 324 | N 007603024106 | SEAL RING |
| 327 | A 3043500190 | VALVE |
| 332 | A 3039910060 | DOWEL PIN |
| DIFFERENTIAL GEAR TO REAR AXLE CASING | ||
| 336 | N 912004012100 | LOCK WASHER |
| DIFFERENTIAL GEAR TO REAR AXLE CASING | ||
| 342 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 342 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 342 | N 308676012011 | SCREW |
| DIFFERENTIAL GEAR TO REAR AXLE CASING | ||
| N 000960012099 | SCREW | |
| DIFFERENTIAL GEAR TO REAR AXLE CASING | ||
| A 3363511306 | REAR AXLE TUBE | |
| Repalced by: A 3433510306 | ||
| 345 | A 3433510306 | REAR AXLE TUBE |
| 349 | A 0009976446 | SEAL RING |
| 354 | A 3153510068 | SLIDE |
| 354 | A 3153510168 | SLIDE |
| 354 | A 3433510168 | SLIDE |
| REPAIR SIZE I | ||
| 354 | A 3433510268 | SLIDE |
| REPAIR SIZE I | ||
| A 3263541310 | SPUR GEAR | |
| DRIVING;12 TEETH | ||
| 359 | A 3263541410 | SPUR GEAR |
| NUMBER OF TEETH: | ||
| 11 | ||
| 364 | A 0009814301 | CYLINDR. ROLLER BEARING |
| 369 | N 000471050000 | LOCK RING |
| 375 | A 3153510140 | BRACKET |
| 381 | A 3159945130 | LOCK |
| 386 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 386 | N 304017008039 | SCREW |
| A 3263541212 | OUTSIDE GEAR | |
| DRIVEN;27 TEETH | ||
| 392 | A 3263541012 | OUTSIDE GEAR |
| NUMBER OF TEETH: | ||
| 28 | ||
| 397 | N 005412410215 | CYLINDR. ROLLER BEARING |
| N 000961016039 | SCREW | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| N 000960016171 | SCREW | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| N 000960016212 | SCREW | |
| Repalced by: N 000960016261 | ||
| N 000960016261 | SCREW | |
| Repalced by: N 308676016014 | ||
| N 308676016014 | SCREW | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| N 000960016241 | SCREW | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| N 000960016161 | SCREW | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| N 912004016101 | LOCK WASHER | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| N 000934016011 | NUT | |
| Repalced by: N 308673016001 | ||
| N 308673016001 | NUT | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| 409 | A 3203570021 | END PIECE |
| REAR AXLE TUBE | ||
| 414 | A 3203570120 | REAR AXLE TUBE |
| OUTSIDE | ||
| 80 MM | ||
| A 3203570022 | BOOT | |
| STANDARD SIZE | ||
| 417 | A 3433570022 | BOOT |
| REPAIR SIZE | ||
| 422 | A 0029881078 | CLIP |
| TO 343 357 00 22 | ||
| 427 | A 3203570020 | REAR AXLE TUBE |
| INSIDE | ||
| 85 MM | ||
| N 900263005000 | STRAP | |
| 800 MM | ||
| N 900262005100 | LOOM TIE | |
| 432 | A 3353570102 | REAR AXLE SHAFT |
| 436 | A 3049910010 | PIN |
| 441 | A 3153570752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.5 MM | ||
| 441 | A 3153570852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 441 | A 3153570952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 441 | A 3153571052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 441 | A 3153571152 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 447 | A 3203570053 | SPACER TUBE |
| 452 | A 3153570251 | SPACER RING |
| AS REQUIRED | ||
| 9.50 MM | ||
| 452 | A 3153570451 | SPACER RING |
| Repalced by: A 3153570251 | ||
| 452 | A 3153570651 | SPACER RING |
| AS REQUIRED | ||
| 10.50 MM | ||
| 460 | N 000471058000 | LOCK RING |
| 465 | N 007603014405 | SEAL RING |
| 470 | A 3049970072 | FITTING |
| 475 | A 3353500280 | LINE |
| 480 | N 003862010000 | DOUBLE TAPER RING |
| 485 | N 915017010100 | UNION NUT |
| 490 | N 007603014405 | SEAL RING |
| 495 | N 900117014000 | LOCK |
| 500 | N 900117014200 | HOLLOW SCREW |
| 505 | A 3663500167 | THRUST WASHER |
| 509 | A 3663560101 | WHEEL HUB |
| 514 | A 3663560482 | OIL COLLECTOR |
| 519 | N 000720032024 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 524 | A 3049971747 | SEAL RING |
| 524 | A 0099970046 | SEAL RING |
| 524 | A 0109970046 | SEAL RING |
| 529 | N 000720032220 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| A 3174010471 | WHEEL MOUNTING BOLT | |
| Repalced by: A 3274010471 | ||
| 534 | A 3274010471 | WHEEL MOUNTING BOLT |
| Repalced by: A 3894010071 | ||
| 534 | A 3894010071 | WHEEL MOUNTING BOLT |
| 540 | A 3043340162 | THRUST WASHER |
| 545 | A 3043340026 | NUT |
| 549 | A 3043340073 | LOCK |
| 555 | A 3663560005 | FOLLOWER |
| 561 | N 912004014100 | LOCK WASHER |
| 567 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 567 | N 308676014008 | SCREW |
