Transporto priemonė: L 1622/1624; VIN numerio dalis: 695010

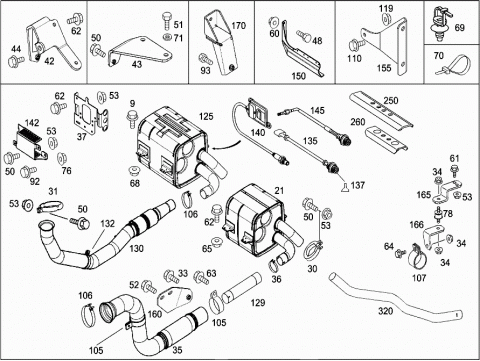

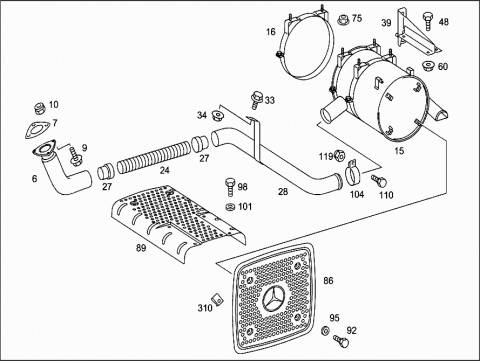

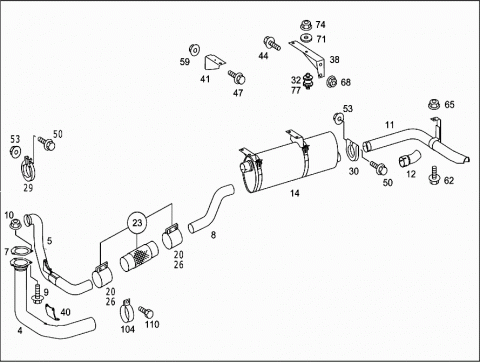

Grupė: 49 EXHAUST SYSTEM
60464
60535
60653
# Kodas Pavadinimas
004 A 6954901519 EXHAUST PIPE
FRONT EXHAUST PIPE
005 A 6954900119 EXHAUST PIPE
005 A 6954900419 EXHAUST PIPE
FRONT
005 A 6934900019 EXHAUST PIPE
FRONT
005 A 6954901219 EXHAUST PIPE
FRONT
006 A 6954900219 EXHAUST PIPE
FRONT
006 A 6954901119 EXHAUST PIPE
FRONT
007 A 6004920080 FLANGE GASKET
EXHAUST PIPE TO FLANGED ELBOW
007 A 6004920080 FLANGE GASKET
EXHAUST PIPE TO FLANGED ELBOW
008 A 6944920104 REAR EXHAUST PIPE
CENTRAL
008 A 6954920404 REAR EXHAUST PIPE
CENTRAL
008 A 6954920104 REAR EXHAUST PIPE
REAR
008 A 6954920204 REAR EXHAUST PIPE
REAR
008 A 6954920904 REAR EXHAUST PIPE
CENTRAL
008 A 6954900310 EXHAUST PIPE
CENTRAL
009 N 910105012021 SCREW
EXHAUST PIPE TO FLANGED ELBOW
M12X1,5X50
009 N 910105012020 HEXAGON HEAD BOLT
TO THREE-WAY CATALYTIC CONVERTER
M12X1,5X35
Repalced by: N 910105010001
009 N 910105010001 HEXAGON HEAD BOLT
TO THREE-WAY CATALYTIC CONVERTER
M12X1,5X35
009 N 910105012017 SCREW
EXHAUST PIPE TO FLANGED ELBOW
M12X1,5X70
010 N 913004012018 NUT
EXHAUST PIPE TO FLANGED ELBOW
M12X1,5
010 N 913004012018 NUT
EXHAUST PIPE TO FLANGED ELBOW
M12X1,5
011 A 6954900435 REAR EXHAUST PIPE
REAR
011 A 6954900335 REAR EXHAUST PIPE
REAR
011 A 6954900235 BRACKET
REAR
012 A 6954921304 REAR EXHAUST PIPE
REAR
012 A 6954921304 REAR EXHAUST PIPE
REAR
014 A 6954900401 EXHAUST MUFFLER
014 A 6954900501 EXHAUST MUFFLER
014 A 6954900901 EXHAUST MUFFLER
Repalced by: A 3844900501
014 A 3844900501 EXHAUST MUFFLER
014 A 3844900501 EXHAUST MUFFLER
014 A 6954901501 EXHAUST MUFFLER
015 A 6964907101 EXHAUST MUFFLER
FRONT
Repalced by: A 6964900001
015 A 6964900001 MUFFLER
FRONT
016 A 9584900041 CLAMP
AT MUFFLER
A 0004900142 STRAP
TO A 695 490 04 01
A 0004910042 BRACKET
FRONT
TO A 695 490 04 01
A 0004910142 BRACKET
REAR
TO A 695 490 04 01
N 910105008019 SCREW
TO A 695 490 04 01
020 A 3824920040 CLAMP
FLEXIBLE METAL TUBE TO EXHAUST PIPE
TO A 382 490 00 65
021 A 9584900514 REDUCT. CATALYST CONV.
023 A 9734900165 FLEXIBLE METAL TUBE
Repalced by: A 6954900065
023 A 3824900065 FLEXIBLE METAL TUBE
EXHAUST PIPE
Repalced by: A 6954900065
023 A 6954900065 FLEXIBLE METAL TUBE
EXHAUST PIPE
023 A 9794900065 FLEXIBLE METAL TUBE
EXHAUST PIPE
023 A 9794900065 FLEXIBLE METAL TUBE
EXHAUST PIPE
024 A 6344900365 FLEXIBLE METAL TUBE
FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
026 A 9704920040 CLAMP
Repalced by: A 6954920040
026 A 6954920040 CLAMP
FLEXIBLE METAL TUBE TO EXHAUST PIPE
026 A 9794920540 CLAMP
FLEXIBLE METAL TUBE TO EXHAUST PIPE
027 A 6344920640 CLAMP
FLEXIBLE METAL TUBE TO EXHAUST PIPE
028 A 6954907025 CONNECTOR
INTERMEDIATE PIPE ON EXHAUST MUFFLER
029 A 6209970590 CLAMP
EXHAUST PIPE
029 A 6209970590 CLAMP
EXHAUST PIPE
029 A 6209970590 CLAMP
EXHAUST PIPE
030 A 6744920040 CLAMP
REAR EXHAUST PIPE TO MUFFLER
94,5 MM
030 A 6734920140 CLAMP
REAR EXHAUST PIPE TO MUFFLER
75,5 MM
030 A 6744920040 CLAMP
REAR EXHAUST PIPE TO MUFFLER
94,5 MM
030 A 6744920040 CLAMP
REAR EXHAUST PIPE TO MUFFLER
94,5 MM
030 A 6744920040 CLAMP
REAR EXHAUST PIPE TO MUFFLER
94,5 MM
030 A 6744920040 CLAMP
REAR EXHAUST PIPE TO MUFFLER
94,5 MM
030 A 6744920040 CLAMP
CENTRAL
94,5 MM
030 A 6744920040 CLAMP
CENTRAL
94,5 MM
031 A 9429970290 CLAMP
FRONT EXHAUST PIPE TO THROTTLE HOUSING
032 A 0019873140 RUBBER BUFFER
EXHAUST MUFFLER TO SUPPORT
033 N 910105010011 HEXAGON HEAD BOLT
INTERMEDIATE PIPE ON CROSS MEMBER
033 N 910105010011 HEXAGON HEAD BOLT
INTERMEDIATE PIPE ON CROSS MEMBER
034 N 913023010002 NUT
INTERMEDIATE PIPE ON CROSS MEMBER
034 N 913023010002 NUT
INTERMEDIATE PIPE ON CROSS MEMBER
M10
035 A 6954901819 EXHAUST GAS LINE
FRONT EXHAUST PIPE
Repalced by: A 6954902119
035 A 6954902119 EXHAUST GAS LINE
FRONT EXHAUST PIPE
035 A 6954902119 EXHAUST GAS LINE
FRONT EXHAUST PIPE
036 A 6959970190 PIPE CLAMP F EXHAUST SYS.
FRONT EXHAUST PIPE
036 A 6959970190 PIPE CLAMP F EXHAUST SYS.
FRONT EXHAUST PIPE
037 A 9584751640 BRACKET
038 A 6954900140 BRACKET
038 A 6954900140 BRACKET
038 A 6954900140 BRACKET
038 A 6954900140 BRACKET
039 A 6954907240 BRACKET
FRONT BRACKET TO SIDE MEMBER
039 A 6954907340 BRACKET
REAR BRACKET TO SIDE MEMBER
040 A 6954900440 BRACKET
BRACKET TO TRANSMISSION
041 A 3844923041 BRACKET
EXHAUST PIPE
041 A 6884917541 BRACKET
042 A 6954900640 BRACKET
FASTENING EXHAUST PIPE FRONT TO TRANSMISSION
043 A 6954900740 BRACKET
FASTENING EXHAUST PIPE FRONT TO TRANSMISSION
044 N 910105012007 SCREW
BRACKET TO SUPPORT
M12X1,5X30
044 N 910105012003 HEXAGON HEAD BOLT
M12X1,5X20
047 N 910105010001 HEXAGON HEAD BOLT
BRACKET TO SUPPORT
M10X30
048 N 910105014011 SCREW
BRACKET TO SIDE MEMBER
M14X1,5X50
048 N 910105014013 HEXAGON HEAD BOLT
BRACKET TO SIDE MEMBER
M14X1,5X35
Repalced by: N 000000005718
048 N 000000005718 HEXAGON HEAD BOLT
BRACKET TO SIDE MEMBER
M14X1,5X35
048 N 910105014008 HEXAGON HEAD BOLT
BRACKET TO SIDE MEMBER
048 N 000000005721 HEXAGON HEAD BOLT
BRACKET TO SIDE MEMBER
048 N 000000005721 HEXAGON HEAD BOLT
BRACKET TO SIDE MEMBER
050 N 910105008060 HEXAGON HEAD BOLT
EXHAUST PIPE
M 8X35
050 N 910105008060 HEXAGON HEAD BOLT
EXHAUST PIPE TO BRACKET
M 8X35
Repalced by: N 910105008014
050 N 910105008014 HEXAGON HEAD BOLT
EXHAUST PIPE TO BRACKET
M 8X35
050 N 910105008060 SCREW
EXHAUST PIPE
M 8X35
050 N 910105008061 HEXAGON HEAD BOLT
EXHAUST PIPE
M8X130
050 N 910105008061 HEXAGON HEAD BOLT
EXHAUST PIPE
M8X130
050 N 910105008061 HEXAGON HEAD BOLT
EXHAUST PIPE
M8X130
050 N 910105008061 HEXAGON HEAD BOLT
EXHAUST PIPE
M8X130
050 N 910105008061 HEXAGON HEAD BOLT
EXHAUST PIPE
M8X130
050 N 910105008061 HEXAGON HEAD BOLT
EXHAUST PIPE
M8X130
050 N 910105008061 HEXAGON HEAD BOLT
EXHAUST PIPE
M8X130
050 N 910105008038 SCREW
EXHAUST PIPE
M 8X50
050 N 910105008046 HEXAGON HEAD BOLT
EXHAUST PIPE
M 8X110
050 N 000000001153 HEXALOBULAR BOLT
FRONT EXHAUST PIPE TO THROTTLE HOUSING
M8 X 40
050 N 910105008039 HEXAGON HEAD BOLT
PROTECTIVE PLATE
M8 X 25
050 N 910105008041 HEXAGON HEAD BOLT
M8 X 16
051 N 000000005543 HEXAGON HEAD BOLT
M16X1,5X30
052 N 910105008011 HEXAGON HEAD BOLT
BRACKET TO EXHAUST PIPE
M8 X 20
052 N 910105008011 HEXAGON HEAD BOLT
BRACKET TO EXHAUST PIPE
053 N 910112008000 NUT
EXHAUST PIPE
053 N 910112008000 NUT
EXHAUST PIPE
053 N 913023008003 NUT
EXHAUST PIPE
053 N 913023008003 NUT
EXHAUST PIPE
053 N 913023008003 NUT
EXHAUST PIPE
053 N 913023008003 NUT
FRONT EXHAUST PIPE TO THROTTLE HOUSING
053 N 913023008003 NUT
EXHAUST PIPE
053 N 913023008003 NUT
EXHAUST PIPE
053 N 913023008003 NUT
EXHAUST PIPE
053 N 913023008003 NUT
EXHAUST PIPE
053 N 913023008003 NUT
EXHAUST PIPE
053 N 913023008003 NUT
EXHAUST PIPE
053 N 000000003175 NUT
053 N 000000003175 NUT
PROTECTIVE PLATE
N 910112006001 HEXAGON NUT
059 N 913023010002 NUT
BRACKET TO RIGHT SIDE MEMBER
M10
060 N 913023014003 NUT
BRACKET TO SIDE MEMBER
Repalced by: N 000000005662
060 N 000000005662 NUT
BRACKET TO SIDE MEMBER
060 N 000000005662 NUT
BRACKET TO SIDE MEMBER
M 14X1,5
060 N 000000005662 NUT
BRACKET TO SIDE MEMBER
061 N 910105008010 HEXAGON HEAD BOLT
BRACKET TO EXHAUST PIPE
M8 X 35
062 N 910105010011 HEXAGON HEAD BOLT
REAR EXHAUST PIPE TO DAMPING PAD
M10X40
062 N 910105010001 HEXAGON HEAD BOLT
EXHAUST PIPE TO BRACKET
M10X30
062 N 910105010001 HEXAGON HEAD BOLT
EXHAUST PIPE TO BRACKET
M10X30
062 N 910105008026 HEXAGON HEAD BOLT
EXHAUST PIPE
M 8X20
062 N 910105008026 HEXAGON HEAD BOLT
M8 X 20
062 N 910105008026 HEXAGON HEAD BOLT
M 8X20
063 N 910105008016 HEXAGON HEAD BOLT
FRONT EXHAUST LINE
M8 X 30
063 N 910105008016 HEXAGON HEAD BOLT
FRONT EXHAUST LINE
064 N 910105010007 HEXAGON HEAD BOLT
BRACKET TO EXHAUST PIPE
M10 X 35
065 N 913023010002 NUT
REAR EXHAUST PIPE TO DAMPING PAD
065 N 913023010002 NUT
REAR EXHAUST PIPE TO DAMPING PAD
065 N 913023010002 NUT
EXHAUST PIPE TO BRACKET
068 N 000934012039 NUT
EXHAUST MUFFLER TO BRACKET
M12X1,5
068 N 913023012002 NUT
TO THREE-WAY CATALYTIC CONVERTER
M12X1,5
068 N 913023012002 NUT
TO THREE-WAY CATALYTIC CONVERTER
M12X1,5
Repalced by: N 913023010002
068 N 913023010002 NUT
TO THREE-WAY CATALYTIC CONVERTER
M12X1,5
068 N 913023012002 NUT
EXHAUST MUFFLER TO BRACKET
M12X1,5
068 N 913023012002 NUT
EXHAUST MUFFLER TO BRACKET
M12X1,5
069 A 0059976190 CABLE TIE
070 A 3459977390 LOOM TIE
071 N 009021010102 WASHER
EXHAUST MUFFLER TO BRACKET
071 N 009021010102 WASHER
EXHAUST MUFFLER TO BRACKET
071 N 009021010102 WASHER
EXHAUST MUFFLER TO BRACKET
071 N 009021010102 WASHER
EXHAUST MUFFLER TO BRACKET
071 N 009021010102 WASHER
EXHAUST MUFFLER TO BRACKET
071 N 009021010102 WASHER
EXHAUST MUFFLER TO BRACKET
071 A 3529902440 WASHER
074 N 913023010002 NUT
EXHAUST MUFFLER TO BRACKET
074 N 913023010002 NUT
RUBBER BUFFER TO BRACKET
074 N 913023010002 NUT
RUBBER BUFFER TO BRACKET
074 N 913023010002 NUT
RUBBER BUFFER TO BRACKET
074 N 913023010002 NUT
RUBBER BUFFER TO BRACKET
074 N 910112010001 NUT
RUBBER BUFFER TO BRACKET
075 N 913023010002 NUT
MUFFLER BRACKET TO FRAME
076 N 000000003477 NUT
077 A 3749877139 RUBBER BUFFER
RUBBER BUFFER TO BRACKET
077 A 3749877139 RUBBER BUFFER
RUBBER BUFFER TO BRACKET
077 A 3749877139 RUBBER BUFFER
RUBBER BUFFER TO BRACKET
077 A 3749877139 RUBBER BUFFER
RUBBER BUFFER TO BRACKET
077 A 3749877139 RUBBER BUFFER
RUBBER BUFFER TO BRACKET
077 A 3749877139 RUBBER BUFFER
RUBBER BUFFER TO BRACKET
078 A 0019873140 RUBBER BUFFER
BRACKET TO EXHAUST PIPE
086 A 6934917130 PROTECTIVE PLATE
FRONT
086 A 6964917130 PROTECTIVE PLATE
AT FIRE WALL
086 A 6964917130 PROTECTIVE PLATE
HEAT SHIELD MOUNTING
089 A 6934917030 PROTECTIVE PLATE
TOP
089 A 6964917030 PROTECTIVE PLATE
TOP
092 N 910105006004 HEXAGON HEAD BOLT
HEAT SHIELD TO MUFFLER
M6X16
092 N 910105006004 HEXAGON HEAD BOLT
M6 X 16
092 N 910105006004 HEXAGON HEAD BOLT
M6 X 16
093 N 910105014006 HEXAGON HEAD BOLT
RIGHT
M14X1,5X 65
093 N 910105014006 HEXAGON HEAD BOLT
RIGHT
095 N 000125006421 WASHER
HEAT SHIELD TO MUFFLER
A 6,4
098 N 000933010130 SCREW
HEAT SHIELD TO MUFFLER
M10X15
101 N 000125010518 WASHER
HEAT SHIELD TO MUFFLER
A 10,5
104 A 6964927040 CLAMP
INTERMEDIATE PIPE ON EXHAUST MUFFLER
104 A 6954920140 CLAMP
FRONT EXHAUST PIPE
105 A 9584920040 CLAMP
FRONT EXHAUST PIPE
105 A 9584920040 CLAMP
FRONT EXHAUST PIPE
106 A 0009956202 CLAMP
FRONT EXHAUST PIPE TO CATALYST
91,8MM
106 A 0009956202 CLAMP
FRONT EXHAUST PIPE TO CATALYST
91,8MM
106 A 0009956202 CLAMP
FRONT EXHAUST PIPE TO CATALYST
91,8MM
107 N 071555090502 CLAMP
BRACKET TO EXHAUST PIPE
110 N 910105010001 HEXAGON HEAD BOLT
INTERMEDIATE PIPE ON EXHAUST MUFFLER
M10X30
110 N 910105010009 HEXAGON HEAD BOLT
EXHAUST MUFFLER TO SIDE MEMBER
M10 X 25
110 N 910105010009 HEXAGON HEAD BOLT
EXHAUST MUFFLER TO SIDE MEMBER
M10 X 25
110 N 910105010009 HEXAGON HEAD BOLT
EXHAUST MUFFLER TO SIDE MEMBER
110 N 910105012021 SCREW
FRONT EXHAUST PIPE
M12X1,5X50
119 N 913023010002 NUT
INTERMEDIATE PIPE ON EXHAUST MUFFLER
M10
119 N 913023010002 NUT
EXHAUST MUFFLER TO SIDE MEMBER
M10
119 N 913023010002 NUT
EXHAUST MUFFLER TO SIDE MEMBER
M10
119 N 913023010002 NUT
EXHAUST MUFFLER TO SIDE MEMBER
125 A 6954900014 CATALYTIC CONVERTER
129 A 6954921401 EXHAUST GAS LINE FRONT
FRONT EXHAUST LINE
129 A 6954921601 EXHAUST GAS LINE
FRONT EXHAUST LINE
130 A 6954901619 EXHAUST GAS LINE
FRONT EXHAUST PIPE
1504,26 MM
132 A 6554920540 CLAMP
AT EXHAUST PIPE
114,5 MM
Repalced by: A 6554920340
132 A 6554920340 CLAMP
AT EXHAUST PIPE
114,5 MM
135 A 0001507133 ELECTRIC CABLE
SENSOR
"NOX"
Repalced by: A 0001506933
135 A 0001506933 ELECTRIC CABLE
SENSOR
"NOX"
137 A 0005460522 CLAMPING RING
140 A 0061537328 CONTROL UNIT
SENSOR
"NOX"
Repalced by: A 0091533628
140 A 0091533628 NOX SENSOR
SENSOR
"NOX"
142 A 9584750184 BASE
145 A 0061530528 SENDER UNIT
TEMPERATURE SENSOR,DOWNSTREAM OFCATALYTIC CONVERTER
Repalced by: A 0061530628
145 A 0061530628 SENDER UNIT
TEMPERATURE SENSOR,UPSTREAM OFCATALYTIC CONVERTER
145 A 0061530728 SENDER UNIT
TEMPERATURE SENSOR,DOWNSTREAM OFCATALYTIC CONVERTER
150 A 6954920116 BEAM
LEFT
150 A 6954920316 BEAM
RIGHT
150 A 6954920216 BEAM
LEFT
150 A 6954920416 BEAM
RIGHT
150 A 6954920716 BEAM
RIGHT
155 A 6954922441 BRACKET
LEFT
155 A 6954922441 BRACKET
LEFT
155 A 6954922541 BRACKET
RIGHT
155 A 6954922541 BRACKET
RIGHT
155 A 6954922541 BRACKET
RIGHT
160 A 6954900540 BRACKET
BRACKET TO EXHAUST PIPE
165 A 9584920641 BRACKET
BRACKET TO EXHAUST PIPE
166 A 9584920741 BRACKET
BRACKET TO EXHAUST PIPE
170 A 6954901240 BRACKET
RIGHT
170 A 6954901240 BRACKET
RIGHT
250 A 9584920195 WEB
BRACKET TO EXHAUST PIPE
260 A 9584900095 REINFORCEMENT
BRACKET TO EXHAUST PIPE
310 A 0049941745 SPRING NUT
320 A 9734920004 REAR EXHAUST PIPE
TAIL PIPE
320 A 9584920404 REAR EXHAUST PIPE
TAIL PIPE
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
