Transporto priemonė: L 1622 / L 1620; VIN numerio dalis: 695304

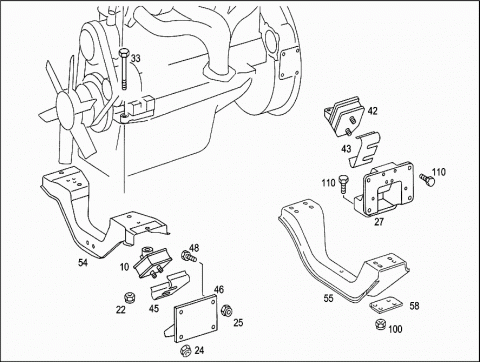

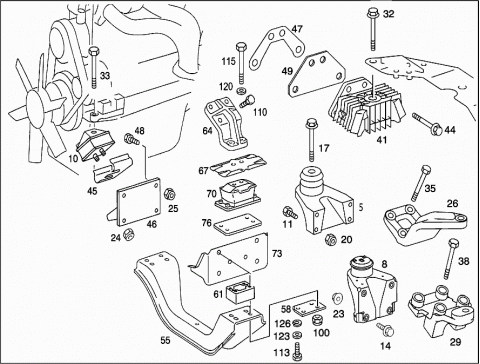

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6952400217 | RUBBER MOUNTING |
| FRONT | ||
| 005 | A 9702400417 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 6932400117 | RUBBER MOUNTING |
| FRONT | ||
| 005 | A 6952400417 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 6932400217 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 6932400417 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 9732400317 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 6932400517 | RUBBER MOUNTING |
| FRONT | ||
| 010 | A 6952407117 | RUBBER MOUNTING |
| FRONT | ||
| 010 | A 6952400017 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 6932400517 | RUBBER MOUNTING |
| FRONT | ||
| 011 | N 910105012020 | SCREW |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 014 | N 910105012010 | SCREW |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X40 | ||
| 014 | N 910105012010 | SCREW |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X40 | ||
| 008 | A 6932400517 | RUBBER MOUNTING |
| FRONT | ||
| 017 | N 910105016005 | SCREW |
| ENGINE TO ENGINE FRONT MOUNTING | ||
| M 16X1,5X60 | ||
| 020 | N 913023012002 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 022 | N 913023016001 | NUT |
| ENGINE TO ENGINE FRONT SUPPORT | ||
| 023 | N 913023012002 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 023 | N 913023012002 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M12X1,5 MM | ||
| 024 | N 913004012003 | NUT |
| RUBBER MOUNTING TO CONSOLE | ||
| 024 | N 913004012003 | NUT |
| RUBBER MOUNTING TO CONSOLE | ||
| 025 | N 913023014003 | NUT |
| FRONT CONSOLE TO FRAME | ||
| 025 | N 913023014003 | NUT |
| FRONT CONSOLE TO FRAME | ||
| 026 | A 6952410105 | SUPPORTING ARM |
| LEFT | ||
| 026 | A 6952410205 | SUPPORTING ARM |
| RIGHT | ||
| 027 | A 6952427002 | SUPPORT |
| REAR | ||
| 027 | A 6952427002 | SUPPORT |
| REAR | ||
| SUPORTE | ||
| 029 | A 9402421605 | SUPPORTING ARM |
| LEFT | ||
| 029 | A 9402421705 | SUPPORTING ARM |
| RIGHT | ||
| 032 | N 910105018023 | HEXAGON HEAD BOLT |
| ENGINE TO ENGINE REAR MOUNTING | ||
| M18X1.5X55 | ||
| 032 | N 910105018022 | HEXAGON HEAD BOLT |
| ENGINE TO ENGINE REAR MOUNTING | ||
| M18X1.5X50 | ||
| 033 | N 910105016014 | SCREW |
| RUBBER MOUNTING TO CONSOLES | ||
| M 16X1,5X70 | ||
| 033 | N 910105016014 | SCREW |
| RUBBER MOUNTING TO CONSOLES | ||
| M 16X1,5X70 | ||
| 035 | N 000931016014 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X55 | ||
| 035 | N 000931016026 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 16X65 | ||
| 038 | N 304017022003 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 22X80 | ||
| 038 | N 304014022001 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M 22X130 | ||
| 041 | A 9732400418 | RUBBER MOUNTING |
| REAR | ||
| 041 | A 9732400418 | RUBBER MOUNTING |
| REAR | ||
| 041 | A 6932400618 | RUBBER MOUNTING |
| REAR | ||
| 041 | A 6932400118 | RUBBER MOUNTING |
| ALUMINUM | ||
| ATRAS | ||
| Repalced by: A 9582400718 | ||
| 041 | A 6932400418 | RUBBER MOUNTING |
| ALUMINUM | ||
| ATRAS | ||
| Repalced by: A 9582400718 | ||
| 041 | A 9582400718 | RUBBER MOUNTING |
| CAST VERSION | ||
| ATRAS | ||
| 041 | A 6932400518 | RUBBER MOUNTING |
| REAR | ||
| 041 | A 0002400218 | RUBBER MOUNTING |
| STEEL VERSION | ||
| ATRAS | ||
| 041 | A 6932400218 | RUBBER MOUNTING |
| REAR | ||
| 041 | A 6932400218 | RUBBER MOUNTING |
| REAR | ||
| 041 | A 6932400518 | RUBBER MOUNTING |
| REAR | ||
| 042 | A 3522400318 | RUBBER MOUNTING |
| REAR | ||
| 043 | A 3522420409 | ENGINE STAY |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 044 | N 910105016013 | SCREW |
| ENGINE REAR SUSPENSION | ||
| M 16X1,5X30 | ||
| 044 | N 910105016013 | SCREW |
| ENGINE REAR SUSPENSION | ||
| M 16X1,5X30 | ||
| 044 | N 910105016004 | SCREW |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M 16X1,5X40 | ||
| 044 | N 910105016018 | SCREW |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M 16X1,5X55 | ||
| 045 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 045 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 046 | A 6952400206 | CONSOLE |
| LEFT FRONT BRACKET | ||
| 046 | A 6952400306 | CONSOLE |
| RIGHT BRACKET TO FRAME | ||
| 046 | A 6952407006 | CONSOLE |
| RIGHT BRACKET TO FRAME | ||
| 047 | A 6952410184 | SHIM |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 15 MM | ||
| 048 | A 6969907701 | SCREW |
| FRONT CONSOLE TO FRAME | ||
| M 14X1,5X35 | ||
| 048 | N 000000005514 | HEXAGON HEAD BOLT |
| FRONT CONSOLE TO FRAME | ||
| M14X1,5X40 | ||
| 049 | A 3823120084 | SHIM |
| ENGINE REAR SUSPENSION | ||
| 5 MM | ||
| 049 | A 3823120084 | SHIM |
| ENGINE REAR SUSPENSION | ||
| 5 MM | ||
| 054 | A 6952407001 | ENGINE SUPPORT |
| FRONT | ||
| 055 | A 6952407002 | ENGINE SUPPORT |
| REAR | ||
| 055 | A 3453127107 | ENGINE CROSS MEMBER |
| REAR | ||
| 058 | A 3762420435 | PLATE |
| ENGINE REAR SUPPORT | ||
| 058 | A 3763127460 | REINFORCEMENT |
| ENGINE REAR SUPPORT | ||
| 058 | A 3763127560 | REINFORCEMENT |
| ENGINE REAR SUPPORT | ||
| 061 | A 6952427026 | SHIM |
| ENGINE REAR SUPPORT | ||
| 064 | A 3862427001 | ENGINE SUPPORT |
| REAR LEFT | ||
| 064 | A 3862427101 | ENGINE SUPPORT |
| REAR RIGHT | ||
| 067 | A 6202420034 | SCREENING PLATE |
| SCREENING PLATE TO ENGINE MOUNTING | ||
| 070 | A 6952407018 | RUBBER MOUNTING |
| REAR | ||
| 073 | A 6952407406 | CONSOLE |
| REAR | ||
| 076 | A 3862427035 | PLATE |
| ENGINE REAR SUPPORT | ||
| 100 | N 913023012002 | NUT |
| ENGINE MOUNT AND PLATE ON CONSOLE | ||
| 100 | N 913023014003 | NUT |
| ENGINE MOUNT AND PLATE ON CONSOLE | ||
| PORCA M 14X1,5 DBL ACO 10.9 | ||
| 100 | N 913023012002 | NUT |
| ENGINE MOUNT AND PLATE ON CONSOLE | ||
| 110 | N 000961022012 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M22X1,5X60 | ||
| 110 | N 000961014107 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M14X1,5X40 | ||
| 110 | N 910105012010 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M12X1,5X40 | ||
| 110 | N 000000005514 | HEXAGON HEAD BOLT |
| CONSOLE TO SIDE MEMBER | ||
| M14X1,5X40 | ||
| 110 | N 000960022054 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M22X1,5X85 | ||
| 110 | N 000961022021 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M22X1,5X55 | ||
| 113 | A 6969908301 | SCREW |
| ENGINE MOUNT AND PLATE ON CONSOLE | ||
| M14X1,5X45 | ||
| 115 | A 6969908201 | SCREW |
| SCREENING PLATE TO ENGINE MOUNTING | ||
| M18X1,5X95 | ||
| 120 | A 6209900040 | WASHER |
| SCREENING PLATE TO ENGINE MOUNTING | ||
| 123 | N 000125015012 | WASHER |
| ENGINE MOUNT AND PLATE ON CONSOLE | ||
| 126 | N 912004014100 | LOCK WASHER |
| ENGINE MOUNT AND PLATE ON CONSOLE | ||
