Transporto priemonė: L 1813/6X4; VIN numerio dalis: 352403

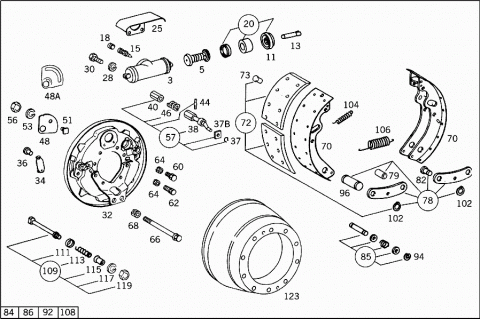

Grupė: 42 BRAKE SYSTEM - 001 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0024207718 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0034207818 | ||
| A 0024207818 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0034207818 | ||
| 003 | A 0034207818 | WHEEL BRAKE CYLINDER |
| 44.45 MM | ||
| 005 | A 0004232493 | SPRING |
| 011 | A 0004232187 | PROTECTIVE CAP |
| 013 | A 0004231088 | THRUST PIN |
| 015 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 015 | A 3075530107 | VALVE |
| 018 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 018 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 018 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 018 | A 0004210887 | PROTECTIVE CAP |
| 020 | A 0005863142 | REPAIR KIT |
| 025 | A 3024210020 | PROTECTIVE PLATE |
| 028 | N 912004010102 | LOCK WASHER |
| 030 | N 000933010164 | SCREW |
| 032 | A 3524200016 | BRAKE ANCHOR PLATE |
| A 3524200216 | BRAKE ANCHOR PLATE | |
| Repalced by: A 3524200516 | ||
| 032 | A 3524200516 | BRAKE ANCHOR PLATE |
| 034 | A 3124211068 | INSPECTION HOLE COVER |
| 036 | A 3129900096 | RIVET |
| 037 | A 3124211073 | LOCK |
| 037B | A 3024210029 | SLIDE |
| Repalced by: A 3024210129 | ||
| 037B | A 3024210129 | SLIDE |
| Repalced by: A 3024210229 | ||
| 037B | A 3024210229 | SLIDE |
| Repalced by: A 3024210329 | ||
| 037B | A 3024210329 | SLIDE |
| A 3464210011 | PLUG | |
| A 3024200738 | ADJUSTER | |
| Repalced by: A 3025860342 | ||
| A 3024202838 | ADJUSTER | |
| Repalced by: A 3025860342 | ||
| A 3024230275 | HEXAGONAL PIECE | |
| 038 | A 3024230619 | ADJUSTING PIN |
| Repalced by: A 3025860042 | ||
| 040 | A 3589900051 | NUT |
| 044 | N 001473006012 | GROOVED PIN |
| 046 | A 3129934901 | SPRING |
| 048 | A 3024210173 | LOCK |
| A 3584210073 | LOCK | |
| Repalced by: A 3584210173 | ||
| 048A | A 3584210173 | LOCK |
| 051 | A 3024210071 | SCREW |
| 053 | N 912004012100 | LOCK WASHER |
| 056 | N 000934012022 | NUT |
| A 3025860342 | REPAIR KIT | |
| Repalced by: A 3024203038 | ||
| A 3024203038 | REPAIR KIT | |
| BRAKE READJUSTMENT | ||
| 057 | A 3025860042 | REPAIR KIT |
| Repalced by: A 3024202938 | ||
| 057 | A 3024202938 | REPAIR KIT |
| READJUSTMENT OF REAR WHEEL BRAKE | ||
| A 3419900004 | SCREW | |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| A 3559900004 | SCREW | |
| Repalced by: N 900170012001 | ||
| 060 | N 900170012001 | SCREW |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| A 3419900104 | SCREW | |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| A 3559900104 | SCREW | |
| Repalced by: N 900170012001 | ||
| 062 | N 900170012001 | SCREW |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| 064 | N 000935012003 | NUT |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| N 000094003219 | COTTER PIN | |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| A 3413320071 | SCREW | |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| 066 | A 3603320571 | SCREW |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| 066 | A 3523320071 | SCREW |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| N 000935016004 | NUT | |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| 068 | N 000935018001 | NUT |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| N 000094004065 | COTTER PIN | |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| A 3414200620 | BRAKE SHOE | |
| Repalced by: A 3414201019 | ||
| A 3414200720 | BRAKE SHOE | |
| Repalced by: A 3414201019 | ||
| A 3414200820 | BRAKE SHOE | |
| Repalced by: A 3414201019 | ||
| A 3414200319 | BRAKE SHOE | |
| Repalced by: A 3414201019 | ||
| 070 | A 3414201019 | BRAKE SHOE |
| 072 | A 3414230810 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 15.30 MM;8X 341 423 00 10) | ||
| 072 | A 3414234510 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 15.30 MM,8X 341 423 42 10) | ||
| 072 | A 3414230910 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 16.30 MM;8X 341 423 01 10) | ||
| 072 | A 3414234610 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 16.30 MM,8X 341 423 43 10) | ||
| 072 | A 3414231010 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 17.30 MM;8X 341 423 02 10) | ||
| 072 | A 3414234710 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 17.30 MM,8X 341 423 44 10) | ||
| 073 | N 007338008305 | RIVET |
| Repalced by: A 3079900197 | ||
| A 3079900197 | RIVET | |
| A 3024210013 | SHACKLE | |
| Repalced by: A 3385860042 | ||
| A 3385860042 | REPAIR KIT | |
| Repalced by: A 3384200289 | ||
| A 3384200289 | REPAIR KIT | |
| BRAKE SHOE SHACKLE | ||
| 078 | A 3024210113 | SHACKLE |
| Repalced by: A 3385860242 | ||
| 078 | A 3385860242 | REPAIR KIT |
| Repalced by: A 3384200489 | ||
| 078 | A 3384200489 | REPAIR KIT |
| BRAKE SHOE SHACKLE | ||
| 079 | A 3024210250 | BUSHING |
| 082 | A 3024210174 | PIN |
| 084 | A 3124231174 | PIN |
| Repalced by: A 3385860342 | ||
| 085 | A 3385860342 | REPAIR KIT |
| Repalced by: A 3384200082 | ||
| 085 | A 3384200082 | REPAIR KIT |
| BRAKE SHOE SHACKLE SPACER PIN | ||
| 086 | A 3024210052 | SPACER WASHER |
| Repalced by: A 3385860342 | ||
| 092 | A 3029930201 | SPRING |
| Repalced by: A 3385860342 | ||
| 094 | A 3124211073 | LOCK |
| 096 | A 3024210118 | PIVOT PIN |
| 102 | N 900055025301 | LOCK RING |
| 104 | A 3029930310 | SPRING |
| A 3414210092 | SPRING | |
| Repalced by: A 3524210192 | ||
| 106 | A 3524210192 | SPRING |
| 108 | A 3414210174 | PIN |
| Repalced by: A 3585860242 | ||
| A 3415860042 | REPAIR KIT | |
| Repalced by: A 3585860242 | ||
| 109 | A 3585860242 | REPAIR KIT |
| Repalced by: A 3584200182 | ||
| 109 | A 3584200182 | REPAIR KIT |
| BRAKE SHOE MOUNTING BOLT | ||
| 111 | A 3124231089 | FILLER |
| A 3129933801 | SPRING | |
| Repalced by: A 3529930501 | ||
| 113 | A 3529930501 | SPRING |
| 115 | A 3124231189 | FILLER |
| 117 | N 912004008102 | LOCK WASHER |
| 119 | N 304032008006 | NUT |
| 123 | A 3414230001 | BRAKE DRUM |
| A 0024207718 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0034207818 | ||
| A 0024207818 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0034207818 | ||
| 133 | A 0034207818 | WHEEL BRAKE CYLINDER |
| 44.45 MM | ||
| 134 | A 0004232493 | SPRING |
| 137 | A 0004232187 | PROTECTIVE CAP |
| 138 | A 0004231088 | THRUST PIN |
| 141 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 141 | A 3075530107 | VALVE |
| 142 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 142 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 142 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 142 | A 0004210887 | PROTECTIVE CAP |
| 145 | A 0005863142 | REPAIR KIT |
| A 0024206918 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0034207918 | ||
| A 0034207918 | WHEEL BRAKE CYLINDER | |
| 46.83 MM | ||
| A 0084203018 | WHEEL BRAKE CYLINDER | |
| 46.83 MM | ||
| 148 | A 3024210020 | PROTECTIVE PLATE |
| 150 | N 912004010102 | LOCK WASHER |
| 152 | N 000933010105 | SCREW |
| A 3024202317 | BRAKE ANCHOR PLATE | |
| Repalced by: A 3024204017 | ||
| 154 | A 3024204017 | BRAKE ANCHOR PLATE |
| LEFT | ||
| A 3024202217 | BRAKE ANCHOR PLATE | |
| Repalced by: A 3024203917 | ||
| A 3024203917 | BRAKE ANCHOR PLATE | |
| RIGHT | ||
| 160 | A 3024270054 | PIPE SOCKET |
| 162 | A 3124211068 | INSPECTION HOLE COVER |
| 164 | A 3129900096 | RIVET |
| A 3124211073 | LOCK | |
| A 3024210029 | SLIDE | |
| Repalced by: A 3024210129 | ||
| A 3024210129 | SLIDE | |
| Repalced by: A 3024210229 | ||
| A 3024210229 | SLIDE | |
| Repalced by: A 3024210329 | ||
| A 3024210329 | SLIDE | |
| A 3024200638 | ADJUSTER | |
| Repalced by: A 3025860442 | ||
| 165 | A 3024202738 | ADJUSTER |
| Repalced by: A 3025860442 | ||
| 166 | A 3024230175 | HEXAGONAL PIECE |
| 168 | N 001473006012 | GROOVED PIN |
| 169 | A 3129934901 | SPRING |
| 171 | A 3024210173 | LOCK |
| 173 | A 3024210071 | SCREW |
| 175 | N 912004012100 | LOCK WASHER |
| 177 | N 000934012022 | NUT |
| 178 | A 3025860442 | REPAIR KIT |
| Repalced by: A 3024203138 | ||
| 178 | A 3024203138 | REPAIR KIT |
| BRAKE READJUSTMENT | ||
| N 000961012106 | SCREW | |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| N 000961016097 | SCREW | |
| Repalced by: N 308676016005 | ||
| N 308676016005 | SCREW | |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| N 912004012100 | LOCK WASHER | |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| N 912004016101 | LOCK WASHER | |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| N 000934012023 | NUT | |
| Repalced by: N 308673012002 | ||
| N 308673012002 | NUT | |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| N 000934016013 | NUT | |
| Repalced by: N 308673016001 | ||
| N 308673016001 | NUT | |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| A 3524200020 | BRAKE SHOE | |
| Repalced by: A 3384200219 | ||
| A 3524200120 | BRAKE SHOE | |
| Repalced by: A 3384200219 | ||
| A 3524200220 | BRAKE SHOE | |
| Repalced by: A 3384200219 | ||
| A 3384200019 | BRAKE SHOE | |
| Repalced by: A 3384200219 | ||
| 180 | A 3384200219 | BRAKE SHOE |
| 182 | A 3524230310 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 15.30 MM;8X 352 423 00 10) | ||
| 182 | A 3524230410 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 16.30 MM;8X 352 423 00 10) | ||
| 182 | A 3524230510 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 17.30 MM;8X 352 423 02 10) | ||
| N 007338008305 | RIVET | |
| Repalced by: A 3079900197 | ||
| 183 | A 3079900197 | RIVET |
| A 3024210013 | SHACKLE | |
| Repalced by: A 3385860042 | ||
| 184 | A 3385860042 | REPAIR KIT |
| Repalced by: A 3384200289 | ||
| 184 | A 3384200289 | REPAIR KIT |
| BRAKE SHOE SHACKLE | ||
| A 3024210113 | SHACKLE | |
| Repalced by: A 3385860242 | ||
| 184 | A 3385860242 | REPAIR KIT |
| Repalced by: A 3384200489 | ||
| 184 | A 3384200489 | REPAIR KIT |
| BRAKE SHOE SHACKLE | ||
| 185 | A 3024210250 | BUSHING |
| 186 | A 3024210174 | PIN |
| 190 | A 3124231174 | PIN |
| Repalced by: A 3385860342 | ||
| A 3385860342 | REPAIR KIT | |
| Repalced by: A 3384200082 | ||
| A 3384200082 | REPAIR KIT | |
| BRAKE SHOE SHACKLE SPACER PIN | ||
| 192 | A 3024210052 | SPACER WASHER |
| Repalced by: A 3385860342 | ||
| 194 | A 3029930201 | SPRING |
| Repalced by: A 3385860342 | ||
| 196 | A 3124211073 | LOCK |
| 198 | A 3024210118 | PIVOT PIN |
| 200 | N 900055025301 | LOCK RING |
| 202 | A 3029930310 | SPRING |
| 204 | A 3029930610 | SPRING |
| A 3024230018 | PIVOT PIN | |
| Repalced by: A 3024230518 | ||
| 206 | A 3024230518 | PIVOT PIN |
| BRAKE SHAFT TO BRAKE SHOE | ||
| N 000094004023 | COTTER PIN | |
| 208 | A 3414210174 | PIN |
| Repalced by: A 3585860242 | ||
| A 3415860042 | REPAIR KIT | |
| Repalced by: A 3585860242 | ||
| 209 | A 3585860242 | REPAIR KIT |
| Repalced by: A 3584200182 | ||
| 209 | A 3584200182 | REPAIR KIT |
| BRAKE SHOE MOUNTING BOLT | ||
| 210 | A 3124231089 | FILLER |
| A 3129933801 | SPRING | |
| Repalced by: A 3529930501 | ||
| 212 | A 3529930501 | SPRING |
| 214 | A 3124231189 | FILLER |
| N 912004008102 | LOCK WASHER | |
| 218 | N 304032008006 | NUT |
| A 3024200119 | THRUST SHACKLE | |
| Repalced by: A 3024203219 | ||
| A 3024201419 | THRUST SHACKLE | |
| Repalced by: A 3024203219 | ||
| 220 | A 3024203219 | THRUST SHACKLE |
| A 3024230074 | PIN | |
| Repalced by: A 3024230774 | ||
| 222 | A 3024230774 | PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| A 3024230318 | PIVOT PIN | |
| Repalced by: A 3024230418 | ||
| 222A | A 3024230418 | PIVOT PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 224 | N 000471018000 | LOCK RING |
| 224A | A 3029940035 | SNAP RING |
| 226 | A 3024230174 | PIN |
| A 3024230474 | PIN | |
| Repalced by: A 3024230874 | ||
| 228 | A 3024230874 | PIN |
| Repalced by: A 3024230974 | ||
| A 3024230674 | PIN | |
| Repalced by: A 3024230974 | ||
| 229 | A 3024230974 | PIN |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| N 000094004065 | COTTER PIN | |
| 230 | A 3029940109 | LOCK |
| 231 | N 912004008102 | LOCK WASHER |
| 232 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 232 | N 304017008039 | SCREW |
| N 914125008302 | SCREW | |
| Repalced by: N 914125008319 | ||
| N 914125008319 | SCREW | |
| 233 | A 3524230001 | BRAKE DRUM |
| 233 | A 3564210101 | BRAKE DRUM |
| 253 | A 0024303601 | BRAKE MASTER CYLINDER |
| Repalced by: A 0024302101 | ||
| 253 | A 0024302101 | BRAKE MASTER CYLINDER |
| 253 | A 0024308401 | BRAKE MASTER CYLINDER |
| 255 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 255 | A 3075530107 | VALVE |
| 256 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 256 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 256 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 256 | A 0004210887 | PROTECTIVE CAP |
| 258 | N 007603040102 | SEAL RING |
| TO 002 430 21 01,002 430 36 01 | ||
| 259 | A 0004311075 | THREADED UNION |
| TO 002 430 21 01,002 430 36 01 | ||
| A 0004310760 | SEAL RING | |
| Repalced by: A 0004300381 | ||
| A 0004300081 | VALVE | |
| Repalced by: A 0004300381 | ||
| 262 | A 0004300381 | VALVE |
| TO 002 430 21 01,002 430 36 01 | ||
| 264 | A 0009930605 | SPRING |
| TO 002 430 21 01,002 430 36 01 | ||
| 267 | A 0004311776 | WASHER |
| TO 002 430 21 01,002 430 36 01 | ||
| 269 | A 0009941835 | SNAP RING |
| 272 | A 0004314293 | SPRING |
| TO 002 430 21 01,002 430 36 01 | ||
| A 0004312983 | PISTON | |
| TO 002 430 21 01,002 430 36 01 | ||
| A 0004310886 | CUP | |
| TO 002 430 21 01,002 430 36 01 | ||
| 274 | A 0004311176 | WASHER |
| TO 002 430 21 01,002 430 36 01 | ||
| A 0015860243 | REPAIR KIT | |
| Repalced by: A 0004303183 | ||
| A 0004303183 | PISTON | |
| TO 002 430 84 01 | ||
| 276 | A 0005864843 | REPAIR KIT |
| TO 002 430 36 01,002 430 21 01 | ||
| A 0024309101 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0024302101 | ||
| A 0004202155 | BLEEDER VALVE | |
| Repalced by: A 0004310265 | ||
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| A 3075530107 | VALVE | |
| A 0004212687 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 3164210187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| Repalced by: A 0004217187 | ||
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| A 0004319260 | SEAL RING | |
| A 0015860243 | REPAIR KIT | |
| Repalced by: A 0004303183 | ||
| A 0004303183 | PISTON | |
| 283 | A 0004280026 | HOLLOW SCREW |
| 285 | N 007603014405 | SEAL RING |
| 287 | A 0004280124 | DISTRIBUTOR |
| 289 | N 000934010014 | NUT |
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| 291 | N 912004010102 | LOCK WASHER |
| 294 | A 3524310740 | BRACKET |
| 294 | A 3524310940 | BRACKET |
| N 000933010157 | SCREW | |
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| N 912004010102 | LOCK WASHER | |
| N 000934010014 | NUT | |
| 301 | A 0024304201 | BRAKE MASTER CYLINDER |
| A 0004310760 | SEAL RING | |
| Repalced by: A 0004300381 | ||
| A 0004300081 | VALVE | |
| Repalced by: A 0004300381 | ||
| 303 | A 0004300381 | VALVE |
| 304 | A 0009930605 | SPRING |
| 305 | A 0004312489 | SPRING RETAINER |
| 306 | A 0014310993 | SPRING |
| A 0004310376 | WASHER | |
| Repalced by: A 0004311176 | ||
| 307 | A 0004311176 | WASHER |
| 308 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 308 | A 3075530107 | VALVE |
| 309 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 309 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 309 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 309 | A 0004210887 | PROTECTIVE CAP |
| 315 | A 0005865043 | REPAIR KIT |
| A 0034302401 | BRAKE MASTER CYLINDER | |
| A 0004202155 | BLEEDER VALVE | |
| Repalced by: A 0004310265 | ||
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| A 3075530107 | VALVE | |
| A 0004212687 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 3164210187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| Repalced by: A 0004217187 | ||
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| A 0015868943 | REPAIR KIT | |
| A 0024306101 | BRAKE MASTER CYLINDER | |
| A 0004310975 | THREADED UNION | |
| N 007603035101 | SEAL RING | |
| A 0004311876 | WASHER | |
| A 0004313793 | SPRING | |
| A 0004310089 | SPRING RETAINER | |
| A 0004310685 | FILLER RING | |
| A 0004311976 | WASHER | |
| Repalced by: A 0004312176 | ||
| A 0004312176 | WASHER | |
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| A 3075530107 | VALVE | |
| A 3164210187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| Repalced by: A 0004217187 | ||
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| A 0005861143 | REPAIR KIT | |
| A 3524310940 | BRACKET | |
| A 3524310740 | BRACKET | |
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| N 912004010102 | LOCK WASHER | |
| N 000934010014 | NUT | |
| N 000933010157 | SCREW | |
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| N 912004010102 | LOCK WASHER | |
| N 000934010014 | NUT | |
| 333 | A 0004312102 | RESERVOIR |
| 338 | A 0004311602 | RESERVOIR |
| A 0002951815 | RESERVOIR | |
| Repalced by: A 0004311602 | ||
| A 0004313533 | FILLER CAP | |
| Repalced by: A 0004315433 | ||
| A 0004311333 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| A 0004313133 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| 342 | A 0004314333 | FILLER CAP |
| Repalced by: A 0004315133 | ||
| 342 | A 0004315133 | FILLER CAP |
| Repalced by: A 0004315433 | ||
| 342 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| A 0002950237 | SCREW PLUG | |
| Repalced by: A 0004315433 | ||
| 343 | A 0009972940 | SEAL RING |
| 43.7X30 MM | ||
| A 0039976440 | SEAL RING | |
| 42X21.5 MM | ||
| A 0004310034 | STRAINER | |
| Repalced by: A 0004313734 | ||
| 345 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 345 | A 0004314334 | STRAINER |
| 348 | N 007603022102 | SEAL RING |
| 365 | A 3404202429 | LINE |
| 1350 MM | ||
| 365 | A 3404203929 | LINE |
| 2400 MM | ||
| 367 | A 3404203929 | LINE |
| 2400 MM | ||
| 367 | A 3404202429 | LINE |
| 1350 MM | ||
| 369 | A 3129970582 | HOSE |
| 371 | A 3604280243 | ANGLE |
| 373 | A 3524290740 | BRACKET |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 304032008006 | NUT | |
| A 3604280143 | ANGLE | |
| N 000084006137 | SCREW | |
| N 000125006421 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| A 3609950101 | CLAMP | |
| Repalced by: A 3604300143 | ||
| 377 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 377 | N 916016008200 | CLAMP |
| N 000084006197 | SCREW | |
| N 000125006421 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| 379 | A 3464295540 | BRACKET |
| Repalced by: A 3464296040 | ||
| 379 | A 3464296040 | BRACKET |
| 381 | A 3129950935 | CLAMP |
| N 000084004151 | SCREW | |
| N 000934004006 | NUT | |
| A 0004289135 | BRAKE HOSE | |
| Repalced by: A 0004288235 | ||
| 383 | A 0004288235 | BRAKE HOSE |
| 550 MM | ||
| A 0014283235 | BRAKE HOSE | |
| Repalced by: A 0004288235 | ||
| 385 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 385 | A 6525040038 | MOUNTING PLATE |
| A 3524282040 | BRACKET | |
| Repalced by: A 3604280240 | ||
| 387 | A 3604280240 | BRACKET |
| N 000933008145 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 304032008006 | NUT | |
| A 3524204029 | LINE | |
| Repalced by: A 3404202529 | ||
| 392 | A 3404202529 | LINE |
| 1400 MM | ||
| 392 | A 3404201429 | LINE |
| 850 MM | ||
| 395 | A 0004292736 | CONNECTOR |
| 397 | A 3404204729 | LINE |
| 4000 MM | ||
| 397 | A 3404205029 | LINE |
| 4600 MM | ||
| 397 | A 3404205329 | LINE |
| 5200 MM | ||
| 397 | A 3404202729 | LINE |
| 1500 MM | ||
| 400 | A 3404201329 | LINE |
| 800 MM | ||
| A 0004280531 | CONNECTOR | |
| Repalced by: A 0004292736 | ||
| A 0004292736 | CONNECTOR | |
| 402 | A 3404204229 | LINE |
| 3000 MM | ||
| 402 | A 3404204529 | LINE |
| 3600 MM | ||
| 402 | A 3404204829 | LINE |
| 4200 MM | ||
| 404 | A 3404201729 | LINE |
| 1000 MM | ||
| 406 | A 3404202229 | LINE |
| 1250 MM | ||
| 408 | A 3404202629 | LINE |
| 1450 MM | ||
| 408 | A 3404201729 | LINE |
| 1000 MM | ||
| 410 | A 3404201429 | LINE |
| 850 MM | ||
| 410 | A 3404200929 | LINE |
| 600 MM | ||
| 412 | A 3524281740 | BRACKET |
| Repalced by: A 3184280240 | ||
| 412 | A 3184280240 | BRACKET |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 304032008006 | NUT | |
| A 3604312640 | BRACKET | |
| 416 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 416 | N 916016008200 | CLAMP |
| A 3609950601 | CLAMP | |
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| N 000084006197 | SCREW | |
| N 000125006421 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| A 0004283335 | BRAKE HOSE | |
| Repalced by: A 0004288935 | ||
| A 0014285035 | BRAKE HOSE | |
| Repalced by: A 0004288935 | ||
| 420 | A 0024281135 | BRAKE HOSE |
| Repalced by: A 0004288935 | ||
| 420 | A 0004288935 | BRAKE HOSE |
| 650 MM | ||
| 420 | A 0014284835 | BRAKE HOSE |
| 650 MM | ||
| A 0004280473 | BRACKET | |
| Repalced by: A 6525040038 | ||
| A 6525040038 | MOUNTING PLATE | |
| 424 | A 3524282240 | BRACKET |
| 425 | A 3124281040 | BRACKET |
| Repalced by: A 3834280140 | ||
| 425 | A 3834280140 | BRACKET |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 304032008006 | NUT | |
| 433 | A 0004290437 | DISTRIBUTOR |
| 433 | A 0004294337 | DISTRIBUTOR |
| A 3524282340 | BRACKET | |
| Repalced by: A 3524280740 | ||
| 436 | A 3524280740 | BRACKET |
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 304032008006 | NUT | |
| 438 | A 3129951020 | CLAMP |
| 441 | A 3129973482 | HOSE |
| 442 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 442 | N 304017008016 | SCREW |
| 443 | N 912004008102 | LOCK WASHER |
| 453 | N 007603022102 | SEAL RING |
| 456 | N 074299026201 | DOUBLE FITTING |
| A 3524296303 | LINE | |
| Repalced by: A 0004290401 | ||
| A 3524296403 | LINE | |
| Repalced by: A 0004290401 | ||
| A 3524296503 | LINE | |
| Repalced by: A 0004290401 | ||
| A 3524296603 | LINE | |
| Repalced by: A 0004290401 | ||
| A 0004290401 | LINE | |
| Repalced by: A 0005516456 | ||
| 458 | A 0005516456 | TUBE |
| 18 MM | ||
| 459 | N 915018018000 | UNION NUT |
| 461 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 461 | A 0019901167 | SEAL CONE |
| 463 | N 074297008302 | SLIP RING |
| 465 | N 074297014400 | SEAL RING |
| Repalced by: N 915045014100 | ||
| 465 | N 915045014100 | SEAL RING |
| 467 | A 0009903371 | ELBOW FITTING |
| 469 | N 074305026202 | NUT |
| A 3524296703 | LINE | |
| Repalced by: A 0004290201 | ||
| A 3604291602 | LINE | |
| Repalced by: A 0004290201 | ||
| A 3604291702 | LINE | |
| Repalced by: A 0004290201 | ||
| A 3524294903 | LINE | |
| Repalced by: A 0004290201 | ||
| A 3524295003 | LINE | |
| Repalced by: A 0004290201 | ||
| A 3604294002 | LINE | |
| Repalced by: A 0004290201 | ||
| A 0004290201 | LINE | |
| Repalced by: A 0005516256 | ||
| 472 | A 0005516256 | TUBE |
| 15 MM | ||
| 474 | N 915018015000 | UNION NUT |
| 475 | N 003861015004 | GLAND |
| 477 | N 915065015101 | THRUST RING |
| 479 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 479 | N 007603012121 | SEAL RING |
| 481 | N 007603022102 | SEAL RING |
| 481 | N 007603022102 | SEAL RING |
| 483 | N 074313018201 | FITTING |
| 483 | N 074313018201 | FITTING |
| A 0004293238 | ELBOW FITTING | |
| N 074305022202 | NUT | |
| A 0009870446 | SEALING CORD | |
| A 0004290227 | THRUST RING | |
| A 0004314006 | VALVE | |
| Repalced by: A 0004319106 | ||
| 485 | A 0004319106 | PRESSURE REGULATOR |
| A 0004314906 | VALVE | |
| Repalced by: A 0004319206 | ||
| 485 | A 0004319206 | PRESSURE REGULATOR |
| Repalced by: A 0004319106 | ||
| 485 | A 0004319106 | PRESSURE REGULATOR |
| 488 | A 0004318360 | SEAL RING |
| A 0007630253 | SLEEVE | |
| Repalced by: A 0007630553 | ||
| 489 | A 0007630553 | SLEEVE |
| 490 | A 0004311434 | STRAINER |
| 492 | A 0004310681 | VALVE DISC |
| 493 | A 0004311081 | VALVE DISC |
| 495 | A 0004311381 | VALVE DISC |
| 496 | A 0004314787 | PROTECTIVE CAP |
| Repalced by: A 0009979486 | ||
| 496 | A 0009979486 | PLUG |
| A 0004315687 | PROTECTIVE CAP | |
| A 0014314106 | PRESSURE REGULATOR | |
| Repalced by: A 0024313506 | ||
| A 0024313506 | PRESSURE REGULATOR | |
| Repalced by: A 0024315906 | ||
| A 0014314206 | PRESSURE REGULATOR | |
| Repalced by: A 0024315906 | ||
| A 0024315906 | PRESSURE REGULATOR | |
| "BOSCH" | ||
| A 0014314306 | PRESSURE REGULATOR | |
| Repalced by: A 0024316006 | ||
| A 0025866043 | REPAIR KIT | |
| TO 001 431 42 06,GRAU | ||
| A 0014312206 | PRESSURE REGULATOR | |
| Repalced by: A 0024316006 | ||
| A 0024316006 | PRESSURE REGULATOR | |
| "WESTINGHOUSE" | ||
| A 0025864143 | REPAIR KIT | |
| TO 000 431 92 06/40 06/49 06 | ||
| A 0025864143 | REPAIR KIT | |
| BOSCH 0 481 039 012/007/008 | ||
| 498 | A 0025865043 | REPAIR KIT |
| TO 000 431 92 06/91 06/40 06/49 06 | ||
| 498 | A 0025865043 | REPAIR KIT |
| BOSCH 0 481 039 012/011/007/008 | ||
| A 0025864243 | REPAIR KIT | |
| TO 000 431 91 06/BOSCH 0 481 039 011 | ||
| A 0015864343 | REPAIR KIT | |
| Repalced by: A 0004301107 | ||
| A 0004301107 | REPAIR KIT | |
| TO 001 431 22 06,WEST. 975 300 111 0 | ||
| A 0024304681 | REPAIR KIT | |
| VALVE KIT | ||
| TO 001 431 22 06,WEST. 975 300 111 0 | ||
| A 0025866743 | REPAIR KIT | |
| TO 001 431 46 06,KNORR | ||
| A 0015868543 | REPAIR KIT | |
| Repalced by: A 0004301407 | ||
| A 0004301407 | REPAIR KIT | |
| TO 001 431 41 06,BOSCH 0 481 039 102 | ||
| A 0014304960 | REPAIR KIT | |
| TO 002 431 60 06,WEST.975 303 440 0 | ||
| A 0004301768 | REPAIR KIT | |
| DIAPHRAGM | ||
| TO 002 431 35 06,BOSCH 0 481 039 222 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 431 59 06,BOSCH 0 481 039 202 | ||
| A 0004307960 | REPAIR KIT | |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 35 06,BOSCH 0 481 039 222 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 431 59 06,BOSCH 0 481 039 202 | ||
| 500 | A 3524313240 | BRACKET |
| Repalced by: A 3524315340 | ||
| 500 | A 3524313340 | BRACKET |
| Repalced by: A 3524315340 | ||
| 500 | A 3524315340 | BRACKET |
| A 3524316340 | BRACKET | |
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| N 000931008228 | SCREW | |
| Repalced by: N 000933008134 | ||
| N 000933008134 | SCREW | |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| 505 | A 0009870446 | SEALING CORD |
| 507 | A 0004290227 | THRUST RING |
| 509 | N 074305022202 | NUT |
| 510 | N 074301022203 | ELBOW FITTING |
| 512 | N 007603022102 | SEAL RING |
| 516 | N 074298022203 | DOUBLE FITTING |
| 518 | A 0004317206 | VALVE |
| 520 | A 0004311981 | VALVE DISC |
| 024 | ||
| 521 | A 0004312081 | VALVE DISC |
| 024 | ||
| 522 | A 0007630454 | SEAL |
| 024 | ||
| 523 | A 0004315086 | CUP |
| 024 | ||
| A 0014312086 | CUP | |
| Repalced by: A 0014312386 | ||
| A 0014312386 | CUP | |
| 104 | ||
| A 0014312186 | CUP | |
| 104 | ||
| A 0004350780 | GASKET | |
| 104 | ||
| A 0004317987 | PROTECTIVE CAP | |
| 104 | ||
| A 0004315323 | VALVE | |
| 104 | ||
| A 0009934905 | SPRING | |
| 104 | ||
| A 0049977945 | SEAL RING | |
| Repalced by: A 0179974148 | ||
| A 0179974148 | SEAL RING | |
| 024 | ||
| A 0004290227 | THRUST RING | |
| A 0009870446 | SEALING CORD | |
| N 074305022202 | NUT | |
| 533 | N 074313016401 | FITTING |
| Repalced by: A 0019972372 | ||
| 533 | A 0019972372 | FITTING |
| N 007603022102 | SEAL RING | |

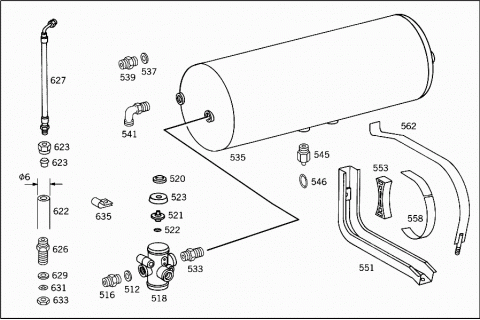

| 535 | A 3274300005 | RESERVOIR |
| Repalced by: A 0034322701 | ||
| 535 | A 0034322701 | RESERVOIR |
| 60 L. | ||
| 537 | N 007603022102 | SEAL RING |
| 539 | N 074298022203 | DOUBLE FITTING |
| 541 | N 074301022203 | ELBOW FITTING |
| A 0009870446 | SEALING CORD | |
| A 0004290227 | THRUST RING | |
| N 074305022202 | NUT | |
| A 0004320607 | VALVE | |
| Repalced by: A 0004321107 | ||
| 545 | A 0004321107 | VALVE |
| DRAIN VALVE | ||
| 545 | A 0004322107 | VALVE |
| DRAIN VALVE | ||
| A 0004320407 | VALVE | |
| Repalced by: A 0004320807 | ||
| 545 | A 0004322407 | VALVE |
| DRAIN VALVE | ||
| 546 | N 900397000201 | RING |
| Repalced by: A 0005830296 | ||
| 546 | A 0005830296 | RING |
| TO 000 432 06 07 | ||
| 551 | A 3224300111 | CONSOLE |
| Repalced by: A 3224320215 | ||
| 551 | A 3224320215 | CONSOLE |
| 551 | A 3604301311 | CONSOLE |
| A 3214750084 | SHIM | |
| Repalced by: N 007349013003 | ||
| N 007349013003 | WASHER | |
| Repalced by: N 007349013005 | ||
| N 007349013005 | WASHER | |
| 553 | A 3354320218 | BASE |
| N 000961012027 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| N 007349013001 | WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| A 3354320126 | PLATE | |
| Repalced by: A 3434320026 | ||
| A 3434320026 | PLATE | |
| CONSOLE TO SIDE MEMBER | ||
| N 910113012002 | NUT | |
| CONSOLE TO SIDE MEMBER | ||
| 558 | A 3219870214 | RUBBER STRIP |
| 562 | A 3224300240 | STRAP |
| 562 | A 3604300040 | STRAP |
| N 000934010014 | NUT | |
| 564 | A 0004311675 | THREADED UNION |
| 566 | N 080705016003 | NUT |
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 572 | A 0009971548 | SEAL RING |
| 573 | A 0004310051 | SPACER RING |
| A 0004311514 | BRAKE BOOSTER | |
| Repalced by: A 0004316214 | ||
| 575 | A 0004317186 | CUP |
| 576 | A 0004312886 | SEAL RING |
| 578 | A 0004315783 | PISTON |
| Repalced by: A 0004316983 | ||
| 578 | A 0004316983 | PISTON |
| 579 | A 0004317060 | SEAL RING |
| 581 | A 0003270032 | VALVE PART |
| 582 | A 0004317160 | SEAL RING |
| Repalced by: A 0004319460 | ||
| 582 | A 0004319460 | SEAL RING |
| 583 | A 0004289435 | BRAKE HOSE |
| Repalced by: A 0004289535 | ||
| 583 | A 0004289535 | BRAKE HOSE |
| 505 MM | ||
| N 007603014405 | SEAL RING | |
| 585 | A 0004316214 | BRAKE BOOSTER |
| Repalced by: A 0004318914 | ||
| 585 | A 0004318914 | BRAKE CYLINDER |
| 585L | A 0025860043 | REPAIR KIT |
| Repalced by: A 0004309160 | ||
| 585L | A 0004309160 | REPAIR KIT |
| TO 000 431 89 14 | ||
| 586 | A 3604310267 | YOKE |
| N 000936010010 | NUT | |
| 590 | A 3524300211 | CONSOLE |
| 590 | A 3604302011 | CONSOLE |
| 590 | A 3524300311 | CONSOLE |
| 590 | A 3604302111 | CONSOLE |
| N 000933010105 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| CONSOLE TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| A 3524300223 | LEVER | |
| Repalced by: A 3524301323 | ||
| 594 | A 3524301323 | LEVER |
| 595 | A 3529920801 | BUSHING |
| 597 | A 3524310074 | PIN |
| 597 | A 3604310074 | PIN |
| 598 | N 071412010200 | GREASE NIPPLE |
| 602 | N 000471030000 | LOCK RING |
| 604 | A 3149940101 | LOCK |
| 605 | N 912004008102 | LOCK WASHER |
| 606 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 606 | N 304017008039 | SCREW |
| 610 | A 3529910007 | PIN |
| N 000094003219 | COTTER PIN | |
| A 3529930010 | SPRING | |
| Repalced by: A 3609930210 | ||
| A 3529931010 | SPRING | |
| Repalced by: A 3609930210 | ||
| 612 | A 3609930210 | SPRING |
| N 007603022102 | SEAL RING | |
| N 074298022203 | DOUBLE FITTING | |
| 615 | N 074301022203 | ELBOW FITTING |
| 616 | N 074305022202 | NUT |
| 617 | A 0009870446 | SEALING CORD |
| 617D | A 0004290227 | THRUST RING |
| 618 | A 0004315705 | BRAKE VALVE |
| 618 | A 0004319805 | BRAKE BOOSTER |
| A 0014309901 | BRAKE MASTER CYLINDER | |
| A 0004313414 | BRAKE CYLINDER | |
| Repalced by: A 0034304401 | ||
| A 0034304401 | BRAKE BOOSTER | |
| 620 | A 0015869143 | REPAIR KIT |
| TO 000 431 98 05,000 431 34 14 | ||
| A 3525421243 | PIPE LINE | |
| Repalced by: A 0004290701 | ||
| A 3525421343 | PIPE LINE | |
| Repalced by: A 0004290701 | ||
| A 3525421443 | PIPE LINE | |
| Repalced by: A 0004290701 | ||
| A 3525421543 | PIPE LINE | |
| Repalced by: A 0004290701 | ||
| A 3524291643 | INSULATION UNION | |
| Repalced by: A 0004290701 | ||
| A 3524291743 | INSULATION UNION | |
| Repalced by: A 0004290701 | ||
| A 3525421843 | PIPE LINE | |
| Repalced by: A 0004290701 | ||
| A 3525421943 | PIPE LINE | |
| Repalced by: A 0004290701 | ||
| 622 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 622 | A 0004296201 | LINE |
| 6 MM | ||
| 623 | N 915017006100 | UNION NUT |
| 624 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 624 | A 0019901667 | SEAL CONE |
| 626 | A 0009977172 | FITTING |
| 627 | A 3215420035 | HOSE |
| A 3525407461 | ELECTRIC CABLE | |
| Repalced by: A 0089976082 | ||
| A 0089976082 | HOSE | |
| Repalced by: A 0009872627 | ||
| A 0009872627 | PLASTIC PIPE | |
| BRAKE PRESSURE CONTROL | ||
| 6X4 MM | ||
| N 040621010200 | INSULATING HOSE | |
| BRAKE PRESSURE CONTROL | ||
| A 0019975072 | FITTING | |
| BRAKE PRESSURE CONTROL | ||
| N 915017006200 | UNION NUT | |
| BRAKE PRESSURE CONTROL | ||
| A 0019973772 | FITTING | |
| 629 | N 000125013008 | WASHER |
| 631 | N 006797012153 | TOOTHED WASHER |
| 633 | N 000936012009 | NUT |
| 635 | A 3609950101 | CLAMP |
| A 3124292440 | BRACKET | |
| Repalced by: A 3124761535 | ||
| A 3124761535 | BRACKET | |
| N 007985006155 | SCREW | |
| N 000084006105 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| N 007971004227 | SHEET METAL SCREW | |
| 655 | A 3214200484 | PARKING BRAKE |
| 656 | A 3224200295 | HANDLE |
| Repalced by: A 3214270126 | ||
| 656 | A 3214270126 | PAWL ROD HANDLE |
| 657 | A 3214270674 | PIN |
| 658 | A 3214201474 | ROD |
| 659 | A 3219900075 | SCREW |
| 661 | A 3524270174 | PIN |
| 662 | N 006799005003 | LOCK PLATE |
| Repalced by: N 006799005009 | ||
| 662 | N 006799005009 | LOCK PLATE |
| 665 | A 3214270841 | BRACKET |
| 666 | A 3044270064 | GUIDE BALL |
| N 000933008145 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| 668 | A 3214270183 | SPHERICAL PIECE |
| 669 | A 3219900751 | NUT |
| 670 | A 3214270283 | SPHERICAL PIECE |
| 671 | A 3524201712 | BRAKE LEVER |
| 672 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 672 | N 071412008102 | GREASE NIPPLE |
| 673 | A 3214270250 | BUSHING |
| 674 | A 3524270430 | PAWL ROD |
| 675 | N 071805013203 | BALL SOCKET |
| N 071805013302 | SNAP RING | |
| 676 | N 071805013402 | SECURING CLIP |
| 677 | N 304032008006 | NUT |
| 678 | A 3529930001 | SPRING |
| 679 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 679 | N 000125008443 | WASHER |
| 681 | A 3524270841 | BRACKET |
| N 000085004114 | SCREW | |
| N 000127004206 | LOCK WASHER | |
| N 000934004006 | NUT | |
| 682 | A 3214271041 | BRACKET |
| N 000660004041 | RIVET | |
| 683 | A 3224200292 | PAWL |
| 683 | A 3224200392 | PAWL |
| 684 | A 3229920201 | BUSHING |
| 685 | A 3524270274 | PIN |
| 686 | A 3524270176 | WASHER |
| 687 | N 000471014000 | LOCK RING |
| 688 | A 3529930610 | SPRING |
| 689 | A 3524200778 | BEARING BRACKET |
| 689 | A 3524200878 | BEARING BRACKET |
| 691 | A 3214270374 | PIN |
| 692 | A 3224270574 | PIN |
| 693 | A 3224271174 | PIN |
| 694 | A 3224270176 | WASHER |
| 1 MM | ||
| 694 | A 3224270276 | WASHER |
| 1.50 MM | ||
| 694 | A 3224270376 | WASHER |
| 2 MM | ||
| N 000094004024 | COTTER PIN | |
| 695 | A 3524270050 | BUSHING |
| N 000931010268 | SCREW | |
| Repalced by: N 304017010050 | ||
| N 304017010050 | SCREW | |
| N 000933010217 | SCREW | |
| N 912004010102 | LOCK WASHER | |
| N 000934010014 | NUT | |
| 697 | A 0005454009 | SWITCH |
| 698 | A 3229900240 | WASHER |
| 699 | A 3524270674 | PIN |
| A 3214200293 | CABLE PULLEY | |
| Repalced by: A 3224200193 | ||
| 701 | A 3224200193 | CABLE PULLEY |
| A 3214200393 | CABLE PULLEY | |
| Repalced by: A 3224200293 | ||
| 701 | A 3224200293 | CABLE PULLEY |
| 703 | A 3214270250 | BUSHING |
| 704 | A 3214270076 | WASHER |
| 1.70 MM | ||
| 704 | A 3214270176 | WASHER |
| 2 MM | ||
| 704 | A 3214270276 | WASHER |
| 2.30 MM | ||
| 705 | N 000471030000 | LOCK RING |
| 706 | A 3524270974 | PIN |
| 707 | N 912004014100 | LOCK WASHER |
| 708 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 708 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 708 | N 308675014002 | NUT |
| 709 | A 3224200092 | PAWL |
| 709 | A 3224200192 | PAWL |
| 711 | A 3229920201 | BUSHING |
| 712 | A 3224270114 | ROLLER |
| 18.50 MM | ||
| 712 | A 3224270214 | ROLLER |
| 19 MM | ||
| 712 | A 3224270314 | ROLLER |
| 19.50 MM | ||
| 713 | N 000471010001 | LOCK RING |
| 714 | N 912004010102 | LOCK WASHER |
| 715 | N 000934010014 | NUT |
| 716 | A 3524272641 | BRACKET |
| Repalced by: A 3524202386 | ||
| 716 | A 3524202386 | BRACKET |
| 716 | A 3524272741 | BRACKET |
| Repalced by: A 3524202486 | ||
| 716 | A 3524202486 | BRACKET |
| 718 | N 000933010128 | SCREW |
| 719 | N 912004010102 | LOCK WASHER |
| 720 | A 3529930610 | SPRING |
| 721 | A 3224270013 | LEVER |
| 722 | A 3529910907 | PIN |
| 723 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 723 | N 000125010532 | WASHER |
| N 000094003219 | COTTER PIN | |
| 725 | A 3529911007 | PIN |
| 726 | N 000125006421 | WASHER |
| N 000094001518 | COTTER PIN | |
| 727 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 727 | N 304017008018 | SCREW |
| 728 | N 304032008006 | NUT |
| 729 | A 3224200290 | GUIDE |
| 729 | A 3224200390 | GUIDE |
| N 000933010238 | SCREW | |
| Repalced by: N 304017010028 | ||
| N 304017010028 | SCREW | |
| N 912004010102 | LOCK WASHER | |
| 731 | A 3224200085 | BRAKE CABLE |
| 732 | A 3214200176 | END PIECE |
| 90 MM | ||
| 733 | N 000934010014 | NUT |
| 734 | A 3529910007 | PIN |
| N 000094003219 | COTTER PIN | |
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |

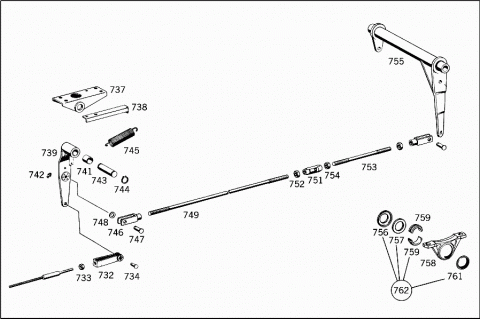

| 737 | A 3224203678 | BEARING BRACKET |
| N 000933010128 | SCREW | |
| N 912004010102 | LOCK WASHER | |
| N 000934010014 | NUT | |
| 738 | A 3224270341 | BRACKET |
| N 000933010105 | SCREW | |
| N 000933008145 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 912004010102 | LOCK WASHER | |
| N 304032008006 | NUT | |
| N 000934010014 | NUT | |
| 739 | A 3524200581 | LEVER |
| FRONT | ||
| 739 | A 3524200981 | LEVER |
| 741 | A 3529921201 | BUSHING |
| 742 | N 071412010100 | GREASE NIPPLE |
| 743 | A 3124261574 | PIN |
| 744 | N 000471022000 | LOCK RING |
| 745 | A 3379935010 | SPRING |
| 746 | N 071752012002 | YOKE |
| 747 | A 3529910107 | PIN |
| 748 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 748 | N 000433013010 | WASHER |
| N 000094004065 | COTTER PIN | |
| 749 | N 900331012332 | PULL ROD |
| 751 | N 001480012200 | TURNBUCKLE |
| Repalced by: A 3859960034 | ||
| 751 | A 3859960034 | NUT |
| 752 | N 000934012021 | NUT |
| 753 | N 900331012339 | PULL ROD |
| 755 | A 3524201380 | BRAKE INTERMEDIATE SHAFT |
| 755 | A 3524200980 | BRAKE INTERMEDIATE SHAFT |
| 756 | A 3274270058 | SEAL HOLDER |
| 757 | A 3279970040 | SEAL RING |
| 758 | A 3584201078 | BEARING BRACKET |
| 759 | A 3024260083 | SPHERICAL PIECE |
| Repalced by: A 3025860242 | ||
| 761 | N 000470052000 | EXPANSION PLUG |
| 762 | A 3025860242 | REPAIR KIT |
| Repalced by: A 3534200067 | ||
| 762 | A 3534200067 | REPAIR KIT |
| Repalced by: A 3534200167 | ||
| 762 | A 3534200167 | BALL CUP |
| BRAKE INTERMEDIATE SHAFT BEARING | ||
| N 000961012151 | SCREW | |
| N 912004012100 | LOCK WASHER | |
| N 000934012022 | NUT | |
| 763 | N 071752012002 | YOKE |
| 764 | N 000934012021 | NUT |
| 765 | N 071752012003 | YOKE |
| 766 | N 000934012020 | NUT |
| 768 | N 900331012343 | PULL ROD |
| A 3529910107 | PIN | |
| N 000433013005 | WASHER | |
| Repalced by: N 000433013010 | ||
| N 000433013010 | WASHER | |
| N 000094004065 | COTTER PIN | |
| 769 | A 3524202081 | LEVER |
| LEFT | ||
| 771 | A 3524270250 | BUSHING |
| 772 | N 071412010100 | GREASE NIPPLE |
| 774 | A 3524270111 | BEARING BRACKET |
| 775 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 775 | N 000960012353 | SCREW |
| 776 | N 000961012122 | SCREW |
| 777 | N 912004012100 | LOCK WASHER |
| 778 | N 000125031001 | WASHER |
| 779 | N 000471030000 | LOCK RING |
| A 3524201574 | ROD | |
| Repalced by: A 3604200474 | ||
| 781 | A 3524203674 | ROD |
| Repalced by: A 3604200474 | ||
| A 3524203574 | ROD | |
| Repalced by: A 3604200474 | ||
| 782 | A 3524203774 | ROD |
| Repalced by: A 3604200474 | ||
| A 3604200474 | ROD | |
| FRONT | ||
| A 3854200274 | ROD | |
| REAR | ||
| A 3534200074 | ROD | |
| REAR | ||
| N 001480012200 | TURNBUCKLE | |
| Repalced by: A 3859960034 | ||
| A 3859960034 | NUT | |
| N 000934012020 | NUT | |
| N 000934012021 | NUT | |
| 783 | A 3529910207 | PIN |
| 784 | N 900055012001 | SPRING WASHER |
| 785 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 785 | N 000433013010 | WASHER |
| N 000094004065 | COTTER PIN | |
| A 3529910107 | PIN | |
| A 0039906840 | WASHER | |
| Repalced by: N 000433013005 | ||
| N 000433013005 | WASHER | |
| Repalced by: N 000433013010 | ||
| N 000433013010 | WASHER | |
| N 000094004065 | COTTER PIN | |
| 786 | A 3544230036 | BRAKE CAMSHAFT |
| 787 | A 3414230186 | CUP |
| 788 | A 3024230037 | ADJUSTING LEVER |
| LEFT | ||
| A 3024230137 | ADJUSTING LEVER | |
| RIGHT | ||
| 789 | A 3024230170 | STUD |
| 790 | N 000936018006 | NUT |
| 791 | A 3544230171 | SCREW |
| 792 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 792 | N 308675012000 | NUT |
| 793 | A 3524261011 | LEVER |
| LEFT | ||
| A 3524261111 | LEVER | |
| RIGHT | ||
| 794 | A 3524260405 | BEARING |
| 795 | N 000960016052 | SCREW |
| 796 | N 912004016101 | LOCK WASHER |
| BOGE | ||
| 797 | A 3024260083 | SPHERICAL PIECE |
| Repalced by: A 3025860142 | ||
| 798 | N 003760045300 | RADIAL SEAL RING |
| 801 | N 071412010100 | GREASE NIPPLE |
| A 3029970020 | EXPANSION PLUG | |
| Repalced by: A 3609970020 | ||
| 802 | A 3609970020 | EXPANSION PLUG |
| 803 | N 000472062000 | LOCK RING |
| Repalced by: A 0039945241 | ||
| 803 | A 0039945241 | LOCK |
| 805 | A 3024230153 | SPACER TUBE |
| 11.0 MM | ||
| A 3024230253 | SPACER TUBE | |
| 11.5 MM | ||
| A 3024230353 | SPACER TUBE | |
| 12.0 MM | ||
| A 3024230653 | SPACER TUBE | |
| AS REQUIRED | ||
| 13.5 MM | ||
| A 3024230753 | SPACER TUBE | |
| 10.5 MM | ||
| 807 | N 000471045000 | LOCK RING |
| 809 | N 000471035000 | LOCK RING |
| 811 | A 3025860142 | REPAIR KIT |
| Repalced by: A 3024200067 | ||
| 811 | A 3024200067 | REPAIR KIT |
| BRAKE CAMSHAFT BEARING | ||
| A 3604298605 | LINE | |
| Repalced by: A 0004290201 | ||
| A 3604298705 | LINE | |
| Repalced by: A 0004290201 | ||
| A 3554290701 | LINE | |
| Repalced by: A 0004290201 | ||
| A 3554290801 | LINE | |
| Repalced by: A 0004290201 | ||
| A 3604297705 | LINE | |
| Repalced by: A 0004290201 | ||
| A 3604297805 | LINE | |
| Repalced by: A 0004290201 | ||
| A 0004290201 | LINE | |
| Repalced by: A 0005516256 | ||
| 813 | A 0005516256 | TUBE |
| 15 MM | ||
| A 0109975982 | HOSE | |
| Repalced by: A 0009872827 | ||
| A 0009872827 | PLASTIC PIPE | |
| 12X9 MM | ||
| A 0049971772 | FITTING | |
| Repalced by: A 0029906171 | ||
| A 0029906171 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| TO 010 997 59 82 | ||
| A 0009921505 | BUSHING | |
| Repalced by: N 915062009000 | ||
| N 915062009000 | SLEEVE | |
| N 915017012100 | UNION NUT | |
| N 003861012007 | GLAND | |
| Repalced by: A 0019901967 | ||
| A 0019901967 | SEAL CONE | |
| 815 | N 915018015000 | UNION NUT |
| 818 | N 003861015004 | GLAND |
| 820 | N 915065015101 | THRUST RING |
| 821 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 821 | N 007603012121 | SEAL RING |
| A 0004294532 | T-FITTING | |
| Repalced by: N 074317016401 | ||
| N 074317016401 | FITTING | |
| Repalced by: A 0009907070 | ||
| 826 | A 0009907070 | T-FITTING |
| 827 | N 074302022202 | T-FITTING |
| A 3554290402 | LINE | |
| Repalced by: A 0004290801 | ||
| A 3554290502 | LINE | |
| Repalced by: A 0004290801 | ||
| A 3554296006 | LINE | |
| Repalced by: A 0004290801 | ||
| A 3554296106 | LINE | |
| Repalced by: A 0004290801 | ||
| A 0004290801 | LINE | |
| A 3554290002 | LINE | |
| Repalced by: A 0004290801 | ||
| A 3554290102 | LINE | |
| Repalced by: A 0004290801 | ||
| 834 | A 0004290801 | LINE |
| 8 MM | ||
| 835 | N 915017008100 | UNION NUT |
| 836 | N 003861008005 | GLAND |
| 838 | N 003902008000 | CONNECTION FITTING |
| 839 | A 3583500079 | HOSE |
| A 0004295235 | HOSE | |
| N 900288012004 | CLAMP | |
| A 0019972772 | FITTING | |
| N 000125015013 | WASHER | |
| Repalced by: N 000125015019 | ||
| N 000125015019 | WASHER | |
| N 000936014010 | NUT | |
| Repalced by: N 308675014000 | ||
| N 308675014000 | NUT | |
| Repalced by: N 308675014002 | ||
| N 308675014002 | NUT | |
| 845 | A 0009902670 | T-FITTING |
| A 0009901070 | T-FITTING | |
| 846 | A 0005455414 | SWITCH |
| 848 | A 3124761336 | BRACKET |
| A 3044290940 | BRACKET | |
| A 0019978390 | LOOM TIE | |
| A 3609950201 | CLAMP | |
| Repalced by: A 3604300143 | ||
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| N 916016008200 | CLAMP | |
| 8 MM | ||
| A 3609950501 | CLAMP | |
| Repalced by: A 3609952001 | ||
| 850 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 850 | A 6739950001 | CLAMP |
| 15 MM | ||
| N 000084006197 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| A 0009950301 | CLAMP | |
| Repalced by: N 916016015200 | ||
| 854 | N 916016015200 | CLAMP |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 304032008006 | NUT | |
| 855 | N 007603014405 | SEAL RING |
| 856 | A 0009904271 | ELBOW FITTING |
| 857 | A 0009972072 | FITTING |
| Repalced by: A 0039979972 | ||
| 857 | A 0039979972 | FITTING |
| 860 | A 0004304481 | VALVE |
| Repalced by: A 0004305681 | ||
| A 0004304481 | VALVE | |
| Repalced by: A 0004305681 | ||
| 861 | A 0089973845 | SEAL RING |
| 32.99X2.62 MM | ||
| 862 | A 0089973745 | SEAL RING |
| 6.07X1.78 MM | ||
| 863 | A 0089974045 | SEAL RING |
| 12.42X1.78 MM | ||
| 864 | A 0089973945 | SEAL RING |
| 8.13X1.78 MM | ||
| 865 | A 0089974145 | SEAL RING |
| 17.12X2.62 MM | ||
| 866 | A 0059976545 | SEAL RING |
| 18.72X2.62 MM | ||
| 867 | A 0004312188 | VALVE SEAT |
| 868 | A 0004313323 | VALVE |
| 869 | A 0009933205 | SPRING |
| 870 | A 0004305581 | VALVE |
| HAND BRAKE VALVE | ||
| WABCO | ||
| 870 | A 0004305681 | VALVE |
| HAND BRAKE VALVE | ||
| WABCO | ||
| 870 | A 0004306681 | VALVE |
| HAND BRAKE VALVE | ||
| KNORR | ||
| A 0004306781 | VALVE | |
| HAND BRAKE VALVE | ||
| KNORR | ||
| A 0004305760 | REPAIR KIT | |
| TO 000 430 55 81,NR.1050,WABCO | ||
| A 0004305860 | REPAIR KIT | |
| TO 000 430 56 81,NR.1150,WABCO | ||
| 875 | A 0005868043 | REPAIR KIT |
| Repalced by: A 0004305760 | ||
| 875 | A 0004305760 | REPAIR KIT |
| TO 000 430 55 81,NR.1020 WABCO | ||
| 875 | A 0005868143 | REPAIR KIT |
| Repalced by: A 0004305860 | ||
| 875 | A 0004305860 | REPAIR KIT |
| TO 000 430 56 81,NR.1120 WABCO | ||
| A 0025866243 | REPAIR KIT | |
| Repalced by: A 0034303881 | ||
| A 0034303881 | REPAIR KIT | |
| TO 000 430 66 81,000 430 67 81,KNORR | ||
| N 000963006024 | SCREW | |
| N 000087006146 | SCREW | |
| A 3464316040 | BRACKET | |
| N 000966006020 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| 885 | N 007603022102 | SEAL RING |
| A 0004291234 | ADAPTER FITTING | |
| Repalced by: N 074313008101 | ||
| N 074313008101 | FITTING | |
| Repalced by: A 0009970171 | ||
| 886 | A 0009970171 | FITTING |
| N 007604022200 | SCREW PLUG | |
| 887 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 887 | N 000908022011 | SCREW PLUG |
| N 074298022203 | DOUBLE FITTING | |
| 888 | A 0009903970 | T-FITTING |
| Repalced by: A 0019901070 | ||
| 888 | A 0019901070 | T-FITTING |
| 889 | N 074301022203 | ELBOW FITTING |
| 890 | N 074305022202 | NUT |
| 891 | A 0004290227 | THRUST RING |
| 892 | A 0009870446 | SEALING CORD |
| 895 | A 0004296544 | VALVE |
| RELAY VALVE | ||
| WESTINGHOUSE | ||
| 895 | A 0014293044 | VALVE |
| RELAY VALVE | ||
| GRAU | ||
| 895 | A 0014295444 | VALVE |
| Repalced by: A 0034295244 | ||
| 895 | A 0034295244 | VALVE |
| RELAY VALVE | ||
| KNORR | ||
| A 0059972648 | SEAL RING | |
| 22.3X2.4 MM;TO 001 429 30 44 | ||
| A 0004312788 | VALVE SEAT | |
| TO 001 429 30 44 | ||
| A 0059972748 | SEAL RING | |
| 80X3 MM;TO 000 429 28 95, GRAU | ||
| A 0014311660 | SEAL RING | |
| 28X2 MM;TO 001 429 30 44 | ||
| A 0014311760 | SEAL RING | |
| 86X2 MM;TO 001 429 30 44 | ||
| A 0014311980 | GASKET | |
| Repalced by: A 0004311980 | ||
| A 0004311980 | GASKET | |
| 34X2X6 MM;TO 001 429 30 44 | ||
| A 0025863542 | REPAIR KIT | |
| TO 001 429 54 44, 003 429 52 44 | ||
| 900 | A 0005865742 | REPAIR KIT |
| TO 000 429 65 44 | ||
| 902 | A 3554320140 | BRACKET |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| 904 | N 912004008102 | LOCK WASHER |
| 905 | N 304032008006 | NUT |
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| N 912004010102 | LOCK WASHER | |
| N 000934010014 | NUT | |
| 908 | N 007603016401 | SEAL RING |
| 909 | A 3229970272 | FITTING |
| Repalced by: A 0009974172 | ||
| A 0009974172 | FITTING | |
| N 074315012100 | FITTING | |
| Repalced by: A 0019903371 | ||
| A 0019903371 | ELBOW FITTING | |
| N 080705016003 | NUT | |
| A 0004290927 | THRUST RING | |
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| A 0009971548 | SEAL RING | |
| 910 | A 0004312114 | BRAKE CYLINDER |
| BOSCH | ||
| 910 | A 0004317714 | BRAKE CYLINDER |
| KNORR | ||
| 910 | A 0014311314 | BRAKE CYLINDER |
| WESTINGHOUSE | ||
| 910M | A 0004318186 | CUP |
| Repalced by: A 0015864342 | ||
| A 0004317486 | CUP | |
| Repalced by: A 0004319186 | ||
| A 0004319686 | CUP | |
| TO 000 431 77 14 | ||
| A 0059971148 | SEAL RING | |
| TO 000 431 77 14 | ||
| 911 | A 0004319186 | CUP |
| Repalced by: A 0004312786 | ||
| A 0014310786 | CUP | |
| Repalced by: A 0004312786 | ||
| A 0004312786 | CUP | |
| TO 000 431 21 14 | ||
| A 0004318583 | PISTON | |
| TO 000 431 21 14 | ||
| 912 | A 0004310649 | SLIDE |
| TO 000 431 21 14 | ||
| A 0004311880 | GASKET | |
| TO 000 431 77 14 | ||
| A 0014311160 | SEAL RING | |
| TO 000 431 77 14 | ||
| A 0004319586 | CUP | |
| TO 000 431 77 14 | ||
| A 0004318587 | PROTECTIVE CAP | |
| TO 001 431 13 14 | ||
| A 0004310736 | FILTER BOTTOM | |
| TO 000 431 21 14 | ||
| A 0089977548 | SEAL RING | |
| TO 000 431 21 14 | ||
| A 0049971740 | SEAL RING | |
| TO 000 431 21 14 | ||
| 913 | A 0015864342 | REPAIR KIT |
| Repalced by: A 0034201724 | ||
| 913 | A 0034201724 | REPAIR KIT |
| TO 000 431 21 14 | ||
| A 0025861443 | REPAIR KIT | |
| TO 001 431 13 14 | ||
| A 0004315014 | BRAKE CYLINDER | |
| Repalced by: A 0014316514 | ||
| A 0014316514 | BRAKE CYLINDER | |
| WITH BRACKET | ||
| A 0014311786 | CUP | |
| TO 001 431 65 14 | ||
| A 0004318786 | CUP | |
| TO 000 431 50 14 | ||
| A 0004318186 | CUP | |
| Repalced by: A 0015864342 | ||
| A 0015864342 | REPAIR KIT | |
| Repalced by: A 0034201724 | ||
| A 0034201724 | REPAIR KIT | |
| A 0004310649 | SLIDE | |
| 916 | A 3604301811 | CONSOLE |
| N 000933010105 | SCREW | |
| N 912004010102 | LOCK WASHER | |
| N 000934010014 | NUT | |
| 918 | A 3554300239 | SUPPORT |
| N 000961012151 | SCREW | |
| N 912004012100 | LOCK WASHER | |
| N 000934012022 | NUT | |
| N 000933012077 | SCREW | |
| N 000933012071 | SCREW | |
| N 912004012100 | LOCK WASHER | |
| A 3554200581 | LEVER | |
| Repalced by: A 3854200681 | ||
| 920 | A 3854200681 | LEVER |
| LEFT | ||
| A 3554200481 | LEVER | |
| Repalced by: A 3854200581 | ||
| A 3854200581 | LEVER | |
| RIGHT | ||
| 921 | A 3524270250 | BUSHING |
| 922 | N 071412010100 | GREASE NIPPLE |
| 923 | A 3524270111 | BEARING BRACKET |
| 925 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 925 | N 000960012353 | SCREW |
| 926 | N 000961012122 | SCREW |
| 927 | N 912004012100 | LOCK WASHER |
| 929 | N 000125031001 | WASHER |
| 931 | N 000471030000 | LOCK RING |
| A 3524201574 | ROD | |
| Repalced by: A 3604200474 | ||
| 940 | A 3524203674 | ROD |
| Repalced by: A 3604200474 | ||
| A 3524203574 | ROD | |
| Repalced by: A 3604200474 | ||
| 942 | A 3524203774 | ROD |
| Repalced by: A 3604200474 | ||
| 942A | A 3604200474 | ROD |
| FRONT | ||
| 942D | A 3854200274 | ROD |
| REAR | ||
| A 3534200074 | ROD | |
| REAR | ||
| 942G | N 001480012200 | TURNBUCKLE |
| Repalced by: A 3859960034 | ||
| 942G | A 3859960034 | NUT |
| 942K | N 000934012020 | NUT |
| 942M | N 000934012021 | NUT |
| 943 | A 3529910207 | PIN |
| 944 | N 900055012001 | SPRING WASHER |
| 945 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 945 | N 000433013010 | WASHER |
| N 000094004065 | COTTER PIN | |
| A 3529910107 | PIN | |
| N 000433013005 | WASHER | |
| Repalced by: N 000433013010 | ||
| N 000433013010 | WASHER | |
| N 000094004065 | COTTER PIN | |
| 948 | A 3544230036 | BRAKE CAMSHAFT |
| 948 | A 3604231636 | BRAKE CAMSHAFT |
| 949 | A 3414230186 | CUP |
| A 3024230037 | ADJUSTING LEVER | |
| LEFT | ||
| A 3024230137 | ADJUSTING LEVER | |
| LEFT | ||
| 951 | A 3024230170 | STUD |
| N 000936018006 | NUT | |
| A 3544230171 | SCREW | |
| N 000936012005 | NUT | |
| Repalced by: N 308675012000 | ||
| N 308675012000 | NUT | |
| 955 | A 3524261011 | LEVER |
| LEFT | ||
| 955 | A 3834260410 | LEVER |
| Repalced by: A 3834261510 | ||
| 955 | A 3834261510 | LEVER |
| LEFT,REAR AXLE II | ||
| 955 | A 3834260210 | LEVER |
| Repalced by: A 3834261310 | ||
| 955 | A 3834261310 | LEVER |
| LEFT, REAR AXLE I | ||
| A 3834260510 | LEVER | |
| Repalced by: A 3834261610 | ||
| A 3834261610 | LEVER | |
| RIGHT, REAR AXLE II | ||
| A 3834260310 | LEVER | |
| Repalced by: A 3834261410 | ||
| A 3834261410 | LEVER | |
| RIGHT, REAR AXLE I | ||
| N 000931010271 | SCREW | |
| A 3524261111 | LEVER | |
| RIGHT | ||
| 956 | A 3524260405 | BEARING |
| 956 | A 3024260405 | BEARING |
| 956 | A 3024260405 | BEARING |
| N 000960016052 | SCREW | |
| 960 | N 000960016140 | SCREW |
| Repalced by: N 000960016206 | ||
| 960 | N 000960016206 | SCREW |
| N 912004016101 | LOCK WASHER | |
| A 3024260083 | SPHERICAL PIECE | |
| Repalced by: A 3025860142 | ||
| 962 | A 0009814331 | JOINT BEARING |
| Repalced by: A 3605860242 | ||
| N 003760045300 | RADIAL SEAL RING | |
| 963 | A 0119975546 | SEAL RING |
| 963 | A 0119975546 | SEAL RING |
| 963 | A 0119975546 | SEAL RING |
| N 071412010100 | GREASE NIPPLE | |
| 964 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 964 | N 071412008102 | GREASE NIPPLE |
| 964 | N 071412008102 | GREASE NIPPLE |
| A 3029970020 | EXPANSION PLUG | |
| Repalced by: A 3609970020 | ||
| 966 | A 3609970020 | EXPANSION PLUG |
| 967 | A 0019972848 | SEAL RING |
| 968 | A 3604230057 | STOP WASHER |
| 969 | N 000471032000 | LOCK RING |
| 970 | N 000472062000 | LOCK RING |
| Repalced by: A 0039945241 | ||
| 970 | A 0039945241 | LOCK |
| A 3024230153 | SPACER TUBE | |
| 11.0 MM | ||
| A 3024230253 | SPACER TUBE | |
| 11.5 MM | ||
| A 3024230353 | SPACER TUBE | |
| 12.0 MM | ||
| A 3024230453 | SPACER TUBE | |
| 12.5 MM | ||
| A 3024230553 | SPACER TUBE | |
| 13.0 MM | ||
| A 3024230653 | SPACER TUBE | |
| 13.5 MM | ||
| A 3024230753 | SPACER TUBE | |
| 10.5 MM | ||
| N 000471045000 | LOCK RING | |
| N 000471035000 | LOCK RING | |
| 980 | A 3025860142 | REPAIR KIT |
| Repalced by: A 3024200067 | ||
| 980 | A 3024200067 | REPAIR KIT |
| BRAKE CAMSHAFT BEARING | ||
| A 3605860242 | REPAIR KIT | |
| Repalced by: A 3604200241 | ||
| A 3604200241 | REPAIR KIT | |
| BRAKE CAMSHAFT BEARING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
