Transporto priemonė: L 1813/6X4; VIN numerio dalis: 352403

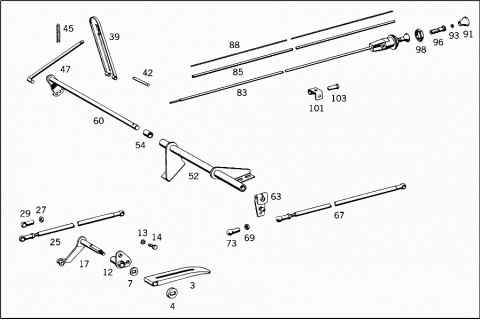

Grupė: 30 CONTROL

#	Kodas	Pavadinimas
	A 3213010002	PEDAL PLATE
	Repalced by: A 3523000802
	A 3523000802	PLATE
		ACCELERATOR PEDAL CONTROL
004	A 3523010088	COVERING
		ACCELERATOR PEDAL CONTROL
007	A 3223010054	GUARD PLATE
		ACCELERATOR PEDAL CONTROL
012	A 3223000021	BEARING TUBE
		ACCELERATOR PEDAL CONTROL
012	A 3453000021	BEARING TUBE
	Repalced by: A 3223000021
013	N 912004008102	LOCK WASHER
		BEARING TUBE TO FIRE WALL
014	N 000933008145	SCREW
		BEARING TUBE TO FIRE WALL
017	A 3213001425	LEVER
		ACCELERATOR PEDAL CONTROL
	A 3129910120	BALL PIVOT
	Repalced by: N 071803010209
	N 071803010209	BALL PIVOT
	Repalced by: A 3129910120
	A 3129910120	BALL PIVOT
	N 000433008406	WASHER
		PEDAL PLATE TO SHAFT
	N 912004008102	LOCK WASHER
		PEDAL PLATE TO SHAFT
	N 304032008006	NUT
		PEDAL PLATE TO SHAFT
	A 3523002315	ROD
	Repalced by: A 3604301892
	A 3524302592	ROD
	Repalced by: A 3604301892
025	A 3604301892	ROD
	N 900331006615	PULL ROD
027	N 000934006007	NUT
	N 071805010204	BALL SOCKET
	A 0009910522	BALL SOCKET
	Repalced by: A 0009912422
029	A 0009912422	BALL SOCKET
	N 071805010403	SECURING CLIP
039	A 3223000302	PLATE
		ACCELERATOR PEDAL CONTROL
042	A 3123011009	PIN
		PEDAL TO CAB FLOOR
	N 000094002059	COTTER PIN
		PEDAL TO CAB FLOOR
045	A 3033010007	SAFETY PIN
047	A 3223010015	ROD
		CONTROL
	N 000094003201	COTTER PIN
		ROD TO LEVER
052	A 3223001936	BEARING BRACKET
054	A 3529921001	BUSHING
	N 000933008160	SCREW
	Repalced by: N 304017008040
	N 304017008040	SCREW
	Repalced by: N 910105008010
	N 910105008010	SCREW
	Repalced by: N 910143008005
	N 910143008005	SCREW
		CONTROL SHAFT BEARING TO FIRE WALL
	N 000125008418	WASHER
	Repalced by: N 000125008443
	N 000125008443	WASHER
		CONTROL SHAFT BEARING TO FIRE WALL
	A 3223010084	SHIM
	Repalced by: A 3832710240
	A 3832710240	BRACKET
		CONTROL SHAFT BEARING TO FIRE WALL
	N 912004008102	LOCK WASHER
		CONTROL SHAFT BEARING TO FIRE WALL
	N 304032008006	NUT
		CONTROL SHAFT BEARING TO FIRE WALL
060	A 3223000020	SHAFT
		CONTROL
063	A 3224300024	LEVER
		CONTROL
	N 071803010209	BALL PIVOT
	Repalced by: A 3129910120
	A 3129910120	BALL PIVOT
	N 000931006118	SCREW
		LEVER TO SHAFT
	N 000934006007	NUT
		LEVER TO SHAFT
	A 3223000115	ROD
	Repalced by: A 3604302092
	A 3524302492	ROD
	Repalced by: A 3604302092
067	A 3604302092	ROD
		FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE
	N 900331006616	PULL ROD
		FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE
069	N 000934006007	NUT
		CONTROL
	N 071805010204	BALL SOCKET
		CONTROL
073	A 0009910522	BALL SOCKET
	Repalced by: A 0009912422
073	A 0009912422	BALL SOCKET
		CONTROL
	N 071805010403	SECURING CLIP
		CONTROL
083	A 3523000407	KNOB
	Repalced by: A 3523001407
083	A 3523001407	KNOB
		WITH SPINDLE AND WIRE CABLE
085	A 3523020106	TUBE
		MANUAL CONTROL
088	A 3523000130	WIRE CABLE
	Repalced by: A 3523000230
088	A 3523000230	WIRE CABLE
		MANUAL CONTROL
	A 3523020001	KNOB
	Repalced by: A 3523020201
091	A 3523020101	KNOB
	Repalced by: A 3523020201
091	A 3523020201	KNOB
		MANUAL CONTROL
093	A 3129902140	WASHER
		MANUAL CONTROL
096	A 3523020108	GUIDE
	Repalced by: A 3523020308
096	A 3523020208	GUIDE
	Repalced by: A 3523020308
096	A 3523020308	GUIDE
098	A 3129901151	NUT
101	A 3523020020	CLAMP
103	A 3523020091	GROMMET
	Repalced by: A 3183020091
103	A 3183020091	GROMMET
		AT SIDE MEMBER
103	A 3183020091	GROMMET
		AT SIDE MEMBER
	N 000933006122	SCREW
	Repalced by: N 304017006034
	N 304017006034	SCREW
		AT SIDE MEMBER
	N 912004006102	LOCK WASHER
		AT SIDE MEMBER
	N 000934006007	NUT
		AT SIDE MEMBER
	N 000084006134	SCREW
		AT TRANSMISSION
	N 912004006102	LOCK WASHER
		AT TRANSMISSION
