Transporto priemonė: L 1813/6X4; VIN numerio dalis: 352403

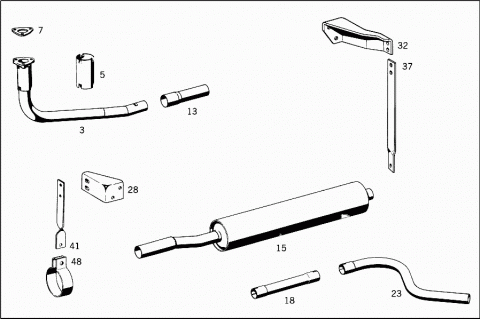

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3604900219 | EXHAUST PIPE | |
| Repalced by: A 3604900619 | ||
| 003 | A 3604900619 | EXHAUST PIPE |
| FRONT | ||
| A 3524900130 | PROTECTIVE PLATE | |
| Repalced by: A 3834900130 | ||
| 005 | A 3834920130 | PROTECTIVE PLATE |
| Repalced by: A 3834922530 | ||
| 005 | A 3834922530 | PROTECTIVE PLATE |
| 007 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 007 | A 4424920280 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 000931010282 | SCREW | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X40 | ||
| N 000931010271 | SCREW | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X60 | ||
| N 000934010014 | NUT | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 3604920207 | CONNECTOR | |
| Repalced by: A 3224920207 | ||
| A 3404920007 | CONNECTOR | |
| Repalced by: A 3224920207 | ||
| 013 | A 3224920207 | CONNECTOR |
| FRONT | ||
| A 3604900315 | EXHAUST MUFFLER WITH PIPE | |
| Repalced by: A 3604900515 | ||
| 015 | A 3604900515 | EXHAUST MUFFLER WITH PIPE |
| FRONT | ||
| 015 | A 3604902315 | EXHAUST MUFFLER WITH PIPE |
| Repalced by: A 3834900001 | ||
| 015 | A 3834900001 | EXHAUST MUFFLER |
| FRONT | ||
| 018 | A 3604921407 | CONNECTOR |
| REAR | ||
| 018 | A 3604921407 | CONNECTOR |
| REAR | ||
| 018 | A 3604921407 | CONNECTOR |
| REAR | ||
| 018 | A 3604921507 | CONNECTOR |
| REAR | ||
| A 3604921607 | CONNECTOR | |
| Repalced by: A 3604921707 | ||
| 018 | A 3604921707 | CONNECTOR |
| REAR | ||
| A 3604922604 | REAR EXHAUST PIPE | |
| Repalced by: A 3604927404 | ||
| 023 | A 3604927404 | REAR EXHAUST PIPE |
| 023 | A 3604927404 | REAR EXHAUST PIPE |
| 023 | A 3604920305 | REAR EXHAUST PIPE |
| A 3604923604 | REAR EXHAUST PIPE | |
| Repalced by: A 3604927704 | ||
| A 3604927704 | REAR EXHAUST PIPE | |
| Repalced by: A 3604922305 | ||
| 023 | A 3604922305 | REAR EXHAUST PIPE |
| 028 | A 3604910016 | SUPPORT |
| EXHAUST | ||
| 028 | A 3814910016 | SUPPORT |
| EXHAUST | ||
| A 3224910016 | SUPPORT | |
| Repalced by: A 3604910316 | ||
| A 3224910016 | SUPPORT | |
| Repalced by: A 3604910416 | ||
| 032 | A 3604910316 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 032 | A 3604910416 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 032 | A 3814910116 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 032 | A 3814910216 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| A 3524925019 | BRACKET | |
| Repalced by: A 3604920619 | ||
| 037 | A 3604920619 | BRACKET |
| AT SUPPORT | ||
| 041 | A 3224921819 | BRACKET |
| AT SUPPORT | ||
| 043 | A 3814920041 | BRACKET |
| AT SUPPORT | ||
| A 3604921341 | BRACKET | |
| Repalced by: A 3814923841 | ||
| A 3814923841 | BRACKET | |
| REAR EXHAUST PIPE TO BRACKET | ||
| 335 MM | ||
| A 0019873140 | RUBBER BUFFER | |
| Repalced by: A 0019875340 | ||
| A 0019875340 | RUBBER BUFFER | |
| BRACKET TO SUPPORT | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| BRACKET TO SUPPORT | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8X22 | ||
| A 3099900740 | WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| SUPPORT TO SIDE MEMBER | ||
| 048 | N 071555065501 | CLAMP |
| REAR EXHAUST PIPE | ||
| 65.5 MM | ||
| N 071555063500 | CLAMP | |
| REAR EXHAUST PIPE | ||
| 63.5 MM | ||
| N 071555060500 | CLAMP | |
| Repalced by: N 000000001642 | ||
| N 000000001642 | CLAMP | |
| REAR EXHAUST PIPE | ||
| 60.5 MM | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| CLAMP TO BRACKET AND TO PIPE | ||
| N 304032008006 | NUT | |
| CLAMP TO BRACKET AND TO PIPE | ||
