Transporto priemonė: L 1813/6X4; VIN numerio dalis: 352403

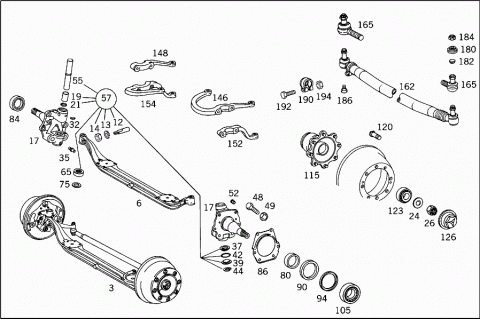

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3523307200 | FRONT AXLE |
| WITH BRAKE | ||
| 003 | A 3523307300 | FRONT AXLE |
| WITH BRAKE | ||
| 006 | A 3403310001 | FRONT AXLE BEAM |
| 006 | A 3603311201 | FRONT AXLE BEAM |
| Repalced by: A 3603310101 | ||
| 006 | A 3603310101 | FRONT AXLE BEAM |
| 012 | A 3279900137 | BOLT |
| 013 | N 912004008102 | LOCK WASHER |
| 014 | N 304032008006 | NUT |
| 017 | A 3273300520 | STEERING KNUCKLE |
| Repalced by: A 3273320401 | ||
| 017 | A 3273320401 | STEERING KNUCKLE |
| 017 | A 3023300320 | STEERING KNUCKLE |
| Repalced by: A 3023320501 | ||
| 017 | A 3023320501 | STEERING KNUCKLE |
| 017 | A 3023320601 | STEERING KNUCKLE |
| 019 | A 3213320048 | BUSHING |
| 019 | A 3403320048 | BUSHING |
| 021 | A 0089977646 | SEAL RING |
| 024 | A 3273321662 | THRUST WASHER |
| 026 | N 000937032000 | NUT |
| 032 | N 071412010100 | GREASE NIPPLE |
| 035 | N 071412010200 | GREASE NIPPLE |
| 037 | A 3273320029 | SEALING CAP |
| 037 | A 3603320029 | SEALING CAP |
| OUTSIDE | ||
| 039 | A 3603320129 | SEALING CAP |
| INSIDE | ||
| 042 | A 3279970145 | SEAL RING |
| 042 | A 3409970145 | SEAL RING |
| 044 | N 000472042001 | LOCK RING |
| 044 | N 000472045000 | LOCK RING |
| 048 | N 000960012197 | SCREW |
| 048 | A 3873320271 | SCREW |
| AS REQUIRED | ||
| M16X40 | ||
| 049 | A 3403370072 | NUT |
| 049 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 049 | N 308673016001 | NUT |
| 052 | N 915042011000 | PLUG |
| 057 | A 3275860033 | REPAIR KIT |
| Repalced by: A 3273300019 | ||
| 057 | A 3273300019 | KING PIN |
| STANDARD | ||
| 35 MM | ||
| 057 | A 3605860233 | REPAIR KIT |
| Repalced by: A 3603300719 | ||
| 057 | A 3603300719 | KING PIN |
| STANDARD | ||
| 36.65 MM | ||
| 057 | A 3275860133 | REPAIR KIT |
| Repalced by: A 3273300119 | ||
| 057 | A 3273300119 | KING PIN |
| STANDARD SIZE I | ||
| 35,3 MM | ||
| 057 | A 3605860333 | REPAIR KIT |
| Repalced by: A 3603300819 | ||
| 057 | A 3603300819 | KING PIN |
| STANDARD SIZE I | ||
| 36.95 MM | ||
| 057 | A 3275860233 | REPAIR KIT |
| Repalced by: A 3273300219 | ||
| 057 | A 3273300219 | KING PIN |
| REPAIR SIZE I | ||
| 35.6 MM | ||
| 057 | A 3605860433 | REPAIR KIT |
| Repalced by: A 3603300919 | ||
| 057 | A 3603300919 | KING PIN |
| STANDARD SIZE I | ||
| 37.25 MM | ||
| 057 | A 3275860333 | REPAIR KIT |
| Repalced by: A 3273300319 | ||
| 057 | A 3273300319 | KING PIN |
| Repalced by: A 3273320306 | ||
| 057 | A 3273320306 | KINGPIN |
| REPAIR SIZE II | ||
| 35.9 MM | ||
| 057 | A 3603320606 | KINGPIN |
| REPAIR SIZE II | ||
| 37.55 MM | ||
| 065 | A 0009812818 | ROLLER BEARING |
| Repalced by: A 0009811918 | ||
| 065 | A 0009811918 | ROLLER BEARING |
| STANDARD | ||
| 35 MM | ||
| 065 | A 0019814118 | ROLLER BEARING |
| STANDARD SIZE I | ||
| 35.3 MM | ||
| 065 | A 0019814218 | ROLLER BEARING |
| REPAIR SIZE I | ||
| 35.6 MM | ||
| 065 | A 0019814318 | ROLLER BEARING |
| REPAIR SIZE II | ||
| 35.9 MM | ||
| 065 | A 0009815418 | ROLLER BEARING |
| STANDARD | ||
| 36.65 MM | ||
| 065 | A 0009818618 | ROLLER BEARING |
| STANDARD SIZE I | ||
| 36.952 MM | ||
| 065 | A 0009818718 | ROLLER BEARING |
| REPAIR SIZE I | ||
| 37.252 MM | ||
| 075 | A 3403320452 | SPACER WASHER |
| 1.30 MM | ||
| 075 | A 3403320552 | SPACER WASHER |
| 1.40 MM | ||
| 075 | A 3403320652 | SPACER WASHER |
| 1.50 MM | ||
| 075 | A 3403320752 | SPACER WASHER |
| 1.60 MM | ||
| 075 | A 3403320852 | SPACER WASHER |
| 1.70 MM | ||
| 075 | A 3403320952 | SPACER WASHER |
| 1.80 MM | ||
| 075 | A 3403321052 | SPACER WASHER |
| 1.90 MM | ||
| 075 | A 3403321252 | SPACER WASHER |
| 2.10 MM | ||
| 080 | A 3213340115 | RING |
| LEFT | ||
| 080 | A 3603340115 | RING |
| FRONT WHEEL HUB,INSIDE,LEFT | ||
| 084 | A 3213340215 | RING |
| RIGHT | ||
| 084 | A 3603340215 | RING |
| FRONT WHEEL HUB,INSIDE,RIGHT | ||
| 086 | A 3553340082 | OIL COLLECTOR |
| 090 | A 0009973446 | SEAL RING |
| 090 | A 0079973646 | SEAL RING |
| 090 | A 0119977147 | SEAL RING |
| 105 | A 0009818905 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 105 | A 0029810205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 105 | A 0019819705 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 105 | A 0089818805 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 105 | A 0039817105 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 105 | A 0039817305 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 105 | A 0019801002 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 115 | A 3213340501 | WHEEL HUB |
| 115 | A 3523340201 | WHEEL HUB |
| 120 | A 3524020171 | WHEEL MOUNTING BOLT |
| 123 | A 0019815605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813805 | ||
| 123 | A 0049813805 | TAPERED ROLLER BEARING |
| 123 | A 0009819605 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813405 | ||
| 123 | A 0049813405 | TAPERED ROLLER BEARING |
| 123 | A 0039816405 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813405 | ||
| 123 | A 0049813405 | TAPERED ROLLER BEARING |
| 123 | A 0069810705 | TAPERED ROLLER BEARING |
| Repalced by: A 0049813805 | ||
| 123 | A 0049813805 | TAPERED ROLLER BEARING |
| 126 | A 3213340225 | HUB CAP |
| 146 | A 3603380507 | STEERING ARM |
| LEFT | ||
| 148 | A 3603380706 | STEERING ARM |
| RIGHT | ||
| 152 | A 3603380805 | STEERING ARM |
| LEFT | ||
| 154 | A 3603380508 | STEERING ARM |
| RIGHT | ||
| 162 | A 3523301703 | TIE ROD |
| Repalced by: A 3523302503 | ||
| 162 | A 3523302503 | TIE ROD |
| LEMFOERDER | ||
| 162 | A 3523301803 | TIE ROD |
| Repalced by: A 3523302603 | ||
| 162 | A 3523302603 | TIE ROD |
| LEMFOERDER | ||
| 165 | A 0003309335 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 165 | A 0003309335 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 180 | A 0003300885 | BOOT |
| 184 | N 000937018003 | NUT |
| 186 | A 3529970006 | PLUG |
| Repalced by: N 900087008000 | ||
| 186 | N 900087008000 | PLUG |
| 190 | A 0003381045 | CLAMP |
| 190 | A 0003381545 | CLAMP |
| 190 | A 0003381845 | CLAMP |
| 190 | A 0003380645 | CLAMP |
| 190 | A 0003382445 | CLAMP |
| 192 | N 000960010039 | SCREW |
| 194 | N 000960010063 | SCREW |
| 194 | N 000960012081 | SCREW |
