Transporto priemonė: L 1813/6X4; VIN numerio dalis: 352403

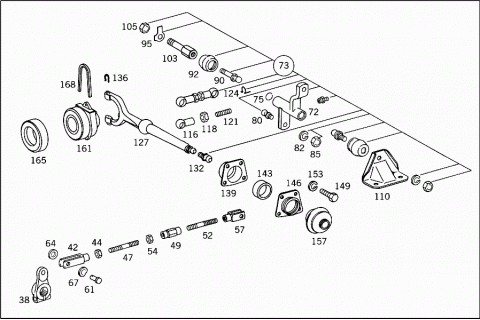

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3522900519 | BEARING BRACKET | |
| Repalced by: A 3522901819 | ||
| 003 | A 3522901819 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| A 3522900619 | BEARING BRACKET | |
| Repalced by: A 3522901919 | ||
| 003 | A 3522901919 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 005 | A 3522900336 | BEARING TUBE |
| 005 | A 3522900436 | BEARING TUBE |
| 007 | A 3529920901 | BUSHING |
| 007 | A 3529922001 | BUSHING |
| 011 | N 071412010100 | GREASE NIPPLE |
| 015 | A 3529900080 | SCREW |
| N 000933010145 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| BEARING BRACKET TO SIDE MEMBER | ||
| 018 | A 3523230195 | REINFORCEMENT |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 000963010033 | SCREW | |
| REINFORCEMENT ANGLE TO FRAME | ||
| M 10X22 | ||
| N 000933010105 | SCREW | |
| REINFORCEMENT ANGLE TO FRAME | ||
| M 10X20 | ||
| N 912004010102 | LOCK WASHER | |
| REINFORCEMENT ANGLE TO FRAME | ||
| N 000934010014 | NUT | |
| REINFORCEMENT ANGLE TO FRAME | ||
| 030 | A 3522902216 | PEDAL |
| CLUTCH | ||
| 030 | A 3522902916 | PEDAL |
| CLUTCH | ||
| A 3529920401 | BUSHING | |
| A 3202940051 | SPACER RING | |
| Repalced by: A 3202940251 | ||
| A 3202940251 | SPACER RING | |
| AS REQUIRED | ||
| 3.00 MM | ||
| A 3202940151 | SPACER RING | |
| AS REQUIRED | ||
| 3.25 MM | ||
| A 3202940251 | SPACER RING | |
| AS REQUIRED | ||
| 3.50 MM | ||
| A 3039910345 | RING | |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 038 | A 3522930310 | LEVER |
| CLUTCH | ||
| N 000931010260 | SCREW | |
| Repalced by: N 304017010030 | ||
| N 304017010030 | SCREW | |
| LEVER TO SHAFT | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| LEVER TO SHAFT | ||
| 042 | A 0009961501 | YOKE |
| CLUTCH LINKAGE | ||
| 044 | N 000934010014 | NUT |
| YOKE TO ROD | ||
| 047 | N 900331010667 | PULL ROD |
| CLUTCH OPERATION | ||
| 049 | N 001479010000 | TURNBUCKLE |
| CLUTCH ADJUSTMENT | ||
| 052 | N 900331010653 | PULL ROD |
| CLUTCH OPERATION | ||
| 054 | N 000934010035 | NUT |
| CLUTCH ADJUSTMENT | ||
| 057 | A 0009961501 | YOKE |
| CLUTCH LINKAGE | ||
| 061 | A 3529910007 | PIN |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 064 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 064 | N 000433010510 | WASHER |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 067 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 067 | N 000137010205 | SPRING WASHER |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| N 000094003219 | COTTER PIN | |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 072 | A 3522900328 | LEVER |
| Repalced by: A 3525860229 | ||
| 072 | A 3522901428 | LEVER |
| Repalced by: A 3525860229 | ||
| 072 | A 3522901728 | LEVER |
| Repalced by: A 3525860229 | ||
| 072 | A 3522901428 | LEVER |
| Repalced by: A 3525860029 | ||
| 072 | A 3522901828 | LEVER |
| Repalced by: A 3525860029 | ||
| 073 | A 3525860229 | REPAIR KIT |
| Repalced by: A 3522905639 | ||
| 073 | A 3522905639 | REPAIR KIT |
| CLUTCH ACTUATING PARTS | ||
| A 3525860029 | REPAIR KIT | |
| Repalced by: A 3522905539 | ||
| A 3522905539 | REPAIR KIT | |
| CLUTCH ACTUATING PARTS | ||
| 075 | N 071805016300 | SNAP RING |
| BALL PIVOT TO BRACKET | ||
| 080 | A 3529910415 | BALL PIVOT |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 080 | A 3029910015 | BALL PIVOT |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 082 | N 912004012100 | LOCK WASHER |
| BALL PIVOT TO BRACKET | ||
| 085 | N 000936012009 | NUT |
| BALL PIVOT TO BRACKET | ||
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| N 071412010100 | GREASE NIPPLE | |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 090 | A 3529910415 | BALL PIVOT |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| 090 | A 3029910015 | BALL PIVOT |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| 092 | A 3522930060 | SEAL RING |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| 095 | N 000463017002 | LOCK PLATE |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| A 3529910315 | BALL PIVOT | |
| Repalced by: A 3529910915 | ||
| A 3529910715 | BALL PIVOT | |
| Repalced by: A 3529910915 | ||
| 103 | A 3529910915 | SPACER |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| N 006797012153 | TOOTHED WASHER | |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| 105 | N 000934016002 | NUT |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| N 006797012153 | TOOTHED WASHER | |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| A 3529910215 | BALL PIVOT | |
| Repalced by: A 3529910515 | ||
| A 3529910515 | BALL PIVOT | |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| N 000463013002 | LOCK PLATE | |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| N 000934012021 | NUT | |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| A 3522930236 | BEARING BRACKET | |
| Repalced by: A 3522932536 | ||
| A 3522931936 | BEARING BRACKET | |
| Repalced by: A 3522932536 | ||
| 111 | A 3522932536 | BEARING BRACKET |
| Repalced by: A 3522932736 | ||
| 111 | A 3522932736 | BEARING BRACKET |
| OUTSIDE | ||
| N 000933010105 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| BEARING BRACKET TO SIDE MEMBER | ||
| A 3529910815 | BALL PIVOT | |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| A 3522930060 | SEAL RING | |
| Repalced by: A 3522930160 | ||
| A 3522930160 | SEAL RING | |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| N 000125013008 | WASHER | |
| N 000934012021 | NUT | |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| N 912004012100 | LOCK WASHER | |
| DOUBLE LEVER TO BEARING BRACKET, OUTSIDE | ||
| A 3522901039 | ROD | |
| Repalced by: A 3522905439 | ||
| A 3522905439 | ROD | |
| CLUTCH OPERATION | ||
| 116 | A 0009916222 | BALL SOCKET |
| N 071805016300 | SNAP RING | |
| 118 | N 000936010008 | NUT |
| 121 | N 900331010653 | PULL ROD |
| 124 | N 071805016402 | SECURING CLIP |
| A 3522900029 | RELEASE YOKE | |
| Repalced by: A 3522930311 | ||
| 127 | A 3522500113 | RELEASE LEVER |
| Repalced by: A 3522930311 | ||
| A 3522930311 | RELEASE YOKE | |
| A 3179910515 | BALL PIVOT | |
| Repalced by: A 3029910015 | ||
| 132 | A 3029910015 | BALL PIVOT |
| RELEASE LEVER | ||
| 132 | A 3529910415 | BALL PIVOT |
| RELEASE LEVER | ||
| 136 | A 3402540013 | SPRING LOCK |
| RELEASE YOKE TO RELEASE BEARING | ||
| 139 | A 3522540040 | BRACKET |
| INSIDE | ||
| 143 | A 3522540135 | BEARING |
| Repalced by: A 3802540035 | ||
| A 3802540035 | BEARING | |
| OUTSIDE | ||
| A 3802540135 | BEARING | |
| OUTSIDE | ||
| A 3802540059 | SEAL RING | |
| SOFT | ||
| A 3802540259 | SEAL RING | |
| SOFT | ||
| A 3802540159 | SEAL RING | |
| HARD | ||
| A 3802540359 | SEAL RING | |
| HARD | ||
| 146 | A 3522500243 | BRACKET |
| OUTSIDE | ||
| 149 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 149 | N 304017008021 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 153 | N 912004008102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 157 | A 3522540097 | BOOT |
| Repalced by: A 3142540197 | ||
| 157 | A 3142540197 | BOOT |
| RELEASE LEVER | ||
| 161 | A 3522500515 | RELEASE BEARING |
| Repalced by: A 3402500215 | ||
| 161 | A 3402500215 | RELEASE BEARING |
| CLUTCH | ||
| 165 | A 0002540020 | RELEASE BEARING |
| 165 | A 0002540120 | RELEASE BEARING |
| 168 | A 3129870110 | STRIP |
| Repalced by: A 3409830010 | ||
| 168 | A 3409830010 | STRIP |
| TO 352 250 05 15 | ||
| 168 | A 3409830010 | STRIP |
| TO 340 250 02 15 | ||
| 172 | A 3522910474 | PIN |
| RELEASE SPRING | ||
| A 3529902340 | WASHER | |
| RELEASE SPRING | ||
| 178 | A 3522910432 | LEVER |
| RELEASE SPRING | ||
| 178 | A 3522910732 | LEVER |
| RELEASE SPRING | ||
| 181 | A 3379930210 | SPRING |
| CLUTCH | ||
| 181 | A 3529931310 | SPRING |
| CLUTCH | ||
| 203 | A 3522900518 | PEDAL |
| BRAKE | ||
| 203 | A 3522900318 | PEDAL |
| BRAKE | ||
| 205 | A 3529920501 | BUSHING |
| 207 | A 3202940051 | SPACER RING |
| Repalced by: A 3202940251 | ||
| 207 | A 3202940251 | SPACER RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 207 | A 3202940151 | SPACER RING |
| AS REQUIRED | ||
| 3.25 MM | ||
| 207 | A 3202940251 | SPACER RING |
| AS REQUIRED | ||
| 3.50 MM | ||
| 212 | A 3039910345 | RING |
| PEDAL TO BEARING TUBE | ||
| A 3522930310 | LEVER | |
| BRAKE | ||
| N 000931010258 | SCREW | |
| LEVER TO SHAFT | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| LEVER TO SHAFT | ||
| A 3522903939 | ROD | |
| 218 | N 900331010668 | PULL ROD |
| BRAKE LINKAGE | ||
| 223 | N 000934010014 | NUT |
| YOKE TO ROD | ||
| 227 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 227 | A 0009961501 | YOKE |
| LEVER TO PULL ROD | ||
| 229 | N 000934010035 | NUT |
| YOKE TO ROD | ||
| 231 | A 3419960001 | YOKE |
| LEVER TO PULL ROD | ||
| 236 | A 3529910007 | PIN |
| YOKE TO LEVER | ||
| 242 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 242 | N 000137010205 | SPRING WASHER |
| YOKE TO LEVER | ||
| 246 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 246 | N 000433010510 | WASHER |
| YOKE TO LEVER | ||
| N 000094003219 | COTTER PIN | |
| YOKE TO LEVER | ||
| 249 | A 3522900624 | PEDAL PLATE |
| CLUTCH | ||
| 251 | A 3222901324 | PEDAL PLATE |
| BRAKE | ||
| A 3222900924 | PEDAL PLATE | |
| CLUTCH AND BRAKE | ||
| 257 | A 3202925082 | PAD |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 259 | A 3226880024 | WASHER |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 261 | A 3122911197 | SEAL WASHER |
| Repalced by: A 3182910084 | ||
| 261 | A 3182910084 | SEAL RING |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 263 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
