Transporto priemonė: L 1813/6X4; VIN numerio dalis: 352403

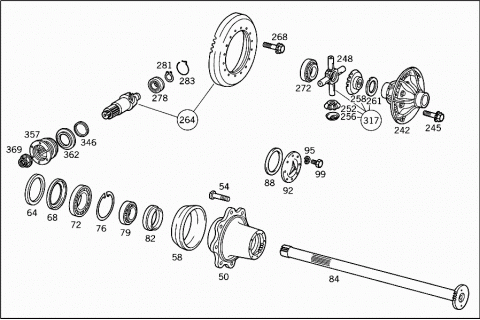

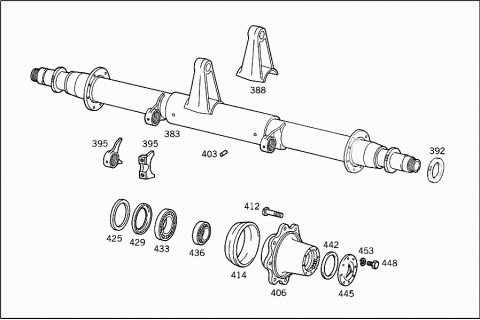

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3523506601 | REAR AXLE | |
| I | ||
| A 3523506801 | REAR AXLE | |
| II | ||
| A 3523506301 | REAR AXLE | |
| I | ||
| A 3523506401 | REAR AXLE | |
| II | ||
| A 3523506801 | REAR AXLE | |
| I | ||
| A 3523503101 | REAR AXLE | |
| II | ||
| A 3523507001 | REAR AXLE | |
| II | ||
| 006 | A 3523502020 | AXLE HOUSING |
| 006 | A 3523503420 | AXLE HOUSING |
| Repalced by: A 3523503520 | ||
| 006 | A 3523503520 | AXLE HOUSING |
| 006 | A 3523504220 | AXLE HOUSING |
| Repalced by: A 3523504320 | ||
| 006 | A 3523504320 | AXLE HOUSING |
| 014 | N 000007006205 | CYLINDRICAL PIN |
| 017 | N 914126016005 | SCREW |
| BEARING COVER TO AXLE HOUSING | ||
| 019 | A 3523510074 | PIN |
| 023 | A 3129971002 | PLUG |
| 026 | A 3213570082 | OIL COLLECTOR |
| 026 | A 3853570082 | OIL COLLECTOR |
| A 3024260008 | BEARING BRACKET | |
| 029 | A 3024270341 | BRACKET |
| A 3523560415 | THRUST RING | |
| LEFT | ||
| A 3523560415 | THRUST RING | |
| RIGHT | ||
| A 3603560415 | THRUST RING | |
| RIGHT | ||
| 031 | N 071412010100 | GREASE NIPPLE |
| 033 | A 3523560052 | SPACER WASHER |
| 033 | A 3603560052 | SPACER WASHER |
| 038 | A 3223560126 | GROOVED NUT |
| 038 | A 3853560026 | GROOVED NUT |
| 041 | A 3223560173 | LOCK PLATE |
| 041 | N 070952075103 | LOCK PLATE |
| 045 | A 3123501090 | VALVE |
| Repalced by: A 3833510065 | ||
| 045 | A 3833510065 | FITTING |
| 050 | A 3223561201 | WHEEL HUB |
| 050 | A 3523560501 | WHEEL HUB |
| 050 | A 3703560101 | WHEEL HUB |
| FORGED | ||
| 050 | A 3853560101 | WHEEL HUB |
| Repalced by: A 3853561101 | ||
| 050 | A 3853561101 | WHEEL HUB |
| CASTING | ||
| 054 | A 3524020071 | WHEEL MOUNTING BOLT |
| 054 | A 3024020071 | WHEEL MOUNTING BOLT |
| 054 | A 3814010371 | WHEEL MOUNTING BOLT |
| Repalced by: A 3894010171 | ||
| 054 | A 3894010171 | WHEEL MOUNTING BOLT |
| TO 370 356 01 01 | ||
| 054 | A 3814011171 | WHEEL MOUNTING BOLT |
| TO 385 356 01 01 | ||
| 058 | A 3223560282 | OIL COLLECTOR |
| 058 | A 3603560082 | OIL COLLECTOR |
| Repalced by: A 3853560282 | ||
| 058 | A 3853560282 | OIL COLLECTOR |
| 064 | A 0049977745 | SEAL RING |
| Repalced by: A 3833500068 | ||
| 064 | A 3833500068 | REPAIR KIT |
| 068 | A 3603560051 | SPACER RING |
| 072 | A 0029811805 | TAPERED ROLLER BEARING |
| 072 | A 0029811705 | TAPERED ROLLER BEARING |
| 072 | A 0029819005 | TAPERED ROLLER BEARING |
| 072 | A 0039818605 | TAPERED ROLLER BEARING |
| 072 | A 0009809602 | TAPERED ROLLER BEARING |
| 076 | N 000472125000 | LOCK RING |
| 079 | A 0029815605 | TAPERED ROLLER BEARING |
| 079 | A 0029815505 | TAPERED ROLLER BEARING |
| 079 | A 0029818605 | TAPERED ROLLER BEARING |
| 079 | A 0029818905 | TAPERED ROLLER BEARING |
| 082 | A 3223560253 | SPACER TUBE |
| 084 | A 3833570601 | REAR AXLE SHAFT |
| LEFT | ||
| 084 | A 3853570101 | REAR AXLE SHAFT |
| LEFT | ||
| 084 | A 3523571401 | REAR AXLE SHAFT |
| RIGHT | ||
| 084 | A 3853570301 | REAR AXLE SHAFT |
| RIGHT | ||
| 088 | A 3223560179 | GASKET |
| 088 | A 3273560180 | GASKET |
| Repalced by: A 9433340080 | ||
| 088 | A 9433340080 | GASKET |
| 092 | A 3223560020 | HUB CAP |
| Repalced by: A 3003560020 | ||
| 092 | A 3003560020 | HUB CAP |
| 092 | A 3273560120 | HUB CAP |
| 095 | N 912004008102 | LOCK WASHER |
| 099 | N 000933008145 | SCREW |
| 103 | A 3529970032 | SCREW PLUG |
| 106 | A 3213530025 | SCREW COLLAR |
| 113 | A 3123531173 | LOCK |
| 115 | N 006797008120 | TOOTHED WASHER |
| 117 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 117 | N 304017008016 | SCREW |
| 119 | A 3223530176 | SET SCREW |
| Repalced by: A 3833530376 | ||
| 119 | A 3833530376 | SET SCREW |
| Repalced by: A 6743530076 | ||
| 119 | A 6743530076 | SET SCREW |
| 123 | A 3223530049 | SLIDE |
| Repalced by: A 3853530149 | ||
| 123 | A 3853530149 | SLIDE |
| 127 | A 3159900051 | NUT |
| 128 | A 3853370171 | SCREW |
| 132 | N 080705014002 | NUT |
| 136 | A 6503510180 | GASKET |
| 138 | A 3023500221 | COVER |
| 141 | N 912004010102 | LOCK WASHER |
| 144 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 144 | N 304017010028 | SCREW |
| 146 | A 3433510179 | GASKET |
| 149 | A 3433510156 | COVER |
| 150 | N 000960014012 | SCREW |
| 151 | N 912004014100 | LOCK WASHER |
| 156 | A 3439975020 | EXPANSION PLUG |
| 159 | A 3613530016 | SHAFT |
| A 0029975148 | SEAL RING | |
| 161 | A 0009812927 | ANGULAR CONTACT BEARING |
| 161 | A 0019811527 | ANGULAR CONTACT BEARING |
| 161 | A 0009814227 | ANGULAR CONTACT BEARING |
| 163 | A 0019979946 | SEAL RING |
| 168 | A 3523510149 | FLANGE |
| 170 | A 3523500545 | FLANGE |
| Repalced by: A 3453507245 | ||
| 170 | A 3453507245 | FLANGE |
| 172 | A 3434110096 | PROTECTIVE CAP |
| 172 | A 3434110196 | PROTECTIVE CAP |
| 175 | A 3853510172 | NUT |
| 179 | A 3123531352 | SPACER WASHER |
| 0.10 MM | ||
| 179 | A 3123531452 | SPACER WASHER |
| 0.20 MM | ||
| 179 | A 3123533252 | SPACER WASHER |
| 0.50 MM | ||
| 190 | N 912004014100 | LOCK WASHER |
| 192 | N 000961014054 | SCREW |
| 195 | A 0019813101 | CYLINDR. ROLLER BEARING |
| 198 | A 0019979946 | SEAL RING |
| 200 | A 3523510351 | SPACER RING |
| 205 | A 3523510151 | SPACER RING |
| 207 | N 000472085000 | LOCK RING |
| 211 | A 3523500545 | FLANGE |
| Repalced by: A 3453507245 | ||
| 211 | A 3453507245 | FLANGE |
| 218 | A 3434110196 | PROTECTIVE CAP |
| 220 | A 3853510172 | NUT |
| 222 | A 3529970032 | SCREW PLUG |
| 242 | A 3833502123 | DIFFERENTIAL GEAR |
| Repalced by: A 6763501923 | ||
| 242 | A 6763501923 | DIFFERENTIAL GEAR |
| A 3229903001 | SCREW | |
| (DIFFERENTIAL CASE) | ||
| 245 | N 914112014304 | SCREW |
| Repalced by: A 0069901704 | ||
| 245 | A 0069901704 | SCREW |
| (DIFFERENTIAL CASE) | ||
| 248 | A 3223530120 | DIFFERENTIAL SPIDER |
| 248 | A 3833530120 | DIFFERENTIAL SPIDER |
| 252 | A 3023530014 | DIFFERENTIAL PINION |
| 256 | A 3523530024 | SPHERICAL WASHER |
| 261 | A 6743530362 | THRUST WASHER |
| 2.00 MM | ||
| 262 | A 3585860035 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 264 | A 3833500339 | RING GEAR AND PINION |
| Repalced by: A 3013500739 | ||
| 264 | A 3013500739 | RING GEAR AND PINION |
| 268 | A 3229902901 | SCREW |
| 268 | A 3839900301 | SCREW |
| Repalced by: A 3839900801 | ||
| 268 | A 3839900801 | SCREW |
| 272 | A 0029811605 | TAPERED ROLLER BEARING |
| 272 | A 0029812605 | TAPERED ROLLER BEARING |
| 272 | A 0009815705 | TAPERED ROLLER BEARING |
| 278 | A 0029817901 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 278 | A 0029818201 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 278 | A 0029819501 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 281 | N 000471035000 | LOCK RING |
| 283 | A 3229940137 | SNAP RING |
| 289 | A 6703530852 | SPACER WASHER |
| 0.10 MM | ||
| 289 | A 6703530752 | SPACER WASHER |
| 0.15 MM | ||
| 289 | A 6703530652 | SPACER WASHER |
| 0.20 MM | ||
| 289 | A 6703530552 | SPACER WASHER |
| 0.50 MM | ||
| 289 | A 6703533752 | SPACER WASHER |
| 1.50 MM | ||
| 292 | A 0009814005 | TAPERED ROLLER BEARING |
| 292 | A 0029811105 | TAPERED ROLLER BEARING |
| 292 | A 0019819805 | TAPERED ROLLER BEARING |
| 295 | A 3223530051 | SPACER RING |
| 15.5 MM | ||
| 300 | A 6163530152 | SPACER WASHER |
| 10.10 MM | ||
| 300 | A 6163530352 | SPACER WASHER |
| 10.14 MM | ||
| 300 | A 6163530552 | SPACER WASHER |
| 10.18 MM | ||
| 300 | A 6163530752 | SPACER WASHER |
| 10.22 MM | ||
| 300 | A 6163530952 | SPACER WASHER |
| 10.26 MM | ||
| 300 | A 6163531152 | SPACER WASHER |
| 10.30 MM | ||
| 300 | A 6163531352 | SPACER WASHER |
| 10.34 MM | ||
| 300 | A 6163531552 | SPACER WASHER |
| 10.38 MM | ||
| 300 | A 6163531752 | SPACER WASHER |
| 10.42 MM | ||
| 300 | A 6163531952 | SPACER WASHER |
| 10.46 MM | ||
| 300 | A 6163532152 | SPACER WASHER |
| 10.50 MM | ||
| 342 | A 3213530762 | THRUST WASHER |
| 7 MM | ||
| 344 | A 3273531025 | SCREW COLLAR |
| 346 | A 0089970747 | SEAL RING |
| Repalced by: A 0169976847 | ||
| 346 | A 0169976847 | SEAL RING |
| 348 | A 3223530073 | LOCK |
| 351 | N 006797008120 | TOOTHED WASHER |
| 355 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 355 | N 304017008039 | SCREW |
| 357 | A 3603500045 | FLANGE |
| 362 | A 3273530291 | PROTECTIVE PLATE |
| 369 | A 3853510172 | NUT |
| 383 | A 3523900205 | AXLE BEAM |
| 383 | A 3523900305 | AXLE BEAM |
| 383 | A 3523900405 | AXLE BEAM |
| 388 | A 3523520441 | BEARING BODY |
| 392 | A 3523560415 | THRUST RING |
| LEFT | ||
| 392 | A 3603560415 | THRUST RING |
| LEFT | ||
| 392 | A 3523560415 | THRUST RING |
| RIGHT | ||
| 392 | A 3603560415 | THRUST RING |
| 395 | A 3024260008 | BEARING BRACKET |
| 395A | A 3024270341 | BRACKET |
| 403 | A 3523510074 | PIN |
| A 3523560052 | SPACER WASHER | |
| A 3223560126 | GROOVED NUT | |
| A 3223560173 | LOCK PLATE | |
| 406 | A 3223561201 | WHEEL HUB |
| 412 | A 3524020071 | WHEEL MOUNTING BOLT |
| 414 | A 3223560282 | OIL COLLECTOR |
| 425 | A 0049977745 | SEAL RING |
| Repalced by: A 3833500068 | ||
| 425 | A 3833500068 | REPAIR KIT |
| 429 | A 3223560051 | SPACER RING |
| 436 | A 0029811805 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 436 | A 0029811705 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 436 | A 0029815505 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 436 | A 0119810605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 436 | A 0029815605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 442 | A 3223560179 | GASKET |
| 445 | A 3223560020 | HUB CAP |
| Repalced by: A 3003560020 | ||
| 445 | A 3003560020 | HUB CAP |
| 448 | N 000933008145 | SCREW |
| 453 | N 912004008102 | LOCK WASHER |
| A 3519970186 | PLUG | |
| A 3855847024 | UNIT IDENTIFICATION PLATE | |
| A 3859900096 | RIVET | |
