Transporto priemonė: L 1813/6X4; VIN numerio dalis: 352403
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

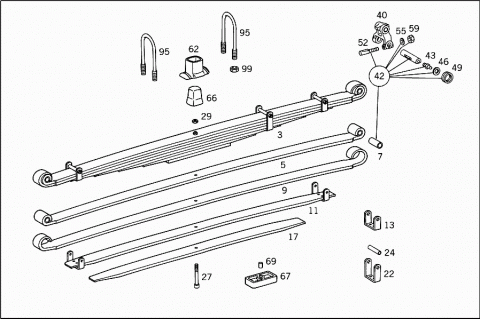

| 003 | A 3523201502 | FRONT SPRING |
| 7-LEAF | ||
| 005 | A 3523203194 | SPRING LEAF |
| 007 | A 3523220050 | BUSHING |
| 007 | A 3853220050 | BUSHING |
| 009 | A 3523211112 | SPRING LEAF |
| NO.2 | ||
| 011 | A 3523203294 | SPRING LEAF |
| NO.3 | ||
| A 0033212733 | SPRING CLAMP | |
| Repalced by: A 3123213333 | ||
| 013 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 013 | A 3123240633 | SPRING CLAMP |
| TO SPRING LEAF NO.3 | ||
| N 000660008026 | RIVET | |
| TO SPRING LEAF NO.3 | ||
| 017 | A 3523211114 | SPRING LEAF |
| NO.4 | ||
| A 0013217133 | SPRING CLAMP | |
| Repalced by: A 3123213333 | ||
| 022 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 022 | A 3123240633 | SPRING CLAMP |
| TO SPRING LEAF NO. 5 | ||
| N 000660008026 | RIVET | |
| TO SPRING LEAF NO. 5 | ||
| 024 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 024 | A 0003213253 | SPACER TUBE |
| SPRING CLAMP | ||
| N 000931008326 | SCREW | |
| Repalced by: N 304014008009 | ||
| N 304014008009 | SCREW | |
| SPRING CLAMP | ||
| N 000555008000 | NUT | |
| SPRING CLAMP | ||
| 027 | N 004626012136 | SPRING BOLT |
| LEAF SPRING | ||
| 029 | N 000934012021 | NUT |
| LEAF SPRING | ||
| 040 | A 3523200063 | SHACKLE |
| Repalced by: A 6173200163 | ||
| 040 | A 6173200163 | SHACKLE |
| LEAF SPRING | ||
| A 3523220050 | BUSHING | |
| A 3853220050 | BUSHING | |
| A 3523220530 | SHACKLE PIN | |
| Repalced by: A 3855860332 | ||
| A 3853220030 | SHACKLE PIN | |
| Repalced by: A 3855860332 | ||
| A 3855860032 | REPAIR KIT | |
| Repalced by: A 3855860332 | ||
| 042 | A 3855860332 | REPAIR KIT |
| Repalced by: A 3853200165 | ||
| 042 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 043 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| N 071412010300 | GREASE NIPPLE | |
| SHACKLE PIN | ||
| 046 | A 3523230176 | WASHER |
| Repalced by: A 3523230376 | ||
| 046 | A 3523230276 | WASHER |
| Repalced by: A 3523230376 | ||
| 046 | A 3523231476 | WASHER |
| Repalced by: A 3523230376 | ||
| 046 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 046 | A 3523231576 | WASHER |
| Repalced by: A 3523230476 | ||
| 046 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 046 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 049 | A 0029973140 | SEAL RING |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 052 | A 3529900337 | BOLT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 055 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 055 | N 000125010532 | WASHER |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 059 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 059 | N 910113010000 | NUT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 062 | A 3603220124 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 066 | A 3553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 067 | A 3523220684 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 069 | A 3129910960 | DOWEL PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 095 | A 3413310025 | U-BOLT |
| Repalced by: A 3603310025 | ||
| 095 | A 3523510025 | U-BOLT |
| Repalced by: A 3603310025 | ||
| 095 | A 3603310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 MM | ||
| 099 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

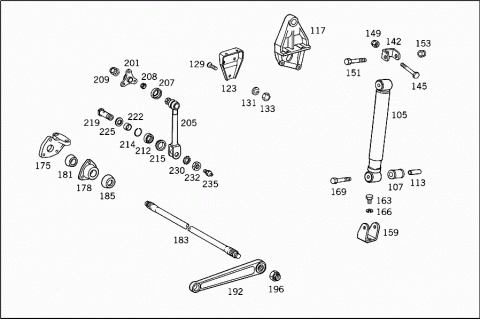

| 105 | A 0013239100 | SHOCK ABSORBER |
| FRONT | ||
| 105 | A 0023233300 | SHOCK ABSORBER |
| FRONT | ||
| 107 | A 0003232885 | RUBBER MOUNTING |
| SHOCK ABSORBER | ||
| 113 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 113 | A 0003233150 | SPACER RING |
| RUBBER MOUNTING | ||
| 117 | A 3283230063 | BEARING BRACKET |
| SHOCK ABSORBER,TOP | ||
| A 3523232063 | BEARING BRACKET | |
| Repalced by: A 3523232463 | ||
| 117 | A 3523232463 | BEARING BRACKET |
| SHOCK ABSORBER,TOP | ||
| 117 | A 3283230163 | BEARING BRACKET |
| SHOCK ABSORBER,TOP | ||
| A 3523232163 | BEARING BRACKET | |
| Repalced by: A 3523232563 | ||
| 117 | A 3523232563 | BEARING BRACKET |
| SHOCK ABSORBER,TOP | ||
| N 000933010145 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| N 912004010102 | LOCK WASHER | |
| BEARING BRACKET TO FRAME | ||
| N 000934010014 | NUT | |
| BEARING BRACKET TO FRAME | ||
| 123 | A 3523230195 | REINFORCEMENT |
| AT SIDE MEMBER | ||
| 129 | N 000087010112 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| N 000933010105 | SCREW | |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 131 | N 912004010102 | LOCK WASHER |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 133 | N 000934010014 | NUT |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| A 3523230118 | END PIECE | |
| TOP | ||
| N 000937024002 | NUT | |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| N 000094005016 | COTTER PIN | |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| A 3409900002 | SCREW | |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| N 000979016006 | NUT | |
| Repalced by: N 000979016007 | ||
| N 000979016007 | NUT | |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| N 000094004023 | COTTER PIN | |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 142 | A 3523230340 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 145 | A 3529903201 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 149 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 149 | N 913004020003 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 151 | A 3529903501 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 153 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 153 | N 910113016002 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 159 | A 3523231663 | BEARING BRACKET |
| BOTTOM LEFT | ||
| A 3523231763 | BEARING BRACKET | |
| BOTTOM RIGHT | ||
| 163 | N 000961012165 | SCREW |
| Repalced by: N 000961012051 | ||
| 163 | N 000961012051 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 166 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 169 | A 3529900002 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| N 000979016006 | NUT | |
| Repalced by: N 000979016007 | ||
| N 000979016007 | NUT | |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| N 000094004023 | COTTER PIN | |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 175 | A 3523231463 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| A 3603230083 | HOUSING | |
| Repalced by: A 3523230283 | ||
| 178 | A 3523230283 | HOUSING |
| TORSION BAR | ||
| 181 | A 3603230085 | RUBBER MOUNTING |
| TORSION BAR | ||
| 183 | A 3603230065 | TORSION BAR |
| FRONT AXLE | ||
| 185 | A 3603230151 | SPACER RING |
| TORSION BAR | ||
| N 000933010062 | SCREW | |
| HOUSING TO BEARING BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| HOUSING TO BEARING BRACKET | ||
| N 000934010014 | NUT | |
| HOUSING TO BEARING BRACKET | ||
| 192 | A 3603230869 | LEVER |
| TORSION BAR,FRONT | ||
| 196 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| N 000094006317 | COTTER PIN | |
| LEVER TO TORSION BAR | ||
| A 3223230025 | PLATE | |
| Repalced by: A 3603230663 | ||
| 201 | A 3603230663 | BEARING BRACKET |
| ARTICULATED ROD | ||
| N 000933010157 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| N 912004010102 | LOCK WASHER | |
| BEARING BRACKET TO FRAME | ||
| N 000934010014 | NUT | |
| BEARING BRACKET TO FRAME | ||
| A 0009901796 | RIVET | |
| Repalced by: N 910005010020 | ||
| N 910005010020 | RIVET | |
| BEARING BRACKET TO SIDE MEMBER | ||
| 10X32 MM | ||
| 205 | A 3603200289 | ROD |
| (ARTICULATED ROD) | ||
| 207 | A 0003300185 | BOOT |
| Repalced by: A 0003300785 | ||
| 207 | A 0003300785 | BOOT |
| 209 | N 000937014001 | NUT |
| N 000094003005 | COTTER PIN | |
| 212 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 212 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 212 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 212 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 212 | A 0019814631 | JOINT BEARING |
| A 0019814831 | JOINT BEARING | |
| 214 | N 009045035001 | SNAP RING |
| ARTICULATED ROD TO LEVER | ||
| 215 | A 3603230460 | SEAL RING |
| ARTICULATED ROD TO LEVER | ||
| 219 | A 3603230274 | PIN |
| Repalced by: A 3605860032 | ||
| 222 | A 3603230153 | SPACER TUBE |
| ARTICULATED ROD TO LEVER | ||
| 225 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 230 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 232 | N 000936020000 | NUT |
| ARTICULATED ROD TO LEVER | ||
| 235 | N 071412010100 | GREASE NIPPLE |
| A 3605860032 | REPAIR KIT | |
| Repalced by: A 3603200041 | ||
| A 3603200041 | REPAIR KIT | |
| TORSION BAR,FRONT | ||
| 255 | A 3523200275 | SPRING BRACKET |
| (SPRING SUPPORT) | ||
| 255 | A 3523200175 | SPRING BRACKET |
| (SPRING SUPPORT) | ||
| N 000443045001 | EXPANSION PLUG | |
| 258 | A 3523250112 | SPRING SADDLE |
| 262 | A 0009816105 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 262 | A 0019811405 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 262 | A 0019819605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 265 | A 0009805102 | TAPERED ROLLER BEARING |
| Repalced by: A 0039812105 | ||
| 265 | A 0039812105 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 265 | A 0039812005 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 270 | A 0059976646 | SEAL RING |
| 272 | A 3523250162 | THRUST WASHER |
| 274 | A 3523250055 | COVER PLATE |
| 276 | A 0079976345 | SEAL RING |
| INSIDE | ||
| 278 | A 3553370080 | GASKET |
| OUTSIDE | ||
| 280 | A 3523250062 | THRUST WASHER |
| OUTSIDE | ||
| 285 | A 3229900660 | NUT |
| Repalced by: A 3529900060 | ||
| 285 | A 3529900060 | NUT |
| SPRING SADDLE TO CENTRAL BEARING BRACKET | ||
| 290 | A 3229940215 | LOCK |
| SPRING SADDLE TO CENTRAL BEARING BRACKET | ||
| 290 | A 3529940015 | LOCK |
| SPRING SADDLE TO CENTRAL BEARING BRACKET | ||
| 292 | A 3223250080 | GASKET |
| 295 | A 3223250013 | COVER |
| SPRING SADDLE | ||
| 299 | N 912004008102 | LOCK WASHER |
| COVER TO HOUSING | ||
| 300 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 300 | N 304017008016 | SCREW |
| COVER TO HOUSING | ||
| 303 | N 000913010111 | THREADED PIN |
| 306 | A 3523500406 | CONTROL ARM |
| CENTRAL BEARING,TOP | ||
| A 3833500006 | CONTROL ARM | |
| Repalced by: A 3813500206 | ||
| A 3813500206 | CONTROL ARM | |
| CENTRAL BEARING,TOP | ||
| 308 | A 0003260092 | BOOT |
| 311 | A 0009902755 | NUT |
| N 000094006014 | COTTER PIN | |
| 313 | A 0003381597 | BOOT |
| 315 | A 0003381863 | CLAMPING RING |
| 320 | A 3435860032 | REPAIR KIT |
| BALL PIVOT | ||
| 322 | N 000094006014 | COTTER PIN |
| 325 | A 0009902755 | NUT |
| 327 | A 0003260092 | BOOT |
| 330 | A 0005860132 | REPAIR KIT |
| WITH SPHERICAL PIECE | ||
| A 0005860632 | REPAIR KIT | |
| LESS BALL PIVOT | ||
| TO 383 350 00 06 | ||
| A 0005860732 | REPAIR KIT | |
| LESS BALL CUP | ||
| TO 383 350 00 06 | ||
| N 000960018105 | SCREW | |
| CONTROL ARM TO BEARING BRACKET | ||
| N 000935018001 | NUT | |
| CONTROL ARM TO BEARING BRACKET | ||
| N 000094004065 | COTTER PIN | |
| CONTROL ARM TO BEARING BRACKET | ||
| 350 | N 000960018145 | SCREW |
| CONTROL ARM TO REAR AXLE | ||
| 351 | N 000935018001 | NUT |
| CONTROL ARM TO REAR AXLE | ||
| N 000094004065 | COTTER PIN | |
| CONTROL ARM TO REAR AXLE | ||
| 355 | A 3523520041 | BEARING BODY |
| UPPER CONTROL ARM | ||
| 355 | A 3833520041 | BEARING BODY |
| UPPER CONTROL ARM | ||
| N 000961014100 | SCREW | |
| BEARING BODY TO CROSS MEMBER | ||
| M 14X30 | ||
| N 000961014008 | SCREW | |
| Repalced by: N 308676014003 | ||
| N 308676014003 | SCREW | |
| BEARING BODY TO CROSS MEMBER | ||
| M 14X30 | ||
| N 000961014054 | SCREW | |
| BEARING BODY TO CROSS MEMBER | ||
| M 14X45 | ||
| N 000961014101 | SCREW | |
| Repalced by: N 308676014012 | ||
| N 308676014012 | SCREW | |
| BEARING BODY TO CROSS MEMBER | ||
| M 14X45 | ||
| N 912004014100 | LOCK WASHER | |
| BEARING BODY TO CROSS MEMBER | ||
| N 000934014008 | NUT | |
| BEARING BODY TO CROSS MEMBER | ||
| 365 | A 3433201732 | LINK |
| Repalced by: A 3433201832 | ||
| 365 | A 3433201832 | LINK |
| CENTRAL BEARING,BOTTOM | ||
| 365 | A 3433201832 | LINK |
| CENTRAL BEARING,BOTTOM | ||
| 365 | A 3433201832 | LINK |
| CENTRAL BEARING,BOTTOM | ||
| A 0003260092 | BOOT | |
| A 0003260092 | BOOT | |
| A 0003260092 | BOOT | |
| A 0009902755 | NUT | |
| A 0009902755 | NUT | |
| A 0009902755 | NUT | |
| N 000094006014 | COTTER PIN | |
| N 000094006014 | COTTER PIN | |
| N 000094006014 | COTTER PIN | |
| A 3435860032 | REPAIR KIT | |
| BALL PIVOT | ||
| A 3435860032 | REPAIR KIT | |
| BALL PIVOT | ||
| A 3435860032 | REPAIR KIT | |
| BALL PIVOT | ||
| A 0005860632 | REPAIR KIT | |
| LESS BALL PIVOT | ||
| A 0005860632 | REPAIR KIT | |
| LESS BALL PIVOT | ||
| A 0005860632 | REPAIR KIT | |
| LESS BALL PIVOT | ||
| 385 | A 3523250019 | SPRING SEAT |
| TOP | ||
| 388 | A 3523520141 | BEARING BODY |
| Repalced by: A 3523520341 | ||
| 388 | A 3523520341 | BEARING BODY |
| LINK | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BOTTOM | ||
| 392 | A 3523520074 | PIN |
| SPRING SEAT | ||
| N 006912016009 | SCREW | |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| N 000934016002 | NUT | |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| A 3523500175 | RUBBER MOUNTING | |
| Repalced by: A 3853200044 | ||
| 395 | A 3853200044 | RUBBER BUFFER |
| N 000933010105 | SCREW | |
| RUBBER BUFFER TO SPRING SEAT | ||
| N 912004010102 | LOCK WASHER | |
| RUBBER BUFFER TO SPRING SEAT | ||
| 403 | A 3523201808 | REAR SPRING |
| 10-LEAF | ||
| 405 | A 3523242311 | SPRING LEAF |
| NO.1 | ||
| A 3523242312 | SPRING LEAF | |
| NO.2 | ||
| 409 | A 3523242313 | SPRING LEAF |
| NO.3 | ||
| A 3523242114 | SPRING LEAF | |
| NO.4 | ||
| A 3523242115 | SPRING LEAF | |
| NO.5 | ||
| A 3523242016 | SPRING LEAF | |
| NO.6 | ||
| A 3523241817 | SPRING LEAF | |
| NO.7 | ||
| A 3523241718 | SPRING LEAF | |
| NO.8 | ||
| A 3523241419 | SPRING LEAF | |
| NO.9 | ||
| 415 | A 3523241320 | SPRING LEAF |
| NO.10 | ||
| 421 | A 3523240271 | SPRING BOLT |
| 423 | A 3523510251 | SPACER RING |
| Repalced by: N 007349017002 | ||
| 423 | N 007349017002 | WASHER |
| 425 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 425 | N 910113016001 | NUT |
| 430 | A 3523250231 | PLATE |
| 435 | A 3523510825 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 340 MM | ||
| 438 | A 3433250070 | SPHERICAL WASHER |
| REAR SPRING TO SPRING SADDLE | ||
| 440 | A 0019902151 | NUT |
| REAR SPRING TO SPRING SADDLE | ||
| N 000960020093 | SCREW | |
| Repalced by: N 308765020014 | ||
| N 308765020014 | SCREW | |
| SPRING BRACKET TO FRAME | ||
| N 000960018109 | SCREW | |
| SPRING BRACKET TO FRAME | ||
| N 000960018082 | SCREW | |
| SPRING BRACKET TO FRAME | ||
| N 912004018101 | LOCK WASHER | |
| SPRING BRACKET TO FRAME | ||
| N 000934018012 | NUT | |
| SPRING BRACKET TO FRAME | ||
| 450 | A 3523200291 | WIRE CABLE |
| CABLE AND MOUNTING FOR REAR AXLE | ||
| 452 | A 3433250144 | RUBBER BUFFER |
| CABLE AND MOUNTING FOR REAR AXLE | ||
| 456 | A 3433250162 | THRUST WASHER |
| CABLE AND MOUNTING FOR REAR AXLE | ||
| 459 | N 000471035000 | LOCK RING |
| CABLE AND MOUNTING FOR REAR AXLE | ||
| 465 | N 001434014044 | PIN |
| CABLE AND MOUNTING FOR REAR AXLE | ||
| N 000094004065 | COTTER PIN | |
| CABLE AND MOUNTING FOR REAR AXLE | ||
| N 000960014194 | SCREW | |
| CABLE AND MOUNTING FOR REAR AXLE | ||
| N 000934014019 | NUT | |
| Repalced by: N 308673014001 | ||
| N 308673014001 | NUT | |
| CABLE AND MOUNTING FOR REAR AXLE | ||
| A 3853250240 | BRACKET | |
| CABLE | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO CONSOLE | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO CONSOLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
