Transporto priemonė: L 1813/6X4; VIN numerio dalis: 352403
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

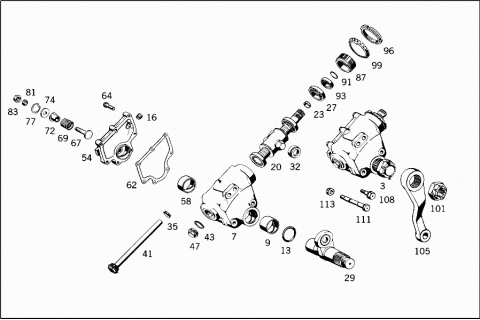

| A 3274606101 | STEERING BOX ASSEMBLY | |
| Repalced by: A 3274606501 | ||
| 003 | A 3274606501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3444601201 | ||
| 003 | A 3444601201 | STEERING BOX ASSEMBLY |
| LESS PITMAN ARM | ||
| A 3274606201 | STEERING BOX ASSEMBLY | |
| Repalced by: A 3094601501 | ||
| 003 | A 3094601501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3084600001 | ||
| 003 | A 3084600001 | STEERING BOX ASSEMBLY |
| LESS PITMAN ARM | ||
| 007 | A 3214601302 | STEERING BOX |
| 007 | A 3274600202 | STEERING BOX |
| 009 | A 3214610350 | BUSHING |
| O.D.,47.1 MM;STANDARD | ||
| 009 | A 3214610550 | BUSHING |
| O.D.,47.1 MM;REPAIR SIZE I | ||
| 013 | A 0019970645 | SEAL RING |
| 013 | A 0049976845 | SEAL RING |
| A 3029970035 | PLUG | |
| Repalced by: N 000906016002 | ||
| 016 | N 000906016002 | SCREW PLUG |
| BOX COVER | ||
| A 3274602208 | STEERING WORM | |
| Repalced by: A 4064600118 | ||
| 020 | A 4064600118 | STEERING NUT |
| Repalced by: A 4064600218 | ||
| 020 | A 4064600218 | STEERING NUT |
| WITH WORM AND INCLINED SELF-ALIGNING ROLLER BEARING | ||
| A 3274602308 | STEERING WORM | |
| Repalced by: A 3094600708 | ||
| A 3094600708 | STEERING WORM | |
| Repalced by: A 3094601018 | ||
| A 3094601018 | STEERING NUT | |
| Repalced by: A 3094600708 | ||
| A 3094600708 | STEERING WORM | |
| WITH WORM AND INCLINED SELF-ALIGNING ROLLER BEARING | ||
| 023 | A 3219970740 | SEAL RING |
| STEERING NUT BEARING | ||
| 027 | A 0009811306 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 027 | A 3459817006 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 027 | A 0009810806 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 029 | A 3214601111 | STEERG. WORM SECTOR SHAFT |
| 032 | A 3214620537 | BALL CUP |
| N 009045038001 | SNAP RING | |
| 035 | A 3219970640 | SEAL RING |
| STEERING BOX | ||
| 041 | A 3214600315 | OIL LEVEL CHECK PIPE |
| STEERING BOX | ||
| 043 | N 007603030400 | SEAL RING |
| STEERING BOX | ||
| 047 | N 007604030206 | SCREW PLUG |
| STEERING BOX | ||
| 054 | A 3274600214 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| 054 | A 3274600314 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| 058 | A 3214620250 | BUSHING |
| 062 | A 3214610880 | GASKET |
| Repalced by: A 3524610180 | ||
| 062 | A 3524610180 | GASKET |
| COVER TO BOX | ||
| 064 | A 0019909101 | SCREW |
| STEERING SHAFT TO BOX | ||
| 067 | A 3214620171 | SCREW |
| STEERING SHAFT TO BOX | ||
| 069 | A 3219932201 | SPRING |
| STEERING SHAFT TO BOX | ||
| 072 | A 3214620185 | THRUST PIECE |
| STEERING SHAFT TO BOX | ||
| 074 | A 3214610162 | THRUST WASHER |
| STEERING SHAFT TO BOX | ||
| 077 | A 0009946041 | LOCK |
| STEERING SHAFT TO BOX | ||
| 081 | A 0019976140 | SEAL RING |
| STEERING SHAFT TO BOX | ||
| 083 | A 3219900050 | NUT |
| STEERING SHAFT TO BOX | ||
| 087 | A 3224620151 | RING |
| STEERING NUT BEARING | ||
| 091 | A 0029979845 | SEAL RING |
| STEERING NUT BEARING | ||
| 093 | A 0029974346 | SEAL RING |
| STEERING NUT BEARING | ||
| 096 | N 070852060000 | NUT |
| Repalced by: A 6743560226 | ||
| 096 | A 6743560226 | GROOVED NUT |
| STEERING NUT BEARING | ||
| 099 | A 3229940115 | LOCK |
| STEERING NUT BEARING | ||
| 101 | A 0009902555 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094006317 | COTTER PIN | |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 105 | A 3524631201 | PITMAN ARM |
| 105 | A 3524631301 | PITMAN ARM |
| 108 | A 3279900114 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 111 | A 3229900914 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 113 | A 3279900050 | NUT |
| STEERING TO STEERING BRACKET | ||
| N 000094003217 | COTTER PIN | |
| STEERING TO STEERING BRACKET | ||

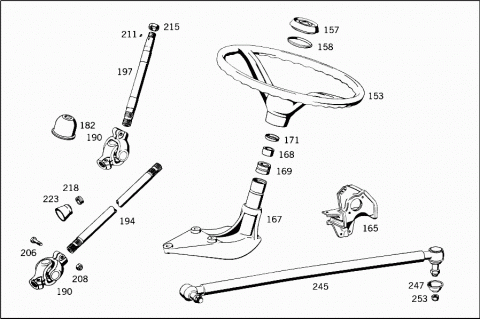

| 153 | A 0004640601 | STEERING WHEEL |
| Repalced by: A 0004641101 | ||
| 153 | A 0004641101 | STEERING WHEEL |
| A 0004640131 | CAP | |
| Repalced by: A 0004641231 | ||
| 157 | A 0004641231 | CAP |
| Repalced by: A 0004642631 | ||
| 157 | A 0004642631 | CAP |
| STEERING WHEEL | ||
| 158 | A 0004640177 | PROTECTIVE RING |
| STEERING WHEEL | ||
| 165 | A 3224600935 | BRACKET |
| (STEERING BRACKET) | ||
| 165 | A 3224601235 | BRACKET |
| (STEERING BRACKET) | ||
| N 910005012073 | RIVET | |
| STEERING BRACKET TO FRAME | ||
| 167 | A 3434600037 | BEARING |
| Repalced by: A 3434600137 | ||
| 167 | A 3434600137 | BEARING |
| Repalced by: A 3434600237 | ||
| 167 | A 3434600237 | BEARING |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 168 | A 3124621150 | BUSHING |
| Repalced by: A 0119815110 | ||
| 168 | A 0119815110 | NEEDLE BEARING |
| 169 | A 3214620165 | RING |
| 171 | A 3224620023 | COVER |
| N 000931010258 | SCREW | |
| STEERING COLUMN BRACKET TO CAB | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| STEERING COLUMN BRACKET TO CAB | ||
| N 000137010205 | SPRING WASHER | |
| STEERING COLUMN BRACKET TO CAB | ||
| A 3524620296 | BOOT | |
| Repalced by: A 3604620596 | ||
| 182 | A 3604620596 | BOOT |
| UNIVERSAL JOINT,TOP | ||
| 190 | A 3524600057 | UNIVERSAL JOINT |
| 190 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 190 | A 0004600057 | UNIVERSAL JOINT |
| 190 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 190 | A 0004600157 | UNIVERSAL JOINT |
| 190 | A 4214600457 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| A 3384625101 | STEERING SHAFT | |
| BOTTOM | ||
| 194 | A 3604621301 | STEERING SHAFT |
| BOTTOM | ||
| A 3604622201 | STEERING SHAFT | |
| BOTTOM | ||
| A 3354620001 | STEERING SHAFT | |
| Repalced by: A 3524620001 | ||
| 197 | A 3524620001 | STEERING SHAFT |
| Repalced by: A 3524623901 | ||
| 197 | A 3524623901 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 197 | A 3524621801 | STEERING SHAFT |
| Repalced by: A 3524624101 | ||
| 197 | A 3524624101 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| A 3219900401 | SCREW | |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| M 10X35 | ||
| 206 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| M 8X38 | ||
| N 000463010502 | LOCK PLATE | |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 208 | A 0019901651 | NUT |
| Repalced by: N 913004008005 | ||
| 208 | N 910113008001 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 211 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 215 | N 000936022002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 218 | A 3214620060 | SEAL RING |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 223 | A 3354620096 | BOOT |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 245 | A 3524602905 | DRAG LINK |
| Repalced by: A 3524605505 | ||
| 245 | A 3524605505 | DRAG LINK |
| 245 | A 3524603005 | DRAG LINK |
| Repalced by: A 3524605805 | ||
| 245 | A 3524605805 | DRAG LINK |
| 247 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 247 | A 0003300885 | BOOT |
| 253 | N 000937018003 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094004065 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
