Transporto priemonė: L 1813/6X4; VIN numerio dalis: 352403

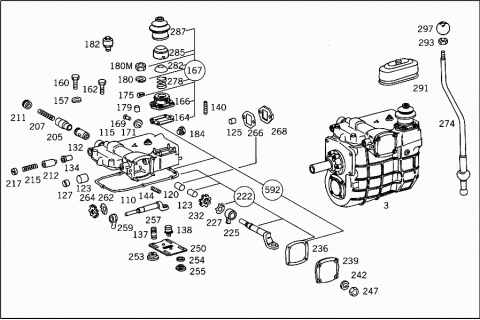

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3522600400 | TRANSMISSION |
| Repalced by: A 3522609300 | ||
| 003 | A 3522600600 | TRANSMISSION |
| Repalced by: A 3522609300 | ||
| 003 | A 3522609300 | TRANSMISSION |
| 003 | A 3522600500 | TRANSMISSION |
| Repalced by: A 3522609400 | ||
| 003 | A 3522600700 | TRANSMISSION |
| Repalced by: A 3522609400 | ||
| 003 | A 3522609400 | TRANSMISSION |
| Repalced by: A 3802601100 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 584 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 588 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 592 | ||
| A 3522600011 | TRANSMISSION CASE | |
| Repalced by: A 3022600311 | ||
| A 3022600311 | TRANSMISSION CASE | |
| Repalced by: A 3022600611 | ||
| 025 | A 3022600611 | TRANSMISSION CASE |
| N 000007010239 | CYLINDRICAL PIN | |
| Repalced by: N 000007010102 | ||
| N 000007010102 | CYLINDRICAL PIN | |
| 027 | A 1869970032 | SCREW PLUG |
| Repalced by: A 3529970032 | ||
| 027 | A 3529970032 | SCREW PLUG |
| OIL FILLING | ||
| A 0009973432 | SCREW PLUG | |
| OIL DRAIN | ||
| A 0009972632 | SCREW PLUG | |
| OIL DRAIN | ||
| A 3215841024 | UNIT IDENTIFICATION PLATE | |
| Repalced by: A 3855845824 | ||
| 029 | A 3855841824 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 3855845824 | ||
| 029 | A 3855845824 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 6755840024 | ||
| 029 | A 6755840024 | UNIT IDENTIFICATION PLATE |
| N 001476003007 | GROOVED NAIL | |
| 034 | A 3212610779 | GASKET |
| Repalced by: A 3522611280 | ||
| 034 | A 3522611280 | GASKET |
| Repalced by: A 3522611880 | ||
| 034 | A 3522611880 | GASKET |
| 036 | A 3212610133 | COVER |
| FRONT BOTTOM | ||
| 038 | N 912004008102 | LOCK WASHER |
| CASE COVER TO TRANSMISSION | ||
| 041 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 041 | N 304017008021 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 044 | A 3122612179 | GASKET |
| Repalced by: A 3122611180 | ||
| 044 | A 3122611180 | GASKET |
| 047 | A 3212610318 | TRANSMISSION CASE COVER |
| Repalced by: A 3212610418 | ||
| 047 | A 3212610418 | TRANSMISSION CASE COVER |
| FRONT TOP | ||
| 052 | N 000137008204 | SPRING WASHER |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 055 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 055 | N 304017008028 | SCREW |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 059 | A 3122625362 | SEAL RING |
| AS REQUIRED | ||
| 2.85 MM | ||
| 059 | A 3122625462 | SEAL RING |
| AS REQUIRED | ||
| 2.90 MM | ||
| 059 | A 3122625562 | SEAL RING |
| AS REQUIRED | ||
| 2.95 MM | ||
| 059 | A 3122623462 | SEAL RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 059 | A 3122624362 | SEAL RING |
| AS REQUIRED | ||
| 3.05 MM | ||
| 059 | A 3122624462 | SEAL RING |
| AS REQUIRED | ||
| 3.10 MM | ||
| 059 | A 3122623562 | SEAL RING |
| AS REQUIRED | ||
| 3.15 MM | ||
| 059 | A 3122623662 | SEAL RING |
| AS REQUIRED | ||
| 3.20 MM | ||
| 059 | A 3122623762 | SEAL RING |
| AS REQUIRED | ||
| 3.25 MM | ||
| 064 | A 3212611379 | GASKET |
| Repalced by: A 3812610480 | ||
| 064 | A 3812610480 | GASKET |
| Repalced by: A 3812610780 | ||
| 064 | A 3812610780 | GASKET |
| REAR | ||
| 067 | A 3372610120 | TRANSMISSION CASE COVER |
| Repalced by: A 3372610220 | ||
| A 3372610220 | TRANSMISSION CASE COVER | |
| REAR | ||
| 070 | N 006503058200 | SEAL RING |
| Repalced by: A 0089971146 | ||
| 070 | A 0089971146 | SEAL RING |
| 072 | A 3212610031 | THREADED BUSHING |
| 074 | A 1202610080 | GASKET |
| Repalced by: A 1152740060 | ||
| 074 | A 0119976647 | SEAL RING |
| Repalced by: A 1152740060 | ||
| 074 | A 1152740060 | SEAL RING |
| Repalced by: A 0119976447 | ||
| 074 | A 0119976447 | SEAL RING |
| 076 | N 915015024000 | PLUG |
| 079 | A 3122832452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15MM | ||
| 079 | A 3212620862 | SEAL RING |
| AS REQUIRED | ||
| 2.90 MM | ||
| 079 | A 3212620962 | SEAL RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 079 | A 3212621062 | SEAL RING |
| AS REQUIRED | ||
| 3.10 MM | ||
| 079 | A 3212621162 | SEAL RING |
| AS REQUIRED | ||
| 3.20 MM | ||
| 079 | A 3212621262 | SEAL RING |
| AS REQUIRED | ||
| 3.30 MM | ||
| 079 | A 3212621362 | SEAL RING |
| AS REQUIRED | ||
| 3.40 MM | ||
| 079 | A 3212621462 | SEAL RING |
| AS REQUIRED | ||
| 3.50 MM | ||
| 079 | A 3212621562 | SEAL RING |
| AS REQUIRED | ||
| 3.60 MM | ||
| 082 | A 3122831752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 082 | A 3122831052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 082 | A 3122831152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 082 | A 3122831252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 082 | A 3122832152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 085 | N 912004008102 | LOCK WASHER |
| CASE COVER TO TRANSMISSION | ||
| 087 | N 000931008123 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 091 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 091 | N 304017008027 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 094 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 094 | N 304017008043 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 096 | A 3212611479 | GASKET |
| Repalced by: A 3522611180 | ||
| 096 | A 3522611180 | GASKET |
| Repalced by: A 3522611680 | ||
| 096 | A 3522611680 | GASKET |
| Repalced by: A 3522611980 | ||
| 096 | A 3522611980 | GASKET |
| REAR BOTTOM | ||
| 099 | A 3212610333 | COVER |
| REAR BOTTOM | ||
| 105 | N 000931008266 | SCREW |
| 107 | N 000137008204 | SPRING WASHER |
| 110 | A 3212611279 | GASKET |
| Repalced by: A 3812610880 | ||
| 110 | A 3812610880 | GASKET |
| TOP | ||
| A 3522601214 | TRANSMISSION CASE COVER | |
| Repalced by: A 3522601914 | ||
| A 3522601714 | TRANSMISSION CASE COVER | |
| Repalced by: A 3522601914 | ||
| 115 | A 3522601914 | TRANSMISSION CASE COVER |
| Repalced by: A 3522603114 | ||
| 115 | A 3522603114 | TRANSMISSION CASE COVER |
| TOP | ||
| A 3522601314 | TRANSMISSION CASE COVER | |
| Repalced by: A 3522601814 | ||
| 115 | A 3522601814 | TRANSMISSION CASE COVER |
| Repalced by: A 3522603014 | ||
| 115 | A 3522603014 | TRANSMISSION CASE COVER |
| TOP | ||
| 120 | A 3212610050 | BUSHING |
| 123 | A 3212610150 | BUSHING |
| 125 | A 3212610350 | BUSHING |
| 127 | N 000443020000 | EXPANSION PLUG |
| 132 | A 3212650250 | BUSHING |
| 134 | A 3212650150 | BUSHING |
| 137 | N 000835008007 | STUD |
| Repalced by: N 000835008077 | ||
| 137 | N 000835008077 | STUD |
| 138 | A 1362650247 | INTERLOCK PLUG |
| Repalced by: A 3142650044 | ||
| 138 | A 3142650044 | GUIDE PIN |
| 140 | N 000835008067 | STUD |
| 140 | N 000835008067 | STUD |
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14, M 8X18 | ||
| 144 | N 000835008008 | STUD |
| 144 | N 000835008008 | STUD |
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14, M 8X20 | ||
| 147 | A 3212650474 | PIN |
| 147 | A 3212650474 | PIN |
| TO 352 260 12 148,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14 | ||
| 151 | N 000125013008 | WASHER |
| 151 | N 000125013008 | WASHER |
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14 | ||
| 154 | N 000979012001 | NUT |
| 154 | N 000979012001 | NUT |
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14 | ||
| N 000094003217 | COTTER PIN | |
| N 000094003217 | COTTER PIN | |
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14 | ||
| A 3852611450 | BUSHING | |
| SHIFTING SHAFT | ||
| 13X36 MM,TO 352 260 31 14 | ||
| A 3102680035 | BEARING | |
| SHIFT LEVER | ||
| TO 352 260 31 14 | ||
| A 3192670050 | BUSHING | |
| DETENT | ||
| TO 352 260 31 14 | ||
| A 3219970035 | PLUG | |
| SHIFT CASE | ||
| TO 352 260 31 14 | ||
| A 1369970830 | SCREW PLUG | |
| SHIFTING DOME | ||
| TO 352 260 31 14 | ||
| N 001473005010 | GROOVED PIN | |
| TO 352 260 31 14 | ||
| 157 | N 000137008204 | SPRING WASHER |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 160 | N 000931008266 | SCREW |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 162 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 162 | N 304017008028 | SCREW |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 164 | A 3212611979 | GASKET |
| SHIFTING DOME | ||
| 166 | A 3222603214 | TRANSMISSION CASE COVER |
| Repalced by: A 3232600614 | ||
| 167 | A 3232600614 | REPAIR KIT |
| SHIFTING DOME | ||
| 169 | A 3212670025 | SLIDING BLOCK |
| 171 | N 009045008002 | SNAP RING |
| 175 | N 001473005012 | GROOVED PIN |
| 179 | N 000007008205 | CYLINDRICAL PIN |
| 180 | N 912004008102 | LOCK WASHER |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 180M | N 304032008006 | NUT |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 182 | A 1112600058 | BREATHER |
| TRANSMISSION CASE TOP COVER | ||
| 184 | A 1369970830 | SCREW PLUG |
| TRANSMISSION CASE TOP COVER | ||
| 187 | A 3372650007 | LEVER |
| 1ST SPEED SHIFTING FORK | ||
| 192 | N 005402302104 | CYLINDRICAL ROLLER |
| TRANSMISSION CASE TOP COVER | ||
| 195 | N 000433017000 | WASHER |
| TRANSMISSION CASE TOP COVER | ||
| 199 | N 900055017300 | LOCK RING |
| TRANSMISSION CASE TOP COVER | ||
| 205 | A 3212650316 | THRUST PIECE |
| Repalced by: A 3212650416 | ||
| 205 | A 3212650416 | THRUST PIECE |
| Repalced by: A 3802650016 | ||
| 205 | A 3802650016 | THRUST PIECE |
| TRANSMISSION CASE TOP COVER | ||
| 207 | A 3219931701 | SPRING |
| TRANSMISSION CASE TOP COVER | ||
| 211 | A 3219970103 | PLUG |
| TRANSMISSION CASE TOP COVER | ||
| 212 | A 3212650248 | INTERLOCK PIN |
| TRANSMISSION CASE TOP COVER | ||
| 215 | A 3219930601 | SPRING |
| TRANSMISSION CASE TOP COVER | ||
| 217 | N 071022024000 | SLOTTED PLUG |
| HOUSING,TOP | ||
| A 3142670125 | SLIDING BLOCK | |
| TO 352 260 31 14 | ||
| N 007993006100 | SNAP RING | |
| TO 352 260 31 14 | ||
| A 3212681329 | SHIFTING ROD | |
| Repalced by: A 3225860126 | ||
| A 3222601433 | SHIFTING ROD | |
| Repalced by: A 3225860126 | ||
| A 3222680029 | SHIFTING ROD | |
| Repalced by: A 3225860226 | ||
| A 3222601533 | SHIFTING ROD | |
| Repalced by: A 3225860226 | ||
| 222 | A 3225860126 | REPAIR KIT |
| Repalced by: A 3222602233 | ||
| 222 | A 3222602233 | REPAIR KIT |
| Repalced by: A 3222602533 | ||
| 222 | A 3222602533 | SHIFTING ROD |
| SHIFTING ROD | ||
| 222 | A 3225860226 | REPAIR KIT |
| Repalced by: A 3222601933 | ||
| 222 | A 3222601933 | REPAIR KIT |
| Repalced by: A 3222602333 | ||
| 222 | A 3222602333 | SHIFTING ROD |
| SHIFTING ROD | ||
| N 006888005006 | WOODRUFF KEY | |
| 225 | A 3212680533 | SHIFTING FINGER |
| 227 | N 070952020101 | LOCK PLATE |
| 232 | A 3219900160 | NUT |
| 236 | A 3222610080 | GASKET |
| Repalced by: A 3972610180 | ||
| 236 | A 3972610180 | GASKET |
| 239 | A 3222610133 | COVER |
| Repalced by: A 3972610033 | ||
| 239 | A 3972610033 | COVER |
| 242 | N 912004008102 | LOCK WASHER |
| N 000137008204 | SPRING WASHER | |
| TO 352 260 31 14 | ||
| 247 | N 304032008006 | NUT |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| TO 352 260 31 14 | ||
| A 3212600846 | PLATE | |
| 250 | A 3852600046 | PLATE |
| 253 | A 3212650350 | BUSHING |
| N 900055008002 | SPRING WASHER | |
| N 000979008000 | NUT | |
| N 000094002034 | COTTER PIN | |
| 254 | A 1369908240 | WASHER |
| 255 | A 1362650272 | NUT |
| 257 | A 3212681229 | SHIFTING ROD |
| Repalced by: A 3225860626 | ||
| A 3225860626 | REPAIR KIT | |
| Repalced by: A 3222602933 | ||
| A 3222602933 | SHIFTING ROD | |
| PARTS KIT | ||
| N 006888005006 | WOODRUFF KEY | |
| 259 | A 3212650430 | SELECTOR LEVER |
| 262 | N 070952020101 | LOCK PLATE |
| 264 | A 3219900160 | NUT |
| 266 | A 3212612079 | GASKET |
| Repalced by: A 3222610180 | ||
| 266 | A 3222610180 | GASKET |
| 266 | A 3222610180 | GASKET |
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14 | ||
| A 3522611580 | GASKET | |
| TO 352 260 31 14 | ||
| 268 | A 3212610433 | COVER |
| Repalced by: A 3222610233 | ||
| 268 | A 3212610433 | COVER |
| TO 352 260 12 14,352 260 17 14 | ||
| 268 | A 3222610233 | COVER |
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14 | ||
| A 3522610533 | COVER | |
| TO 352 260 31 14 | ||
| N 912004008102 | LOCK WASHER | |
| COVER TO TRANSMISSION CASE TOP COVER | ||
| N 304032008006 | NUT | |
| COVER TO TRANSMISSION CASE TOP COVER | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| TO 352 260 31 14 | ||
| 274 | A 3222601139 | SHIFT LEVER |
| Repalced by: A 3222602939 | ||
| 274 | A 3222602939 | SHIFT LEVER |
| 274 | A 3222601339 | SHIFT LEVER |
| 278 | A 3179930501 | SPRING |
| SHIFT LEVER LOWER PART | ||
| 282 | A 3022670008 | SPHERICAL PIECE |
| SHIFT LEVER LOWER PART | ||
| 285 | A 3142680005 | COVER |
| SHIFT LEVER LOWER PART | ||
| 287 | A 3372670096 | BOOT |
| Repalced by: A 3522670196 | ||
| 287 | A 3522670196 | BOOT |
| SHIFT LEVER LOWER PART | ||
| 291 | A 3222670096 | BOOT |
| Repalced by: A 3522670296 | ||
| 291 | A 3222670296 | BOOT |
| Repalced by: A 3522670296 | ||
| 291 | A 3522670096 | BOOT |
| Repalced by: A 3522670296 | ||
| 291 | A 3522670296 | BOOT |
| FLOOR COVERING | ||
| 291 | A 3522670396 | BOOT |
| FLOOR COVERING | ||
| 293 | N 000936010010 | NUT |
| SHIFT LEVER UPPER PART | ||
| 297 | A 3222600040 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 303 | A 3212650805 | SHIFTING ROD |
| 1ST SPEED | ||
| 306 | A 3212651805 | SHIFTING ROD |
| 2ND AND 3RD SPEED | ||
| 309 | A 3212651905 | SHIFTING ROD |
| 4TH AND 5TH SPEED | ||
| 312 | A 3222650305 | SHIFTING ROD |
| REVERSE SPEED | ||
| 315 | A 3222650123 | SHIFTING DOG |
| 1ST SPEED | ||
| 322 | A 3212651202 | SHIFTING FORK |
| 324 | A 3212650802 | SHIFTING FORK |
| 4TH AND 5TH SPEED | ||
| 326 | A 3212651301 | SHIFTING FORK |
| 1ST SPEED | ||
| 329 | A 3212650403 | SHIFTING FORK |
| REVERSE SPEED | ||
| 331 | A 3129931001 | SPRING |
| SHIFTING FORK TO SHIFTING ROD | ||
| 334 | N 005401311000 | BALL |
| SHIFTING FORK TO SHIFTING ROD | ||
| 337 | A 3122651236 | BRACKET |
| SHIFTING ROD | ||
| 339 | A 3129940332 | LOCK |
| BRACKET TO TRANSMISSION CASE | ||
| 345 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 345 | N 304017008034 | SCREW |
| BRACKET TO TRANSMISSION CASE | ||
| 360 | A 3222620102 | DRIVE SHAFT |
| Repalced by: A 3222620802 | ||
| 360 | A 3222620802 | DRIVE SHAFT |
| 362 | A 3219931201 | SPRING |
| DRIVE SHAFT | ||
| 365 | A 3212620073 | LOCK |
| DRIVE SHAFT | ||
| 368 | A 0019813101 | CYLINDR. ROLLER BEARING |
| DRIVE SHAFT | ||
| 85MM | ||
| 368 | A 0019818701 | CYLINDR. ROLLER BEARING |
| 370 | N 005417085001 | SNAP RING |
| AS REQUIRED | ||
| 1.70 MM | ||
| 370 | A 0009943435 | SNAP RING |
| AS REQUIRED | ||
| 1.80 MM | ||
| 370 | A 0009942835 | SNAP RING |
| AS REQUIRED | ||
| 1.90MM | ||
| 372 | A 0009810527 | ANGULAR CONTACT BEARING |
| Repalced by: A 0009812827 | ||
| 372 | A 0009812827 | ANGULAR CONTACT BEARING |
| DRIVE SHAFT | ||
| 372 | A 0009814327 | ANGULAR CONTACT BEARING |
| DRIVE SHAFT | ||
| 372 | A 0019811627 | ANGULAR CONTACT BEARING |
| DRIVE SHAFT | ||
| 376 | A 3122623162 | SEAL RING |
| DRIVE SHAFT | ||
| 380 | A 3122621172 | NUT |
| DRIVE SHAFT | ||
| 383 | A 0029971346 | SEAL RING |
| Repalced by: A 0089970146 | ||
| 383 | A 0089970146 | SEAL RING |
| Repalced by: A 0159977747 | ||
| 383 | A 0159977747 | SEAL RING |
| DRIVE SHAFT | ||
| 383 | A 0159977647 | SEAL RING |
| DRIVE SHAFT | ||
| 383 | A 0179971447 | SEAL RING |
| DRIVE SHAFT | ||
| 386 | A 0009814312 | ROLLER ASSEMBLY |
| DRIVE SHAFT | ||
| 386 | A 0009814512 | ROLLER ASSEMBLY |
| DRIVE SHAFT | ||
| 386 | A 0009814612 | ROLLER ASSEMBLY |
| DRIVE SHAFT | ||
| A 3222620005 | MAIN SHAFT | |
| Repalced by: A 3222620705 | ||
| 391 | A 3222620505 | MAIN SHAFT |
| Repalced by: A 3222620705 | ||
| 391 | A 3222620705 | MAIN SHAFT |
| 394 | A 3129931701 | SPRING |
| MAIN SHAFT | ||
| 397 | A 3212620374 | PIN |
| Repalced by: A 3852621074 | ||
| 397 | A 3852621074 | PIN |
| MAIN SHAFT | ||
| 403 | A 3212622162 | SEAL RING |
| Repalced by: A 3212623862 | ||
| 403 | A 3212623862 | SEAL RING |
| AS REQUIRED | ||
| 6.90MM | ||
| 403 | A 3212622062 | SEAL RING |
| Repalced by: A 3212623762 | ||
| 403 | A 3212623762 | SEAL RING |
| AS REQUIRED | ||
| 7.00MM | ||
| 403 | A 3212621962 | SEAL RING |
| Repalced by: A 3212623662 | ||
| 403 | A 3212623662 | SEAL RING |
| AS REQUIRED | ||
| 7.10MM | ||
| 403 | A 3212621862 | SEAL RING |
| Repalced by: A 3212623562 | ||
| 403 | A 3212623562 | SEAL RING |
| AS REQUIRED | ||
| 7.20MM | ||
| 403 | A 3212621762 | SEAL RING |
| Repalced by: A 3212623462 | ||
| 403 | A 3212623462 | SEAL RING |
| AS REQUIRED | ||
| 7.30MM | ||
| 403 | A 3212620462 | SEAL RING |
| Repalced by: A 3212623962 | ||
| 403 | A 3212623962 | SEAL RING |
| AS REQUIRED | ||
| 7.40MM | ||
| 403 | A 3212622862 | SEAL RING |
| Repalced by: A 3212624662 | ||
| 403 | A 3212624662 | SEAL RING |
| AS REQUIRED | ||
| 7.45 MM | ||
| 403 | A 3212620562 | SEAL RING |
| Repalced by: A 3212624062 | ||
| 403 | A 3212624062 | SEAL RING |
| AS REQUIRED | ||
| 7.50MM | ||
| 403 | A 3212622962 | SEAL RING |
| Repalced by: A 3212624762 | ||
| 403 | A 3212624762 | SEAL RING |
| AS REQUIRED | ||
| 7.55 MM | ||
| 403 | A 3212620662 | SEAL RING |
| Repalced by: A 3212624162 | ||
| 403 | A 3212624162 | SEAL RING |
| AS REQUIRED | ||
| 7.60MM | ||
| 403 | A 3212623062 | SEAL RING |
| Repalced by: A 3212624862 | ||
| 403 | A 3212624862 | SEAL RING |
| AS REQUIRED | ||
| 7.65 MM | ||
| 403 | A 3212620762 | SEAL RING |
| Repalced by: A 3212624262 | ||
| 403 | A 3212624262 | SEAL RING |
| AS REQUIRED | ||
| 7.70MM | ||
| 403 | A 3212622562 | SEAL RING |
| Repalced by: A 3212624362 | ||
| 403 | A 3212624362 | SEAL RING |
| AS REQUIRED | ||
| 7.80MM | ||
| 403 | A 3212622662 | SEAL RING |
| Repalced by: A 3212624462 | ||
| 403 | A 3212624462 | SEAL RING |
| AS REQUIRED | ||
| 7.90MM | ||
| 403 | A 3212622762 | SEAL RING |
| Repalced by: A 3212624562 | ||
| 403 | A 3212624562 | SEAL RING |
| AS REQUIRED | ||
| 8.00MM | ||
| 409 | A 3222620034 | SYNCHRONIZER RING |
| Repalced by: A 3222620434 | ||
| 409 | A 3222620434 | SYNCHRONIZER RING |
| 5TH SPEED | ||
| 412 | A 3222600645 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 412 | A 3222600845 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 412H | A 3222620735 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 413 | A 3219930701 | SPRING |
| 4TH AND 5TH SPEED | ||
| 414 | A 3212620774 | PIN |
| 4TH AND 5TH SPEED | ||
| 415 | A 3212621040 | FOLLOWER |
| 4TH AND 5TH SPEED | ||
| 419 | A 3222620137 | SYNCHRONIZER CONE |
| 4TH AND 5TH SPEED | ||
| 421 | A 3212600469 | SPRING |
| 4TH AND 5TH SPEED | ||
| 425 | A 3212620823 | SLIDING COLLAR |
| Repalced by: A 3212621223 | ||
| 425 | A 3212621223 | SLIDING COLLAR |
| 4TH AND 5TH SPEED | ||
| A 3222600244 | GEAR | |
| Repalced by: A 3222602044 | ||
| 430 | A 3222601744 | GEAR |
| Repalced by: A 3222602044 | ||
| 430 | A 3222602044 | GEAR |
| 4TH SPEED | ||
| 431 | A 3229810812 | ROLLER ASSEMBLY |
| Repalced by: A 3529810012 | ||
| 431 | A 3529810012 | ROLLER ASSEMBLY |
| 4TH SPEED | ||
| 433 | A 3222624050 | BUSHING |
| Repalced by: A 3222626550 | ||
| 433 | A 3222626550 | BUSHING |
| 3RD SPEED | ||
| 44.50 MM | ||
| 433 | A 3222624150 | BUSHING |
| Repalced by: A 3222626650 | ||
| 433 | A 3222626650 | BUSHING |
| 3RD SPEED | ||
| 44.60 MM | ||
| 435 | A 3229810712 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 435 | A 3529810112 | ROLLER ASSEMBLY |
| 3RD SPEED | ||
| 439 | A 3222600644 | GEAR |
| Repalced by: A 3222602444 | ||
| 439 | A 3222601944 | GEAR |
| Repalced by: A 3222602444 | ||
| 439 | A 3222602444 | GEAR |
| 3RD SPEED | ||
| 442 | A 3222600545 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 442 | A 3222600745 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 442H | A 3222620635 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 443 | A 3219930701 | SPRING |
| 2ND AND 3RD SPEED | ||
| 444 | A 3212620774 | PIN |
| 2ND AND 3RD SPEED | ||
| 447 | A 3212621040 | FOLLOWER |
| 2ND AND 3RD SPEED | ||
| 448 | A 3222620137 | SYNCHRONIZER CONE |
| 2ND AND 3RD SPEED | ||
| 451 | A 3212600469 | SPRING |
| 452 | A 3212620823 | SLIDING COLLAR |
| Repalced by: A 3212621223 | ||
| 452 | A 3212621223 | SLIDING COLLAR |
| 3RD SPEED | ||
| 456 | A 3229810712 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 456 | A 3529810112 | ROLLER ASSEMBLY |
| 2ND SPEED | ||
| 460 | A 3222620112 | GEAR |
| Repalced by: A 3222620412 | ||
| 460 | A 3222620412 | GEAR |
| 2ND SPEED | ||
| 462 | A 3222600625 | GEAR |
| REVERSE SPEED | ||
| 462 | A 3222600925 | GEAR |
| REVERSE SPEED | ||
| A 3222630433 | REVERSE IDLER GEAR | |
| 463 | A 3219930701 | SPRING |
| 1ST SPEED | ||
| 465 | A 3212620674 | PIN |
| 1ST SPEED | ||
| 467 | A 3212620940 | FOLLOWER |
| 1ST SPEED | ||
| 469 | A 3212620376 | BALL SOCKET |
| Repalced by: A 3142620076 | ||
| 469 | A 3142620076 | BALL SOCKET |
| 472 | A 3222620137 | SYNCHRONIZER CONE |
| 1ST SPEED | ||
| 474 | A 3212600469 | SPRING |
| 476 | A 3212620723 | SLIDING COLLAR |
| Repalced by: A 3212621123 | ||
| 476 | A 3212621123 | SLIDING COLLAR |
| 1ST SPEED | ||
| 481 | A 3222621450 | BUSHING |
| Repalced by: A 3222625950 | ||
| 481 | A 3222625950 | BUSHING |
| AS REQUIRED | ||
| 44.50 MM | ||
| 481 | A 3222621550 | BUSHING |
| Repalced by: A 3222626050 | ||
| 481 | A 3222626050 | BUSHING |
| AS REQUIRED | ||
| 44.60 MM | ||
| 495 | N 005402004203 | CYLINDRICAL ROLLER |
| 497 | A 3222620211 | GEAR |
| Repalced by: A 3222620511 | ||
| 497 | A 3222620511 | GEAR |
| 1ST SPEED | ||
| 502 | A 0009811201 | CYLINDR. ROLLER BEARING |
| STANDARD | ||
| 502 | A 0019818901 | CYLINDR. ROLLER BEARING |
| REPAIR SIZE | ||
| 504 | A 3219940040 | SNAP RING |
| AS REQUIRED | ||
| 2.68 MM | ||
| 504 | A 3219940140 | SNAP RING |
| AS REQUIRED | ||
| 2.73 MM | ||
| 504 | A 3219940240 | SNAP RING |
| AS REQUIRED | ||
| 2.78 MM | ||
| 504 | A 3219940340 | SNAP RING |
| AS REQUIRED | ||
| 2.83 MM | ||
| 504 | A 3219940440 | SNAP RING |
| AS REQUIRED | ||
| 2.88 MM | ||
| 504 | A 3219940540 | SNAP RING |
| AS REQUIRED | ||
| 2.93 MM | ||
| 511 | A 0009810627 | ANGULAR CONTACT BEARING |
| Repalced by: A 0009812927 | ||
| 511 | A 0009812927 | ANGULAR CONTACT BEARING |
| 511 | A 0009814227 | ANGULAR CONTACT BEARING |
| 511 | A 0019811527 | ANGULAR CONTACT BEARING |
| 514 | A 3212640630 | DRIVE GEAR |
| Repalced by: A 3522640130 | ||
| 514 | A 3522640130 | DRIVE GEAR |
| SPEEDOMETER DRIVE | ||
| 517 | A 3212640532 | SHAFT |
| Repalced by: A 3142640032 | ||
| 517 | A 3142640032 | SHAFT |
| Repalced by: A 3142640332 | ||
| 517 | A 3142640332 | SHAFT |
| SPEEDOMETER DRIVE | ||
| 519 | A 3212640631 | DRIVE GEAR |
| Repalced by: A 3812640031 | ||
| 519 | A 3812640031 | DRIVE GEAR |
| SPEEDOMETER DRIVE | ||
| 522 | A 3222620045 | FLANGE |
| MAIN SHAFT,REAR | ||
| 523 | A 3219900240 | WASHER |
| FLANGE TO MAIN SHAFT | ||
| 524 | N 000937028000 | NUT |
| FLANGE TO MAIN SHAFT | ||
| N 000094005017 | COTTER PIN | |
| FLANGE TO MAIN SHAFT | ||
| A 3222620072 | NUT | |
| FLANGE TO MAIN SHAFT | ||
| 532 | A 3222630202 | COUNTERSHAFT |
| Repalced by: A 3222630302 | ||
| 532 | A 3222630302 | COUNTERSHAFT |
| 537 | A 3222630313 | GEAR |
| Repalced by: A 3222630513 | ||
| 537 | A 3222630513 | GEAR |
| 2ND AND 3RD SPEED | ||
| A 3222630314 | GEAR | |
| Repalced by: A 3222630614 | ||
| 546 | A 3222630514 | GEAR |
| Repalced by: A 3222630614 | ||
| 546 | A 3222630614 | GEAR |
| 4TH SPEED | ||
| 549 | A 3222630010 | GEAR |
| Repalced by: A 3222630610 | ||
| 549 | A 3222630610 | GEAR |
| CONSTANT | ||
| 551 | N 900055052300 | LOCK RING |
| 553 | A 0019813105 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 553 | A 0069814305 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 553 | A 0019815005 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 553 | A 0069815305 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 553 | A 0039814605 | TAPERED ROLLER BEARING |
| COUNTERSHAFT,FRONT | ||
| 90.50 MM | ||
| 553 | A 0039816305 | TAPERED ROLLER BEARING |
| COUNTERSHAFT,FRONT | ||
| 90.50 MM | ||
| 557 | A 3212650208 | LEVER |
| REVERSE SPEED | ||
| 561 | A 3212650449 | SLIDE |
| Repalced by: A 3142650349 | ||
| 561 | A 3142650349 | SLIDE |
| REVERSE SPEED | ||
| 564 | A 3212650074 | PIN |
| LEVER TO TRANSMISSION CASE | ||
| 567 | A 3212650050 | BUSHING |
| LEVER TO TRANSMISSION CASE | ||
| 569 | N 912004010102 | LOCK WASHER |
| LEVER TO TRANSMISSION CASE | ||
| 572 | N 000934010014 | NUT |
| LEVER TO TRANSMISSION CASE | ||
| A 3022650074 | PIN | |
| LEVER TO TRANSMISSION CASE | ||
| 574 | A 3222600325 | GEAR |
| Repalced by: A 3222600825 | ||
| 574 | A 3222600725 | GEAR |
| Repalced by: A 3222600825 | ||
| 574 | A 3222600825 | GEAR |
| REVERSE SPEED | ||
| 580 | A 3212630430 | REVERSE IDLER SHAFT |
| Repalced by: A 3212630630 | ||
| 580 | A 3212630530 | REVERSE IDLER SHAFT |
| Repalced by: A 3212630630 | ||
| 580 | A 3212630630 | REVERSE IDLER SHAFT |
| REVERSE IDLER GEAR | ||
| 584 | N 912004014100 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| 588 | N 000933014014 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| M 14 X 40 | ||
| 592 | A 0005861126 | REPAIR KIT |
| Repalced by: A 0002600400 | ||
| 592 | A 0002600400 | GASKET KIT |
| Repalced by: A 0002606800 | ||
| 592 | A 0002606800 | GASKET KIT |
| (GASKET KIT) | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
