Transporto priemonė: L 1817,1819/6X4; VIN numerio dalis: 360403
Grupė: 42 BRAKE SYSTEM - 001 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|

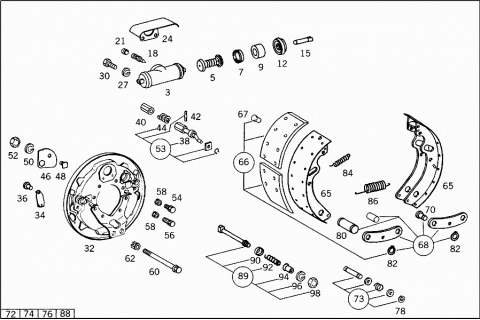

| A 0024207718 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0034207818 | ||
| 003 | A 0034207818 | WHEEL BRAKE CYLINDER |
| 44.45 MM | ||
| 005 | A 0004232493 | SPRING |
| 007 | A 0004230886 | CUP |
| 009 | A 0004232083 | PISTON |
| 012 | A 0004232187 | PROTECTIVE CAP |
| 015 | A 0004231088 | THRUST PIN |
| 018 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 018 | A 3075530107 | VALVE |
| 021 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 021 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 021 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 021 | A 0004210887 | PROTECTIVE CAP |
| A 0005863142 | REPAIR KIT | |
| 024 | A 3024210020 | PROTECTIVE PLATE |
| 027 | N 912004010102 | LOCK WASHER |
| 030 | N 000933010164 | SCREW |
| 032 | A 3524200016 | BRAKE ANCHOR PLATE |
| A 3524200216 | BRAKE ANCHOR PLATE | |
| Repalced by: A 3524200516 | ||
| A 3524200516 | BRAKE ANCHOR PLATE | |
| 034 | A 3124211068 | INSPECTION HOLE COVER |
| 036 | A 3129900096 | RIVET |
| A 3024200738 | ADJUSTER | |
| Repalced by: A 3024202838 | ||
| 038 | A 3024202838 | ADJUSTER |
| Repalced by: A 3025860342 | ||
| 040 | A 3024230275 | HEXAGONAL PIECE |
| A 3024230619 | ADJUSTING PIN | |
| Repalced by: A 3025860042 | ||
| A 3589900051 | NUT | |
| 042 | N 001473006012 | GROOVED PIN |
| 044 | A 3129934901 | SPRING |
| 046 | A 3024210173 | LOCK |
| A 3584210073 | LOCK | |
| Repalced by: A 3584210173 | ||
| A 3584210173 | LOCK | |
| N 000125013008 | WASHER | |
| 048 | A 3024210071 | SCREW |
| 050 | N 912004012100 | LOCK WASHER |
| 052 | N 000934012022 | NUT |
| A 3124211073 | LOCK | |
| A 3024210029 | SLIDE | |
| Repalced by: A 3024210129 | ||
| A 3024210129 | SLIDE | |
| Repalced by: A 3024210229 | ||
| A 3024210229 | SLIDE | |
| Repalced by: A 3024210329 | ||
| A 3024210329 | SLIDE | |
| 053 | A 3025860342 | REPAIR KIT |
| Repalced by: A 3024203038 | ||
| 053 | A 3024203038 | REPAIR KIT |
| BRAKE READJUSTMENT | ||
| A 3025860042 | REPAIR KIT | |
| Repalced by: A 3024202938 | ||
| A 3024202938 | REPAIR KIT | |
| READJUSTMENT OF REAR WHEEL BRAKE | ||
| A 3464210011 | PLUG | |
| A 3419900004 | SCREW | |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| A 3559900004 | SCREW | |
| Repalced by: N 900170012001 | ||
| 054 | N 900170012001 | SCREW |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| A 3419900104 | SCREW | |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| A 3559900104 | SCREW | |
| Repalced by: N 900170012001 | ||
| 056 | N 900170012001 | SCREW |
| BRAKE ANCHOR PLATE TO STEERING KNUCKLE | ||
| 058 | N 000935012003 | NUT |
| N 000094003219 | COTTER PIN | |
| A 3413320071 | SCREW | |
| 060 | A 3523320071 | SCREW |
| A 3603320571 | SCREW | |
| 062 | N 000935016004 | NUT |
| N 000935018001 | NUT | |
| N 000094004065 | COTTER PIN | |
| A 3414200620 | BRAKE SHOE | |
| Repalced by: A 3414201019 | ||
| A 3414200720 | BRAKE SHOE | |
| Repalced by: A 3414201019 | ||
| A 3414200820 | BRAKE SHOE | |
| Repalced by: A 3414201019 | ||
| A 3414200319 | BRAKE SHOE | |
| Repalced by: A 3414201019 | ||
| 065 | A 3414201019 | BRAKE SHOE |
| LESS LINING | ||
| 066 | A 3414230310 | BRAKE LINING |
| Repalced by: A 3414230810 | ||
| 066 | A 3414230810 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 15.30 MM;8X 341 423 00 10) | ||
| 066 | A 3414234510 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 15.30 MM,8X 341 423 42 10) | ||
| 066 | A 3414230910 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 16.30 MM;8X 341 423 01 10) | ||
| 066 | A 3414234610 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 16.30 MM,8X 341 423 43 10) | ||
| 066 | A 3414231010 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 17.30 MM;8X 341 423 02 10) | ||
| 066 | A 3414234710 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 17.30 MM,8X 341 423 44 10) | ||
| 067 | A 3079900197 | RIVET |
| 068 | A 3024210013 | SHACKLE |
| Repalced by: A 3385860042 | ||
| 068 | A 3385860042 | REPAIR KIT |
| Repalced by: A 3384200289 | ||
| 068 | A 3384200289 | REPAIR KIT |
| BRAKE SHOE SHACKLE | ||
| A 3024210113 | SHACKLE | |
| Repalced by: A 3385860242 | ||
| A 3385860242 | REPAIR KIT | |
| Repalced by: A 3384200489 | ||
| A 3384200489 | REPAIR KIT | |
| BRAKE SHOE SHACKLE | ||
| A 3024210250 | BUSHING | |
| 070 | A 3024210174 | PIN |
| 072 | A 3124231174 | PIN |
| Repalced by: A 3385860342 | ||
| 073 | A 3385860342 | REPAIR KIT |
| Repalced by: A 3384200082 | ||
| 073 | A 3384200082 | REPAIR KIT |
| BRAKE SHOE SHACKLE SPACER PIN | ||
| 074 | A 3024210052 | SPACER WASHER |
| Repalced by: A 3385860342 | ||
| 076 | A 3029930201 | SPRING |
| Repalced by: A 3385860342 | ||
| 078 | A 3124211073 | LOCK |
| 080 | A 3024210118 | PIVOT PIN |
| 082 | N 900055025301 | LOCK RING |
| 084 | A 3029930310 | SPRING |
| A 3414210092 | SPRING | |
| Repalced by: A 3524210192 | ||
| 086 | A 3524210192 | SPRING |
| 088 | A 3414210174 | PIN |
| Repalced by: A 3585860242 | ||
| A 3415860042 | REPAIR KIT | |
| Repalced by: A 3585860242 | ||
| 089 | A 3585860242 | REPAIR KIT |
| Repalced by: A 3584200182 | ||
| 089 | A 3584200182 | REPAIR KIT |
| BRAKE SHOE MOUNTING BOLT | ||
| 090 | A 3124231089 | FILLER |
| A 3129933801 | SPRING | |
| Repalced by: A 3529930501 | ||
| 092 | A 3529930501 | SPRING |
| 094 | A 3124231189 | FILLER |
| 096 | N 912004008102 | LOCK WASHER |
| 098 | N 304032008006 | NUT |

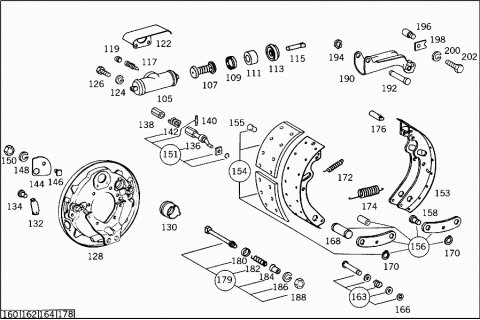

| A 0024207718 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0034207818 | ||
| 105 | A 0034207818 | WHEEL BRAKE CYLINDER |
| 44.45 MM | ||
| 107 | A 0004232493 | SPRING |
| 109 | A 0004230886 | CUP |
| 111 | A 0004232083 | PISTON |
| 113 | A 0004232187 | PROTECTIVE CAP |
| 115 | A 0004231088 | THRUST PIN |
| 117 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 117 | A 3075530107 | VALVE |
| 119 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 119 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 119 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 119 | A 0004210887 | PROTECTIVE CAP |
| A 0005863142 | REPAIR KIT | |
| 122 | A 3024210020 | PROTECTIVE PLATE |
| 124 | N 912004010102 | LOCK WASHER |
| 126 | N 000933010105 | SCREW |
| A 3024202317 | BRAKE ANCHOR PLATE | |
| Repalced by: A 3024204017 | ||
| 128 | A 3024204017 | BRAKE ANCHOR PLATE |
| A 3024202217 | BRAKE ANCHOR PLATE | |
| Repalced by: A 3024203917 | ||
| A 3024203917 | BRAKE ANCHOR PLATE | |
| 130 | A 3024270054 | PIPE SOCKET |
| 132 | A 3124211068 | INSPECTION HOLE COVER |
| 134 | A 3129900096 | RIVET |
| 136 | A 3024200638 | ADJUSTER |
| Repalced by: A 3025860442 | ||
| A 3024202738 | ADJUSTER | |
| Repalced by: A 3025860442 | ||
| 138 | A 3024230175 | HEXAGONAL PIECE |
| 140 | N 001473006012 | GROOVED PIN |
| 142 | A 3129934901 | SPRING |
| 144 | A 3024210173 | LOCK |
| 146 | A 3024210071 | SCREW |
| 148 | N 912004012100 | LOCK WASHER |
| 150 | N 000934012022 | NUT |
| A 3124211073 | LOCK | |
| A 3024210029 | SLIDE | |
| Repalced by: A 3024210129 | ||
| A 3024210129 | SLIDE | |
| Repalced by: A 3024210229 | ||
| A 3024210229 | SLIDE | |
| Repalced by: A 3024210329 | ||
| A 3024210329 | SLIDE | |
| A 3464210011 | PLUG | |
| 151 | A 3025860442 | REPAIR KIT |
| Repalced by: A 3024203138 | ||
| 151 | A 3024203138 | REPAIR KIT |
| BRAKE READJUSTMENT | ||
| N 000961012106 | SCREW | |
| BRAKE ANCHOR PLATES TO REAR AXLE CASING | ||
| N 000961016097 | SCREW | |
| Repalced by: N 308676016005 | ||
| N 308676016005 | SCREW | |
| BRAKE ANCHOR PLATES TO REAR AXLE CASING | ||
| N 912004012100 | LOCK WASHER | |
| BRAKE ANCHOR PLATES TO REAR AXLE CASING | ||
| N 912004016101 | LOCK WASHER | |
| BRAKE ANCHOR PLATES TO REAR AXLE CASING | ||
| N 000934012023 | NUT | |
| Repalced by: N 308673012002 | ||
| N 308673012002 | NUT | |
| BRAKE ANCHOR PLATES TO REAR AXLE CASING | ||
| N 000934016013 | NUT | |
| Repalced by: N 308673016001 | ||
| N 308673016001 | NUT | |
| BRAKE ANCHOR PLATES TO REAR AXLE CASING | ||
| A 3524200020 | BRAKE SHOE | |
| Repalced by: A 3384200219 | ||
| A 3524200120 | BRAKE SHOE | |
| Repalced by: A 3384200219 | ||
| A 3524200220 | BRAKE SHOE | |
| Repalced by: A 3384200219 | ||
| A 3384200019 | BRAKE SHOE | |
| Repalced by: A 3384200219 | ||
| 153 | A 3384200219 | BRAKE SHOE |
| 154 | A 3524230310 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 15.30 MM;8X 352 423 00 10) | ||
| 154 | A 3524231110 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 15.30 MM,8X 352 423 08 10) | ||
| 154 | A 3524230410 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 16.30 MM;8X 352 423 01 10) | ||
| 154 | A 3524231210 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 16.30 MM,8X 352 423 09 10) | ||
| 154 | A 3524230510 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 17.30 MM;8X 352 423 02 10) | ||
| 154 | A 3524231310 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 17.30 MM,8X 352 423 10 10) | ||
| 155 | A 3079900197 | RIVET |
| 156 | A 3024210013 | SHACKLE |
| Repalced by: A 3385860042 | ||
| 156 | A 3385860042 | REPAIR KIT |
| Repalced by: A 3384200289 | ||
| 156 | A 3384200289 | REPAIR KIT |
| BRAKE SHOE SHACKLE | ||
| A 3024210113 | SHACKLE | |
| Repalced by: A 3385860242 | ||
| 156 | A 3385860242 | REPAIR KIT |
| Repalced by: A 3384200489 | ||
| 156 | A 3384200489 | REPAIR KIT |
| BRAKE SHOE SHACKLE | ||
| A 3024210250 | BUSHING | |
| 158 | A 3024210174 | PIN |
| 160 | A 3124231174 | PIN |
| Repalced by: A 3385860342 | ||
| 162 | A 3024210052 | SPACER WASHER |
| Repalced by: A 3385860342 | ||
| 163 | A 3385860342 | REPAIR KIT |
| Repalced by: A 3384200082 | ||
| 163 | A 3384200082 | REPAIR KIT |
| BRAKE SHOE SHACKLE SPACER PIN | ||
| 164 | A 3029930201 | SPRING |
| Repalced by: A 3385860342 | ||
| 166 | A 3124211073 | LOCK |
| 168 | A 3024210118 | PIVOT PIN |
| 170 | N 900055025301 | LOCK RING |
| 172 | A 3029930310 | SPRING |
| 174 | A 3029930610 | SPRING |
| A 3024230018 | PIVOT PIN | |
| Repalced by: A 3024230518 | ||
| 176 | A 3024230518 | PIVOT PIN |
| BRAKE SHAFT TO BRAKE SHOE | ||
| N 000094004023 | COTTER PIN | |
| BRAKE SHAFT TO BRAKE SHOE | ||
| 178 | A 3414210174 | PIN |
| Repalced by: A 3585860242 | ||
| A 3415860042 | REPAIR KIT | |
| Repalced by: A 3585860242 | ||
| 179 | A 3585860242 | REPAIR KIT |
| Repalced by: A 3584200182 | ||
| 179 | A 3584200182 | REPAIR KIT |
| BRAKE SHOE MOUNTING BOLT | ||
| 180 | A 3124231089 | FILLER |
| A 3129933801 | SPRING | |
| Repalced by: A 3529930501 | ||
| 182 | A 3529930501 | SPRING |
| A 3529930501 | SPRING | |
| 184 | A 3124231189 | FILLER |
| 186 | N 912004008102 | LOCK WASHER |
| 188 | N 304032008006 | NUT |
| A 3024200119 | THRUST SHACKLE | |
| Repalced by: A 3024201419 | ||
| 190 | A 3024201419 | THRUST SHACKLE |
| Repalced by: A 3834200389 | ||
| 190 | A 3834200389 | SHACKLE |
| A 3024203219 | THRUST SHACKLE | |
| A 3024230074 | PIN | |
| Repalced by: A 3024230774 | ||
| 192 | A 3024230774 | PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| A 3024230318 | PIVOT PIN | |
| Repalced by: A 3024230418 | ||
| A 3024230418 | PIVOT PIN | |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 194 | N 000471018000 | LOCK RING |
| A 3029940035 | SNAP RING | |
| THRUST SHACKLE TO BRAKE SHOE | ||
| A 3024230474 | PIN | |
| Repalced by: A 3024230874 | ||
| 196 | A 3024230874 | PIN |
| Repalced by: A 3024230974 | ||
| A 3024230674 | PIN | |
| Repalced by: A 3024230974 | ||
| A 3024230974 | PIN | |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| A 3024230174 | PIN | |
| N 000094004065 | COTTER PIN | |
| 198 | A 3029940109 | LOCK |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 200 | N 912004008102 | LOCK WASHER |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 202 | N 914125008302 | SCREW |
| Repalced by: N 914125008319 | ||
| 202 | N 914125008319 | SCREW |
| BRAKE SHAFT TO THRUST SHACKLE | ||

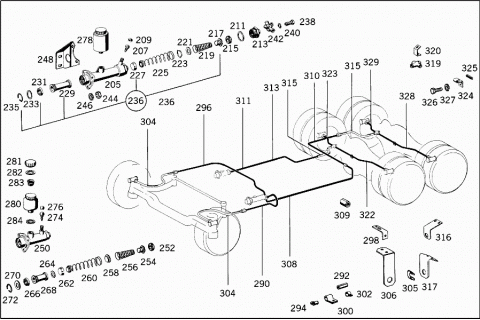

| 205 | A 0024303601 | BRAKE MASTER CYLINDER |
| Repalced by: A 0024302101 | ||
| 205 | A 0024302101 | BRAKE MASTER CYLINDER |
| 38.10 MM | ||
| 205 | A 0024308401 | BRAKE MASTER CYLINDER |
| 38.10 MM | ||
| 207 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 207 | A 3075530107 | VALVE |
| 209 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 209 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 209 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 209 | A 0004210887 | PROTECTIVE CAP |
| 211 | N 007603040102 | SEAL RING |
| TO 002 430 21 01,002 430 36 01 | ||
| 213 | A 0004311075 | THREADED UNION |
| 215 | A 0004310760 | SEAL RING |
| Repalced by: A 0004300381 | ||
| 215 | A 0004300381 | VALVE |
| TO 002 430 21 01,002 430 36 01 | ||
| 217 | A 0004300081 | VALVE |
| Repalced by: A 0004300381 | ||
| 217 | A 0004300381 | VALVE |
| TO 002 430 21 01,002 430 36 01 | ||
| 219 | A 0009930605 | SPRING |
| TO 002 430 21 01,002 430 36 01 | ||
| 221 | A 0004311776 | WASHER |
| TO 002 430 21 01,002 430 36 01 | ||
| 223 | A 0009941835 | SNAP RING |
| TO 002 430 21 01,002 430 36 01 | ||
| 225 | A 0004314293 | SPRING |
| TO 002 430 21 01,002 430 36 01 | ||
| 227 | A 0004317586 | CUP |
| TO 002 430 21 01,002 430 36 01 | ||
| 229 | A 0004312983 | PISTON |
| TO 002 430 21 01,002 430 36 01 | ||
| 231 | A 0004310886 | CUP |
| TO 002 430 21 01,002 430 36 01 | ||
| 233 | A 0004311176 | WASHER |
| TO 002 430 21 01,002 430 36 01 | ||
| 235 | A 0004310194 | LOCK |
| TO 002 430 21 01,002 430 36 01 | ||
| A 0015860243 | REPAIR KIT | |
| Repalced by: A 0004303183 | ||
| A 0004303183 | PISTON | |
| TO 002 430 84 01 | ||
| 236 | A 0005864843 | REPAIR KIT |
| TO 002 430 36 01,002 430 21 01 | ||
| A 0024309101 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0024302101 | ||
| A 0004319260 | SEAL RING | |
| A 0009934205 | SPRING | |
| A 0004313676 | WASHER | |
| Repalced by: A 0004311776 | ||
| A 0004311776 | WASHER | |
| A 0004310994 | LOCK | |
| A 0009934405 | SPRING | |
| A 0004202155 | BLEEDER VALVE | |
| Repalced by: A 0004310265 | ||
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| A 3075530107 | VALVE | |
| A 0004212687 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 3164210187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| Repalced by: A 0004217187 | ||
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| A 0015860243 | REPAIR KIT | |
| Repalced by: A 0004303183 | ||
| A 0004303183 | PISTON | |
| 238 | A 0004280026 | HOLLOW SCREW |
| 240 | N 007603014405 | SEAL RING |
| 242 | A 0004280124 | DISTRIBUTOR |
| 244 | N 000934010014 | NUT |
| 246 | N 912004010102 | LOCK WASHER |
| 248 | A 3524313840 | BRACKET |
| A 3524313940 | BRACKET | |
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 000125010500 | WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 250 | A 0024304201 | BRAKE MASTER CYLINDER |
| 34.92 MM | ||
| 252 | A 0004310760 | SEAL RING |
| Repalced by: A 0004300381 | ||
| 252 | A 0004300381 | VALVE |
| 254 | A 0004300081 | VALVE |
| Repalced by: A 0004300381 | ||
| 254 | A 0004300381 | VALVE |
| 256 | A 0009930605 | SPRING |
| 258 | A 0004312489 | SPRING RETAINER |
| 260 | A 0014310993 | SPRING |
| 262 | A 0004315386 | CUP |
| 264 | A 0004311785 | FILLER RING |
| 266 | A 0039975246 | SEAL RING |
| 268 | A 0004316283 | PISTON |
| A 0004310376 | WASHER | |
| Repalced by: A 0004311176 | ||
| 270 | A 0004311176 | WASHER |
| 272 | A 0004310194 | LOCK |
| 274 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 274 | A 3075530107 | VALVE |
| 276 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 276 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 276 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 276 | A 0004210887 | PROTECTIVE CAP |
| A 0005865043 | REPAIR KIT | |
| A 0034302401 | BRAKE MASTER CYLINDER | |
| 34.92 MM | ||
| A 0004202155 | BLEEDER VALVE | |
| Repalced by: A 0004310265 | ||
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| A 3075530107 | VALVE | |
| A 0004212687 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 3164210187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| Repalced by: A 0004217187 | ||
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| A 0015868943 | REPAIR KIT | |
| A 3524313940 | BRACKET | |
| BRAKE MASTER CYLINDER | ||
| A 3524313840 | BRACKET | |
| BRAKE MASTER CYLINDER | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 278 | A 0004312102 | RESERVOIR |
| 280 | A 0004311602 | RESERVOIR |
| A 0002951815 | RESERVOIR | |
| Repalced by: A 0004311602 | ||
| A 0004313533 | FILLER CAP | |
| Repalced by: A 0004315433 | ||
| A 0004311333 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| A 0004313133 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| 281 | A 0004314333 | FILLER CAP |
| Repalced by: A 0004315133 | ||
| 281 | A 0004315133 | FILLER CAP |
| Repalced by: A 0004315433 | ||
| 281 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| A 0002950237 | SCREW PLUG | |
| Repalced by: A 0004315433 | ||
| 282 | A 0009972940 | SEAL RING |
| 43.7X30 MM | ||
| A 0039976440 | SEAL RING | |
| 42X21.5 MM | ||
| A 0004310034 | STRAINER | |
| Repalced by: A 0004313734 | ||
| 283 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 283 | A 0004314334 | STRAINER |
| 284 | N 007603022102 | SEAL RING |
| BRAKE MASTER CYLINDER | ||
| A 3604206329 | LINE | |
| Repalced by: A 3404202729 | ||
| 290 | A 3404202729 | LINE |
| FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL | ||
| A 3604206429 | LINE | |
| Repalced by: A 3404204029 | ||
| A 3404204029 | LINE | |
| FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL | ||
| 292 | A 3129970582 | HOSE |
| HOSE TO BRAKE LINE | ||
| 294 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 294 | N 916016008200 | CLAMP |
| BRAKE LINE TO FRAME | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRAKE LINE TO FRAME | ||
| N 912004008102 | LOCK WASHER | |
| BRAKE LINE TO FRAME | ||
| N 304032008006 | NUT | |
| BRAKE LINE TO FRAME | ||
| N 000084006197 | SCREW | |
| BRAKE LINE TO FRAME | ||
| N 000125006421 | WASHER | |
| BRAKE LINE TO FRAME | ||
| N 912004006102 | LOCK WASHER | |
| BRAKE LINE TO FRAME | ||
| N 000934006007 | NUT | |
| BRAKE LINE TO FRAME | ||
| A 3604206529 | LINE | |
| Repalced by: A 3404204029 | ||
| 296 | A 3404204029 | LINE |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| A 3604206629 | LINE | |
| Repalced by: A 3404202729 | ||
| A 3404202729 | LINE | |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| A 3129970582 | HOSE | |
| HOSE TO BRAKE LINE | ||
| 298 | A 3524281740 | BRACKET |
| Repalced by: A 3184280240 | ||
| 298 | A 3184280240 | BRACKET |
| A 3604280243 | ANGLE | |
| BRAKE LINE TO CROSS MEMBER | ||
| A 3524290740 | BRACKET | |
| BRAKE LINE TO CROSS MEMBER | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRAKE LINE TO CROSS MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| BRAKE LINE TO CROSS MEMBER | ||
| N 304032008006 | NUT | |
| BRAKE LINE TO CROSS MEMBER | ||
| 300 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 300 | N 916016008200 | CLAMP |
| BRAKE LINE TO FRAME | ||
| N 000084006137 | SCREW | |
| BRAKE LINE TO FRAME | ||
| N 000084006197 | SCREW | |
| BRAKE LINE TO FRAME | ||
| N 000125006421 | WASHER | |
| BRAKE LINE TO FRAME | ||
| N 912004006102 | LOCK WASHER | |
| BRAKE LINE TO FRAME | ||
| N 000934006007 | NUT | |
| BRAKE LINE TO FRAME | ||
| 302 | A 3129950935 | CLAMP |
| HOSE TO BRAKE LINE | ||
| N 000084004151 | SCREW | |
| HOSE TO BRAKE LINE | ||
| N 000934004006 | NUT | |
| HOSE TO BRAKE LINE | ||
| A 0004289135 | BRAKE HOSE | |
| Repalced by: A 0004288235 | ||
| 304 | A 0004288235 | BRAKE HOSE |
| 550 MM | ||
| A 0014283235 | BRAKE HOSE | |
| Repalced by: A 0004288235 | ||
| 305 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 305 | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE TO BRACKET | ||
| 306 | A 3604280240 | BRACKET |
| BRAKE HOSE,FRONT | ||
| N 000933008145 | SCREW | |
| BRACKET TO CONSOLE | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO CONSOLE | ||
| N 304032008006 | NUT | |
| BRACKET TO CONSOLE | ||
| A 3604207229 | LINE | |
| Repalced by: A 3404202329 | ||
| 308 | A 3404202329 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 1300 MM | ||
| A 3604207129 | LINE | |
| Repalced by: A 3404201129 | ||
| A 3404201129 | LINE | |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 700 MM | ||
| A 0004280531 | CONNECTOR | |
| Repalced by: A 0004292736 | ||
| 309 | A 0004292736 | CONNECTOR |
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| N 916016008200 | CLAMP | |
| LINE TO CROSS MEMBER | ||
| 310 | A 3404204729 | LINE |
| FROM CONNECTOR TO REAR AXLE II | ||
| 4000 MM | ||
| A 3524204229 | LINE | |
| Repalced by: A 3404204629 | ||
| 310 | A 3404204629 | LINE |
| FROM CONNECTOR TO REAR AXLE II | ||
| 3800 MM | ||
| A 3604208529 | LINE | |
| Repalced by: A 3404204329 | ||
| 310 | A 3404204329 | LINE |
| FROM CONNECTOR TO REAR AXLE II | ||
| 3200 MM | ||
| A 3604207629 | LINE | |
| Repalced by: A 3404201129 | ||
| 311 | A 3404201129 | LINE |
| FROM CONNECTOR TO REAR AXLE I | ||
| 700 MM | ||
| A 3604207729 | LINE | |
| Repalced by: A 3404205129 | ||
| A 3404205129 | LINE | |
| FROM CONNECTOR TO REAR AXLE I | ||
| 4800 MM | ||
| A 0004280531 | CONNECTOR | |
| Repalced by: A 0004292736 | ||
| A 0004292736 | CONNECTOR | |
| A 3524204230 | LINE | |
| Repalced by: A 3404204229 | ||
| 313 | A 3404204229 | LINE |
| A 3604208629 | LINE | |
| Repalced by: A 3404203929 | ||
| A 3404203929 | LINE | |
| A 3524281740 | BRACKET | |
| Repalced by: A 3184280240 | ||
| A 3184280240 | BRACKET | |
| BRAKE LINES TO FRAME | ||
| A 3604312640 | BRACKET | |
| BRAKE LINES TO FRAME | ||
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| N 916016008200 | CLAMP | |
| BRAKE LINES TO FRAME | ||
| A 3609950601 | CLAMP | |
| BRAKE LINES TO FRAME | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRAKE LINES TO FRAME | ||
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| BRAKE LINES TO FRAME | ||
| N 912004008102 | LOCK WASHER | |
| BRAKE LINES TO FRAME | ||
| N 304032008006 | NUT | |
| BRAKE LINES TO FRAME | ||
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| N 916016008200 | CLAMP | |
| BRAKE LINES TO FRAME | ||
| N 000084006197 | SCREW | |
| BRAKE LINES TO FRAME | ||
| N 912004006102 | LOCK WASHER | |
| BRAKE LINES TO FRAME | ||
| N 000934006007 | NUT | |
| BRAKE LINES TO FRAME | ||
| A 0004283335 | BRAKE HOSE | |
| Repalced by: A 0004288935 | ||
| A 0014285035 | BRAKE HOSE | |
| Repalced by: A 0004288935 | ||
| 315 | A 0024281135 | BRAKE HOSE |
| Repalced by: A 0004288935 | ||
| 315 | A 0004288935 | BRAKE HOSE |
| REAR AXLE II | ||
| 650 MM | ||
| 315 | A 0014284835 | BRAKE HOSE |
| REAR AXLE II | ||
| 650 MM | ||
| A 0004280473 | BRACKET | |
| Repalced by: A 6525040038 | ||
| A 6525040038 | MOUNTING PLATE | |
| BRAKE HOSE TO BRACKET | ||
| 316 | A 3524282240 | BRACKET |
| 317 | A 3124281040 | BRACKET |
| Repalced by: A 3834280140 | ||
| 317 | A 3834280140 | BRACKET |
| BRAKE HOSE | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO FRAME | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO FRAME | ||
| N 304032008006 | NUT | |
| BRACKET TO FRAME | ||
| 319 | A 0004290437 | DISTRIBUTOR |
| 319 | A 0004294337 | DISTRIBUTOR |
| 320 | A 3524280740 | BRACKET |
| N 000931008152 | SCREW | |
| BRACKET TO REAR AXLE I | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO REAR AXLE I | ||
| N 304032008006 | NUT | |
| BRACKET TO REAR AXLE I | ||
| A 3524203730 | LINE | |
| Repalced by: A 3404201829 | ||
| 322 | A 3404201829 | LINE |
| REAR AXLE I | ||
| 1050 MM | ||
| A 3524203830 | LINE | |
| Repalced by: A 3404202229 | ||
| 323 | A 3404202229 | LINE |
| REAR AXLE I | ||
| 1250 MM | ||
| 324 | A 3129951020 | CLAMP |
| REAR AXLE I | ||
| 325 | A 3129973482 | HOSE |
| REAR AXLE I | ||
| 326 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 326 | N 304017008016 | SCREW |
| REAR AXLE I | ||
| 327 | N 912004008102 | LOCK WASHER |
| REAR AXLE I | ||
| A 3524203930 | LINE | |
| Repalced by: A 3404202629 | ||
| 328 | A 3404202629 | LINE |
| REAR AXLE II | ||
| 1450 MM | ||
| A 3129973482 | HOSE | |
| REAR AXLE II | ||
| A 3129951020 | CLAMP | |
| PAWL TO BRACKET | ||
| A 3524204030 | LINE | |
| Repalced by: A 3404201429 | ||
| 329 | A 3404201429 | LINE |
| REAR AXLE II | ||
| 850 MM | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| AT REAR AXLE | ||
| N 912004008102 | LOCK WASHER | |
| AT REAR AXLE | ||

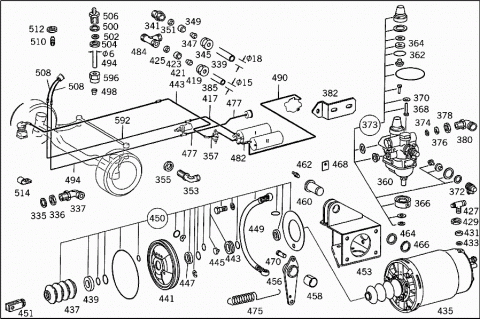

| 335 | N 007603026104 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 336 | N 074305026202 | NUT |
| AT AIR COMPRESSOR | ||
| 337 | A 0004291838 | ELBOW FITTING |
| AT AIR COMPRESSOR | ||
| A 3604295903 | LINE | |
| Repalced by: A 0004290401 | ||
| A 0004290401 | LINE | |
| Repalced by: A 0005516456 | ||
| 339 | A 0005516456 | TUBE |
| FROM AIR COMPRESSOR TO DOUBLE FITTING | ||
| N 915017018100 | UNION NUT | |
| FROM AIR COMPRESSOR TO DOUBLE FITTING | ||
| N 003861018003 | GLAND | |
| Repalced by: A 0019901167 | ||
| A 0019901167 | SEAL CONE | |
| FROM AIR COMPRESSOR TO DOUBLE FITTING | ||
| 341 | N 074313018201 | FITTING |
| A 3524292603 | LINE | |
| Repalced by: A 0004290401 | ||
| A 0004290401 | LINE | |
| Repalced by: A 0005516456 | ||
| 343 | A 0005516456 | TUBE |
| FROM FITTING TO ELBOW FITTING | ||
| A 3524290704 | LINE | |
| Repalced by: A 0004290401 | ||
| A 0004290401 | LINE | |
| Repalced by: A 0005516456 | ||
| A 0005516456 | TUBE | |
| FROM FITTING TO ELBOW FITTING | ||
| 345 | N 915018018000 | UNION NUT |
| FROM FITTING TO ELBOW FITTING | ||
| 347 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 347 | A 0019901167 | SEAL CONE |
| FROM FITTING TO ELBOW FITTING | ||
| 349 | N 915065018101 | THRUST RING |
| FROM FITTING TO ELBOW FITTING | ||
| 351 | N 915045014100 | SEAL RING |
| A 3144290140 | BRACKET | |
| Repalced by: A 3184291540 | ||
| A 3184291540 | BRACKET | |
| COMPRESSED AIR LINE | ||
| A 3609950601 | CLAMP | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 000084006197 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 000934006007 | NUT | |
| COMPRESSED AIR LINE TO BRACKET | ||
| 353 | A 0009903371 | ELBOW FITTING |
| 355 | N 074305026202 | NUT |
| ELBOW FITTING TO SIDE MEMBER | ||
| A 3524296903 | LINE | |
| Repalced by: A 0004290401 | ||
| A 0004290401 | LINE | |
| Repalced by: A 0005516456 | ||
| 357 | A 0005516456 | TUBE |
| N 007603022102 | SEAL RING | |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| N 074313018201 | FITTING | |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| A 0004293238 | ELBOW FITTING | |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| N 074305022202 | NUT | |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| A 0009870446 | SEALING CORD | |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| A 0004290227 | THRUST RING | |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 360 | A 0004319106 | PRESSURE REGULATOR |
| A 0004319206 | PRESSURE REGULATOR | |
| Repalced by: A 0004319106 | ||
| A 0004319106 | PRESSURE REGULATOR | |
| A 0007630253 | SLEEVE | |
| Repalced by: A 0007630553 | ||
| 362 | A 0007630553 | SLEEVE |
| A 0004318360 | SEAL RING | |
| 364 | A 0004311081 | VALVE DISC |
| 366 | A 0004311434 | STRAINER |
| 368 | A 0004310681 | VALVE DISC |
| 370 | A 0004311381 | VALVE DISC |
| 372 | A 0004314787 | PROTECTIVE CAP |
| Repalced by: A 0009979486 | ||
| 372 | A 0009979486 | PLUG |
| A 0004315687 | PROTECTIVE CAP | |
| A 0014314106 | PRESSURE REGULATOR | |
| Repalced by: A 0024313506 | ||
| A 0024313506 | PRESSURE REGULATOR | |
| Repalced by: A 0024315906 | ||
| A 0014314206 | PRESSURE REGULATOR | |
| Repalced by: A 0024315906 | ||
| A 0024315906 | PRESSURE REGULATOR | |
| "BOSCH" | ||
| A 0014314306 | PRESSURE REGULATOR | |
| Repalced by: A 0024316006 | ||
| A 0014312206 | PRESSURE REGULATOR | |
| Repalced by: A 0024316006 | ||
| A 0024316006 | PRESSURE REGULATOR | |
| "WESTINGHOUSE" | ||
| A 0025866043 | REPAIR KIT | |
| TO 001 431 42 06,GRAU | ||
| A 0025864143 | REPAIR KIT | |
| TO 000 431 92 06,BOSCH 0 481 039 012 | ||
| A 0025866743 | REPAIR KIT | |
| TO 001 431 46 06,KNORR | ||
| 373 | A 0025865043 | REPAIR KIT |
| TO 000 431 92 06,000 431 91 06 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BOSCH 0 481 039 012/011 | ||
| A 0015868543 | REPAIR KIT | |
| Repalced by: A 0004301407 | ||
| A 0004301407 | REPAIR KIT | |
| TO 001 431 41 06,BOSCH 0 481 039 102 | ||
| A 0015864343 | REPAIR KIT | |
| Repalced by: A 0004301107 | ||
| A 0004301107 | REPAIR KIT | |
| TO 001 431 22 06,WEST. 975 300 111 0 | ||
| A 0024304681 | REPAIR KIT | |
| VALVE KIT | ||
| TO 001 431 22 06,WEST. 975 300 111 0 | ||
| A 0014304960 | REPAIR KIT | |
| TO 002 431 60 06,WEST.975 303 440 0 | ||
| A 0025864243 | REPAIR KIT | |
| TO 000 431 91 06,BOSCH 0 481 039 011 | ||
| A 0004301768 | REPAIR KIT | |
| DIAPHRAGM | ||
| TO 002 431 35 06,BOSCH 0 481 039 222 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 431 59 06,BOSCH 0 481 039 202 | ||
| A 0004307960 | REPAIR KIT | |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 35 06,BOSCH 0 481 039 222 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 431 59 06,BOSCH 0 481 039 202 | ||
| 374 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 376 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 378 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 380 | N 074301022203 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 382 | A 3524315340 | BRACKET |
| A 3524316340 | BRACKET | |
| N 000931008228 | SCREW | |
| Repalced by: N 000933008134 | ||
| N 000933008134 | SCREW | |
| PRESSURE REGULATOR TO BRACKET | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| PRESSURE REGULATOR TO FRAME | ||
| N 912004008102 | LOCK WASHER | |
| N 000125008408 | WASHER | |
| N 304032008006 | NUT | |
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| A 3604296003 | LINE | |
| Repalced by: A 0004290201 | ||
| A 0004290201 | LINE | |
| Repalced by: A 0005516256 | ||
| 385 | A 0005516256 | TUBE |
| 387 | N 074298022203 | DOUBLE FITTING |
| 389 | N 007603022102 | SEAL RING |
| 391 | A 0004317206 | VALVE |
| A 0014312086 | CUP | |
| Repalced by: A 0014312386 | ||
| A 0014312386 | CUP | |
| 104 | ||
| A 0014312186 | CUP | |
| 104 | ||
| A 0004350780 | GASKET | |
| 104 | ||
| A 0004317987 | PROTECTIVE CAP | |
| 104 | ||
| A 0004315323 | VALVE | |
| 104 | ||
| A 0009934905 | SPRING | |
| 104 | ||
| A 0049977945 | SEAL RING | |
| Repalced by: A 0179974148 | ||
| A 0179974148 | SEAL RING | |
| 104 | ||
| A 0009870446 | SEALING CORD | |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| A 0004290227 | THRUST RING | |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| N 074305022202 | NUT | |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 393 | A 0019972372 | FITTING |
| N 007603022102 | SEAL RING | |

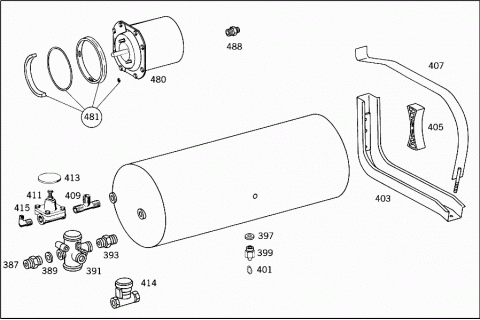

| 395 | A 3274300005 | RESERVOIR |
| Repalced by: A 0034322701 | ||
| 395 | A 0034322701 | RESERVOIR |
| INSIDE | ||
| 397 | N 007603022102 | SEAL RING |
| A 0004320407 | VALVE | |
| Repalced by: A 0004320807 | ||
| A 0004320607 | VALVE | |
| Repalced by: A 0004321107 | ||
| 399 | A 0004321107 | VALVE |
| DRAIN | ||
| 399 | A 0004322407 | VALVE |
| DRAIN | ||
| 399 | A 0004322107 | VALVE |
| DRAIN | ||
| 401 | N 900397000201 | RING |
| Repalced by: A 0005830296 | ||
| 401 | A 0005830296 | RING |
| TO 000 432 08 07 | ||
| 403 | A 3604301311 | CONSOLE |
| 405 | A 3354320218 | BASE |
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| AIR RESERVOIR CONSOLE TO SIDE MEMBER | ||
| N 000961012122 | SCREW | |
| AIR RESERVOIR CONSOLE TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| AIR RESERVOIR CONSOLE TO SIDE MEMBER | ||
| N 000125013001 | WASHER | |
| AIR RESERVOIR CONSOLE TO SIDE MEMBER | ||
| A 3354320126 | PLATE | |
| Repalced by: A 3434320026 | ||
| A 3434320026 | PLATE | |
| AIR RESERVOIR CONSOLE TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| AIR RESERVOIR CONSOLE TO SIDE MEMBER | ||
| 407 | A 3604300040 | STRAP |
| N 000934010014 | NUT | |
| A 0009870446 | SEALING CORD | |
| AT OUTSIDE AIR RESERVOIR | ||
| A 0004290227 | THRUST RING | |
| AT OUTSIDE AIR RESERVOIR | ||
| N 074305022202 | NUT | |
| AT OUTSIDE AIR RESERVOIR | ||
| 409 | N 074302022304 | T-FITTING |
| N 074301022203 | ELBOW FITTING | |
| N 074305022202 | NUT | |
| AT OUTSIDE AIR RESERVOIR | ||
| A 0009870446 | SEALING CORD | |
| AT OUTSIDE AIR RESERVOIR | ||
| A 0004290227 | THRUST RING | |
| AT OUTSIDE AIR RESERVOIR | ||
| 411 | A 0004313606 | VALVE |
| Repalced by: A 0014299844 | ||
| A 0004315406 | VALVE | |
| Repalced by: A 0014295244 | ||
| A 0014295244 | VALVE | |
| WESTINGHOUSE | ||
| 413 | A 0004290145 | DIAPHRAGM |
| TO 000 431 36 06,000 431 54 06 | ||
| A 0014297944 | VALVE | |
| GRAU | ||
| A 0004296344 | VALVE | |
| Repalced by: A 0014295244 | ||
| 414 | A 0014299844 | VALVE |
| (OVERFLOW VALVE) | ||
| BOSCH | ||
| 414 | A 0034290244 | VALVE |
| (OVERFLOW VALVE) | ||
| KNORR | ||
| A 0024298844 | VALVE | |
| TO 001 429 79 44 | ||
| A 0004290745 | DIAPHRAGM | |
| TO 001 429 79 44 | ||
| A 0004303260 | REPAIR KIT | |
| TO 003 429 02 44 | ||
| A 0015862042 | REPAIR KIT | |
| TO 001 429 52 44 | ||
| A 0015862642 | REPAIR KIT | |
| TO 001 429 98 44 | ||
| A 0005863642 | REPAIR KIT | |
| Repalced by: A 0005865842 | ||
| A 0005865842 | REPAIR KIT | |
| TO 000 429 63 44 | ||
| A 0009870446 | SEALING CORD | |
| AT OUTSIDE AIR RESERVOIR | ||
| A 0004290227 | THRUST RING | |
| AT OUTSIDE AIR RESERVOIR | ||
| N 074305022202 | NUT | |
| AT OUTSIDE AIR RESERVOIR | ||
| 415 | A 3609900071 | ELBOW FITTING |
| A 3604296203 | LINE | |
| Repalced by: A 0004290201 | ||
| A 0004290201 | LINE | |
| Repalced by: A 0005516256 | ||
| 417 | A 0005516256 | TUBE |
| A 3604296303 | LINE | |
| Repalced by: A 0004290201 | ||
| A 0004290201 | LINE | |
| Repalced by: A 0005516256 | ||
| A 0005516256 | TUBE | |
| 419 | N 915018015000 | UNION NUT |
| N 915017015100 | UNION NUT | |
| 421 | N 003861015004 | GLAND |
| 423 | N 915065015101 | THRUST RING |
| 425 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 425 | N 007603012121 | SEAL RING |
| 427 | A 0004311675 | THREADED UNION |
| 429 | N 080705016003 | NUT |
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 431 | A 0009971548 | SEAL RING |
| 433 | A 0004310051 | SPACER RING |
| A 0004311514 | BRAKE BOOSTER | |
| Repalced by: A 0004318914 | ||
| 435 | A 0004318914 | BRAKE CYLINDER |
| 437 | A 0004317186 | CUP |
| 439 | A 0004312886 | SEAL RING |
| 441 | A 0004315783 | PISTON |
| Repalced by: A 0004316983 | ||
| 441 | A 0004316983 | PISTON |
| 443 | A 0004317060 | SEAL RING |
| 445 | A 0003270032 | VALVE PART |
| 447 | A 0004317160 | SEAL RING |
| Repalced by: A 0004319460 | ||
| 447 | A 0004319460 | SEAL RING |
| A 0004319460 | SEAL RING | |
| A 0004319560 | SEAL RING | |
| A 0004311881 | VALVE DISC | |
| 449 | A 0004289435 | BRAKE HOSE |
| Repalced by: A 0004289535 | ||
| 449 | A 0004289535 | BRAKE HOSE |
| 505 MM | ||
| N 007603014405 | SEAL RING | |
| 450 | A 0025860043 | REPAIR KIT |
| Repalced by: A 0004309160 | ||
| 450 | A 0004309160 | REPAIR KIT |
| TO 000 431 89 14 | ||
| 451 | A 3604310167 | YOKE |
| AT AIR BRAKE BOOSTER | ||
| N 000936010010 | NUT | |
| AT AIR BRAKE BOOSTER | ||
| A 3524300811 | CONSOLE | |
| Repalced by: A 3604302011 | ||
| 453 | A 3604302011 | CONSOLE |
| AT AIR BRAKE BOOSTER | ||
| A 3524300911 | CONSOLE | |
| Repalced by: A 3604302111 | ||
| A 3604302111 | CONSOLE | |
| AT AIR BRAKE BOOSTER | ||
| N 000933010105 | SCREW | |
| AT AIR BRAKE BOOSTER | ||
| N 912004010102 | LOCK WASHER | |
| AT AIR BRAKE BOOSTER | ||
| N 000934010014 | NUT | |
| AT AIR BRAKE BOOSTER | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| BRAKE BOOSTER TO CONSOLE | ||
| N 912004010102 | LOCK WASHER | |
| BRAKE BOOSTER TO CONSOLE | ||
| 456 | A 3524301323 | LEVER |
| 458 | A 3529920801 | BUSHING |
| 460 | A 3524310074 | PIN |
| DOUBLE LEVER TO CONSOLE | ||
| A 3604310074 | PIN | |
| DOUBLE LEVER TO CONSOLE | ||
| 462 | N 071412010100 | GREASE NIPPLE |
| DOUBLE LEVER TO CONSOLE | ||
| 464 | N 000988030005 | FITTED WASHER |
| DOUBLE LEVER TO CONSOLE | ||
| 466 | N 000471030000 | LOCK RING |
| DOUBLE LEVER TO CONSOLE | ||
| 468 | A 3149940101 | LOCK |
| DOUBLE LEVER TO CONSOLE | ||
| N 912004008102 | LOCK WASHER | |
| DOUBLE LEVER TO CONSOLE | ||
| N 000933008065 | SCREW | |
| DOUBLE LEVER TO CONSOLE | ||
| 470 | A 3149910207 | PIN |
| N 000433010505 | WASHER | |
| Repalced by: N 000433010510 | ||
| N 000433010510 | WASHER | |
| N 000094003219 | COTTER PIN | |
| 475 | A 3529931010 | SPRING |
| 477 | A 3524294903 | LINE |
| Repalced by: A 0004290201 | ||
| A 3524295003 | LINE | |
| Repalced by: A 0004290201 | ||
| N 074301022203 | ELBOW FITTING | |
| AT BRAKE CYLINDER | ||
| A 0009870446 | SEALING CORD | |
| AT BRAKE CYLINDER | ||
| A 0004290227 | THRUST RING | |
| AT BRAKE CYLINDER | ||
| N 074305022202 | NUT | |
| AT BRAKE CYLINDER | ||
| 480 | A 0004319805 | BRAKE BOOSTER |
| MAKE WESTINGHOUSE | ||
| 481 | A 0015869143 | REPAIR KIT |
| A 3604294002 | LINE | |
| Repalced by: A 0004290201 | ||
| 482 | A 0004290201 | LINE |
| Repalced by: A 0005516256 | ||
| 482 | A 0005516256 | TUBE |
| 484 | N 074302022202 | T-FITTING |
| AT OUTSIDE AIR RESERVOIR | ||
| N 074305022202 | NUT | |
| AT OUTSIDE AIR RESERVOIR | ||
| A 0009870446 | SEALING CORD | |
| AT OUTSIDE AIR RESERVOIR | ||
| A 0004290227 | THRUST RING | |
| AT OUTSIDE AIR RESERVOIR | ||
| A 3274300005 | RESERVOIR | |
| Repalced by: A 0034322701 | ||
| A 0034322701 | RESERVOIR | |
| OUTSIDE | ||
| A 0004320407 | VALVE | |
| Repalced by: A 0004320807 | ||
| A 0004320607 | VALVE | |
| Repalced by: A 0004321107 | ||
| A 0004321107 | VALVE | |
| DRAIN | ||
| A 0004322107 | VALVE | |
| DRAIN | ||
| A 0004322407 | VALVE | |
| DRAIN | ||
| N 007603022102 | SEAL RING | |
| AT OUTSIDE AIR RESERVOIR | ||
| A 0004291234 | ADAPTER FITTING | |
| Repalced by: N 074313008101 | ||
| N 074313008101 | FITTING | |
| Repalced by: A 0009970171 | ||
| 488 | A 0009970171 | FITTING |
| N 074298022203 | DOUBLE FITTING | |
| AT OUTSIDE AIR RESERVOIR | ||
| A 3604297705 | LINE | |
| Repalced by: A 0004290201 | ||
| A 0004290201 | LINE | |
| Repalced by: A 0005516256 | ||
| 490 | A 0005516256 | TUBE |
| A 3604297805 | LINE | |
| Repalced by: A 0004290201 | ||
| A 3605421343 | PIPE LINE | |
| Repalced by: A 0004290701 | ||
| 492 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 492 | A 0004296201 | LINE |
| A 3605421243 | PIPE LINE | |
| Repalced by: A 0004290701 | ||
| A 0004290701 | LINE | |
| Repalced by: A 0004296201 | ||
| A 0004296201 | LINE | |
| A 3605421143 | PIPE LINE | |
| Repalced by: A 0004290701 | ||
| 494 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 494 | A 0004296201 | LINE |
| A 3605421043 | PIPE LINE | |
| Repalced by: A 0004290701 | ||
| A 0004290701 | LINE | |
| Repalced by: A 0004296201 | ||
| A 0004296201 | LINE | |
| 496 | N 915017006100 | UNION NUT |
| 498 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 498 | A 0019901667 | SEAL CONE |
| 500 | N 000125013008 | WASHER |
| 502 | N 006797012153 | TOOTHED WASHER |
| 504 | N 000936012009 | NUT |
| 506 | A 0019973772 | FITTING |
| 508 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 508 | A 0009872627 | PLASTIC PIPE |
| BLACK | ||
| 6X4 MM | ||
| 510 | A 0019975072 | FITTING |
| 512 | N 915017006200 | UNION NUT |
| A 3145401261 | ELECTRIC CABLE | |
| 514 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 514 | N 916016008200 | CLAMP |
| A 3124292440 | BRACKET | |
| Repalced by: A 3124761535 | ||
| A 3124761535 | BRACKET | |
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| M 6X16 | ||
| N 000084006134 | SCREW | |
| N 007971004227 | SHEET METAL SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| A 3604294605 | LINE | |
| Repalced by: A 0004290301 | ||

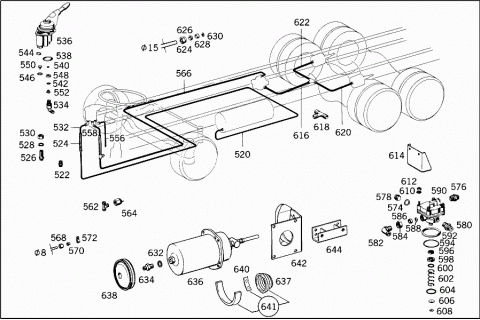

| 520 | A 0004290301 | LINE |
| FROM AIR RESERVOIR TO BRAKE VALVE | ||
| A 3604294705 | LINE | |
| Repalced by: A 0004290301 | ||
| A 0004290301 | LINE | |
| FROM AIR RESERVOIR TO BRAKE VALVE | ||
| 522 | N 003902008000 | CONNECTION FITTING |
| 524 | A 3583500079 | HOSE |
| 526 | A 0019972772 | FITTING |
| 528 | N 000125015000 | WASHER |
| FITTING TO CAB FLOOR | ||
| 530 | N 000936014005 | NUT |
| FITTING TO CAB FLOOR | ||
| A 3554294601 | LINE | |
| Repalced by: A 0004290301 | ||
| 532 | A 0004290301 | LINE |
| FROM AIR RESERVOIR TO BRAKE VALVE | ||
| A 3554294801 | LINE | |
| Repalced by: A 0004290301 | ||
| A 0004290301 | LINE | |
| FROM AIR RESERVOIR TO BRAKE VALVE | ||
| N 007603014405 | SEAL RING | |
| AT HAND BRAKE VALVE | ||
| 534 | A 0009904271 | ELBOW FITTING |
| AT HAND BRAKE VALVE | ||
| A 0004295235 | HOSE | |
| N 900288012004 | CLAMP | |
| 536 | A 0004304781 | VALVE |
| Repalced by: A 0004305581 | ||
| A 0004304481 | VALVE | |
| Repalced by: A 0004305681 | ||
| N 007603014405 | SEAL RING | |
| AT HAND BRAKE VALVE | ||
| A 0009972072 | FITTING | |
| Repalced by: A 0039979972 | ||
| A 0039979972 | FITTING | |
| AT HAND BRAKE VALVE | ||
| A 0004305581 | VALVE | |
| HAND BRAKE VALVE | ||
| WABCO | ||
| A 0004305681 | VALVE | |
| HAND BRAKE VALVE | ||
| WABCO | ||
| A 0004306681 | VALVE | |
| HAND BRAKE VALVE | ||
| KNORR | ||
| A 0004306781 | VALVE | |
| HAND BRAKE VALVE | ||
| KNORR | ||
| 538 | A 0089973845 | SEAL RING |
| 32.99X2.62 MM | ||
| 540 | A 0089973745 | SEAL RING |
| 6.07X1.78 MM | ||
| 542 | A 0089974045 | SEAL RING |
| 12.42X1.78 MM | ||
| 544 | A 0089974145 | SEAL RING |
| 17.12X2.62 MM | ||
| 546 | A 0059976545 | SEAL RING |
| 18.72X2.62 MM | ||
| 548 | A 0004312188 | VALVE SEAT |
| 550 | A 0004313323 | VALVE |
| 552 | A 0009933205 | SPRING |
| A 0004305760 | REPAIR KIT | |
| TO 000 430 55 81,NR.1050 | ||
| A 0004305860 | REPAIR KIT | |
| TO 000 430 56 81,NR.1150 | ||
| A 0005868043 | REPAIR KIT | |
| Repalced by: A 0004305760 | ||
| A 0004305760 | REPAIR KIT | |
| TO 000 430 55 81,NR.1020 | ||
| A 0005868143 | REPAIR KIT | |
| Repalced by: A 0004305860 | ||
| A 0004305860 | REPAIR KIT | |
| TO 000 430 56 81,NR.1120 | ||
| A 0025866243 | REPAIR KIT | |
| Repalced by: A 0034303881 | ||
| A 0034303881 | REPAIR KIT | |
| TO 000 430 66 81,000 430 67 81 | ||
| A 0025867843 | REPAIR KIT | |
| TO 000 430 67 81 | ||
| N 000087006107 | SCREW | |
| VALVE TO CAB | ||
| N 000087006146 | SCREW | |
| VALVE TO CAB | ||
| N 912004006102 | LOCK WASHER | |
| VALVE TO CAB | ||
| N 000934006007 | NUT | |
| VALVE TO CAB | ||
| A 3464316040 | BRACKET | |
| N 000088006106 | SCREW | |
| A 3554296006 | LINE | |
| Repalced by: A 0004290801 | ||
| A 3554296106 | LINE | |
| Repalced by: A 0004290801 | ||
| 556 | A 0004290801 | LINE |
| FROM HAND BRAKE VALVE TO RELAY VALVE | ||
| A 3554294901 | LINE | |
| Repalced by: A 0004290301 | ||
| 558 | A 0004290301 | LINE |
| 562 | A 0009901070 | T-FITTING |
| 564 | A 0005455414 | SWITCH |
| AT T-FITTING | ||
| A 3604294805 | LINE | |
| Repalced by: A 0004290301 | ||
| 566 | A 0004290301 | LINE |
| A 3604294905 | LINE | |
| Repalced by: A 0004290301 | ||
| A 0004290301 | LINE | |
| 568 | N 915017008100 | UNION NUT |
| 570 | N 003861008005 | GLAND |
| A 3609950501 | CLAMP | |
| Repalced by: A 3609952001 | ||
| 572 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 572 | A 6739950001 | CLAMP |
| A 3124761336 | BRACKET | |
| LINE TO FRAME | ||
| A 3524281640 | BRACKET | |
| LINE TO SIDE MEMBER | ||
| N 000084006180 | SCREW | |
| T-FITTING-TO-RELAY-VALVE LINE | ||
| N 000934006007 | NUT | |
| T-FITTING-TO-RELAY-VALVE LINE | ||
| N 912004006102 | LOCK WASHER | |
| T-FITTING-TO-RELAY-VALVE LINE | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 304032008006 | NUT | |
| A 3609950201 | CLAMP | |
| Repalced by: A 3604300143 | ||
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| N 916016008200 | CLAMP | |
| T-FITTING-TO-RELAY-VALVE LINE | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| A 0009907070 | T-FITTING | |
| 574 | N 007603022102 | SEAL RING |
| 576 | A 0009970171 | FITTING |
| A 0004291234 | ADAPTER FITTING | |
| Repalced by: N 074313008101 | ||
| 578 | N 007604022200 | SCREW PLUG |
| N 000908022001 | SCREW PLUG | |
| Repalced by: N 000908022011 | ||
| N 000908022011 | SCREW PLUG | |
| 580 | N 074298022203 | DOUBLE FITTING |
| N 000908022001 | SCREW PLUG | |
| Repalced by: N 000908022011 | ||
| N 000908022011 | SCREW PLUG | |
| A 0009903970 | T-FITTING | |
| Repalced by: A 0019901070 | ||
| A 0019901070 | T-FITTING | |
| AT RELAY VALVE | ||
| 582 | N 074301022203 | ELBOW FITTING |
| AT RELAY VALVE | ||
| 584 | N 074305022202 | NUT |
| AT RELAY VALVE | ||
| 586 | A 0004290227 | THRUST RING |
| AT RELAY VALVE | ||
| 588 | A 0009870446 | SEALING CORD |
| AT RELAY VALVE | ||
| 590 | A 0004296544 | VALVE |
| RELAY VALVE | ||
| WESTINGHOUSE | ||
| 590 | A 0014293044 | VALVE |
| RELAY VALVE | ||
| GRAU | ||
| 590 | A 0014295444 | VALVE |
| Repalced by: A 0034295244 | ||
| 590 | A 0034295244 | VALVE |
| RELAY VALVE | ||
| KNORR | ||
| 592 | A 0059976745 | SEAL RING |
| TO 000 429 65 44 | ||
| 594 | A 0059976845 | SEAL RING |
| TO 000 429 65 44 | ||
| 596 | A 0004311088 | VALVE SEAT |
| TO 000 429 65 44 | ||
| 598 | A 0004310988 | VALVE SEAT |
| TO 000 429 65 44 | ||
| 600 | A 0059976545 | SEAL RING |
| TO 000 429 65 44 | ||
| 602 | A 0004318493 | SPRING |
| TO 000 429 65 44 | ||
| 604 | A 0059976645 | SEAL RING |
| Repalced by: A 0019871746 | ||
| 604 | A 0019871746 | SEALING CORD |
| TO 000 429 65 44 | ||
| 606 | A 0004312576 | WASHER |
| TO 000 429 65 44 | ||
| 608 | A 0004312776 | WASHER |
| TO 000 429 65 44 | ||
| A 0059972648 | SEAL RING | |
| 22.3X2.4 MM;TO 001 429 30 44 | ||
| A 0004312788 | VALVE SEAT | |
| TO 001 429 30 44 | ||
| A 0059972748 | SEAL RING | |
| 80X3 MM;TO 000 429 28 95, GRAU | ||
| A 0014311660 | SEAL RING | |
| 28X2 MM;TO 001 429 30 44 | ||
| A 0014311760 | SEAL RING | |
| 86X2 MM;TO 001 429 30 44 | ||
| A 0014311980 | GASKET | |
| Repalced by: A 0004311980 | ||
| A 0004311980 | GASKET | |
| 34X2X6 MM;TO 001 429 30 44 | ||
| A 0005865742 | REPAIR KIT | |
| TO 000 429 65 44 | ||
| A 0025863542 | REPAIR KIT | |
| TO 001 429 54 44, 003 429 52 44 | ||
| 610 | N 912004008102 | LOCK WASHER |
| RELAY VALVE TO BRACKET | ||
| 612 | N 304032008006 | NUT |
| RELAY VALVE TO BRACKET | ||
| 614 | A 3554320140 | BRACKET |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| RELAY VALVE TO BRACKET | ||
| N 912004008102 | LOCK WASHER | |
| RELAY VALVE TO BRACKET | ||
| N 304032008006 | NUT | |
| RELAY VALVE TO BRACKET | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| RELAY VALVE TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| RELAY VALVE TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| RELAY VALVE TO SIDE MEMBER | ||
| A 3604298605 | LINE | |
| Repalced by: A 0004290201 | ||
| A 0004290201 | LINE | |
| Repalced by: A 0005516256 | ||
| 616 | A 0005516256 | TUBE |
| FROM RELAY VALVE TO T-FITTING | ||
| A 3554290701 | LINE | |
| Repalced by: A 0004290201 | ||
| 618 | N 074302022202 | T-FITTING |
| A 0004290201 | LINE | |
| Repalced by: A 0005516256 | ||
| 620 | A 0005516256 | TUBE |
| BRAKE CYLINDER | ||
| A 3554290801 | LINE | |
| Repalced by: A 0004290201 | ||
| A 0004290201 | LINE | |
| Repalced by: A 0005516256 | ||
| 622 | A 0005516256 | TUBE |
| BRAKE CYLINDER | ||
| A 0109975982 | HOSE | |
| Repalced by: A 0009872827 | ||
| A 0009872827 | PLASTIC PIPE | |
| A 0049971772 | FITTING | |
| Repalced by: A 0029906171 | ||
| A 0029906171 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| TO 010 997 59 82 | ||
| A 0009921505 | BUSHING | |
| Repalced by: N 915062009000 | ||
| N 915062009000 | SLEEVE | |
| N 915017012100 | UNION NUT | |
| N 003861012007 | GLAND | |
| Repalced by: A 0019901967 | ||
| A 0019901967 | SEAL CONE | |
| 624 | N 915018015000 | UNION NUT |
| 626 | N 003861015004 | GLAND |
| 628 | N 915065015101 | THRUST RING |
| 630 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 630 | N 007603012121 | SEAL RING |
| A 0019978390 | LOOM TIE | |
| CONNECTION "Z",REAR | ||
| 632 | N 007603016401 | SEAL RING |
| A 3229970272 | FITTING | |
| Repalced by: A 0009974172 | ||
| 634 | A 0009974172 | FITTING |
| N 074315012100 | FITTING | |
| Repalced by: A 0019903371 | ||
| A 0019903371 | ELBOW FITTING | |
| N 080705016003 | NUT | |
| A 0004290927 | THRUST RING | |
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| A 0009971548 | SEAL RING | |
| 636 | A 0004312114 | BRAKE CYLINDER |
| BOSCH | ||
| 636 | A 0004317714 | BRAKE CYLINDER |
| KNORR | ||
| 636 | A 0014311314 | BRAKE CYLINDER |
| WESTINGHOUSE | ||
| 637 | A 0004318186 | CUP |
| Repalced by: A 0015864342 | ||
| A 0004310736 | FILTER BOTTOM | |
| TO 000 431 21 14 | ||
| A 0004317486 | CUP | |
| Repalced by: A 0004319186 | ||
| 638 | A 0004319186 | CUP |
| Repalced by: A 0004312786 | ||
| A 0014310786 | CUP | |
| Repalced by: A 0004312786 | ||
| A 0004312786 | CUP | |
| TO 000 431 21 14 | ||
| A 0004318583 | PISTON | |
| TO 000 431 21 14 | ||
| 640 | A 0004310649 | SLIDE |
| TO 000 431 21 14 | ||
| A 0089977548 | SEAL RING | |
| TO 000 431 21 14 | ||
| A 0049971740 | SEAL RING | |
| TO 000 431 21 14 | ||
| A 0004319586 | CUP | |
| TO 000 431 77 14 | ||
| A 0004319686 | CUP | |
| TO 000 431 77 14 | ||
| A 0004311880 | GASKET | |
| TO 000 431 77 14 | ||
| A 0059971148 | SEAL RING | |
| TO 000 431 77 14 | ||
| A 0014311160 | SEAL RING | |
| TO 000 431 77 14 | ||
| 641 | A 0015864342 | REPAIR KIT |
| Repalced by: A 0034201724 | ||
| 641 | A 0034201724 | REPAIR KIT |
| TO 000 431 21 14 | ||
| A 0004318587 | PROTECTIVE CAP | |
| TO 001 431 13 14 | ||
| A 0015864243 | REPAIR KIT | |
| Repalced by: A 0025861443 | ||
| A 0025861443 | REPAIR KIT | |
| TO 000 431 13 14 | ||
| 642 | A 3604301811 | CONSOLE |
| N 000933010105 | SCREW | |
| BRAKE CYLINDER TO CONSOLE | ||
| N 912004010102 | LOCK WASHER | |
| BRAKE CYLINDER TO CONSOLE | ||
| N 000934010014 | NUT | |
| BRAKE CYLINDER TO CONSOLE | ||
| 644 | A 3554300239 | SUPPORT |
| N 000961012151 | SCREW | |
| BRAKE CYLINDER TO SUPPORT | ||
| N 912004012100 | LOCK WASHER | |
| BRAKE CYLINDER TO SUPPORT | ||
| A 3554200581 | LEVER | |
| Repalced by: A 3854200681 | ||
| A 3854200681 | LEVER | |
| LEFT | ||
| N 000934012022 | NUT | |
| BRAKE CYLINDER TO SUPPORT | ||
| N 000931012013 | SCREW | |
| BRAKE CYLINDER TO SUPPORT | ||
| N 000933012071 | SCREW | |
| BRAKE CYLINDER TO SUPPORT | ||
| N 912004012100 | LOCK WASHER | |
| BRAKE CYLINDER TO SUPPORT | ||
| A 3554200481 | LEVER | |
| Repalced by: A 3854200581 | ||
| 646 | A 3854200581 | LEVER |
| RIGHT | ||
| 648 | A 3524270250 | BUSHING |
| 650 | N 071412010100 | GREASE NIPPLE |
| 652 | A 3524270111 | BEARING BRACKET |
| 654 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 654 | N 000960012353 | SCREW |
| 656 | N 000961012122 | SCREW |
| 658 | N 912004012100 | LOCK WASHER |
| 660 | N 000125031001 | WASHER |
| 662 | N 000471035000 | LOCK RING |
| A 3524203574 | ROD | |
| Repalced by: A 3524203774 | ||
| A 3524203774 | ROD | |
| Repalced by: A 3604200474 | ||
| 664 | A 3604200474 | ROD |
| FRONT | ||
| A 3534200074 | ROD | |
| REAR | ||
| N 001480012200 | TURNBUCKLE | |
| Repalced by: A 3859960034 | ||
| A 3859960034 | NUT | |
| REAR AXLE II | ||
| N 000934012020 | NUT | |
| AT REAR AXLE | ||
| N 000934012021 | NUT | |
| AT REAR AXLE | ||
| A 3524201574 | ROD | |
| Repalced by: A 3524203674 | ||
| A 3524203674 | ROD | |
| Repalced by: A 3604200474 | ||
| 666 | A 3604200474 | ROD |
| REAR AXLE I | ||
| A 3854200274 | ROD | |
| REAR AXLE I | ||
| N 001480012200 | TURNBUCKLE | |
| Repalced by: A 3859960034 | ||
| A 3859960034 | NUT | |
| REAR AXLE I | ||
| N 000934012020 | NUT | |
| REAR AXLE I | ||
| N 000934012021 | NUT | |
| REAR AXLE I | ||
| 668 | A 3529910207 | PIN |
| PULL ROD TO BRAKE INTERMEDIATE LEVER | ||
| 670 | N 900055012003 | SPRING WASHER |
| PULL ROD TO BRAKE INTERMEDIATE LEVER | ||
| 672 | N 000433013000 | WASHER |
| PULL ROD TO BRAKE INTERMEDIATE LEVER | ||
| N 000094004065 | COTTER PIN | |
| PULL ROD TO BRAKE INTERMEDIATE LEVER | ||
| A 3529910107 | PIN | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| N 000433013000 | WASHER | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| N 000094004065 | COTTER PIN | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 674 | A 3544230036 | BRAKE CAMSHAFT |
| A 3604231636 | BRAKE CAMSHAFT | |
| 676 | A 3414230186 | CUP |
| 678 | A 3024230037 | ADJUSTING LEVER |
| LEFT | ||
| A 3024230137 | ADJUSTING LEVER | |
| RIGHT | ||
| 680 | A 3024230170 | STUD |
| 682 | N 000936018006 | NUT |
| 684 | A 3544230171 | SCREW |
| 686 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 686 | N 308675012000 | NUT |
| 688 | A 3524261011 | LEVER |
| LEFT | ||
| A 3524261111 | LEVER | |
| RIGHT | ||
| A 3834260210 | LEVER | |
| Repalced by: A 3834261310 | ||
| A 3834261310 | LEVER | |
| LEFT | ||
| A 3834260310 | LEVER | |
| Repalced by: A 3834261410 | ||
| A 3834261410 | LEVER | |
| RIGHT | ||
| A 3834260410 | LEVER | |
| Repalced by: A 3834261510 | ||
| A 3834261510 | LEVER | |
| LEFT | ||
| A 3834260510 | LEVER | |
| Repalced by: A 3834261610 | ||
| A 3834261610 | LEVER | |
| RIGHT | ||
| N 000931010271 | SCREW | |
| A 3024260405 | BEARING | |
| N 000960016140 | SCREW | |
| Repalced by: N 000960016206 | ||
| N 000960016206 | SCREW | |
| BEARING BRACKET TO REAR AXLE | ||
| A 0009814331 | JOINT BEARING | |
| Repalced by: A 3605860242 | ||
| A 0119975546 | SEAL RING | |
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| A 0019972848 | SEAL RING | |
| BRAKE SHAFT TO BEARING BRACKET | ||
| A 3604230057 | STOP WASHER | |
| BRAKE SHAFT TO BEARING BRACKET | ||
| N 000471032000 | LOCK RING | |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 690 | A 3524260405 | BEARING |
| 692 | N 000960016052 | SCREW |
| 694 | N 912004016101 | LOCK WASHER |
| 696 | A 3024260083 | SPHERICAL PIECE |
| Repalced by: A 3025860142 | ||
| 698 | N 003760045300 | RADIAL SEAL RING |
| 700 | N 071412010100 | GREASE NIPPLE |
| A 3029970020 | EXPANSION PLUG | |
| Repalced by: A 3609970020 | ||
| 702 | A 3609970020 | EXPANSION PLUG |
| 704 | N 000472062000 | LOCK RING |
| Repalced by: A 0039945241 | ||
| 704 | A 0039945241 | LOCK |
| 706 | A 3024230153 | SPACER TUBE |
| AS REQUIRED | ||
| 11.0 MM | ||
| 706 | A 3024230253 | SPACER TUBE |
| AS REQUIRED | ||
| 11.5 MM | ||
| 706 | A 3024230353 | SPACER TUBE |
| AS REQUIRED | ||
| 12.0 MM | ||
| 706 | A 3024230453 | SPACER TUBE |
| AS REQUIRED | ||
| 12.5 MM | ||
| 706 | A 3024230553 | SPACER TUBE |
| AS REQUIRED | ||
| 13.0 MM | ||
| 706 | A 3024230653 | SPACER TUBE |
| AS REQUIRED | ||
| 13.5 MM | ||
| 706 | A 3024230753 | SPACER TUBE |
| AS REQUIRED | ||
| 10.5 MM | ||
| 708 | N 000471045000 | LOCK RING |
| 710 | N 000471035000 | LOCK RING |
| 740 | A 3025860142 | REPAIR KIT |
| Repalced by: A 3024200067 | ||
| 740 | A 3024200067 | REPAIR KIT |
| BRAKE CAMSHAFT BEARING | ||
| A 3605860242 | REPAIR KIT | |
| Repalced by: A 3604200241 | ||
| A 3604200241 | REPAIR KIT | |
| BRAKE CAMSHAFT BEARING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
