Transporto priemonė: L 1921 IRAN; VIN numerio dalis: 349321

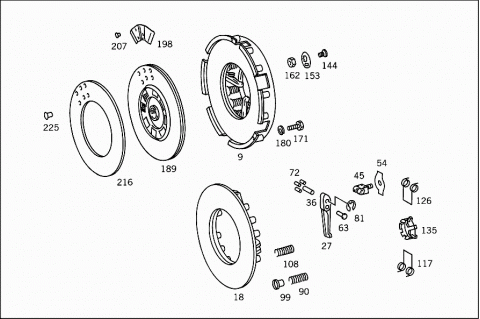

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 009 | A 0032502204 | CLUTCH PRESSURE PLATE |
| 018 | A 0002520412 | PRESSURE PLATE |
| 027 | A 0002524613 | RELEASE LEVER |
| 036 | A 0002520616 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 045 | A 0002520614 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 054 | A 0002520519 | LEAF SPRING |
| THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 054 | A 0002523719 | LEAF SPRING |
| THIGH SPRING SUSPENDED BELOW LEAF SPRING | ||
| 063 | A 0002522816 | SPINDLE |
| FOR BRACKETS | ||
| 072 | A 0002520118 | ROLLER |
| FOR BEDDING THE LEVERS IN BRACKETS | ||
| 081 | N 006799007007 | LOCK PLATE |
| 090 | A 0002524320 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 3.75 MM | ||
| 099 | A 0002520535 | SLEEVE |
| 108 | A 0002524420 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.00 MM | ||
| 117 | A 0002520727 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 117 | A 0002523927 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 126 | A 0002523227 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 126 | A 0002524027 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 135 | A 0002522045 | FLANGE |
| 144 | A 0002522971 | SCREW |
| BRACKET TO CLUTCH PRESSURE PLATE HOUSING | ||
| 153 | A 0002521073 | LOCK |
| BRACKET TO CLUTCH PRESSURE PLATE HOUSING | ||
| 162 | A 0002523072 | NUT |
| BRACKET TO CLUTCH PRESSURE PLATE HOUSING | ||
| 171 | N 000931010268 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 180 | N 912004010102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 189 | A 0012505503 | CLUTCH DISC |
| Repalced by: A 0032505103 | ||
| 189 | A 0032505103 | CLUTCH DISC |
| Repalced by: A 0072503803 | ||
| 189 | A 0072503803 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| "FICHTEL UND SACHS" | ||
| 198 | A 0002520419 | LEAF SPRING |
| 207 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 216 | A 0002523110 | CLUTCH LINING |
| Repalced by: A 0012523210 | ||
| 216 | A 0012523210 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| TO 001 250 55 03 | ||
| 216 | A 0012522910 | CLUTCH LINING |
| Repalced by: A 0012523210 | ||
| 216 | A 0012523210 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| TO 003 250 51 03 | ||
| 225 | A 0002521275 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 5X5 MM | ||
| 225 | A 0002521475 | RIVET |
| FOR LINING WITH CLUTCH DISC | ||
| 5X6 MM | ||
| 234 | A 3432500205 | HOUSING |
| BELL HOUSING | ||
| 243 | A 3432510150 | BUSHING |
| RELEASE SHAFT,BOTTOM | ||
| 252 | A 3439920103 | BUSHING |
| RELEASE SHAFT,BOTTOM | ||
| 261 | A 3432510050 | BUSHING |
| RELEASE SHAFT,TOP | ||
| 270 | A 3439920003 | BUSHING |
| RELEASE SHAFT,TOP | ||
| 279 | N 005419035101 | FELT RING |
| RELEASE SHAFT,TOP | ||
| 288 | A 3432930027 | COVER PLATE |
| RELEASE SHAFT,TOP | ||
| 297 | N 000961018024 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| 306 | N 912004018101 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION | ||
| 315 | A 3632500114 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| 324 | A 3172930177 | WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 324 | A 3172930277 | WASHER |
| AS REQUIRED | ||
| 0.90 MM | ||
| 324 | A 3172930377 | WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 324 | A 3172930477 | WASHER |
| AS REQUIRED | ||
| 1.10 MM | ||
| 324 | A 3172930577 | WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 324 | A 3172930677 | WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 333 | N 005419025101 | FELT RING |
| RELEASE SHAFT,BOTTOM | ||
| 342 | A 3432930052 | SPACER WASHER |
| RELEASE SHAFT,BOTTOM | ||
| 351 | N 000471024000 | LOCK RING |
| RELEASE SHAFT,BOTTOM | ||
| 360 | A 3432930011 | RELEASE YOKE |
| 369 | A 3262930053 | SPACER TUBE |
| CLUTCH BRAKE | ||
| 378 | A 3262930077 | WASHER |
| CLUTCH BRAKE | ||
| 387 | N 001481005017 | CLAMPING SLEEVE |
| CLUTCH BRAKE | ||
| 396 | A 3262910076 | WASHER |
| CLUTCH BRAKE | ||
| 405 | A 3432550016 | LEVER |
| CLUTCH BRAKE | ||
| 414 | A 3432550116 | LEVER |
| CLUTCH BRAKE | ||
| 423 | A 3262910073 | LOCK |
| CLUTCH BRAKE | ||
| 432 | N 002093031101 | DISC SPRING |
| CLUTCH BRAKE | ||
| 441 | N 000988010016 | FITTED WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 441 | N 000988010019 | FITTED WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 441 | N 000988010020 | FITTED WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 450 | N 000125010518 | WASHER |
| CLUTCH BRAKE | ||
| 459 | N 000960010072 | SCREW |
| CLUTCH BRAKE | ||
| 468 | N 000931012182 | SCREW |
| RELEASE YOKE TO SHAFT | ||
| 477 | N 912004012100 | LOCK WASHER |
| RELEASE YOKE TO SHAFT | ||
| 486 | N 912004016101 | LOCK WASHER |
| BELL HOUSING TO ENGINE | ||
| 495 | N 000934016011 | NUT |
| BELL HOUSING TO ENGINE | ||
| 504 | A 3352500055 | COVER |
| BELL HOUSING | ||
| 513 | N 000933006121 | SCREW |
| CLUTCH BRAKE | ||
| 522 | N 000934006007 | NUT |
| CLUTCH BRAKE | ||
| 531 | A 3439930105 | SPRING |
| CLUTCH BRAKE | ||
| 540 | A 3432500070 | PRESSURE PLATE |
| CLUTCH BRAKE | ||
| 549 | A 3432550010 | BRAKE LINING |
| 558 | N 007338005300 | RIVET |
| Repalced by: N 007338005314 | ||
| 558 | N 007338005314 | RIVET |
| 567 | A 3432550001 | BRAKE DISC |
| CLUTCH BRAKE | ||
| 576 | A 3432540216 | GUIDE |
| CLUTCH RELEASE | ||
| 585 | N 000933010128 | SCREW |
| GUIDE TO BELL HOUSING | ||
| 594 | N 912004010102 | LOCK WASHER |
| GUIDE TO BELL HOUSING | ||
| 603 | A 3432550053 | SPACER TUBE |
| FRICTION PIECE TO BELL HOUSING | ||
| 612 | A 3432550019 | FRICTION PIECE |
| CLUTCH BRAKE | ||
| 621 | N 000931010268 | SCREW |
| FRICTION PIECE TO BELL HOUSING | ||
| 630 | N 912004010102 | LOCK WASHER |
| FRICTION PIECE TO BELL HOUSING | ||
| 639 | A 3432540010 | RELEASE COLLAR |
| CLUTCH RELEASE | ||
| 648 | N 071428004102 | SCREW-IN FITTING |
| RELEASE COLLAR LUBRICATION | ||
| 657 | N 007603008112 | SEAL RING |
| RELEASE COLLAR LUBRICATION | ||
| 666 | A 3122541013 | SPRING LOCK |
| RELEASE COLLAR TO RELEASE YOKE | ||
| 675 | A 3202500015 | RELEASE BEARING |
| CLUTCH RELEASE | ||
| 684 | A 3355730036 | HOSE |
| RELEASE COLLAR LUBRICATION | ||
| 693 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE COLLAR LUBRICATION | ||
| 702 | N 003871004100 | UNION SCREW |
| RELEASE COLLAR LUBRICATION | ||
| 711 | N 071429014110 | BULKHEAD FITTING |
| RELEASE COLLAR LUBRICATION | ||
| 720 | N 000137014201 | SPRING WASHER |
| RELEASE COLLAR LUBRICATION | ||
| 729 | N 080705014002 | NUT |
| RELEASE COLLAR LUBRICATION | ||
| 738 | N 071412008200 | GREASE NIPPLE |
| RELEASE COLLAR LUBRICATION | ||
| 747 | A 3435200043 | PROTECTIVE PLATE |
| REAR | ||
| 756 | N 000933010128 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 765 | N 912004010102 | LOCK WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 774 | N 000125010518 | WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
