Transporto priemonė: L 1921 IRAN; VIN numerio dalis: 349321

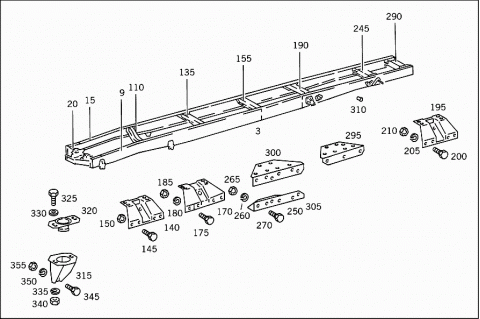

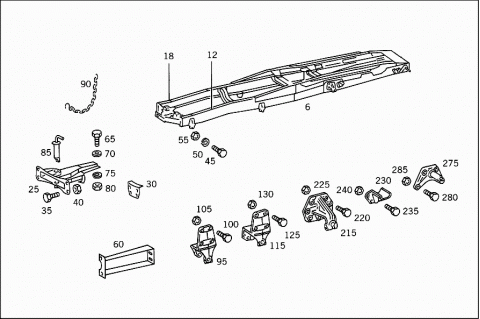

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3463101001 | FRAME |
| 006 | A 3463101101 | FRAME |
| 009 | A 3463115401 | SIDE MEMBER |
| LEFT | ||
| 012 | A 3463115201 | SIDE MEMBER |
| LEFT | ||
| 015 | A 3463115402 | SIDE MEMBER |
| RIGHT | ||
| 018 | A 3463115202 | SIDE MEMBER |
| RIGHT | ||
| 020 | A 3613100426 | ENGINE CROSS MEMBER |
| FRONT | ||
| 025 | A 3373100409 | BRACKET |
| WITH COUPLING MOUTH | ||
| 030 | A 3373150027 | ANGLE |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 035 | N 000933010105 | SCREW |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| M 10X25 | ||
| 035 | N 000933010128 | SCREW |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| M 10X20 | ||
| 040 | N 000934010009 | NUT |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 045 | N 000961014027 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X30 | ||
| 045 | N 000961014028 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X40 | ||
| 050 | N 912004014100 | LOCK WASHER |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 055 | N 000934014019 | NUT |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 060 | A 3613100053 | STRUT |
| 065 | N 000933010157 | SCREW |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 070 | N 007349010003 | WASHER |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 075 | N 912004010102 | LOCK WASHER |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 080 | N 000934010009 | NUT |
| COUPLING MOUTH TO ENGINE CROSS MEMBER | ||
| 085 | A 3223150206 | COUPLING PIN |
| COUPLING MOUTH | ||
| 090 | A 0008500095 | FASTENER |
| COUPLING PIN | ||
| 095 | A 3463225001 | FRONT SPRING BRACKET |
| FRONT | ||
| 095 | A 3463220201 | FRONT SPRING BRACKET |
| FRONT | ||
| 100 | A 3469900014 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 100 | A 3879900214 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 105 | N 000934016013 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 110 | A 3433100030 | CROSS MEMBER |
| NO.2 | ||
| 115 | A 3463225003 | FRONT SPRING BRACKET |
| REAR | ||
| 115 | A 3463220203 | FRONT SPRING BRACKET |
| REAR | ||
| 125 | N 000961014055 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 130 | N 000934014019 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 135 | A 3353122225 | CROSS MEMBER |
| TRANSMISSION | ||
| NO.3 | ||
| 140 | A 3353122061 | STRUT |
| TRANSMISSION | ||
| 145 | N 000961012164 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 150 | N 000934012022 | NUT |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 155 | A 3353122225 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.3 | ||
| 155 | A 3463125025 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.3 | ||
| 170 | A 3353122061 | STRUT |
| 170 | A 3463125161 | STRUT |
| LEFT | ||
| 170 | A 3463125261 | STRUT |
| RIGHT | ||
| 175 | N 000961012164 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| M 12X28 | ||
| 175 | N 000961012097 | SCREW |
| M 12X35 | ||
| 180 | N 912004012100 | LOCK WASHER |
| 185 | N 000934012022 | NUT |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 190 | A 3463125017 | CROSS MEMBER |
| NO.4 | ||
| 195 | A 3353122061 | STRUT |
| REAR SPRING FRONT BRACKET | ||
| 200 | N 000961012106 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 205 | N 912004012100 | LOCK WASHER |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 210 | N 000934012022 | NUT |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 215 | A 3873250001 | REAR SPRING BRACKET |
| FRONT | ||
| 220 | N 000961016117 | SCREW |
| Repalced by: N 000961016118 | ||
| 220 | N 000961016118 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| M 16X42 | ||
| 220 | N 000961016119 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| M 16X48 | ||
| 225 | N 000934016011 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 230 | A 3893250117 | HELPER SPRING BRACKET |
| Repalced by: A 6843250017 | ||
| 230 | A 6843250017 | HELPER SPRING BRACKET |
| 235 | N 000961012179 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 12X38 | ||
| 235 | N 000961012106 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 12X32 | ||
| 240 | N 000934012022 | NUT |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 245 | A 3353120121 | CROSS MEMBER |
| NO.5 | ||
| 250 | A 3463125087 | GUSSET PLATE |
| TOP LEFT, BOTTOM RIGHT | ||
| 250 | A 3463125187 | GUSSET PLATE |
| TOP RIGHT, BOTTOM LEFT | ||
| 260 | N 912004012100 | LOCK WASHER |
| GUSSET PLATE TO CROSS MEMBER | ||
| 265 | N 000934012022 | NUT |
| GUSSET PLATE TO CROSS MEMBER | ||
| 270 | N 000961012122 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 275 | A 3353250603 | REAR SPRING BRACKET |
| REAR | ||
| 280 | N 000961014028 | SCREW |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 285 | N 000934014019 | NUT |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 290 | A 3463125135 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 295 | A 3353121287 | GUSSET PLATE |
| 300 | A 3433124787 | GUSSET PLATE |
| TOP LEFT, BOTTOM RIGHT | ||
| 305 | A 3463125187 | GUSSET PLATE |
| TOP RIGHT, BOTTOM LEFT | ||
| 310 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 310 | N 910005012087 | RIVET |
| 12X58 MM | ||
| 315 | A 3463105367 | BODY SUPPORT |
| LEFT | ||
| 315 | A 3463105467 | BODY SUPPORT |
| RIGHT | ||
| 320 | A 3353100057 | PLATE |
| LEFT AND RIGHT | ||
| 325 | N 000961012122 | SCREW |
| PLATE TO BODY SUPPORT | ||
| 330 | N 007349013003 | WASHER |
| PLATE TO BODY SUPPORT | ||
| 335 | N 912004012100 | LOCK WASHER |
| PLATE TO BODY SUPPORT | ||
| 340 | N 000934012022 | NUT |
| PLATE TO BODY SUPPORT | ||
| 345 | N 000961012151 | SCREW |
| PLATE TO BODY SUPPORT | ||
| 350 | N 912004012100 | LOCK WASHER |
| PLATE TO BODY SUPPORT | ||
| 355 | N 000934012022 | NUT |
| PLATE TO BODY SUPPORT | ||
| 360 | A 3353171401 | CONSOLE |
| CAB SUSPENSION,REAR LEFT | ||
| 360 | A 3353171501 | CONSOLE |
| CAB SUSPENSION,REAR RIGHT | ||
| 365 | A 3358913511 | PLATE |
| CONSOLE TO FRAME | ||
| 370 | N 000961012097 | SCREW |
| CONSOLE TO FRAME | ||
| M 12X35 | ||
| 370 | N 000961012122 | SCREW |
| CONSOLE TO FRAME | ||
| M 12X40 | ||
| 375 | N 912004012100 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 380 | N 000934012022 | NUT |
| CONSOLE TO FRAME | ||
| 385 | A 3348910072 | MOUNTING |
| (RUBBER BUFFER) | ||
| 390 | N 000085008114 | SCREW |
| RUBBER BUFFER TO CONSOLE | ||
| 395 | N 009021008205 | WASHER |
| RUBBER BUFFER TO CONSOLE | ||
| 400 | A 3439900240 | WASHER |
| RUBBER BUFFER TO CONSOLE | ||
| 405 | A 3469905040 | WASHER |
| RUBBER BUFFER TO CONSOLE | ||
| 410 | N 000934008010 | NUT |
| RUBBER BUFFER TO CONSOLE | ||
| 415 | A 3358910431 | CONSOLE |
| RUBBER BUFFER | ||
| 420 | N 000931008047 | SCREW |
| CONSOLE TO FRAME | ||
| 425 | N 000125008418 | WASHER |
| CONSOLE TO FRAME | ||
| 430 | N 912004008102 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 435 | N 000934008010 | NUT |
| CONSOLE TO FRAME | ||
| 440 | A 3358910831 | CONSOLE |
| (CONNECTING RAIL) | ||
| 445 | N 000961014028 | SCREW |
| CONNECTING RAIL TO CONSOLE | ||
| 450 | A 3359900540 | WASHER |
| CONNECTING RAIL TO CONSOLE | ||
| 455 | N 912004014100 | LOCK WASHER |
| CONNECTING RAIL TO CONSOLE | ||
| 460 | N 000934014019 | NUT |
| CONNECTING RAIL TO CONSOLE | ||
| 465 | A 3358910210 | CONSOLE |
| SPRING SUSPENSION | ||
| 470 | N 000933010105 | SCREW |
| CONSOLE TO CAB | ||
| M 10X25 | ||
| 470 | N 000931010271 | SCREW |
| CONSOLE TO CAB | ||
| M 10X60 | ||
| 475 | N 912004010102 | LOCK WASHER |
| CONSOLE TO CAB | ||
| 480 | N 000934010014 | NUT |
| CONSOLE TO CAB | ||
| 485 | A 3368900005 | SPRING |
| 5-LEAF | ||
| 490 | A 3368910151 | SPRING |
| NO. 1 | ||
| 495 | A 3368910551 | SPRING |
| NO. 5; 240 MM | ||
| 500 | N 004626008100 | SPRING BOLT |
| 505 | N 000934008010 | NUT |
| 510 | A 0033211933 | SPRING CLAMP |
| 515 | N 000661006006 | RIVET |
| 520 | A 3358900001 | MOUNTING |
| CAB SUSPENSION,REAR RIGHT | ||
| 525 | N 912004010102 | LOCK WASHER |
| SPRING TO CONSOLE | ||
| 530 | N 000934010014 | NUT |
| SPRING TO CONSOLE | ||
| 535 | A 3358911511 | PLATE |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 540 | N 000931010260 | SCREW |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 545 | N 912004010102 | LOCK WASHER |
| LEAF SPRING TO CONSOLE AT CAB | ||
| 550 | A 3353170884 | SHIM |
| MOUNTING TO CONNECTING RAIL | ||
| 555 | N 000933010105 | SCREW |
| MOUNTING TO CONNECTING RAIL | ||
| 560 | N 912004010102 | LOCK WASHER |
| MOUNTING TO CONNECTING RAIL | ||
| 565 | N 007349010003 | WASHER |
| MOUNTING TO CONNECTING RAIL | ||
| 570 | A 3368910050 | SPRING BUSHING |
| SPRING TO BEARING | ||
| 575 | N 000960012246 | SCREW |
| SPRING TO BEARING | ||
| 580 | N 912004012100 | LOCK WASHER |
| SPRING TO BEARING | ||
| 585 | N 000934012022 | NUT |
| SPRING TO BEARING | ||
| 590 | A 3358910820 | MOUNTING |
| CAB SUSPENSION,REAR LEFT | ||
| 595 | N 000933010105 | SCREW |
| MOUNTING TO CONNECTING RAIL | ||
| 600 | N 009021010202 | WASHER |
| MOUNTING TO CONNECTING RAIL | ||
| 605 | N 912004010102 | LOCK WASHER |
| MOUNTING TO CONNECTING RAIL | ||
| 610 | N 000934010014 | NUT |
| MOUNTING TO CONNECTING RAIL | ||
| 615 | A 3358913311 | PLATE |
| SHOCK ABSORBER,TOP | ||
| 620 | A 3358910410 | WASHER |
| PLATE TO CAB | ||
| 625 | N 000960012246 | SCREW |
| PLATE TO CAB | ||
| 630 | N 912004012100 | LOCK WASHER |
| PLATE TO CAB | ||
| 635 | N 000934012004 | NUT |
| PLATE TO CAB | ||
| 640 | A 3358901683 | BEARING BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 645 | N 000961012023 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X32 | ||
| 645 | N 000961012020 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X30 | ||
| 645 | N 000961012011 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X25 | ||
| 650 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 655 | N 000934012022 | NUT |
| BEARING BRACKET TO FRAME | ||
| 660 | A 0008910305 | SHOCK ABSORBER |
| 660 | A 0008911005 | SHOCK ABSORBER |
| 665 | A 0003232644 | RUBBER BUFFER |
| Repalced by: A 0003234385 | ||
| 665 | A 0003234385 | RUBBER MOUNTING |
| TO 000 891 03 05 | ||
| 670 | A 0003231150 | BUSHING |
| TO 000 891 03 05 | ||
| 675 | N 000960012197 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 680 | N 912004012100 | LOCK WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 685 | N 000934012022 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 690 | N 000960012153 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 695 | A 3358910010 | WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 700 | N 912004012100 | LOCK WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 705 | N 000934012022 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
