Transporto priemonė: L 1938; VIN numerio dalis: 696080

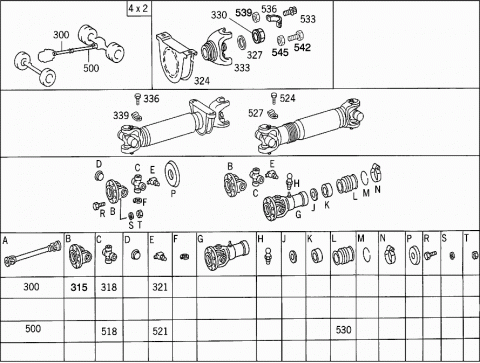

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 300 | A 6964107101 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1089 MM | ||
| 300 | A 6964100301 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1088 MM | ||
| 300 | A 6964107201 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 2133 MM | ||
| 300 | A 6964100201 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 2133 MM | ||
| 315 | A 0004110645 | FLANGE |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 315 | A 0004110745 | FLANGE |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 318 | A 0004103431 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004103831 | ||
| 318 | A 0004103431 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004103831 | ||
| 318 | A 0004103831 | UNIVERSAL JOINT CROSS |
| 318 | A 0004103831 | UNIVERSAL JOINT CROSS |
| 321 | A 0009976188 | GREASE NIPPLE |
| THREADED | ||
| 321 | A 0009976188 | GREASE NIPPLE |
| THREADED | ||
| 324 | A 0004100922 | INTERMEDIATE BEARING |
| Repalced by: A 0004100510 | ||
| 324 | A 0004100922 | INTERMEDIATE BEARING |
| Repalced by: A 0004100510 | ||
| 324 | A 0004100510 | INTERMEDIATE BEARING |
| 324 | A 0004100510 | INTERMEDIATE BEARING |
| 324 | A 0004100510 | INTERMEDIATE BEARING |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 327 | A 0004110376 | WASHER |
| 327 | A 0004110376 | WASHER |
| 330 | A 0019905550 | NUT |
| 330 | A 0019905550 | NUT |
| 333 | A 0004101630 | CENTERING FLANGE |
| 333 | A 0004101630 | CENTERING FLANGE |
| A 0004110645 | FLANGE | |
| A 0004110745 | FLANGE | |
| 336 | A 0004110071 | SCREW |
| 336 | A 0004110071 | SCREW |
| 339 | A 0004113373 | LOCK |
| 339 | A 0004113373 | LOCK |
| 419 | A 6964117082 | REBOUND STRAP |
| Repalced by: A 6964110082 | ||
| 419 | A 6964117082 | REBOUND STRAP |
| Repalced by: A 6964110082 | ||
| 419 | A 6964110082 | REBOUND STRAP |
| 419 | A 6964110082 | REBOUND STRAP |
| 422 | N 910105010001 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 10X1.0X30 | ||
| 422 | N 910105014012 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 14X1,5X30 | ||
| 425 | N 913023010002 | NUT |
| REBOUND STRAP TO FRAME | ||
| 425 | N 913023014003 | NUT |
| REBOUND STRAP TO FRAME | ||
| 427 | N 000125015012 | WASHER |
| REBOUND STRAP TO FRAME | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PROPELLER SHAFT BEARING | ||
| 450 | A 6964137342 | BRACKET |
| PROPELLER SHAFT BEARING | ||
| 450 | A 6964137242 | BRACKET |
| PROPELLER SHAFT BEARING | ||
| 453 | N 910105014005 | SCREW |
| Repalced by: N 910105014013 | ||
| 453 | N 910105014013 | SCREW |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| M 14X1.5X35 | ||
| 456 | N 000125015012 | WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 459 | N 913023014003 | NUT |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 460 | N 910105012010 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 12X1.5X40 | ||
| 470 | N 007349013001 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 480 | N 913023012002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 500 | A 6964107102 | PROPELLER SHAFT |
| Repalced by: A 6964108002 | ||
| 500 | A 6964108002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1416 MM | ||
| 500 | A 6964100502 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1548 MM | ||
| 500 | A 6964107702 | PROPELLER SHAFT |
| Repalced by: A 6964108102 | ||
| 500 | A 6964108102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1376 MM | ||
| 500 | A 6964100402 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1503 MM | ||
| A 0004110645 | FLANGE | |
| A 0004110645 | FLANGE | |
| 518 | A 0004103431 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004103831 | ||
| 518 | A 0004103431 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004103831 | ||
| 518 | A 0004103431 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004103831 | ||
| 518 | A 0004103831 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103831 | UNIVERSAL JOINT CROSS |
| 518 | A 0004103831 | UNIVERSAL JOINT CROSS |
| 521 | A 0009976188 | GREASE NIPPLE |
| THREADED | ||
| 521 | A 0009976188 | GREASE NIPPLE |
| THREADED | ||
| 521 | A 0009976188 | GREASE NIPPLE |
| THREADED | ||
| 524 | A 0004110071 | SCREW |
| 524 | A 0004110071 | SCREW |
| 524 | A 0004110071 | SCREW |
| 527 | A 0004113373 | LOCK |
| 527 | A 0004113373 | LOCK |
| 527 | A 0004113373 | LOCK |
| 530 | A 0004100180 | BOOT |
| PARTS KIT | ||
| 530 | A 0004100180 | BOOT |
| PARTS KIT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING PARTS | ||
| 533 | A 6969907201 | SCREW |
| REAR PROPELLER SHAFT TO FRONT PROPELLER SHAFT | ||
| 533 | A 6969907201 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 533 | A 6969907201 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 533 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M 14X1,5X50 | ||
| 536 | A 6969957010 | CLAMP |
| REAR PROPELLER SHAFT TO FRONT PROPELLER SHAFT | ||
| 536 | A 6969957010 | CLAMP |
| PROPELLER SHAFT TO REAR AXLE | ||
| 536 | A 6969957010 | CLAMP |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 539 | N 000934014025 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M14X1,5MM | ||
| 539 | N 000934014025 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 542 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 542 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 545 | N 000934014025 | NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
