Transporto priemonė: L 2219,2220; VIN numerio dalis: 345412

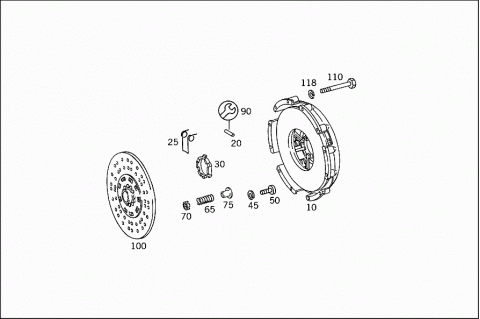

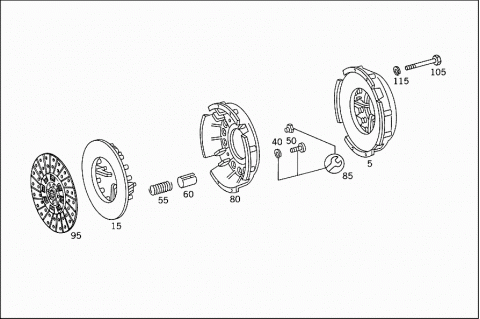

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0012500304 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022509504 | ||
| 005 | A 0022509404 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022509504 | ||
| 005 | A 0022509504 | CLUTCH PRESSURE PLATE |
| 005 | A 3442500104 | CLUTCH PRESSURE PLATE |
| Repalced by: A 3442507104 | ||
| 005 | A 3442507104 | CLUTCH PRESSURE PLATE |
| 010 | A 0032507104 | CLUTCH PRESSURE PLATE |
| A 0012500704 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0032502004 | ||
| 010 | A 0032502004 | CLUTCH PRESSURE PLATE |
| 010 | A 3452507004 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032502004 | ||
| 015 | A 0002522512 | PRESSURE PLATE |
| TO 001 250 03 04 | ||
| H 983452500004 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0002524312 | ||
| 015 | A 0002524312 | PRESSURE PLATE |
| A 0002522612 | PRESSURE PLATE | |
| TO 001 250 07 04 | ||
| A 0002520412 | PRESSURE PLATE | |
| TO 003 250 20 04,003 250 71 04 | ||
| A 0002523713 | RELEASE LEVER | |
| A 0002524613 | RELEASE LEVER | |
| A 0002522314 | BRACKET | |
| A 0002520614 | BRACKET | |
| A 0002521616 | SPINDLE | |
| A 0002522916 | SPINDLE | |
| Repalced by: A 0002520616 | ||
| A 0002520616 | SPINDLE | |
| A 0002521716 | SPINDLE | |
| A 0002522816 | SPINDLE | |
| A 0002520318 | ROLLER | |
| 020 | A 0002520118 | ROLLER |
| A 0002520619 | LEAF SPRING | |
| A 0002520519 | LEAF SPRING | |
| A 0002520827 | SPRING | |
| A 0002520727 | SPRING | |
| 025 | A 0002521927 | SPRING |
| A 0002520929 | CLAMP | |
| A 0002522045 | FLANGE | |
| Repalced by: A 0002520345 | ||
| 030 | A 0002520345 | FLANGE |
| 030 | A 0002522145 | FLANGE |
| N 006799007003 | LOCK PLATE | |
| A 0002522772 | NUT | |
| TO 001 250 03 04 | ||
| A 0002522472 | NUT | |
| Repalced by: A 0002523372 | ||
| A 0002523372 | NUT | |
| TO 002 250 94 04,002 250 95 04, 344 250 01 04 | ||
| A 0002521372 | NUT | |
| Repalced by: A 0002523072 | ||
| A 0002523072 | NUT | |
| A 0082520173 | LOCK | |
| Repalced by: A 0002520473 | ||
| A 0002520473 | LOCK | |
| A 0002521073 | LOCK | |
| 040 | N 912004005100 | LOCK WASHER |
| 045 | A 0009901647 | LOCK WASHER |
| Repalced by: N 912004005100 | ||
| 045 | N 000127005001 | LOCK WASHER |
| 050 | A 0002522971 | SCREW |
| 050 | A 0002522971 | SCREW |
| A 0009900020 | SCREW | |
| Repalced by: N 000085005106 | ||
| 055 | A 0002525020 | PRESSURE SPRING |
| 055 | A 0002525120 | PRESSURE SPRING |
| 060 | A 0002520253 | SPACER TUBE |
| A 0002524320 | PRESSURE SPRING | |
| 065 | A 0002524420 | PRESSURE SPRING |
| 065 | A 0002527820 | PRESSURE SPRING |
| 070 | A 0002520024 | INSULATING WASHER |
| TO 001 250 07 04 | ||
| 075 | A 0002520535 | SLEEVE |
| 080 | A 0002522332 | HOUSING |
| TO 001 250 03 04 | ||
| 080 | A 0002524332 | HOUSING |
| TO 002 250 94 04,002 250 95 04 | ||
| 080 | A 0002524432 | HOUSING |
| A 0002520932 | HOUSING | |
| Repalced by: A 0002525432 | ||
| A 0002525432 | HOUSING | |
| A 0455860025 | REPAIR KIT | |
| Repalced by: G 983455860025 | ||
| 085 | H 983455860025 | REPAIR KIT |
| 090 | A 0085860025 | REPAIR KIT |
| TO 001 250 07 04 | ||
| A 0315860025 | REPAIR KIT | |
| Repalced by: A 3505867025 | ||
| 090 | A 3505867025 | REPAIR KIT |
| TO 345 250 70 04 | ||
| 090 | A 0052500704 | REPAIR KIT |
| TO 003 250 71 04 | ||
| A 0002500103 | CLUTCH DISC | |
| Repalced by: A 3452507403 | ||
| A 0022503403 | CLUTCH DISC | |
| Repalced by: A 3452507403 | ||
| A 3452507003 | CLUTCH DISC | |
| Repalced by: A 3452507403 | ||
| A 3452507303 | CLUTCH DISC | |
| Repalced by: A 3452507403 | ||
| 095 | A 3452507403 | CLUTCH DISC |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 003 250 82 03 | ||
| 095 | A 0032508303 | CLUTCH DISC |
| A 3442507103 | CLUTCH DISC | |
| Repalced by: A 3452507503 | ||
| 095 | A 3452507503 | CLUTCH DISC |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 003 350 83 03 | ||
| 100 | A 3452507103 | CLUTCH DISC |
| 100 | A 0022509803 | CLUTCH DISC |
| 100 | A 0082500103 | CLUTCH DISC |
| 100 | A 0082500203 | CLUTCH DISC |
| A 0082520210 | CLUTCH LINING | |
| Repalced by: A 3452527010 | ||
| A 0002525210 | CLUTCH LINING | |
| Repalced by: A 3452527010 | ||
| A 3452527010 | CLUTCH LINING | |
| Repalced by: A 0002529010 | ||
| A 0002529010 | CLUTCH LINING | |
| A 0082520575 | RIVET | |
| Repalced by: A 3452527075 | ||
| A 0002521275 | RIVET | |
| Repalced by: A 3452527075 | ||
| A 0002520375 | RIVET | |
| Repalced by: A 3452527075 | ||
| A 3452527075 | RIVET | |
| A 3455867025 | REPAIR KIT | |
| A 3455867125 | REPAIR KIT | |
| A 0452520171 | SCREW | |
| Repalced by: A 3452520071 | ||
| 105 | A 3452520071 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 105 | N 000933008275 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 110 | N 000931010409 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 115 | N 912004008100 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 118 | N 000127010202 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 121 | A 3522500305 | HOUSING |
| Repalced by: A 3452507005 | ||
| 121 | A 3452507005 | HOUSING |
| Repalced by: A 3452510301 | ||
| 121 | A 3452510301 | BELL HOUSING |
| 121 | A 3452511401 | BELL HOUSING |
| 121 | A 3522500505 | HOUSING |
| 124 | N 000939010041 | STUD BOLT |
| TO 345 250 70 05 | ||
| 124 | N 000939010105 | STUD BOLT |
| TO 345 250 70 05 | ||
| 124 | A 0009902605 | STUD |
| Repalced by: A 0009904805 | ||
| 124 | A 0009904805 | STUD |
| TO 345 261 03 01,345 251 05 01 | ||
| 124 | N 000939010116 | STUD BOLT |
| TO 345 251 03 01,345 251 05 01 | ||
| 127 | N 000931012277 | SCREW |
| HOUSING TO CYLINDER CRANKCASE | ||
| 130 | N 900170012005 | SCREW |
| HOUSING TO CYLINDER CRANKCASE | ||
| 133 | N 912004012100 | LOCK WASHER |
| HOUSING TO CYLINDER CRANKCASE | ||
| A 3122511004 | END COVER | |
| Repalced by: A 3602510004 | ||
| 136 | A 3602510004 | END COVER |
| BELL HOUSING,TOP | ||
| 139 | N 000933006223 | SCREW |
| END COVER TO BELL HOUSING | ||
| 142 | N 000127006203 | LOCK WASHER |
| END COVER TO BELL HOUSING | ||
| 145 | A 3122511006 | PROTECTIVE PLATE |
| Repalced by: A 3522510106 | ||
| 145 | A 3522510106 | PROTECTIVE PLATE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 352 250 00 55,TO 345 251 03 01 | ||
| 148 | N 000933006223 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 151 | N 000137006002 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 155 | A 3522510002 | BELL HOUSING |
| Repalced by: A 3812510102 | ||
| 155 | A 3812510102 | BELL HOUSING |
| LOWER PART | ||
| TO 345 250 70 05 | ||
| 155 | A 3812510102 | BELL HOUSING |
| LOWER PART | ||
| TO 345 251 03 01 | ||
| 160 | N 000933006223 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 165 | N 000137006002 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 170 | A 3522510004 | END COVER |
| LATERAL | ||
| 175 | N 000933008282 | SCREW |
| END COVER TO BELL HOUSING | ||
| M 8X15 | ||
| 180 | N 912004008100 | LOCK WASHER |
| END COVER TO BELL HOUSING | ||
| 185 | N 000933008282 | SCREW |
| END COVER TO BELL HOUSING | ||
| M 8X20 | ||
| 190 | N 000125008417 | WASHER |
| END COVER TO BELL HOUSING | ||
| 195 | A 3212500515 | RELEASE BEARING |
| CLUTCH RELEASE | ||
| 195 | A 3212500515 | RELEASE BEARING |
| CLUTCH RELEASE | ||
| 195 | A 3402500215 | RELEASE BEARING |
| CLUTCH RELEASE | ||
| 195 | A 3402500215 | RELEASE BEARING |
| CLUTCH RELEASE | ||
| 200 | A 0002540020 | RELEASE BEARING |
| 200 | A 0002540120 | RELEASE BEARING |
| 200 | A 3452547020 | RELEASE BEARING |
| 205 | A 3129870110 | STRIP |
| 205 | A 3129870110 | STRIP |
| 205 | A 3409830010 | STRIP |
| 205 | A 3409830010 | STRIP |
| 210 | A 3522500113 | RELEASE LEVER |
| 210 | A 3272501213 | RELEASE LEVER |
| 210 | A 3402500013 | RELEASE LEVER |
| 210 | A 3522500213 | RELEASE LEVER |
| 213 | A 3529910415 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 213 | A 3029910015 | BALL PIVOT |
| 215 | A 3402540013 | SPRING LOCK |
| RELEASE COLLAR TO RELEASE YOKE | ||
| 220 | A 3522540097 | BOOT |
| Repalced by: A 3142540197 | ||
| 220 | A 3142540197 | BOOT |
| RELEASE YOKE | ||
| 225 | A 3522540040 | BRACKET |
| INSIDE | ||
| 230 | A 3522540135 | BEARING |
| RELEASE LEVER | ||
| 235 | A 3522500243 | BRACKET |
| Repalced by: G 983452500043 | ||
| 235 | H 983452500043 | BRACKET |
| Repalced by: A 3452500043 | ||
| 235 | A 3452500043 | BRACKET |
| OUTSIDE | ||
| 240 | N 912004008100 | LOCK WASHER |
| RELEASE YOKE BRACKET TO BELL HOUSING | ||
| 245 | N 000933008282 | SCREW |
| RELEASE YOKE BRACKET TO BELL HOUSING | ||
| 250 | A 3452500105 | HOUSING |
| CLUTCH | ||
| 255 | A 3432500150 | BUSHING |
| 260 | A 3432510050 | BUSHING |
| 265 | A 3439920003 | BUSHING |
| 270 | N 005419035101 | FELT RING |
| 275 | A 3432930027 | COVER PLATE |
| 280 | A 3432500050 | BUSHING |
| 285 | A 3432510150 | BUSHING |
| 290 | A 3439920103 | BUSHING |
| 295 | A 3432930001 | RELEASE SHAFT |
| CLUTCH | ||
| 300 | A 3172930377 | WASHER |
| CLUTCH RELEASE | ||
| 305 | N 005419025101 | FELT RING |
| CLUTCH RELEASE | ||
| 310 | A 3432930052 | SPACER WASHER |
| CLUTCH RELEASE | ||
| 315 | N 000471024000 | LOCK RING |
| CLUTCH RELEASE | ||
| 320 | A 3452937111 | RELEASE YOKE |
| Repalced by: A 3452930211 | ||
| 320 | A 3452930211 | RELEASE YOKE |
| CLUTCH | ||
| 320 | A 3452937011 | RELEASE YOKE |
| CLUTCH | ||
| 325 | A 3432550016 | LEVER |
| LEFT | ||
| 330 | N 001481005022 | CLAMPING SLEEVE |
| CLUTCH BRAKE | ||
| 335 | A 3262930077 | WASHER |
| CLUTCH BRAKE | ||
| 340 | A 3262910076 | WASHER |
| CLUTCH BRAKE | ||
| 345 | A 3432550116 | LEVER |
| RIGHT | ||
| 350 | A 3262930053 | SPACER TUBE |
| CLUTCH BRAKE | ||
| 355 | A 3262910073 | LOCK |
| CLUTCH BRAKE | ||
| 360 | N 002093031101 | DISC SPRING |
| CLUTCH BRAKE | ||
| 362 | N 000988010016 | FITTED WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 362 | N 000988010019 | FITTED WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 362 | N 000988010013 | FITTED WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 365 | N 000125010517 | WASHER |
| CLUTCH BRAKE | ||
| 370 | N 000960010072 | SCREW |
| CLUTCH BRAKE | ||
| 375 | N 000931012283 | SCREW |
| RELEASE YOKE TO SHAFT | ||
| 380 | N 000127012201 | LOCK WASHER |
| RELEASE YOKE TO SHAFT | ||
| 385 | N 000934016026 | NUT |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 390 | N 912004016101 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 395 | N 000931012114 | SCREW |
| BELL HOUSING TO OIL PAN | ||
| 400 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO OIL PAN | ||
| 405 | N 000961018024 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| 410 | N 000127018203 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION | ||
| 415 | A 3352500055 | COVER |
| BELL HOUSING,TOP | ||
| 420 | N 000933006221 | SCREW |
| CLUTCH BRAKE | ||
| 425 | N 000934006006 | NUT |
| CLUTCH BRAKE | ||
| 430 | A 3439930105 | SPRING |
| CLUTCH BRAKE | ||
| 435 | A 3432500070 | PRESSURE PLATE |
| Repalced by: A 3452507070 | ||
| 435 | A 3452507070 | PRESSURE PLATE |
| CLUTCH BRAKE | ||
| 440 | A 3432550010 | BRAKE LINING |
| 443 | N 007338005300 | RIVET |
| 445 | A 3432550001 | BRAKE DISC |
| CLUTCH BRAKE | ||
| 450 | A 3432540016 | GUIDE |
| Repalced by: A 3432540216 | ||
| 450 | A 3432540216 | GUIDE |
| CLUTCH BRAKE | ||
| 455 | N 000127010202 | LOCK WASHER |
| GUIDE TO BELL HOUSING | ||
| 460 | N 000933010294 | SCREW |
| GUIDE TO BELL HOUSING | ||
| 465 | A 3432550053 | SPACER TUBE |
| FRICTION PIECE TO BELL HOUSING | ||
| 470 | A 3432550019 | FRICTION PIECE |
| CLUTCH BRAKE | ||
| 475 | N 000127010202 | LOCK WASHER |
| FRICTION PIECE TO BELL HOUSING | ||
| 480 | N 000931010409 | SCREW |
| FRICTION PIECE TO BELL HOUSING | ||
| 485 | A 3432540010 | RELEASE COLLAR |
| CLUTCH RELEASE | ||
| 490 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 495 | N 007603008112 | SEAL RING |
| RELEASE BEARING LUBRICATION | ||
| 500 | A 3122541013 | SPRING LOCK |
| RELEASE BEARING LUBRICATION | ||
| 502 | A 3439900040 | WASHER |
| RELEASE BEARING LUBRICATION | ||
| 505 | A 3202500015 | RELEASE BEARING |
| CLUTCH RELEASE | ||
| 510 | A 3059971982 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 510 | A 3089977182 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 515 | N 003871004100 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 520 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 525 | A 0009973683 | SLEEVE |
| RELEASE BEARING LUBRICATION | ||
| 530 | N 912004014001 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 535 | N 000934014020 | NUT |
| RELEASE BEARING LUBRICATION | ||
| 540 | N 071412008200 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 540 | A 3459977188 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 545 | A 3452540008 | RELEASE LEVER |
| CLUTCH ACTUATION | ||
| 545 | A 3452547025 | LEVER |
| CLUTCH ACTUATION | ||
| 550 | A 3529910415 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 550 | A 3029910015 | BALL PIVOT |
| 550 | A 3029910115 | BALL PIVOT |
| RELEASE LEVER | ||
| 555 | A 3439900040 | WASHER |
| RELEASE LEVER TO SHAFT | ||
| 560 | N 000931010402 | SCREW |
| RELEASE LEVER TO SHAFT | ||
| 565 | N 000934010005 | NUT |
| RELEASE LEVER TO SHAFT | ||
| 570 | N 000127010202 | LOCK WASHER |
| RELEASE LEVER TO SHAFT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
