Transporto priemonė: L 2219,2220; VIN numerio dalis: 345412

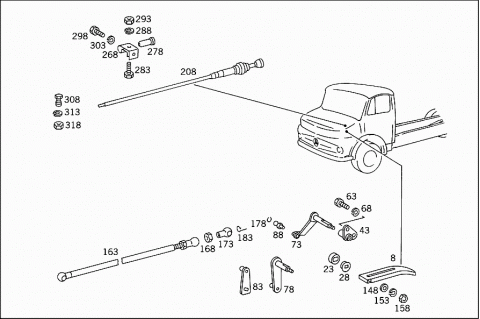

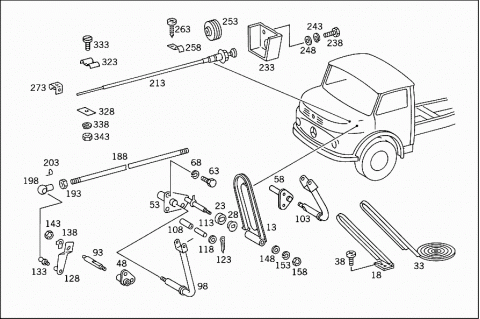

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3213010002 | PEDAL PLATE | |
| Repalced by: A 3523000802 | ||
| 008 | A 3523000802 | PLATE |
| 013 | A 3453007004 | ACCELERATOR PEDAL |
| 013 | A 3453007104 | ACCELERATOR PEDAL |
| 018 | A 3453007002 | PLATE |
| 023 | A 3523010088 | COVERING |
| PEDAL PLATE TO SHAFT | ||
| 028 | A 3223010054 | GUARD PLATE |
| PEDAL PLATE TO SHAFT | ||
| 033 | A 3443010082 | PAD |
| 038 | N 007985006515 | SCREW |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| 038 | N 007985006137 | SCREW |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| A 3223000021 | BEARING TUBE | |
| Repalced by: A 3453000021 | ||
| 043 | A 3453000021 | BEARING TUBE |
| ACCELERATOR PEDAL CONTROL | ||
| 048 | A 3453007021 | BEARING TUBE |
| 053 | A 3453007121 | BEARING TUBE |
| 058 | A 3453007221 | BEARING TUBE |
| 063 | N 000933008145 | SCREW |
| CONTROL SHAFT BEARING TO FIRE WALL | ||
| 063 | N 000933008317 | SCREW |
| CONTROL SHAFT BEARING TO FIRE WALL | ||
| 068 | N 912004008100 | LOCK WASHER |
| CONTROL SHAFT BEARING TO FIRE WALL | ||
| 073 | A 3213001425 | LEVER |
| 078 | A 3453007025 | LEVER |
| 083 | A 3453008525 | LEVER |
| A 3129910120 | BALL PIVOT | |
| Repalced by: N 071803010209 | ||
| 088 | N 071803010209 | BALL PIVOT |
| 093 | A 3603010119 | SHAFT |
| 098 | A 3453007425 | LEVER |
| 103 | A 3503007225 | LEVER |
| 108 | A 3443000006 | ROLLER |
| N 001433006004 | PIN | |
| Repalced by: N 001444006224 | ||
| 113 | N 001444006224 | PIN |
| ROLLER TO LEVER | ||
| 118 | N 000125006420 | WASHER |
| ROLLER TO LEVER | ||
| 123 | N 000094001609 | COTTER PIN |
| ROLLER TO LEVER | ||
| 128 | A 3453000225 | LEVER |
| 128 | A 3453008725 | LEVER |
| A 3129910120 | BALL PIVOT | |
| Repalced by: N 071803010209 | ||
| 133 | N 071803010209 | BALL PIVOT |
| 138 | A 3603010073 | LOCK |
| LEVER TO SHAFT | ||
| 143 | N 913004008001 | NUT |
| LEVER TO SHAFT | ||
| 148 | N 000433008403 | WASHER |
| 153 | N 912004008100 | LOCK WASHER |
| 158 | N 000934008010 | NUT |
| 163 | A 3604301892 | ROD |
| FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE | ||
| 163 | A 3453008515 | ROD |
| FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE | ||
| A 3604303092 | ROD | |
| 168 | N 000934006006 | NUT |
| A 0009910522 | BALL SOCKET | |
| Repalced by: A 0009912422 | ||
| 173 | A 0009912422 | BALL SOCKET |
| 178 | N 071805010302 | SNAP RING |
| 183 | N 071805010402 | CIRCLIP |
| 188 | A 3454300092 | ROD |
| FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE | ||
| 193 | N 000934006006 | NUT |
| 198 | N 071805010202 | BALL SOCKET |
| 203 | N 071805010402 | CIRCLIP |
| 208 | A 3453007407 | KNOB |
| WITH SPINDLE | ||
| 208 | A 3523000407 | KNOB |
| WITH SPINDLE | ||
| 208 | A 3453008007 | KNOB |
| A 3453008307 | KNOB | |
| Repalced by: A 3453009007 | ||
| 208 | A 3453009007 | KNOB |
| WITH SPINDLE | ||
| A 3453008407 | KNOB | |
| Repalced by: A 3453009607 | ||
| 208 | A 3453009607 | KNOB |
| WITH SPINDLE | ||
| 213 | A 3453007107 | KNOB |
| WITH SPINDLE | ||
| 213 | A 3603000207 | KNOB |
| WITH SPINDLE | ||
| 213 | A 3453007907 | KNOB |
| A 3453008607 | KNOB | |
| Repalced by: A 3453008907 | ||
| 213 | A 3453008907 | KNOB |
| WITH SPINDLE | ||
| A 3453008507 | KNOB | |
| Repalced by: A 3453009507 | ||
| 213 | A 3453009507 | KNOB |
| WITH SPINDLE | ||
| A 0019900040 | WASHER | |
| A 3129901151 | NUT | |
| A 3523020208 | GUIDE | |
| Repalced by: A 3523020308 | ||
| A 3523020308 | GUIDE | |
| A 3129902140 | WASHER | |
| A 3523020101 | KNOB | |
| Repalced by: A 3523020201 | ||
| A 3523020201 | KNOB | |
| A 3523020176 | WASHER | |
| 233 | A 3453007340 | BRACKET |
| MANUAL CONTROL | ||
| 238 | N 007985006197 | SCREW |
| BRACKET TO WINDOW SILL | ||
| 243 | N 000127006203 | LOCK WASHER |
| BRACKET TO WINDOW SILL | ||
| 248 | N 000125006420 | WASHER |
| BRACKET TO WINDOW SILL | ||
| A 3459977581 | GROMMET | |
| WIRE CABLE THRU FIRE WALL | ||
| 253 | A 3459977181 | GROMMET |
| WIRE CABLE THRU FIRE WALL | ||
| 258 | N 072571001024 | CLAMP |
| WIRE CABLE TO WINDOW SILL GIRDER | ||
| 263 | N 007981004240 | SHEET METAL SCREW |
| WIRE CABLE TO WINDOW SILL GIRDER | ||
| 268 | A 3523020020 | CLAMP |
| 273 | A 8339950201 | CLAMP |
| 273 | N 072571001024 | CLAMP |
| KNOB WITH SPINDLE TO COVER PLATE | ||
| A 3523020091 | GROMMET | |
| Repalced by: A 3453027091 | ||
| A 3453027191 | GROMMET | |
| Repalced by: A 3453027091 | ||
| 278 | A 3453027091 | GROMMET |
| 283 | N 000933006220 | SCREW |
| 288 | N 000127006203 | LOCK WASHER |
| 293 | N 000934006006 | NUT |
| 298 | N 007985006512 | SCREW |
| CLAMP TO CYLINDER BLOCK | ||
| 303 | N 000127006203 | LOCK WASHER |
| CLAMP TO CYLINDER BLOCK | ||
| 308 | A 3453020071 | SCREW |
| WIRE CABLE TO DRAG LEVER | ||
| 313 | N 000127006203 | LOCK WASHER |
| WIRE CABLE TO DRAG LEVER | ||
| 318 | N 000934006006 | NUT |
| WIRE CABLE TO DRAG LEVER | ||
| 323 | A 3129950332 | CLAMP |
| CABLE TO PRESSURE GAUGE LINE | ||
| 328 | A 3215422340 | BRACKET |
| CABLE TO PRESSURE GAUGE LINE | ||
| 333 | N 007985005183 | SCREW |
| CABLE TO PRESSURE GAUGE LINE | ||
| 338 | N 000127005001 | LOCK WASHER |
| CABLE TO PRESSURE GAUGE LINE | ||
| 343 | N 000934005008 | NUT |
| CABLE TO PRESSURE GAUGE LINE | ||
