Transporto priemonė: L 2219,2220; VIN numerio dalis: 345412

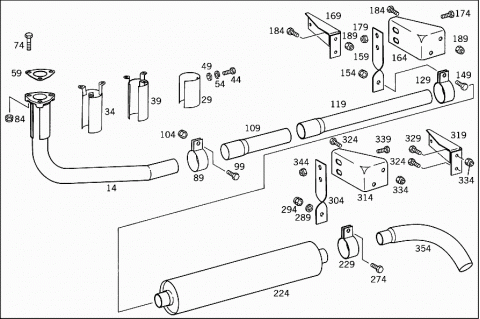

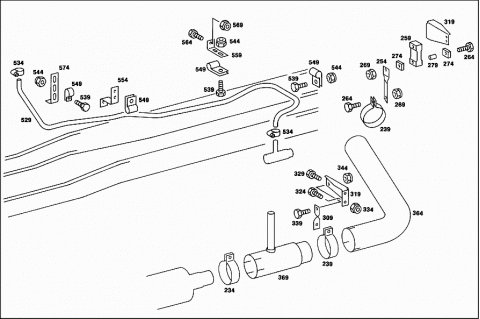

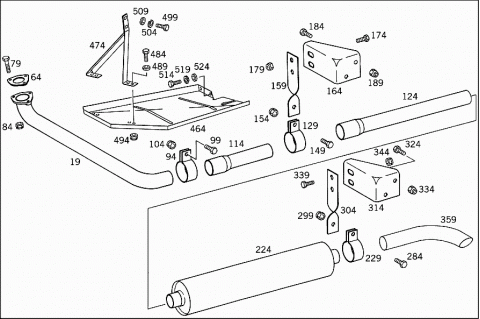

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 014 | A 3604902219 | EXHAUST PIPE |
| Repalced by: A 3454907219 | ||
| 014 | A 3454907219 | EXHAUST PIPE |
| FRONT | ||
| 014 | A 3454908319 | EXHAUST PIPE |
| FRONT | ||
| 014 | A 3454908319 | EXHAUST PIPE |
| FRONT | ||
| 014 | A 3454909319 | EXHAUST PIPE |
| FRONT | ||
| A 3604900619 | EXHAUST PIPE | |
| Repalced by: A 3454907719 | ||
| 014 | A 3454907719 | EXHAUST PIPE |
| FRONT | ||
| 014 | A 3454908219 | EXHAUST PIPE |
| FRONT | ||
| 014 | A 3454908819 | EXHAUST PIPE |
| FRONT | ||
| 019 | A 3454900019 | EXHAUST PIPE |
| FRONT | ||
| A 3454908119 | EXHAUST PIPE | |
| Repalced by: A 3454908919 | ||
| 019 | A 3454908919 | EXHAUST PIPE |
| FRONT | ||
| 024 | A 3454907720 | EXHAUST PIPE |
| FRONT | ||
| 029 | A 3224920530 | PROTECTIVE PLATE |
| 034 | A 3524900130 | PROTECTIVE PLATE |
| 039 | A 3454907530 | PROTECTIVE PLATE |
| 039 | A 3024900030 | PROTECTIVE PLATE |
| 044 | N 000933006223 | SCREW |
| 049 | N 000125006420 | WASHER |
| 054 | N 000127006203 | LOCK WASHER |
| A 3214920080 | FLANGE GASKET | |
| Repalced by: A 3444920080 | ||
| 059 | A 3444920080 | FLANGE GASKET |
| 059 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 059 | A 4424920280 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 064 | A 3024900080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 069 | A 3504920080 | FLANGE GASKET |
| Repalced by: A 6004920080 | ||
| 069 | A 6004920080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 074 | N 000931012253 | SCREW |
| 074 | N 000931010264 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 074 | N 000931010422 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 079 | N 000933012135 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 084 | H 983459900351 | NUT |
| Repalced by: A 3459900251 | ||
| 084 | A 3459900251 | NUT |
| Repalced by: N 913004012010 | ||
| 084 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 084 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| H 983459900251 | NUT | |
| Repalced by: A 3459900151 | ||
| A 3459900151 | NUT | |
| Repalced by: N 913004010000 | ||
| 084 | N 913004010000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 084 | H 983459900351 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 089 | N 071555075500 | CLAMP |
| EXHAUST PIPE SUSPENSION | ||
| 089 | N 071555060500 | CLAMP |
| Repalced by: A 3274920040 | ||
| A 3274920040 | CLAMP | |
| Repalced by: N 071555063500 | ||
| 089 | N 071555063500 | CLAMP |
| 094 | N 071555075500 | CLAMP |
| 099 | N 000933010129 | SCREW |
| 099 | N 000933008282 | SCREW |
| 099 | N 000933010269 | SCREW |
| 099 | N 000933010129 | SCREW |
| EXHAUST MUFFLER TO EXHAUST PIPE | ||
| 104 | N 913004010004 | NUT |
| 104 | N 913004010004 | NUT |
| EXHAUST MUFFLER TO EXHAUST PIPE | ||
| N 913004008001 | NUT | |
| Repalced by: N 913004008001 | ||
| 104 | N 913004008001 | NUT |
| 104 | N 913004010004 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 109 | A 3604920107 | CONNECTOR |
| FRONT | ||
| 109 | A 3604920207 | CONNECTOR |
| FRONT | ||
| 109 | A 3454927007 | CONNECTOR |
| FRONT | ||
| 114 | A 3604920107 | CONNECTOR |
| FRONT | ||
| A 3604920301 | FRONT EXHAUST PIPE | |
| Repalced by: G 983454920301 | ||
| H 983454920301 | FRONT EXHAUST PIPE | |
| Repalced by: A 3454929001 | ||
| 119 | A 3454929001 | FRONT EXHAUST PIPE |
| 119 | A 3454927402 | FRONT EXHAUST PIPE |
| A 3604920401 | FRONT EXHAUST PIPE | |
| Repalced by: G 983454920401 | ||
| H 983454920401 | FRONT EXHAUST PIPE | |
| Repalced by: A 3454929101 | ||
| 119 | A 3454929101 | FRONT EXHAUST PIPE |
| 119 | A 3454927302 | FRONT EXHAUST PIPE |
| 119 | A 3454928402 | FRONT EXHAUST PIPE |
| 124 | A 3454927601 | FRONT EXHAUST PIPE |
| 124 | A 3454929801 | FRONT EXHAUST PIPE |
| 129 | N 071555075500 | CLAMP |
| EXHAUST PIPE SUSPENSION | ||
| 129 | N 071555065500 | CLAMP |
| 129 | N 071555065500 | CLAMP |
| 134 | A 3454917115 | CONSOLE |
| 139 | N 000933008288 | SCREW |
| CONSOLE TO CROSS MEMBER | ||
| 144 | N 913004008001 | NUT |
| CONSOLE TO CROSS MEMBER | ||
| 149 | N 000933010269 | SCREW |
| 154 | N 913004010004 | NUT |
| 159 | A 3454927119 | BRACKET |
| A 3224921819 | BRACKET | |
| Repalced by: A 3454927341 | ||
| 159 | A 3454927341 | BRACKET |
| 159 | A 3454927341 | BRACKET |
| A 3604910016 | SUPPORT | |
| Repalced by: A 3454920016 | ||
| 164 | A 3454920016 | SUPPORT |
| FRONT EXHAUST PIPE | ||
| 169 | A 3454917316 | SUPPORT |
| FRONT EXHAUST PIPE | ||
| 174 | N 000933008282 | SCREW |
| BRACKET TO FRONT EXHAUST PIPE | ||
| N 913004008001 | NUT | |
| Repalced by: N 913004008001 | ||
| 179 | N 913004008001 | NUT |
| BRACKET TO FRONT EXHAUST PIPE | ||
| 184 | N 000933008288 | SCREW |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 184 | N 000933008288 | SCREW |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 184 | N 000933008273 | SCREW |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 184 | N 000933008273 | SCREW |
| EXHAUST PIPE TO SIDE MEMBER | ||
| N 913004008001 | NUT | |
| Repalced by: N 913004008001 | ||
| 189 | N 913004008001 | NUT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 194 | A 3504907015 | EXHAUST MUFFLER WITH PIPE |
| 199 | A 3454917441 | BRACKET |
| EXHAUST MUFFLER | ||
| 204 | A 3475040012 | RUBBER MOUNTING |
| 209 | N 913004010004 | NUT |
| 214 | A 3504917040 | CLAMP |
| EXHAUST MUFFLER | ||
| 219 | N 000933010129 | SCREW |
| 224 | A 3604900001 | EXHAUST MUFFLER |
| 224 | A 3454907801 | EXHAUST MUFFLER |
| 224 | A 3454907801 | EXHAUST MUFFLER |
| 224 | A 3454908415 | EXHAUST MUFFLER WITH PIPE |
| 224 | A 3454908815 | EXHAUST MUFFLER WITH PIPE |
| A 3604900101 | EXHAUST MUFFLER | |
| Repalced by: A 3224900201 | ||
| A 3224900201 | EXHAUST MUFFLER | |
| Repalced by: A 3454907101 | ||
| A 3444907301 | EXHAUST MUFFLER | |
| Repalced by: A 3454907101 | ||
| A 3444907501 | EXHAUST MUFFLER | |
| Repalced by: A 3454907101 | ||
| 224 | A 3454907101 | EXHAUST MUFFLER |
| 229 | N 071555075500 | CLAMP |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 229 | N 071555075500 | CLAMP |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 229 | N 071555065500 | CLAMP |
| 234 | N 071555104500 | CLAMP |
| 239 | N 071555100500 | CLAMP |
| 244 | N 000933010129 | SCREW |
| 249 | N 913004010004 | NUT |
| 254 | A 3454929141 | BRACKET |
| 259 | A 3084927082 | DAMPING PAD |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| 264 | N 000933008279 | SCREW |
| 269 | N 913004008001 | NUT |
| 274 | A 1204920118 | BASE PLATE |
| 274 | N 000933010129 | SCREW |
| 274 | N 000933008288 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 274 | N 000933008273 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 279 | A 1209911140 | SPACER TUBE |
| 284 | N 000933010269 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 284 | N 000933010174 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 289 | N 000125008417 | WASHER |
| 294 | N 000934010000 | NUT |
| N 913004008001 | NUT | |
| Repalced by: N 913004008001 | ||
| 294 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 299 | N 913004010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 304 | A 3224921819 | BRACKET |
| Repalced by: A 3454927341 | ||
| 304 | A 3454927341 | BRACKET |
| EXHAUST MUFFLER | ||
| 304 | A 3454927341 | BRACKET |
| EXHAUST MUFFLER | ||
| 304 | A 3454927119 | BRACKET |
| EXHAUST PIPE | ||
| 309 | A 3764921241 | BRACKET |
| EXHAUST PIPE | ||
| A 3604910016 | SUPPORT | |
| Repalced by: A 3454920016 | ||
| 314 | A 3454920016 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 314 | A 3454920016 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 319 | A 3454917316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 324 | N 000933008288 | SCREW |
| 324 | N 000933008288 | SCREW |
| 329 | N 000933008273 | SCREW |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 329 | N 000933008273 | SCREW |
| EXHAUST PIPE TO SIDE MEMBER | ||
| N 913004008001 | NUT | |
| Repalced by: N 913004008001 | ||
| 334 | N 913004008001 | NUT |
| 339 | N 000933008282 | SCREW |
| BRACKET TO FRONT EXHAUST PIPE | ||
| N 913004008001 | NUT | |
| Repalced by: N 913004008001 | ||
| 344 | N 913004008001 | NUT |
| BRACKET TO FRONT EXHAUST PIPE | ||
| 349 | A 3604921407 | CONNECTOR |
| 349 | A 3604921507 | CONNECTOR |
| H 983454920604 | REAR EXHAUST PIPE | |
| Repalced by: A 3454927904 | ||
| 354 | A 3454927904 | REAR EXHAUST PIPE |
| 359 | A 3454927204 | REAR EXHAUST PIPE |
| 364 | A 3454929504 | REAR EXHAUST PIPE |
| 369 | A 3454907322 | EXHAUST PIPE |
| A 3604927404 | REAR EXHAUST PIPE | |
| Repalced by: A 3444928504 | ||
| 374 | A 3444928504 | REAR EXHAUST PIPE |
| H 983454920204 | REAR EXHAUST PIPE | |
| Repalced by: A 3454928004 | ||
| H 983454920804 | REAR EXHAUST PIPE | |
| Repalced by: A 3454928004 | ||
| 379 | A 3454928004 | REAR EXHAUST PIPE |
| 384 | N 071555063500 | CLAMP |
| 389 | N 000933008282 | SCREW |
| N 913004008001 | NUT | |
| Repalced by: N 913004008001 | ||
| 394 | N 913004008001 | NUT |
| A 3224921819 | BRACKET | |
| Repalced by: A 3454927341 | ||
| 399 | A 3454927341 | BRACKET |
| A 3604910016 | SUPPORT | |
| Repalced by: A 3454920016 | ||
| 404 | A 3454920016 | SUPPORT |
| EXHAUST PIPE | ||
| 409 | N 000933008282 | SCREW |
| N 913004008001 | NUT | |
| Repalced by: N 913004008001 | ||
| 414 | N 913004008001 | NUT |
| 419 | N 071555063500 | CLAMP |
| 424 | N 000933008282 | SCREW |
| N 913004008001 | NUT | |
| Repalced by: N 913004008001 | ||
| 429 | N 913004008001 | NUT |
| 434 | A 3604922119 | BRACKET |
| A 3604910316 | SUPPORT | |
| Repalced by: A 3454920116 | ||
| 439 | A 3454920116 | SUPPORT |
| 444 | N 000933008282 | SCREW |
| N 913004008001 | NUT | |
| Repalced by: N 913004008001 | ||
| 449 | N 913004008001 | NUT |
| 454 | N 000933008282 | SCREW |
| N 913004008001 | NUT | |
| Repalced by: N 913004008001 | ||
| 459 | N 913004008001 | NUT |
| 464 | A 3454927630 | PROTECTIVE PLATE |
| 464 | A 3764927030 | PROTECTIVE PLATE |
| 469 | A 3454927730 | PROTECTIVE PLATE |
| A 3454907040 | BRACKET | |
| Repalced by: A 3454907140 | ||
| 474 | A 3454907140 | BRACKET |
| 474 | A 3454907240 | BRACKET |
| 479 | A 3454928941 | BRACKET |
| 484 | N 000933006220 | SCREW |
| BRACKET TO HEAT SHIELD | ||
| 489 | N 000125006420 | WASHER |
| BRACKET TO HEAT SHIELD | ||
| 494 | N 913004006001 | NUT |
| BRACKET TO HEAT SHIELD | ||
| 499 | N 000933008282 | SCREW |
| BRACKET TO AIR DUCT | ||
| 504 | N 000127008104 | LOCK WASHER |
| BRACKET TO AIR DUCT | ||
| 509 | N 000125008417 | WASHER |
| BRACKET TO AIR DUCT | ||
| 514 | N 000933008268 | SCREW |
| HEAT SHIELD TO ENGINE COVERING | ||
| 519 | N 000127008104 | LOCK WASHER |
| HEAT SHIELD TO ENGINE COVERING | ||
| 524 | N 000125008417 | WASHER |
| HEAT SHIELD TO ENGINE COVERING | ||
| 529 | A 3450947382 | HOSE |
| 534 | A 3449977690 | LOOM TIE |
| 534 | A 3449979490 | LOOM TIE |
| 534 | A 3459979690 | LOOM TIE |
| 539 | N 000933006230 | SCREW |
| 544 | N 913004006001 | NUT |
| 549 | A 3459957101 | CLAMP |
| HOSE TO BASE FRAME BRACKET | ||
| 554 | A 3454767036 | BRACKET |
| 559 | A 3464295640 | BRACKET |
| HOSE TO SIDE MEMBER | ||
| 564 | N 000933010174 | SCREW |
| 569 | N 913004010004 | NUT |
| 574 | A 3454288440 | BRACKET |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
