Transporto priemonė: L 2219,2220; VIN numerio dalis: 345412

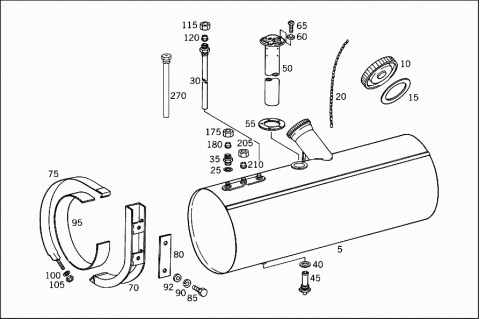

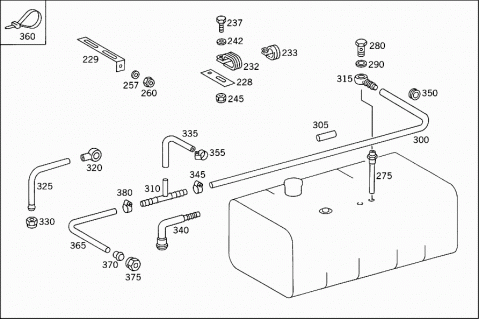

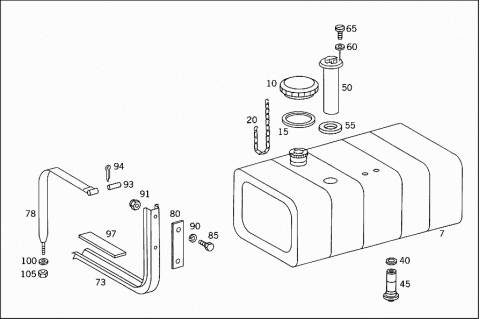

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0224700001 | FUEL TANK | |
| Repalced by: A 3444707901 | ||
| A 3444700001 | FUEL TANK | |
| Repalced by: A 3444707901 | ||
| A 3444707901 | FUEL TANK | |
| Repalced by: A 3444709001 | ||
| 005 | A 3444709001 | FUEL TANK |
| 005 | A 3444707902 | FUEL TANK |
| LESS SENDER UNIT | ||
| 005 | A 3444706101 | FUEL TANK |
| LESS SENDER UNIT | ||
| 007 | A 3454707102 | FUEL TANK |
| LESS SENDER UNIT | ||
| 300 L | ||
| A 3444700105 | FILLER CAP | |
| Repalced by: A 3444700205 | ||
| 010 | A 3444700205 | FILLER CAP |
| 015 | A 3444710679 | SEAL RING |
| 020 | A 3034700031 | CHAIN |
| 025 | N 007603016301 | SEAL RING |
| A 0444700026 | RISING PIPE | |
| Repalced by: A 3444700126 | ||
| 030 | A 3444700126 | RISING PIPE |
| 035 | A 3214710220 | FITTING |
| 040 | A 0029977245 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| A 3444700006 | FUEL STRAINER | |
| Repalced by: A 3504700006 | ||
| A 3604700006 | FUEL STRAINER | |
| Repalced by: A 3504700006 | ||
| 045 | A 3504700006 | FUEL STRAINER |
| A 0015426117 | SENDER UNIT | |
| Repalced by: A 3455427617 | ||
| A 3455427617 | SENDER UNIT | |
| Repalced by: A 3455427917 | ||
| 050 | A 3455427917 | SENDER UNIT |
| TANK | ||
| 050 | A 3445427217 | SENDER UNIT |
| TANK | ||
| A 3455427817 | SENDER UNIT | |
| Repalced by: A 3505427017 | ||
| 050 | A 3505427017 | SENDER UNIT |
| TANK | ||
| 055 | A 3524710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 060 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 065 | N 007985005171 | SCREW |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 070 | A 3224700542 | SUPPORT |
| 070 | A 3444708042 | SUPPORT |
| 073 | A 3454757003 | CONSOLE |
| A 3224700340 | STRAP | |
| Repalced by: A 3454700140 | ||
| 075 | A 3454700140 | STRAP |
| 078 | A 3454707040 | STRAP |
| 080 | A 3224750184 | SHIM |
| CONSOLE TO SIDE MEMBER | ||
| 080 | A 3444757084 | SHIM |
| CONSOLE TO SIDE MEMBER | ||
| 080 | A 3454757019 | BASE |
| CONSOLE TO SIDE MEMBER | ||
| 085 | N 000961014106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X35 | ||
| 085 | N 000961014101 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 090 | N 000127014201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 091 | N 913004014005 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 092 | A 3449900140 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 093 | N 001443016200 | PIN |
| STRAP TO SUPPORT | ||
| 094 | N 000094004050 | COTTER PIN |
| STRAP TO SUPPORT | ||
| A 3379870014 | RUBBER STRIP | |
| Repalced by: A 3459837391 | ||
| 095 | A 3459837391 | CARDBOARD |
| FUEL TANK TO CONSOLE | ||
| 095 | A 3454757384 | SHIM |
| FUEL TANK TO CONSOLE | ||
| 097 | A 3454757484 | SHIM |
| FUEL TANK TO CONSOLE | ||
| 110 MM | ||
| 097 | A 3454757584 | SHIM |
| FUEL TANK TO CONSOLE | ||
| 50 MM | ||
| 100 | N 000125013012 | WASHER |
| FUEL TANK TO CONSOLE | ||
| 105 | N 000934012004 | NUT |
| FUEL TANK TO CONSOLE | ||
| A 0454700164 | LINE | |
| Repalced by: A 3454709364 | ||
| 110 | A 3454709364 | LINE |
| FROM FUEL TANK TO RUBBER HOSE | ||
| 110 | A 3454707664 | LINE |
| FROM FUEL TANK TO RUBBER HOSE | ||
| 115 | N 915017010200 | UNION NUT |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 3449907067 | ||
| 120 | A 3449907067 | SEAL CONE |
| 125 | A 3444760126 | HOSE |
| TO CONNECT THE FUEL LINES | ||
| 130 | A 3509970290 | LOOM TIE |
| AS REQUIRED | ||
| 130 | A 3509970290 | CLAMP |
| AS REQUIRED | ||
| A 0444700071 | LINE | |
| Repalced by: A 3440700032 | ||
| 135 | A 3440700032 | LINE |
| FROM RUBBER HOSE TO FEED PUMP | ||
| 135 | A 3454701764 | LINE |
| FROM RUBBER HOSE TO FEED PUMP | ||
| N 915010008202 | BANJO UNION | |
| Repalced by: A 3454767024 | ||
| 140 | A 3454767024 | CONNECTOR |
| 145 | N 915036010100 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 150 | N 007603014104 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| A 0444700572 | LINE | |
| Repalced by: A 3444702864 | ||
| 155 | A 3444702864 | LINE |
| FROM FUEL FILTER TO RUBBER HOSE | ||
| 155 | A 3454707964 | LINE |
| FROM FUEL FILTER TO RUBBER HOSE | ||
| 160 | N 915017010200 | UNION NUT |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 3449907067 | ||
| 162 | A 3449907067 | SEAL CONE |
| 165 | A 3444760126 | HOSE |
| TO CONNECT THE FUEL LINES | ||
| 167 | A 3509970290 | LOOM TIE |
| AS REQUIRED | ||
| 167 | A 3509970290 | CLAMP |
| AS REQUIRED | ||
| A 0454700264 | LINE | |
| Repalced by: A 3454709664 | ||
| 170 | A 3454709664 | LINE |
| FROM RUBBER HOSE TO FUEL TANK | ||
| 170 | A 3454707764 | LINE |
| FROM RUBBER HOSE TO FUEL TANK | ||
| 175 | N 915017010200 | UNION NUT |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 3449907067 | ||
| 180 | A 3449907067 | SEAL CONE |
| 185 | A 0444760126 | HOSE |
| Repalced by: A 3440780081 | ||
| 185 | A 3440780081 | HOSE |
| Repalced by: A 3769978182 | ||
| 185 | A 3769978182 | HOSE |
| FUEL LINE TO CYLINDER HEAD | ||
| A 0454700364 | LINE | |
| Repalced by: A 3444708665 | ||
| 190 | A 3444708665 | LINE |
| FROM CYLINDER HEAD TO RUBBER HOSE | ||
| 190 | A 3454707564 | LINE |
| FROM CYLINDER HEAD TO RUBBER HOSE | ||
| 192 | N 915003004202 | SEAL CONE |
| 193 | N 915017006200 | UNION NUT |
| 195 | A 3444760126 | HOSE |
| TO CONNECT THE FUEL LINES | ||
| 197 | A 3509970290 | LOOM TIE |
| AS REQUIRED | ||
| 197 | A 3509970290 | CLAMP |
| AS REQUIRED | ||
| A 0454700764 | LINE | |
| Repalced by: A 3454709764 | ||
| 200 | A 3454709764 | LINE |
| FROM RUBBER HOSE TO FUEL TANK;LEAK FUEL | ||
| 200 | A 3454707864 | LINE |
| LEAK LINE TO TANK | ||
| 205 | N 915017010200 | UNION NUT |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 3449907067 | ||
| 210 | A 3449907067 | SEAL CONE |
| N 915003008201 | SEAL CONE | |
| Repalced by: A 3449907067 | ||
| 210 | A 3449907067 | SEAL CONE |
| 215 | A 3125420038 | SHIM |
| Repalced by: A 3184924841 | ||
| 215 | A 3184924841 | BRACKET |
| A 0214760236 | BRACKET | |
| Repalced by: A 3444760336 | ||
| 220 | A 3444760336 | BRACKET |
| FUEL LINE | ||
| 221 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 221 | N 000933010294 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X20 | ||
| 221 | N 000933010174 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 222 | N 000125010517 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 223 | N 000127010202 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 224 | N 913004010004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 224 | N 913004010004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 225 | A 3124761236 | BRACKET |
| FUEL LINE | ||
| 227 | A 3454767036 | BRACKET |
| FUEL LINE | ||
| 228 | A 3444297040 | BRACKET |
| FUEL LINE | ||
| 229 | A 3524290740 | BRACKET |
| FUEL LINE | ||
| 230 | A 3129950232 | CLAMP |
| FUEL LINE | ||
| A 0009950805 | CLAMP | |
| FUEL LINE | ||
| 232 | A 0009950905 | CLAMP |
| FUEL LINE | ||
| 233 | N 916016022202 | CLAMP |
| FUEL LINE | ||
| 235 | N 007985006502 | SCREW |
| CLAMP TO BRACKET | ||
| 237 | N 000933006221 | SCREW |
| CLAMP TO BRACKET | ||
| 240 | N 000127006203 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 242 | N 009021006103 | WASHER |
| CLAMP TO BRACKET | ||
| 245 | N 913004006001 | NUT |
| CLAMP TO BRACKET | ||
| 245 | N 913004006001 | NUT |
| CLAMP TO BRACKET | ||
| 250 | N 000933008288 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 250 | N 000933008288 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 255 | N 912004008100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 257 | N 009021008102 | WASHER |
| 260 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 260 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 265 | N 000125008417 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 270 | A 3444707226 | RISING PIPE |
| 275 | A 3454707026 | RISING PIPE |
| 280 | N 915036012150 | HOLLOW SCREW |
| FUEL LINE TO TANK | ||
| 290 | N 007603016301 | SEAL RING |
| FUEL LINE TO TANK | ||
| 290 | N 007603016301 | SEAL RING |
| FUEL LINE TO TANK | ||
| 290 | N 007603016105 | SEAL RING |
| FUEL LINE TO TANK | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PLASTIC PIPING | ||
| 300 | A 0089975482 | HOSE |
| FROM FUEL TANK TO ENGINE | ||
| 305 | N 040621012208 | INSULATING HOSE |
| 10 MM | ||
| 305 | N 040621012244 | INSULATING HOSE |
| 10 MM | ||
| 310 | A 3084767023 | DISTRIBUTOR |
| 315 | A 0009905088 | BANJO UNION |
| 315 | A 0009905088 | BANJO UNION |
| 320 | N 915052008006 | BANJO UNION |
| 8/14 MM | ||
| 325 | A 3084767124 | CONNECTOR |
| 330 | N 915017010200 | UNION NUT |
| A 3084767026 | HOSE | |
| Repalced by: A 3449977582 | ||
| 335 | A 3449977582 | HOSE |
| Repalced by: A 3769978182 | ||
| 335 | A 3769978182 | HOSE |
| 340 | A 3504707062 | ELBOW FITTING |
| Repalced by: A 3084767124 | ||
| 340 | A 3084767124 | CONNECTOR |
| 345 | N 916002010100 | CLAMP |
| 350 | A 4069975081 | GROMMET |
| 355 | N 916002010100 | CLAMP |
| LEAK LINE TO CYLINDER HEAD | ||
| 360 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 360 | A 3459977390 | LOOM TIE |
| LINE MOUNTING | ||
| 195 MM | ||
| A 3504769901 | LINE | |
| Repalced by: A 3504707665 | ||
| 365 | A 3504707665 | LINE |
| FUEL LINE TO CYLINDER HEAD | ||
| 370 | N 915003004200 | SEAL CONE |
| FUEL LINE TO CYLINDER HEAD | ||
| 375 | N 915017006200 | UNION NUT |
| FUEL LINE TO CYLINDER HEAD | ||
| 380 | N 916002010100 | CLAMP |
| FUEL LINE TO CYLINDER HEAD | ||
