Transporto priemonė: L 2219,2220; VIN numerio dalis: 345412

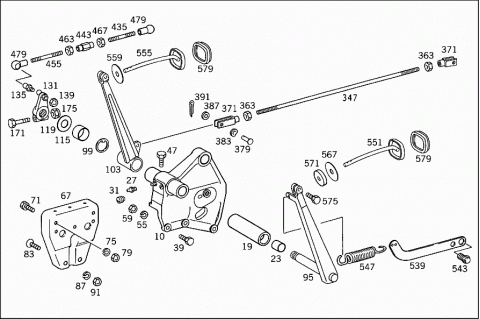

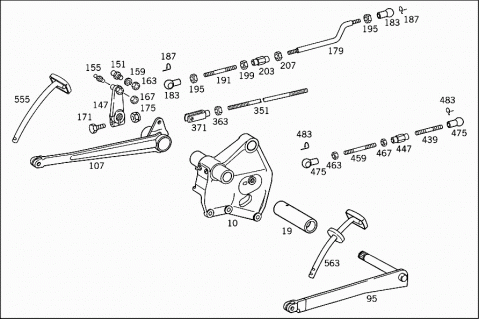

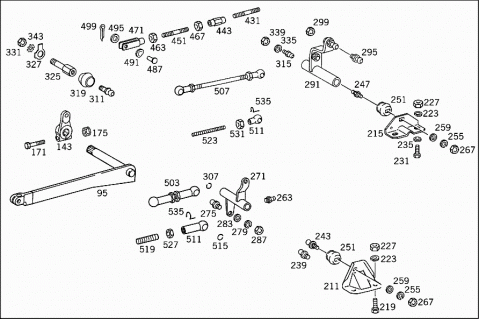

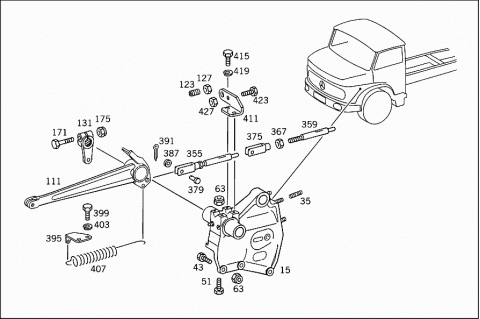

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 0452900219 | BEARING BRACKET |
| Repalced by: A 3452900119 | ||
| 010 | A 3452900119 | BEARING BRACKET |
| FRONT | ||
| 010 | A 3452900419 | BEARING BRACKET |
| FRONT | ||
| A 3452907419 | BEARING BRACKET | |
| Repalced by: A 3452907619 | ||
| 015 | A 3452907619 | BEARING BRACKET |
| A 0452900036 | BEARING TUBE | |
| Repalced by: A 3442907036 | ||
| 019 | A 3442907036 | BEARING TUBE |
| A 0459921001 | BUSHING | |
| Repalced by: A 3442940150 | ||
| 023 | A 3442940150 | BUSHING |
| 027 | N 071412010100 | GREASE NIPPLE |
| N 000417012000 | HEADLESS SETSCREW | |
| Repalced by: A 3529900080 | ||
| 031 | A 3529900080 | SCREW |
| 035 | N 000835008061 | STUD |
| 039 | N 000933010269 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 043 | N 000933010258 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 10X40 | ||
| 047 | N 000933010129 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 051 | N 000933010269 | SCREW |
| FRONT;REPAIR SIZE | ||
| M 10X35 | ||
| 055 | N 000127010202 | LOCK WASHER |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 059 | N 000934010000 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 063 | N 913004010001 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 067 | A 3453230095 | REINFORCEMENT |
| 071 | N 000933010129 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 075 | N 000127010202 | LOCK WASHER |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 079 | N 000934010000 | NUT |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 083 | N 000963012002 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 087 | N 000127012201 | LOCK WASHER |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 091 | N 000934012010 | NUT |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| A 3522902216 | PEDAL | |
| Repalced by: A 3452907016 | ||
| 095 | A 3452907016 | PEDAL |
| CLUTCH | ||
| 099 | A 3202940051 | SPACER RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 099 | A 3202940151 | SPACER RING |
| AS REQUIRED | ||
| 3.25 MM | ||
| 099 | A 3202940251 | SPACER RING |
| AS REQUIRED | ||
| 3.50 MM | ||
| A 0452900018 | PEDAL | |
| Repalced by: A 3452907018 | ||
| 103 | A 3452907018 | PEDAL |
| BRAKE PEDAL | ||
| 107 | A 3452900018 | PEDAL |
| BRAKE PEDAL | ||
| A 3452900318 | PEDAL | |
| Repalced by: A 3452907118 | ||
| 111 | A 3452907118 | PEDAL |
| BRAKE PEDAL | ||
| 111 | A 3762901118 | PEDAL |
| BRAKE PEDAL | ||
| A 0459921401 | BUSHING | |
| Repalced by: A 3452927050 | ||
| 115 | A 3452927050 | BUSHING |
| 119 | A 3039910345 | RING |
| 123 | N 900190012005 | THREADED PIN |
| STOP LIGHT SWITCH | ||
| 127 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 127 | N 000936012005 | NUT |
| STOP LIGHT SWITCH | ||
| A 3522930310 | LEVER | |
| Repalced by: A 3452931310 | ||
| 131 | A 3452931310 | LEVER |
| Repalced by: A 3762900034 | ||
| A 3029910115 | BALL PIVOT | |
| N 000936014007 | NUT | |
| 131 | A 3442907034 | LEVER |
| Repalced by: A 3762900034 | ||
| 131 | A 3762900034 | LEVER |
| A 3449917020 | BALL PIVOT | |
| Repalced by: A 3529910415 | ||
| A 3529910415 | BALL PIVOT | |
| Repalced by: A 3029910015 | ||
| 135 | A 3029910015 | BALL PIVOT |
| 139 | N 000934012000 | NUT |
| 143 | A 3452900234 | LEVER |
| 147 | A 3452907527 | LEVER |
| CLUTCH | ||
| A 3529910415 | BALL PIVOT | |
| Repalced by: A 3029910015 | ||
| 151 | A 3029910015 | BALL PIVOT |
| 155 | A 3029910115 | BALL PIVOT |
| 159 | N 000127012201 | LOCK WASHER |
| 163 | N 000936012010 | NUT |
| 167 | N 000936014007 | NUT |
| 171 | N 000931010080 | SCREW |
| 175 | N 913004010004 | NUT |
| 179 | A 3452907239 | ROD |
| 183 | A 3509917022 | BALL SOCKET |
| 187 | N 071805019401 | CIRCLIP |
| 191 | A 3442930129 | ROD |
| 195 | N 000936014010 | NUT |
| 199 | A 3449900651 | NUT |
| 203 | N 900333014000 | TURNBUCKLE |
| 207 | A 3449900751 | NUT |
| A 3522930236 | BEARING BRACKET | |
| Repalced by: A 3522932536 | ||
| A 3522931936 | BEARING BRACKET | |
| Repalced by: A 3522932536 | ||
| 211 | A 3522932536 | BEARING BRACKET |
| 215 | A 3452930036 | BEARING BRACKET |
| 219 | N 000933010174 | SCREW |
| 223 | N 000127010202 | LOCK WASHER |
| 223 | N 000127010202 | LOCK WASHER |
| 227 | N 000934010000 | NUT |
| 227 | N 000934010000 | NUT |
| 231 | N 000933010129 | SCREW |
| 235 | N 000125010517 | WASHER |
| 239 | A 3179910515 | BALL PIVOT |
| 243 | A 3029910015 | BALL PIVOT |
| 247 | A 3529910815 | BALL PIVOT |
| 247 | A 3529910815 | BALL PIVOT |
| 251 | A 3522930160 | SEAL RING |
| 251 | A 3522930160 | SEAL RING |
| 255 | N 000127012201 | LOCK WASHER |
| 255 | N 000127012201 | LOCK WASHER |
| 259 | N 000125013012 | WASHER |
| 259 | N 000125013012 | WASHER |
| 263 | N 071412008100 | GREASE NIPPLE |
| 263 | N 071412010100 | GREASE NIPPLE |
| N 000934012010 | NUT | |
| Repalced by: N 000934012021 | ||
| 267 | N 000934012010 | NUT |
| 267 | N 000934012010 | NUT |
| A 0452900028 | LEVER | |
| 271 | A 3522901728 | LEVER |
| 275 | A 3179910515 | BALL PIVOT |
| A 3529910415 | BALL PIVOT | |
| Repalced by: A 3029910015 | ||
| 275 | A 3029910015 | BALL PIVOT |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 279 | N 000127012201 | LOCK WASHER |
| 283 | N 000125013012 | WASHER |
| 287 | N 000936012010 | NUT |
| 287 | N 000936012010 | NUT |
| 291 | A 3452900034 | LEVER |
| A 3529910415 | BALL PIVOT | |
| Repalced by: A 3029910015 | ||
| 295 | A 3029910015 | BALL PIVOT |
| 299 | N 000936012010 | NUT |
| N 071428004102 | SCREW-IN FITTING | |
| 307 | N 071805016300 | SNAP RING |
| 307 | N 071805016300 | SNAP RING |
| 311 | A 3179910515 | BALL PIVOT |
| 311 | A 3529910815 | BALL PIVOT |
| A 3529910415 | BALL PIVOT | |
| Repalced by: A 3029910015 | ||
| 315 | A 3029910015 | BALL PIVOT |
| 315 | A 3029910015 | BALL PIVOT |
| 315 | A 3529910315 | BALL PIVOT |
| 319 | A 3522930060 | SEAL RING |
| 319 | A 3522930060 | SEAL RING |
| 325 | A 3529910915 | SPACER |
| 327 | N 000463017001 | LOCK PLATE |
| 331 | N 000934016003 | NUT |
| 335 | N 000127012201 | LOCK WASHER |
| 339 | N 000936012010 | NUT |
| 343 | N 006797012153 | TOOTHED WASHER |
| 347 | N 900331010203 | PULL ROD |
| BRAKE LEVER | ||
| 351 | N 900331010256 | PULL ROD |
| BRAKE LEVER | ||
| 355 | A 3452908439 | ROD |
| 359 | A 3762950033 | ROD |
| BRAKE LEVER | ||
| 363 | N 000934010000 | NUT |
| 367 | N 000934012009 | NUT |
| N 071752010002 | YOKE | |
| Repalced by: A 0009961501 | ||
| 371 | A 0009961501 | YOKE |
| 375 | A 3769960001 | YOKE |
| 379 | A 3529910007 | PIN |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 379 | A 3529910007 | PIN |
| PUSH ROD TO PEDAL | ||
| 383 | N 900055010001 | SPRING WASHER |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 387 | N 000433010500 | WASHER |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 387 | N 000433010500 | WASHER |
| PUSH ROD TO PEDAL | ||
| 391 | N 000094003212 | COTTER PIN |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 391 | N 000094003212 | COTTER PIN |
| PUSH ROD TO PEDAL | ||
| 395 | A 3452920040 | BRACKET |
| RELEASE SPRING | ||
| 399 | N 000933008268 | SCREW |
| BATTERY TO LEFT CAB CONSOLE | ||
| 403 | N 912004008100 | LOCK WASHER |
| BATTERY TO LEFT CAB CONSOLE | ||
| 407 | A 3609930210 | SPRING |
| BRAKE PEDAL | ||
| 411 | A 3452920130 | STOP |
| BRAKE PEDAL | ||
| 415 | N 000933010294 | SCREW |
| STOP TO BEARING BRACKET | ||
| 419 | N 000127010202 | LOCK WASHER |
| STOP TO BEARING BRACKET | ||
| 423 | N 000933010174 | SCREW |
| BRAKE PEDAL CONTROL | ||
| 427 | N 000934010035 | NUT |
| BRAKE PEDAL CONTROL | ||
| 431 | N 900331010202 | PULL ROD |
| REAR | ||
| 435 | A 3219961525 | ROD |
| REAR | ||
| 439 | N 900331010536 | PULL ROD |
| 443 | N 001479010000 | TURNBUCKLE |
| 447 | A 3459960134 | NUT |
| 451 | N 900331010194 | PULL ROD |
| FRONT | ||
| 455 | A 3219961425 | ROD |
| FRONT | ||
| 459 | N 900331010535 | PULL ROD |
| 463 | N 000934010000 | NUT |
| 463 | N 000934010000 | NUT |
| 467 | N 000934010000 | NUT |
| 467 | N 000934010000 | NUT |
| 467 | N 000934010000 | NUT |
| N 071752010002 | YOKE | |
| Repalced by: A 0009961501 | ||
| 471 | A 0009961501 | YOKE |
| 471 | N 071752010000 | YOKE |
| 475 | N 071805016202 | BALL SOCKET |
| 479 | N 071805016101 | BALL SOCKET |
| 483 | N 071805016402 | CIRCLIP |
| 487 | A 3529910007 | PIN |
| 491 | N 900055010001 | SPRING WASHER |
| 495 | N 000433010500 | WASHER |
| 499 | N 000094003027 | COTTER PIN |
| 503 | A 3522901039 | ROD |
| 507 | A 3452900239 | ROD |
| 511 | N 071805016202 | BALL SOCKET |
| 511 | N 071805016202 | BALL SOCKET |
| 515 | N 071805016300 | SNAP RING |
| 519 | N 900331010201 | PULL ROD |
| 523 | N 900331010537 | PULL ROD |
| 527 | N 000934010000 | NUT |
| 531 | N 000934010000 | NUT |
| 535 | N 071805016402 | CIRCLIP |
| 535 | N 071805016402 | CIRCLIP |
| H 983452910032 | LEVER | |
| Repalced by: A 3522910732 | ||
| A 3522910732 | LEVER | |
| Repalced by: A 3762907034 | ||
| 539 | A 3762907034 | LEVER |
| RELEASE SPRING | ||
| H 983452910074 | PIN | |
| Repalced by: A 3522910474 | ||
| A 3522910474 | PIN | |
| Repalced by: A 3452917074 | ||
| A 3452917074 | PIN | |
| Repalced by: A 3509917020 | ||
| 543 | A 3509917020 | BALL PIVOT |
| RELEASE SPRING | ||
| 547 | A 3529931310 | SPRING |
| A 0452900024 | PEDAL PLATE | |
| Repalced by: A 3452907024 | ||
| 551 | A 3452907024 | PEDAL PLATE |
| CLUTCH PEDAL | ||
| A 3222900824 | PEDAL PLATE | |
| Repalced by: A 3452907224 | ||
| 555 | A 3452907224 | PEDAL PLATE |
| BRAKE PEDAL | ||
| 555 | A 3452907524 | PEDAL PLATE |
| BRAKE PEDAL | ||
| 559 | A 3222930077 | WASHER |
| 563 | A 3522900624 | PEDAL PLATE |
| (CLUTCH PEDAL) | ||
| 563 | A 3452907724 | PEDAL PLATE |
| (CLUTCH PEDAL) | ||
| A 3222901324 | PEDAL PLATE | |
| Repalced by: A 3452907224 | ||
| 567 | A 3226880024 | WASHER |
| 571 | A 3122911197 | SEAL WASHER |
| 575 | N 000933010174 | SCREW |
| 579 | A 3202925082 | PAD |
| TO 322 290 13 24,352 290 06 24 | ||
| 579 | A 3452917082 | PAD |
| CLUTCH PEDAL | ||
| 579 | A 3052910182 | PAD |
| BRAKE PEDAL | ||
