Transporto priemonė: L 2219,2220; VIN numerio dalis: 345412

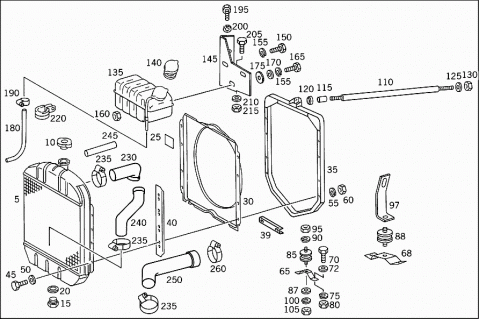

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| H 983455000003 | RADIATOR | |
| Repalced by: A 3455017001 | ||
| A 3455010301 | RADIATOR | |
| Repalced by: A 3455017001 | ||
| A 0455000003 | RADIATOR | |
| Repalced by: A 3455017001 | ||
| A 3445007103 | RADIATOR | |
| Repalced by: A 3455017001 | ||
| 005 | A 3455017001 | RADIATOR |
| 005 | A 3455017001 | RADIATOR |
| 005 | A 3455017601 | RADIATOR |
| 005 | A 3455017901 | RADIATOR |
| 005 | A 3455018201 | RADIATOR |
| 005 | A 3455018301 | RADIATOR |
| 005 | A 3455017801 | RADIATOR |
| A 3455007003 | RADIATOR | |
| Repalced by: A 3455017101 | ||
| A 3455010101 | RADIATOR | |
| Repalced by: A 3455017101 | ||
| 005 | A 3455017101 | RADIATOR |
| 005 | A 3455018001 | RADIATOR |
| 005 | A 3455017301 | RADIATOR |
| A 0455010015 | RADIATOR CAP | |
| Repalced by: A 3445010315 | ||
| 010 | A 3445010315 | RADIATOR CAP |
| 010 | A 3455017215 | RADIATOR CAP |
| 015 | A 1369970830 | SCREW PLUG |
| 020 | N 007603018401 | SEAL RING |
| 025 | A 3649870723 | PLASTIC SECTION |
| FAN SHROUD | ||
| 025 | A 3649870723 | PLASTIC SECTION |
| FAN SHROUD | ||
| 030 | A 3405050055 | FAN SHROUD |
| 030 | A 3405050055 | FAN SHROUD |
| 030 | A 3445057055 | FAN SHROUD |
| 030 | A 3445057055 | FAN SHROUD |
| A 3455050155 | FAN SHROUD | |
| Repalced by: A 3455050055 | ||
| 030 | A 3455050055 | FAN SHROUD |
| 030 | A 3455007455 | FAN SHROUD |
| 030 | A 3455007155 | FAN SHROUD |
| A 3225002027 | SUPPORT | |
| Repalced by: A 3445007127 | ||
| 035 | A 3445007127 | SUPPORT |
| H 983455000027 | SUPPORT | |
| Repalced by: A 3455007627 | ||
| 035 | A 3455007627 | SUPPORT |
| 035 | A 3455008427 | SUPPORT |
| A 3455000027 | SUPPORT | |
| Repalced by: A 3515000127 | ||
| 035 | A 3515000127 | SUPPORT |
| 035 | A 3455008527 | SUPPORT |
| 035 | A 3455007827 | SUPPORT |
| 039 | A 3455047022 | STRUT |
| 039 | A 3455047122 | STRUT |
| 040 | A 3225050024 | COVER PLATE |
| 045 | N 000933008282 | SCREW |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 045 | N 000933008288 | SCREW |
| 045 | N 000933010174 | SCREW |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 045 | N 000933010174 | SCREW |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 050 | N 000125008417 | WASHER |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 050 | N 000125010517 | WASHER |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 050 | N 000125010517 | WASHER |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 055 | N 912004008100 | LOCK WASHER |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 055 | N 000127010202 | LOCK WASHER |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 055 | N 000127010202 | LOCK WASHER |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 060 | N 000934008000 | NUT |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| A 3525040039 | CLAMP | |
| Repalced by: A 3455040139 | ||
| 065 | A 3455040139 | ANGLE |
| A 3525040439 | ANGLE | |
| Repalced by: A 3515040139 | ||
| A 3515040139 | ANGLE | |
| Repalced by: A 3765047139 | ||
| 068 | A 3765047139 | ANGLE |
| LEFT | ||
| A 3525040539 | ANGLE | |
| Repalced by: A 3515040239 | ||
| A 3515040239 | ANGLE | |
| Repalced by: A 3765047239 | ||
| 068 | A 3765047239 | ANGLE |
| RIGHT | ||
| 070 | N 000961012106 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 070 | N 000961012020 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 072 | A 3449907240 | WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 075 | N 000127012201 | LOCK WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 080 | N 000934012004 | NUT |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 085 | A 3605040012 | RUBBER MOUNTING |
| 087 | N 000125010517 | WASHER |
| RADIATOR TO BRACKET | ||
| 088 | A 0019873140 | RUBBER BUFFER |
| RUBBER BUFFER TO BASE FRAME | ||
| 090 | N 000127010202 | LOCK WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 090 | N 000127010202 | LOCK WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 095 | N 000934010005 | NUT |
| RUBBER BUFFER TO BASE FRAME | ||
| 095 | N 000934010005 | NUT |
| RUBBER BUFFER TO BASE FRAME | ||
| 097 | A 3455048540 | BRACKET |
| RUBBER BUFFER TO BASE FRAME | ||
| 100 | N 000127010202 | LOCK WASHER |
| RADIATOR TO BRACKET | ||
| 105 | N 000934010005 | NUT |
| RADIATOR TO BRACKET | ||
| A 3225001345 | RADIATOR STRUT | |
| Repalced by: A 3455007345 | ||
| 110 | A 3455007345 | RADIATOR STRUT |
| 110 | A 3455007345 | RADIATOR STRUT |
| H 983455000045 | RADIATOR STRUT | |
| Repalced by: A 3445007045 | ||
| 110 | A 3445007045 | RADIATOR STRUT |
| 110 | A 3455007245 | RADIATOR STRUT |
| A 3449910040 | SPACER TUBE | |
| Repalced by: A 3199910540 | ||
| 115 | A 3199910540 | SPACER TUBE |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 120 | A 3275045082 | RUBBER RING |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 125 | N 009021010102 | WASHER |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 130 | N 000934010000 | NUT |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 135 | A 3455007649 | TANK |
| 135 | A 3765000349 | TANK |
| 140 | A 3455017315 | RADIATOR CAP |
| TO 345 500 76 49 | ||
| 145 | A 3455007731 | BRACKET |
| 150 | N 000933008285 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 155 | N 000127008104 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 160 | N 000934008013 | NUT |
| EXPANSION TANK TO BRACKET | ||
| 165 | N 000933008282 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 170 | N 000125008417 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 175 | N 009021008102 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 180 | A 3459978682 | HOSE |
| FROM CONNECTION TO EXPANSION TANK | ||
| 190 | A 3449977490 | CLAMP |
| Repalced by: N 916017016000 | ||
| 190 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 190 | N 000000000666 | CLAMP |
| FROM CONNECTION TO EXPANSION TANK | ||
| 195 | N 000933008282 | SCREW |
| BRACKET TO AIR DUCT | ||
| 200 | N 000127008104 | LOCK WASHER |
| BRACKET TO AIR DUCT | ||
| 205 | N 000933008268 | SCREW |
| HEAT SHIELD TO BRACKET | ||
| 210 | N 000125008417 | WASHER |
| HEAT SHIELD TO BRACKET | ||
| 215 | N 000934008013 | NUT |
| HEAT SHIELD TO BRACKET | ||
| 220 | N 916016015201 | CLAMP |
| 230 | A 3405010082 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 230 | A 3455010082 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 235 | A 3459977090 | LOOM TIE |
| A 3449978690 | CLAMP | |
| Repalced by: A 0019972590 | ||
| 235 | A 0019972590 | LOOM TIE |
| 235 | A 3461400040 | CLAMP |
| 240 | A 3405010482 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 240 | A 3455017082 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| A 3359971882 | HOSE | |
| Repalced by: N 900271015080 | ||
| A 3229971782 | HOSE | |
| Repalced by: N 900271015080 | ||
| 245 | N 900271015037 | HOSE |
| 250 | A 3455010182 | HOSE |
| FROM RADIATOR TO OIL COOLER | ||
| 260 | A 3449977890 | LOOM TIE |
| 260 | A 3459979390 | LOOM TIE |
| 260 | A 0019977890 | LOOM TIE |
