Transporto priemonė: L 2219,2220; VIN numerio dalis: 345412
Grupė: 32 SPRINGS AND SUSPENSION

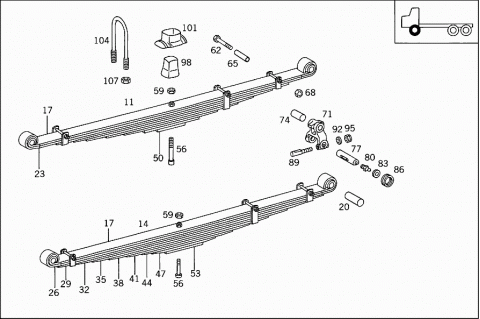

31620

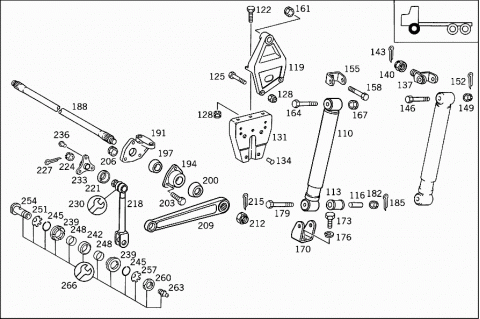

31621

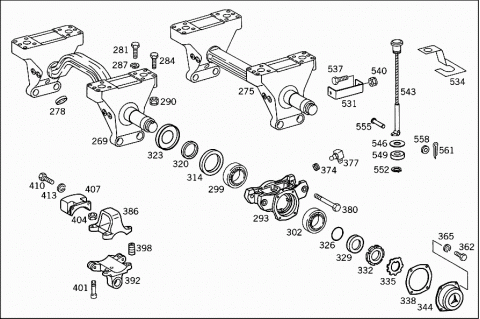

31622

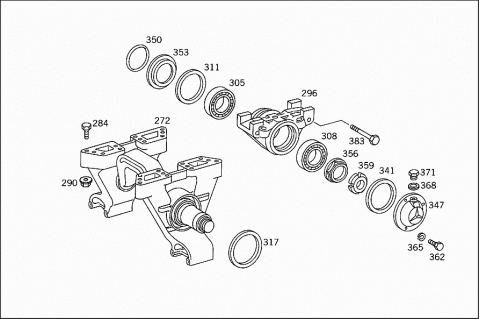

31623

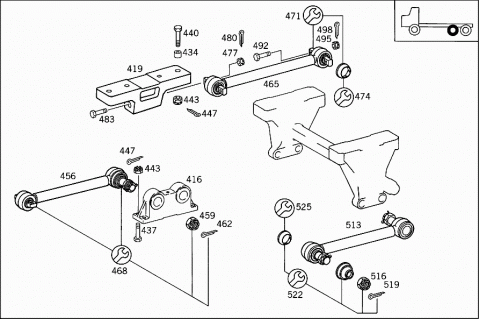

31624

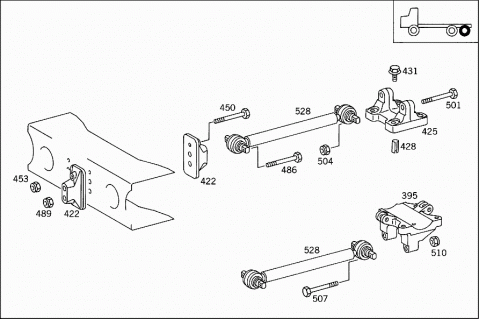

31625

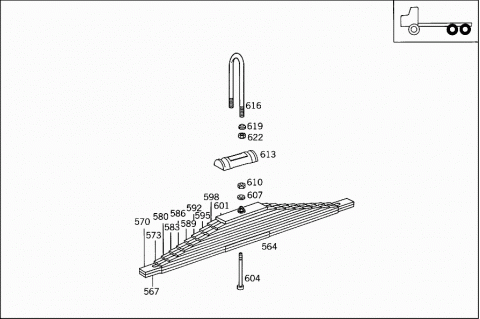

31626
# Kodas Pavadinimas
011 A 3453200102 FRONT SPRING
8-LEAF
014 A 3453200202 FRONT SPRING
9-LEAF
017 H 983453200494 SPRING LEAF
020 A 3523220050 BUSHING
023 A 3453210112 SPRING LEAF
NO.2
026 A 3453210212 SPRING LEAF
NO.2
A 0453200594 SPRING LEAF
NO.3
H 983453200294 SPRING LEAF
Repalced by: A 3453207794
029 A 3453207794 SPRING LEAF
NO.3 TO 345 320 02 02
032 A 3453210214 SPRING LEAF
NO.4
035 A 3453210215 SPRING LEAF
NO.5
A 0453200694 SPRING LEAF
NO.6
H 983453200394 SPRING LEAF
Repalced by: A 3453207894
038 A 3453207894 SPRING LEAF
NO.6 TO 345 320 02 02
041 A 3453210217 SPRING LEAF
NO.7
044 A 3453210218 SPRING LEAF
NO.8
047 A 3453210019 SPRING LEAF
NO.9
050 A 3423220184 SHIM
053 A 3603220184 SHIM
N 004626012100 SPRING BOLT
056 N 004626012110 SPRING BOLT
059 N 000934012010 NUT
062 N 000931008382 SCREW
065 A 0003212353 SPACER TUBE
068 N 000934008000 NUT
071 A 3523200063 SHACKLE
074 A 3523220050 BUSHING
A 3523220530 SHACKLE PIN
Repalced by: A 3853220030
A 3853220030 SHACKLE PIN
Repalced by: A 3453227030
077 A 3453227030 SHACKLE PIN
080 N 071412010100 GREASE NIPPLE
080 N 071412010300 GREASE NIPPLE
083 A 3453230276 WASHER
083 A 3523230476 WASHER
083 A 3523230376 WASHER
AS REQUIRED
083 A 3453230376 WASHER
AS REQUIRED
083 A 3523230476 WASHER
AS REQUIRED
083 A 3453230276 WASHER
AS REQUIRED
086 A 0029973140 SEAL RING
089 A 3529900337 BOLT
092 N 000125010517 WASHER
095 N 913004010004 NUT
098 A 3553310044 RUBBER BUFFER
FRONT SPRING
101 A 3603220124 PLATE
FRONT SPRING
H 983453220124 PLATE
Repalced by: A 3453227124
101 A 3453227124 PLATE
FRONT SPRING
104 A 3523510025 U-BOLT
FRONT SPRING
104 A 3523510025 U-BOLT
FRONT SPRING
104 A 3403510325 U-BOLT
FRONT SPRING
107 N 000934018002 NUT
FRONT SPRING
Y YYYYYYYYYYYY PART NAME MISSING
SHOCK ABSORBERS AND MOUNTING
110 A 3453230200 SHOCK ABSORBER
FRONT
110 A 3453237100 SHOCK ABSORBER
FRONT
110 A 3453237600 SHOCK ABSORBER
FRONT
A 0083230285 RUBBER MOUNTING
Repalced by: A 0003230585
113 A 0003230585 RUBBER MOUNTING
A 0083230150 BUSHING
Repalced by: A 0003230453
116 A 0003230453 SPACER TUBE
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
000 323 31 50
A 0453230063 BEARING BRACKET
Repalced by: A 3453230163
119 A 3453230163 BEARING BRACKET
SHOCK ABSORBER
A 3453230263 BEARING BRACKET
Repalced by: A 3503237163
119 A 3503237163 BEARING BRACKET
SHOCK ABSORBER
122 N 000933010269 SCREW
125 N 000931010053 SCREW
128 N 913004010004 NUT
131 A 3453230095 REINFORCEMENT
134 N 910005010003 RIVET
10X28
134 N 910005012002 RIVET
12X30
137 A 3523230118 END PIECE
FRONT SHOCK ABSORBERS
140 N 000937024001 NUT
SHOCK ABSORBER TO BEARING BRACKET
143 N 000094005013 COTTER PIN
SHOCK ABSORBER TO BEARING BRACKET
146 A 3409900002 SCREW
SHOCK ABSORBER TO BEARING BRACKET
149 N 000979016006 NUT
SHOCK ABSORBER TO BEARING BRACKET
152 N 000094004056 COTTER PIN
SHOCK ABSORBER TO BEARING BRACKET
155 A 3523230340 BRACKET
SHOCK ABSORBER
158 A 3529903201 SCREW
161 N 913004020004 NUT
164 N 000960016238 SCREW
167 N 913004016004 NUT
170 A 3523231663 BEARING BRACKET
LEFT
170 A 3523231763 BEARING BRACKET
RIGHT
173 N 000961012009 SCREW
BOTTOM BEARING BRACKET TO FRONT AXLE
176 N 000127012201 LOCK WASHER
BOTTOM BEARING BRACKET TO FRONT AXLE
179 A 3529900002 SCREW
SHOCK ABSORBER TO LOWER BEARING BRACKET
182 N 000979016006 NUT
SHOCK ABSORBER TO LOWER BEARING BRACKET
185 N 000094004056 COTTER PIN
SHOCK ABSORBER TO LOWER BEARING BRACKET
188 A 3603230065 TORSION BAR
FRONT AXLE STABILIZER
191 A 3523231463 BEARING BRACKET
HOLE SPACING:
88 MM
194 A 3523230283 HOUSING
FRONT AXLE STABILIZER
A 3603230085 RUBBER MOUNTING
Repalced by: A 3453237085
197 A 3453237085 RUBBER MOUNTING
FRONT AXLE STABILIZER
200 A 3603230151 SPACER RING
FRONT AXLE STABILIZER
203 N 000933010258 SCREW
HOUSING TO BEARING BRACKET
206 N 913004010004 NUT
HOUSING TO BEARING BRACKET
209 A 3603230869 LEVER
FRONT AXLE STABILIZER
212 N 000937030000 NUT
LEVER TO TORSION BAR
215 N 000094006317 COTTER PIN
LEVER TO TORSION BAR
A 3603200289 ROD
Repalced by: A 3453207289
218 A 3453207289 ROD
221 A 0003300185 BOOT
TO 360 320 02 89
224 N 000979014001 NUT
TO 360 320 02 89
224 N 000935014002 NUT
TO 345 320 72 89
227 N 000094003030 COTTER PIN
TO 360 320 02 89
227 N 000094003024 COTTER PIN
TO 345 320 72 89
230 A 3455867432 REPAIR KIT
TO 345 320 72 89
233 A 3603230663 BEARING BRACKET
A 0009902596 RIVET
Repalced by: N 910005010005
236 N 910005010005 RIVET
BEARING BRACKET TO FRAME
10X34 MM
236 N 910005010005 RIVET
BEARING BRACKET TO FRAME
10X34 MM
239 A 3603230460 SEAL RING
ARTICULATED ROD TO LEVER
239 A 3453237260 SEAL RING
ARTICULATED ROD TO LEVER
242 A 0009810731 JOINT BEARING
242 A 0009810931 JOINT BEARING
242 A 0009816631 JOINT BEARING
245 N 009045035001 SNAP RING
FRONT AXLE STABILIZER
248 A 3603230153 SPACER TUBE
ARTICULATED ROD TO LEVER
251 N 006797021101 TOOTHED WASHER
ARTICULATED ROD TO LEVER
254 A 3603230274 PIN
ARTICULATED ROD TO LEVER
257 N 006797021201 TOOTHED WASHER
ARTICULATED ROD TO LEVER
260 N 000439020203 NUT
ARTICULATED ROD TO LEVER
263 N 071412010100 GREASE NIPPLE
ARTICULATED ROD TO LEVER
266 A 3603200041 REPAIR KIT
TORSION BAR,FRONT
A 0453200075 SPRING BRACKET
Repalced by: A 3453207075
A 3523200275 SPRING BRACKET
Repalced by: A 3453207075
269 A 3453207075 SPRING BRACKET
272 A 3853200475 SPRING BRACKET
A 0453200175 SPRING BRACKET
Repalced by: A 3453207175
A 3523200175 SPRING BRACKET
Repalced by: A 3453207175
275 A 3453207175 SPRING BRACKET
278 N 000443045001 EXPANSION PLUG
TO 352 320 02 75, 352 320 01 75
281 N 000960018142 SCREW
SPRING SUPPORT TO FRAME
284 N 000960018073 SCREW
SPRING SUPPORT TO FRAME
284 N 000960020033 SCREW
CENTRAL BEARING TO FRAME
284 N 914142020103 SCREW
CENTRAL BEARING TO FRAME
287 N 000127018203 LOCK WASHER
SPRING SUPPORT TO FRAME
290 N 913004018004 NUT
290 N 913004020001 NUT
CENTRAL BEARING TO FRAME
293 A 3523250112 SPRING SADDLE
293 A 3453250012 SPRING SADDLE
296 A 3833250112 SPRING SADDLE
299 A 0009816105 TAPERED ROLLER BEARING
299 A 0019811405 TAPERED ROLLER BEARING
299 A 0019819605 TAPERED ROLLER BEARING
299 A 3849817505 TAPERED ROLLER BEARING
302 A 0009805102 TAPERED ROLLER BEARING
A 0039812105 TAPERED ROLLER BEARING
Repalced by: A 3459817105
302 A 3459817105 TAPERED ROLLER BEARING
302 A 0039812005 TAPERED ROLLER BEARING
305 A 0049811705 TAPERED ROLLER BEARING
305 A 0049814305 TAPERED ROLLER BEARING
305 A 0059815605 TAPERED ROLLER BEARING
308 A 0049811805 TAPERED ROLLER BEARING
308 A 0049814405 TAPERED ROLLER BEARING
311 A 0099975346 SEAL RING
311 A 0119973746 SEAL RING
311 A 0099975246 SEAL RING
311 A 0109971646 SEAL RING
314 A 0059976646 SEAL RING
314 A 3459978245 SEAL RING
317 A 3853200167 GASKET
A 0453250062 THRUST WASHER
Repalced by: A 3453257062
A 3453257062 THRUST WASHER
Repalced by: A 3523250162
320 A 3523250162 THRUST WASHER
320 A 3453257162 THRUST WASHER
A 0079976345 SEAL RING
A 3453257055 COVER PLATE
Repalced by: A 3523250055
323 A 3523250055 COVER PLATE
323 A 3453257155 COVER PLATE
A 3453207049 PROTECTIVE PLATE
Repalced by: A 3453257255
323 A 3453257255 COVER PLATE
326 A 3553370080 GASKET
329 A 3523250062 THRUST WASHER
A 3229900660 NUT
Repalced by: A 3529900060
332 A 3529900060 NUT
A 3229940215 LOCK
Repalced by: A 3529940015
A 3529940015 LOCK
Repalced by: A 3459947015
335 A 3459947015 LOCK
338 A 3223250080 GASKET
341 A 3833250080 GASKET
344 A 3223250013 COVER
347 A 3833200084 COVER
A 0119970245 SEAL RING
350 A 0079976048 SEAL RING
A 3833250151 SPACER RING
353 A 3873250162 THRUST WASHER
356 A 3933250052 SPACER WASHER
359 A 3939900060 NUT
362 N 000933008317 SCREW
BOOT
362 N 000933008317 SCREW
BOOT
365 N 912004008100 LOCK WASHER
BOOT
368 N 007603014102 SEAL RING
PROTECTIVE CAP TO SPRING SADDLE
371 N 007604014100 SCREW PLUG
374 N 000913010111 THREADED PIN
374 A 3453257186 THREADED UNION
377 N 071412010100 GREASE NIPPLE
380 N 000960020043 SCREW
383 N 000960020043 SCREW
H 983453250019 SPRING SEAT
Repalced by: A 3453250019
386 A 3453250019 SPRING SEAT
386 A 3523250019 SPRING SEAT
392 A 3523520341 BEARING BODY
395 A 3813250309 BEARING BRACKET
398 A 3523520074 PIN
401 A 3453257075 SCREW
SPRING SEAT AND BEARING BRACKET TO REAR AXLE
401 N 000912016069 SCREW
HOUSING TO SUBSTRUCTURE
404 N 000934016003 NUT
SPRING SEAT AND BEARING BRACKET TO REAR AXLE
404 N 000934016026 NUT
SPRING SEAT AND BEARING BRACKET TO REAR AXLE
407 A 3523500175 RUBBER MOUNTING
407 A 3853200144 RUBBER BUFFER
410 N 000933010294 SCREW
RUBBER BUFFER TO SPRING SEAT
410 N 000933010294 SCREW
RUBBER BUFFER TO SPRING SEAT
413 N 000127010202 LOCK WASHER
RUBBER BUFFER TO SPRING SEAT
416 A 3523520041 BEARING BODY
419 A 3833520041 BEARING BODY
422 A 3853250209 BEARING BRACKET
425 A 3853250309 BEARING BRACKET
UPPER CONTROL ARM TO REAR AXLE II
428 N 001481028004 CLAMPING SLEEVE
BEARING BRACKET TO REAR AXLE II
431 N 914142020203 SCREW
BEARING BRACKET TO REAR AXLE II
434 H 983459920001 BUSHING
437 N 000960014114 SCREW
BEARING BRACKET TO CROSS MEMBER
440 H 983459900001 SCREW
BEARING BRACKET TO CROSS MEMBER
440 N 000961014103 SCREW
BEARING BRACKET TO CROSS MEMBER
443 N 000935014002 NUT
BEARING BRACKET TO CROSS MEMBER
447 N 000094003237 COTTER PIN
BEARING BRACKET TO CROSS MEMBER
450 N 000960014180 SCREW
BEARING BRACKET TO CROSS MEMBER
453 N 913004014002 NUT
BEARING BRACKET TO CROSS MEMBER
456 A 3523500406 CONTROL ARM
456 H 983453200132 LINK
459 A 0009902755 NUT
462 N 000094006320 COTTER PIN
465 A 3833500006 CONTROL ARM
LEMFOERDER
H 983453200432 LINK
Repalced by: A 3453507706
A 3453507706 CONTROL ARM
Repalced by: A 3453507506
A 3453507506 CONTROL ARM
GOULD AXIOS
A 3453507006 CONTROL ARM
Repalced by: A 3453507206
465 A 3453507206 CONTROL ARM
NAKATA
468 H 983455860132 REPAIR KIT
TO 352 350 04 06,98 345 320 01 32
471 A 3455867032 REPAIR KIT
TO 383 350 00 06
H 983455860432 REPAIR KIT
TO 98 345 320 04 32
A 3453307185 BOOT
REPAIR KIT
TO 345 350 75 06
474 A 3453307285 BOOT
REPAIR KIT
TO 345 350 72 06
477 N 000935018001 NUT
CONTROL ARM TO BEARING BRACKET
480 N 000094004026 COTTER PIN
CONTROL ARM TO BEARING BRACKET
483 A 3459900002 SCREW
CONTROL ARM TO BEARING BRACKET
486 N 000960020152 SCREW
CONTROL ARM TO BEARING BRACKET
489 N 913004020000 NUT
CONTROL ARM TO BEARING BRACKET
492 N 000960018064 SCREW
CONTROL ARM TO REAR AXLE
495 N 000935018004 NUT
CONTROL ARM TO REAR AXLE
498 N 000094004026 COTTER PIN
CONTROL ARM TO REAR AXLE
501 N 000960020050 SCREW
UPPER CONTROL ARM TO REAR AXLE
504 N 913004020000 NUT
UPPER CONTROL ARM TO REAR AXLE
507 N 000960020032 SCREW
LOWER CONTROL ARM TO BEARING BRACKET
510 N 913004020000 NUT
LOWER CONTROL ARM TO BEARING BRACKET
513 A 3433201732 LINK
LEMFOERDER
H 983453200032 LINK
Repalced by: A 3453507106
A 3453507106 CONTROL ARM
Repalced by: A 3453507306
513 A 3453507306 CONTROL ARM
NAKATA
H 983453200232 LINK
Repalced by: A 3453507606
A 3453507606 CONTROL ARM
Repalced by: A 3453507406
A 3453507406 CONTROL ARM
GOULD AX/OS
H 983453380056 DUST CAP
516 A 0009902755 NUT
519 N 000094006319 COTTER PIN
522 H 983455860032 REPAIR KIT
TO 343 320 17 32,98 345 320 00 32
H 983455860332 REPAIR KIT
TO 98 345 320 02 32
A 3453307085 BOOT
REPAIR KIT
TO 345 350 74 06
525 A 3453307385 BOOT
REPAIR KIT
TO 345 350 73 06
528 A 3933200132 LINK
528 A 3453207489 ROD
528 A 3453207589 ROD
A 0013307635 JOINT
(PARTS KIT)
TO 345 320 74 89
531 A 3853250240 BRACKET
534 A 3453257040 BRACKET
534 A 3453257140 BRACKET
537 N 000933008282 SCREW
N 913004008001 NUT
Repalced by: N 913004008001
540 N 913004008001 NUT
543 A 3523200291 WIRE CABLE
543 A 3523200291 WIRE CABLE
543 A 3453207291 WIRE CABLE
543 A 3453200091 WIRE CABLE
543 A 3453207191 WIRE CABLE
546 A 3433250162 THRUST WASHER
549 A 3433250144 RUBBER BUFFER
552 N 000471035002 LOCK RING
555 N 001434014044 PIN
555 N 001444014214 PIN
558 N 000125015012 WASHER
561 N 000094004026 COTTER PIN
Y YYYYYYYYYYYY PART NAME MISSING
REAR SPRINGS
H 983453200008 REAR SPRING
Repalced by: A 3553200008
564 A 3553200008 REAR SPRING
564 A 3853200505 REAR SPRING
11-LEAF
564 A 3553200206 REAR SPRING
LEFT
564 A 3553200306 REAR SPRING
RIGHT
564 A 3553200306 REAR SPRING
LEFT AND RIGHT
H 983453240011 SPRING LEAF
Repalced by: A 3553240211
567 A 3553240211 SPRING LEAF
NO.1
567 A 3853202093 SPRING LEAF
NO.1,NO.2
567 A 3553240311 SPRING LEAF
LEFT
NO.1
A 3553240411 SPRING LEAF
Repalced by: A 3553240311
567 A 3553240311 SPRING LEAF
RIGHT
NO.1
567 A 3553240311 SPRING LEAF
LEFT AND RIGHT
NO.1
H 983453240012 SPRING LEAF
Repalced by: A 3553240212
570 A 3553240212 SPRING LEAF
NO.2
570 A 3553240312 SPRING LEAF
LEFT
NO.2
570 A 3553240412 SPRING LEAF
RIGHT
NO.2
570 A 3553240412 SPRING LEAF
LEFT AND RIGHT
NO.2
573 A 3553240213 SPRING LEAF
NO.3
573 A 3853240813 SPRING LEAF
NO.3
573 A 3553240313 SPRING LEAF
LEFT
NO.3
573 A 3553240413 SPRING LEAF
RIGHT
NO.3
573 A 3553240413 SPRING LEAF
LEFT AND RIGHT
NO.3
580 A 3553240214 SPRING LEAF
NO.4
580 A 3853240714 SPRING LEAF
NO.4
580 A 3553240314 SPRING LEAF
LEFT
NO.4
580 A 3553240414 SPRING LEAF
RIGHT
NO.4
580 A 3553240414 SPRING LEAF
LEFT AND RIGHT
NO.4
583 A 3553240215 SPRING LEAF
NO.5
583 A 3853240715 SPRING LEAF
NO.5
A 3553240315 SPRING LEAF
LEFT
NO.5
A 3553240415 SPRING LEAF
RIGHT
NO.5
A 3553240415 SPRING LEAF
LEFT AND RIGHT
NO.5
586 A 3553240216 SPRING LEAF
NO.6
586 A 3853240716 SPRING LEAF
NO.6
A 3553240316 SPRING LEAF
LEFT
NO.6
A 3553240416 SPRING LEAF
RIGHT
NO.6
A 3553240416 SPRING LEAF
LEFT AND RIGHT
NO.6
589 A 3553240217 SPRING LEAF
NO.7
589 A 3853240617 SPRING LEAF
NO.7
A 3553240317 SPRING LEAF
LEFT
NO.7
A 3553240417 SPRING LEAF
RIGHT
NO.7
A 3553240417 SPRING LEAF
LEFT AND RIGHT
NO.7
592 A 3553240218 SPRING LEAF
NO.8
592 A 3853240518 SPRING LEAF
NO.8
A 3553240318 SPRING LEAF
LEFT
NO.8
A 3553240418 SPRING LEAF
LEFT REAR UPPER PART
NO.8
A 3553240418 SPRING LEAF
LEFT AND RIGHT
NO.8
595 A 3553240219 SPRING LEAF
NO.9
595 A 3853240519 SPRING LEAF
NO.9
A 3553240319 SPRING LEAF
LEFT
NO.9
A 3553240419 SPRING LEAF
RIGHT
NO.9
A 3553240419 SPRING LEAF
LEFT AND RIGHT
NO.9
598 A 3553240120 SPRING LEAF
NO.10
598 A 3853240520 SPRING LEAF
NO.10
598 A 3553240220 SPRING LEAF
LEFT
NO.10
A 3553240320 SPRING LEAF
RIGHT
NO.10
A 3553240320 SPRING LEAF
LEFT AND RIGHT
NO.10
601 A 3553240121 SPRING LEAF
NO.11
601 A 3853240521 SPRING LEAF
NO.11
A 3553240221 SPRING LEAF
LEFT
NO.11
A 3553240321 SPRING LEAF
RIGHT
NO.11
A 3553240321 SPRING LEAF
LEFT AND RIGHT
NO.11
604 A 3523240371 SPRING BOLT
604 A 3553240071 SPRING BOLT
A 3523510251 SPACER RING
Repalced by: N 007349017002
607 N 007349017002 WASHER
607 N 007349017001 WASHER
SPRING BOLT
610 N 000934016003 NUT
610 N 913004016002 NUT
SPRING BOLT
613 A 3453250031 PLATE
613 A 3523250231 PLATE
613 A 6193250031 PLATE
616 A 3523510825 U-BOLT
616 A 3523510925 U-BOLT
619 A 3433250070 SPHERICAL WASHER
622 A 0019902151 NUT
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
