Transporto priemonė: L 2219,2220; VIN numerio dalis: 345412

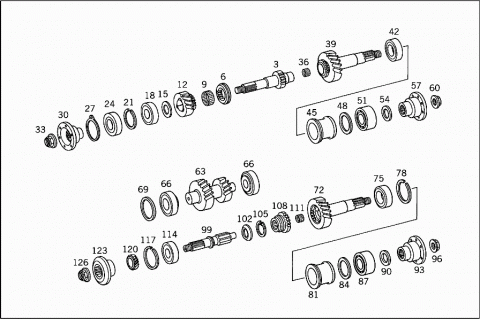

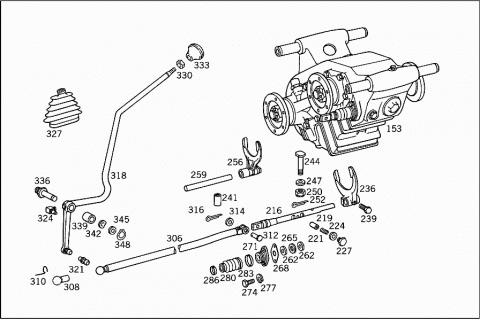

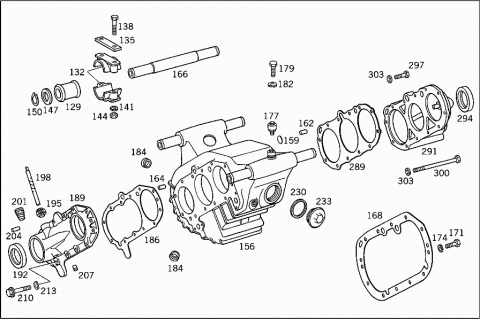

Grupė: 28 TRANSFER CASE
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3522820001 | DRIVE SHAFT |
| 006 | A 3222820123 | SHIFTING DOG |
| 009 | A 0009818912 | ROLLER ASSEMBLY |
| 012 | A 3522820011 | GEAR |
| 015 | A 3222820062 | THRUST WASHER |
| 018 | A 0019816401 | CYLINDR. ROLLER BEARING |
| 021 | N 005417090001 | SNAP RING |
| 024 | A 0009814827 | ANGULAR CONTACT BEARING |
| 027 | A 3222820262 | THRUST WASHER |
| AS REQUIRED | ||
| 3.15 MM | ||
| 027 | A 3222820362 | THRUST WASHER |
| AS REQUIRED | ||
| 3.20 MM | ||
| 027 | A 3222820462 | THRUST WASHER |
| AS REQUIRED | ||
| 3.25 MM | ||
| 027 | A 3222820562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.30 MM | ||
| 027 | A 3222820662 | THRUST WASHER |
| AS REQUIRED | ||
| 3.35 MM | ||
| 027 | A 3222820762 | THRUST WASHER |
| AS REQUIRED | ||
| 3.40 MM | ||
| 027 | A 3222820862 | THRUST WASHER |
| AS REQUIRED | ||
| 3.45 MM | ||
| 027 | A 3222820962 | THRUST WASHER |
| AS REQUIRED | ||
| 3.50 MM | ||
| 027 | A 3222821062 | THRUST WASHER |
| AS REQUIRED | ||
| 3.55 MM | ||
| 027 | A 3222821162 | THRUST WASHER |
| AS REQUIRED | ||
| 3.60 MM | ||
| 027 | A 3222821262 | THRUST WASHER |
| AS REQUIRED | ||
| 3.65 MM | ||
| 030 | A 3522820145 | COUPLING FLANGE |
| Repalced by: A 3452827045 | ||
| 030 | A 3452827045 | COUPLING FLANGE |
| DRIVE SHAFT | ||
| 033 | A 3224110072 | NUT |
| Repalced by: A 3449907050 | ||
| 033 | A 3449907050 | NUT |
| 036 | A 0009814412 | ROLLER ASSEMBLY |
| REAR AXLE I,LEFT | ||
| 036 | A 3459817112 | ROLLER ASSEMBLY |
| 039 | A 3522830106 | DRIVE SHAFT |
| REAR AXLE II | ||
| 042 | A 0019812701 | CYLINDR. ROLLER BEARING |
| 042 | A 0019810801 | CYLINDR. ROLLER BEARING |
| 045 | A 3522820053 | SPACER TUBE |
| Repalced by: A 3452830053 | ||
| 045 | H 983452830053 | SPACER TUBE |
| Repalced by: A 3452830053 | ||
| 045 | A 3452830053 | SPACER TUBE |
| 048 | A 3122831652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 048 | A 3122831352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 048 | A 3122831452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 048 | A 3122831552 | SPACER WASHER |
| Repalced by: A 4063370352 | ||
| 048 | A 4063370352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 051 | A 0009810027 | ANGULAR CONTACT BEARING |
| 054 | A 3123531951 | SPACER RING |
| 057 | A 3522820245 | COUPLING FLANGE |
| Repalced by: A 3452827045 | ||
| 057 | A 3452827045 | COUPLING FLANGE |
| REAR AXLE DRIVE | ||
| 060 | A 3224110072 | NUT |
| Repalced by: A 3449907050 | ||
| 060 | A 3449907050 | NUT |
| 063 | A 3222830102 | SHAFT |
| 066 | A 0019813705 | TAPERED ROLLER BEARING |
| 069 | A 3122831652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 069 | A 3122831352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 069 | A 3122831452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 069 | A 3122831552 | SPACER WASHER |
| Repalced by: A 4063370352 | ||
| 069 | A 4063370352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 072 | A 3222831106 | DRIVE SHAFT |
| REAR AXLE I | ||
| 075 | A 0019812701 | CYLINDR. ROLLER BEARING |
| 075 | A 0019810801 | CYLINDR. ROLLER BEARING |
| 078 | N 005417100001 | SNAP RING |
| 081 | A 3122831653 | SPACER TUBE |
| 084 | A 3122831652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 084 | A 3122831352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 084 | A 3122831452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 084 | A 3122831552 | SPACER WASHER |
| Repalced by: A 4063370352 | ||
| 084 | A 4063370352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 087 | A 0009810027 | ANGULAR CONTACT BEARING |
| 090 | A 3123531951 | SPACER RING |
| 093 | A 3522820245 | COUPLING FLANGE |
| Repalced by: A 3452827045 | ||
| 093 | A 3452827045 | COUPLING FLANGE |
| REAR AXLE DRIVE | ||
| 096 | A 3224110072 | NUT |
| Repalced by: A 3449907050 | ||
| 096 | A 3449907050 | NUT |
| 099 | A 3522830005 | DRIVE SHAFT |
| FRONT AXLE | ||
| 102 | A 3522830176 | WASHER |
| 105 | N 000471050000 | LOCK RING |
| 108 | A 3222830723 | SHIFTING DOG |
| 111 | A 0009810512 | ROLLER ASSEMBLY |
| REAR AXLE I | ||
| 114 | A 3129811325 | BALL BEARING |
| 117 | N 005417090001 | SNAP RING |
| 120 | A 3122831430 | DRIVE GEAR |
| 123 | A 3522820067 | SPACER |
| 126 | A 3224110072 | NUT |
| Repalced by: A 3449907050 | ||
| 126 | A 3449907050 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SUSPENSION | ||
| 129 | A 3222850082 | RUBBER MOUNTING |
| TRANSFER CASE TO FRAME | ||
| 132 | A 3122801386 | BEARING |
| 135 | A 3122851484 | SHIM |
| Repalced by: A 3452850084 | ||
| 135 | A 3452850084 | SHIM |
| 138 | N 000960012362 | SCREW |
| Repalced by: N 000960012335 | ||
| 138 | N 000960012335 | SCREW |
| M 12X85 | ||
| 138 | N 000960012099 | SCREW |
| M 12X95 | ||
| 141 | N 000127012201 | LOCK WASHER |
| 144 | N 000934012004 | NUT |
| 147 | A 3229901940 | WASHER |
| Repalced by: A 3129902840 | ||
| 147 | A 3129902840 | WASHER |
| 150 | A 0009947941 | LOCK |
| 150 | A 0449940041 | LOCK |
| Repalced by: A 3449947041 | ||
| 150 | A 3449947041 | LOCK |
| 153 | H 983452800001 | TRANSFER CASE |
| Repalced by: A 3452800201 | ||
| 153 | A 3452800201 | TRANSFER CASE |
| 156 | A 3522800003 | HOUSING |
| Repalced by: A 3442807003 | ||
| 156 | A 3442807003 | HOUSING |
| 159 | N 000470020000 | EXPANSION PLUG |
| 162 | N 000007010103 | CYLINDRICAL PIN |
| 164 | N 000007008116 | CYLINDRICAL PIN |
| 166 | A 3222850174 | PIN |
| 168 | A 3522810179 | GASKET |
| INTERMEDIATE FLANGE TO HOUSING | ||
| 171 | N 000961012192 | SCREW |
| INTERMEDIATE FLANGE TO HOUSING | ||
| M 12X55 | ||
| 174 | N 000125013012 | WASHER |
| INTERMEDIATE FLANGE TO HOUSING | ||
| 177 | A 1112600058 | BREATHER |
| A 1112610082 | CAP | |
| 179 | N 000933006086 | SCREW |
| 182 | N 000137006203 | SPRING WASHER |
| A 1869970032 | SCREW PLUG | |
| Repalced by: A 0009972632 | ||
| A 0009971332 | SCREW PLUG | |
| Repalced by: A 0009972632 | ||
| 184 | A 0009972632 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 184 | A 0009973432 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 186 | A 3522810580 | GASKET |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| 189 | A 3522810214 | COVER |
| REAR AXLE,FRONT | ||
| 192 | A 0039977546 | SEAL RING |
| 195 | A 3122831131 | DRIVE GEAR |
| A 3122641232 | SHAFT | |
| Repalced by: A 3142640032 | ||
| 198 | A 3142640032 | SHAFT |
| SPEEDOMETER | ||
| 201 | A 3122611131 | THREADED BUSHING |
| 204 | N 001473004016 | GROOVED PIN |
| 207 | A 1532640055 | PLUG |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| 210 | N 000933010269 | SCREW |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| M 10X32 | ||
| 210 | N 000933010269 | SCREW |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| M 10X32SK | ||
| 210 | N 000931010402 | SCREW |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| M 10X55 | ||
| 213 | N 000137010103 | SPRING WASHER |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| 216 | A 3122841020 | SHIFTING ROD |
| 219 | A 3222840148 | INTERLOCK PIN |
| DETENT | ||
| 221 | A 3229931701 | SPRING |
| DETENT | ||
| 224 | N 007603014103 | SEAL RING |
| DETENT | ||
| 227 | A 3229970330 | SCREW PLUG |
| DETENT | ||
| 230 | N 007603052300 | SEAL RING |
| 233 | N 007604052200 | SCREW PLUG |
| A 3122841301 | SHIFTING FORK | |
| Repalced by: A 3832840401 | ||
| 236 | A 3832840401 | SHIFTING FORK |
| 239 | A 3122641071 | SCREW |
| SHIFTING FORK TO SHIFTING ROD | ||
| 241 | A 3122841050 | BUSHING |
| 244 | A 3522840015 | PIVOT PIN |
| 247 | N 000125013012 | WASHER |
| 250 | N 000935012003 | NUT |
| 252 | N 000094003222 | COTTER PIN |
| 256 | A 3222840401 | SHIFTING FORK |
| BOTTOM | ||
| 259 | A 3122841021 | SHIFTING SHAFT |
| 262 | A 3122841060 | SEAL RING |
| SHIFTING ROD | ||
| 265 | A 3122841151 | SPACER RING |
| 268 | A 3122841079 | GASKET |
| 271 | A 3122841038 | FLANGE |
| 274 | N 000933006221 | SCREW |
| M 6X18 | ||
| 277 | N 000127006203 | LOCK WASHER |
| 280 | A 3122841097 | BOOT |
| 283 | A 3129940034 | SNAP RING |
| 286 | A 3129940134 | SNAP RING |
| 289 | A 3522810280 | GASKET |
| COVER TO INTERMEDIATE FLANGE | ||
| 291 | A 3522810215 | COVER |
| 294 | A 0039977546 | SEAL RING |
| 297 | N 000933010269 | SCREW |
| COVER TO INTERMEDIATE FLANGE | ||
| M 10X35 | ||
| 300 | N 000931010171 | SCREW |
| COVER TO INTERMEDIATE FLANGE | ||
| M 10X140 | ||
| 303 | N 000125010517 | WASHER |
| COVER TO INTERMEDIATE FLANGE | ||
| A 0442800056 | SHIFTING ROD | |
| Repalced by: A 3442800056 | ||
| 306 | A 3442800056 | SHIFTING ROD |
| FROM SHIFT LEVER TO TRANSFER CASE | ||
| A 0442800156 | SHIFTING ROD | |
| Repalced by: A 3442800156 | ||
| 306 | A 3442800156 | SHIFTING ROD |
| FROM SHIFT LEVER TO TRANSFER CASE | ||
| 306 | A 3452807056 | SHIFTING ROD |
| 308 | N 071805016202 | BALL SOCKET |
| SHIFTING ROD TO TRANSFER CASE | ||
| 310 | N 071805016402 | CIRCLIP |
| SHIFTING ROD TO TRANSFER CASE | ||
| 312 | N 001434010009 | PIN |
| 314 | N 000125010517 | WASHER |
| 316 | N 000094003026 | COTTER PIN |
| A 0442800345 | SHIFT LEVER | |
| Repalced by: A 3442807245 | ||
| A 3442807045 | SHIFT LEVER | |
| Repalced by: A 3442807245 | ||
| 318 | A 3442807245 | SHIFT LEVER |
| A 0449910015 | BALL PIVOT | |
| Repalced by: A 3449917020 | ||
| 321 | A 3449917020 | BALL PIVOT |
| 324 | N 071412008300 | GREASE NIPPLE |
| 324 | A 3459977288 | GREASE NIPPLE |
| A 0442840096 | PART NAME MISSING | |
| Repalced by: A 3442647096 | ||
| 327 | A 3442647096 | BOOT |
| 330 | N 000936010007 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 333 | A 3122802246 | KNOB |
| A 0442800046 | KNOB | |
| Repalced by: A 3442807046 | ||
| 333 | A 3442807046 | KNOB |
| 336 | A 3212640174 | PIN |
| SHIFT LEVER TO TRANSMISSION | ||
| 339 | A 3212640153 | SPACER TUBE |
| SHIFT LEVER TO TRANSMISSION | ||
| 342 | A 3129900148 | WASHER |
| SHIFT LEVER TO TRANSMISSION | ||
| 345 | N 000125015012 | WASHER |
| SHIFT LEVER TO TRANSMISSION | ||
| 348 | N 000471015000 | LOCK RING |
| SHIFT LEVER TO TRANSMISSION | ||
