Transporto priemonė: L 312; VIN numerio dalis: 312056
Grupė: 30 CONTROL

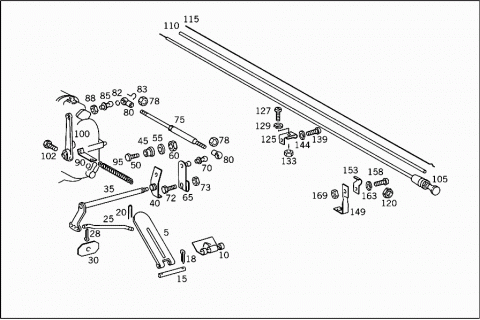

27856
# Kodas Pavadinimas
005 A 3123001102 PLATE
010 A 3123011006 ARTICULATION PIECE
015 A 3123011009 PIN
018 N 000094002051 COTTER PIN
020 A 3033010007 SAFETY PIN
025 A 3123011215 ROD
028 N 000094003026 COTTER PIN
030 H 513126160075 SEAL
035 A 3123001120 SHAFT
040 A 3123001328 LEVER
045 A 1360720050 BUSHING
050 A 1360720071 SCREW
055 N 000125004300 WASHER
060 N 000934004000 NUT
065 A 3123001125 LEVER
Repalced by: A 3523000325
065 A 3523000325 LEVER
070 N 071803010200 BALL PIVOT
072 N 000931006118 SCREW
LEVER TO SHAFT
073 N 000934006007 NUT
LEVER TO SHAFT
075 A 3123011115 ROD
Repalced by: N 900331006024
075 N 900331006024 PULL ROD
078 N 000934006007 NUT
080 N 071805010200 BALL SOCKET
082 N 071805010302 SNAP RING
083 N 071805010403 SECURING CLIP
085 N 071803010101 BALL PIVOT
Repalced by: N 071803010102
085 N 071803010102 BALL PIVOT
088 N 000934006007 NUT
A 3123011040 BRACKET
Repalced by: A 3523010040
090 A 3523010040 BRACKET
095 A 3229930310 SPRING
100 A 0000740727 LEVER
102 N 000931006121 SCREW
105 A 3123001108 MANUAL CONTROL
110 A 3123021006 TUBE
115 A 3123021005 WIRE
120 A 3129901151 NUT
120 A 3413007407 KNOB
125 A 3129951601 CLAMP
127 N 000084005104 SCREW
CLAMP TO WIRE
129 N 000127005206 LOCK WASHER
CLAMP TO WIRE
133 N 000934005000 NUT
CLAMP TO WIRE
139 N 000084006104 SCREW
CLAMP TO CYLINDER BLOCK
144 N 000127006206 LOCK WASHER
CLAMP TO CYLINDER BLOCK
149 A 3123021140 BRACKET
153 N 072571001026 CLAMP
158 N 000085004127 SCREW
163 N 912004004102 LOCK WASHER
CLAMP TO BRACKET
169 N 000934004004 NUT
CLAMP TO BRACKET
