Transporto priemonė: L 312; VIN numerio dalis: 312056
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

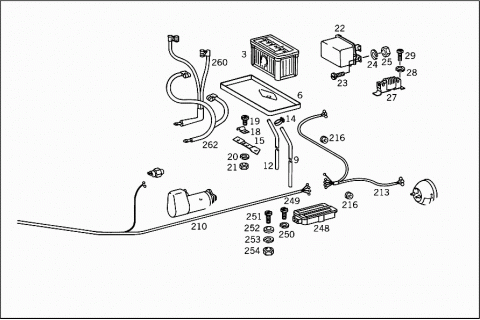

| 003 | A 0005411301 | BATTERY |
| A 0005412301 | BATTERY | |
| A 0005412401 | BATTERY | |
| A 0005413301 | BATTERY | |
| 006 | A 3125400002 | TRAY |
| 009 | A 0005410082 | HOSE |
| LEFT | ||
| 012 | A 0005410182 | HOSE |
| RIGHT | ||
| 014 | N 900264005000 | LOOM TIE |
| 015 | A 3124761735 | BRACKET |
| 018 | N 072571001012 | CLAMP |
| 019 | N 000084005180 | SCREW |
| CLAMP TO BRACKET | ||
| 020 | N 000127005203 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 021 | N 000934005004 | NUT |
| CLAMP TO BRACKET | ||
| 022 | A 0011544406 | REGULATOR AND CUT-OUT |
| 023 | N 000084005180 | SCREW |
| GENERATOR REGULATOR TO FIRE WALL | ||
| 024 | N 000127005203 | LOCK WASHER |
| GENERATOR REGULATOR TO FIRE WALL | ||
| 025 | N 000934005004 | NUT |
| GENERATOR REGULATOR TO FIRE WALL | ||
| 026 | A 0005452318 | RESISTOR |
| A 0005451221 | INCANDESCENT SPIRAL | |
| 027 | A 0005453318 | RESISTOR |
| 028 | N 000127006206 | LOCK WASHER |
| RESISTOR TO FIRE WALL | ||
| 029 | N 000084006104 | SCREW |
| RESISTOR TO FIRE WALL | ||
| 030 | A 3215450301 | FUSE BOX |
| 10-POLE | ||
| 031 | N 000085004000 | SCREW |
| 032 | N 006798004200 | SERRATED WASHER |
| 033 | N 072581008100 | FUSE |
| 035 | N 000084005180 | SCREW |
| BRACKET TO FIRE WALL | ||
| 036 | N 912004005100 | LOCK WASHER |
| BRACKET TO FIRE WALL | ||
| 039 | A 0005451212 | SWITCH |
| 042 | A 3125451076 | WASHER |
| 045 | A 3125451176 | WASHER |
| 048 | A 3129951620 | CLAMP |
| N 000091005117 | SCREW | |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| N 000127005200 | LOCK WASHER | |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| N 000934005000 | NUT | |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| A 0015420720 | HORN | |
| Repalced by: A 0015428020 | ||
| A 0015427220 | HORN | |
| Repalced by: A 0015428020 | ||
| 052 | A 0015428020 | HORN |
| A 0005427320 | HORN | |
| Repalced by: A 0005428320 | ||
| 054 | A 0005428320 | HORN |
| A 0415420420 | HORN | |
| Repalced by: A 3415420020 | ||
| A 3415420020 | HORN | |
| Repalced by: A 3415427120 | ||
| A 3415427120 | HORN | |
| A 0415420520 | HORN | |
| 056 | N 000931010018 | SCREW |
| HORN TO ENGINE CROSS MEMBER | ||
| 057 | A 3129912840 | SPACER TUBE |
| HORN TO ENGINE CROSS MEMBER | ||
| 058 | N 000127010202 | LOCK WASHER |
| HORN TO ENGINE CROSS MEMBER | ||
| 059 | N 000934010005 | NUT |
| HORN TO ENGINE CROSS MEMBER | ||

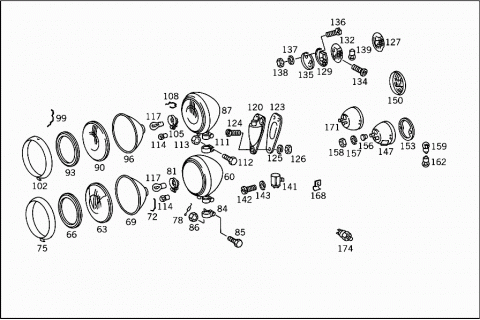

| 060 | A 0005445101 | HEADLAMP |
| 063 | A 0005442590 | LENS |
| 066 | A 0005442180 | GASKET |
| 069 | A 0005441292 | REFLECTOR |
| 072 | A 0008261784 | SPRING |
| 075 | A 0005442389 | RIM |
| 078 | A 0005441491 | RETAINING SPRING |
| 081 | A 0005441493 | LAMP SOCKET |
| 084 | A 0005440338 | BRACKET |
| 085 | N 000931010282 | SCREW |
| 086 | N 000934010000 | NUT |
| 087 | A 0005444601 | HEADLAMP |
| 090 | A 0005440190 | LENS |
| 093 | A 0008262080 | SEAL |
| 096 | A 0005441592 | REFLECTOR |
| 099 | A 0005441591 | RETAINING SPRING |
| 102 | A 0005443589 | RIM |
| 105 | A 0005441693 | LAMP SOCKET |
| 108 | A 0008261984 | SPRING |
| 111 | A 0005440538 | BRACKET |
| 112 | N 000931010040 | SCREW |
| 113 | N 000934010000 | NUT |
| 114 | N 072601012701 | BULB |
| 117 | N 072601012200 | BULB |
| 120 | A 3125401171 | HEADLAMP STAY |
| 123 | A 3125441124 | RUBBER PAD |
| 124 | N 000091008125 | SCREW |
| HEADLAMP TO BODY | ||
| 125 | N 000127008203 | LOCK WASHER |
| HEADLAMP TO BODY | ||
| 126 | N 000934008010 | NUT |
| HEADLAMP TO BODY | ||
| 127 | A 1205400095 | BLINKER LAMP |
| LEFT | ||
| A 1205400195 | BLINKER LAMP | |
| RIGHT | ||
| 129 | A 1205440031 | LIGHT RANGE REGULATOR |
| 132 | A 1205440095 | SHELL |
| A 1205440195 | SHELL | |
| 134 | N 007988004103 | SCREW |
| 135 | A 1208220025 | PAD |
| 136 | N 000088006103 | SCREW |
| BLINKER LAMP TO FENDER | ||
| 137 | N 000127006206 | LOCK WASHER |
| BLINKER LAMP TO FENDER | ||
| 138 | N 000934006007 | NUT |
| BLINKER LAMP TO FENDER | ||
| 139 | A 0005441394 | BULB |
| 141 | A 0005448232 | SENDER UNIT |
| A 0005447732 | SENDER UNIT | |
| 142 | N 000084005104 | SCREW |
| 143 | N 000127005206 | LOCK WASHER |
| A 0005442803 | TAIL LAMP | |
| Repalced by: A 0415440003 | ||
| A 9905440003 | TAIL LAMP | |
| Repalced by: A 0415440003 | ||
| 147 | A 0415440003 | TAIL LAMP |
| Repalced by: A 3415447003 | ||
| 147 | A 3415447003 | TAIL LAMP |
| WITH LICENSE PLATE LAMP | ||
| A 0125440203 | TAIL LAMP | |
| 150 | A 0415440089 | RIM |
| 153 | A 0415440080 | GASKET |
| 156 | A 0419970081 | GROMMET |
| 157 | N 912004006102 | LOCK WASHER |
| 158 | N 000934006007 | NUT |
| 159 | A 0005441394 | BULB |
| 162 | N 072601012701 | BULB |
| 168 | A 3129951320 | CLAMP |
| A 0005442903 | TAIL LAMP | |
| Repalced by: A 0415440103 | ||
| A 9905440103 | TAIL LAMP | |
| Repalced by: A 0415440103 | ||
| 171 | A 0415440103 | TAIL LAMP |
| Repalced by: A 3415447103 | ||
| 171 | A 3415447103 | TAIL LAMP |
| RIGHT | ||
| A 0125440303 | TAIL LAMP | |
| Repalced by: A 0415440303 | ||
| A 0415440303 | TAIL LAMP | |
| A 0415440089 | RIM | |
| A 0415440080 | GASKET | |
| A 0419970081 | GROMMET | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| A 0005441394 | BULB | |
| N 072601012701 | BULB | |

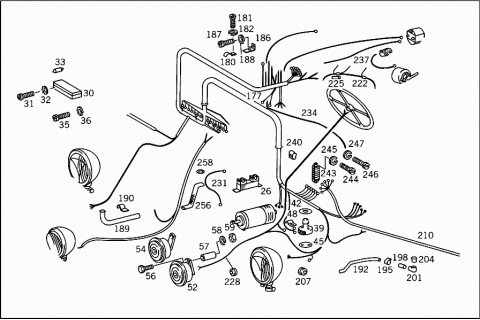

| 174 | A 0005452209 | SWITCH |
| A 9905404505 | CABLE HARNESS | |
| Repalced by: A 0415400105 | ||
| 177 | A 0415400105 | CABLE HARNESS |
| Repalced by: A 0415400405 | ||
| 177 | A 0415400405 | CABLE HARNESS |
| 180 | A 1369950135 | CLAMP |
| 181 | N 000084005106 | SCREW |
| CLAMP TO FIRE WALL | ||
| 182 | N 000127005206 | LOCK WASHER |
| CLAMP TO FIRE WALL | ||
| N 000084006110 | SCREW | |
| CLAMP TO BRACKET | ||
| N 000127006206 | LOCK WASHER | |
| CLAMP TO BRACKET | ||
| N 000934006007 | NUT | |
| CLAMP TO BRACKET | ||
| 186 | A 3125461543 | BRACKET |
| 187 | N 000084005106 | SCREW |
| BRACKET TO FIRE WALL | ||
| 188 | N 000127005202 | LOCK WASHER |
| BRACKET TO FIRE WALL | ||
| 189 | A 3125461385 | PROTECTIVE TUBE |
| 190 | A 3129952220 | CLAMP |
| 192 | A 3125462085 | PROTECTIVE TUBE |
| 195 | A 3129952801 | CLAMP |
| 198 | A 0009970532 | SCREW PLUG |
| 201 | A 3125461368 | PART NAME MISSING |
| 204 | N 007340010100 | RIVET |
| 207 | A 0009972681 | GROMMET |
| 210 | A 3125406837 | ELECTRIC CABLE |
| A 3125406737 | ELECTRIC CABLE | |
| A 3125407137 | ELECTRIC CABLE | |
| 213 | A 3125404107 | CABLE HARNESS |
| 216 | A 3129970481 | GROMMET |
| A 3129951040 | CLAMP | |
| Repalced by: A 3415467175 | ||
| A 3415467175 | CLAMP | |
| A 0005460875 | CLAMP | |
| A 3129952520 | CLAMP | |
| 222 | A 3125402038 | ELECTRIC CABLE |
| 225 | A 0009970181 | GROMMET |
| 228 | A 0009973481 | GROMMET |
| 231 | A 3125401940 | BRACKET |
| A 3125404739 | ELECTRIC CABLE | |
| Repalced by: A 0415400039 | ||
| 234 | A 0415400039 | ELECTRIC CABLE |
| 237 | A 3125402040 | BRACKET |
| 240 | A 0005460042 | CABLE CONNECTOR |
| 243 | A 0005463241 | CABLE CONNECTOR |
| 8-POLE | ||
| 244 | N 000084004000 | SCREW |
| 245 | N 000127004206 | LOCK WASHER |
| 246 | A 0009903320 | SCREW |
| 247 | N 000127004206 | LOCK WASHER |
| 248 | A 0005466141 | CABLE CONNECTOR |
| Repalced by: A 0005461741 | ||
| 248 | A 0005461741 | CABLE CONNECTOR |
| A 0005460781 | COVERING | |
| WITH GASKET | ||
| TO 000 546 61 41 | ||
| 249 | N 000085004104 | SCREW |
| 250 | N 000127004206 | LOCK WASHER |
| 251 | N 000084004120 | SCREW |
| 252 | N 009021004100 | WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 253 | N 000127004206 | LOCK WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 254 | N 000934004000 | NUT |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 256 | A 3125461020 | GROUND STRAP |
| 258 | N 000125013000 | WASHER |
| 260 | A 3125402230 | POSITIVE CABLE |
| 262 | A 3125401031 | NEG. CABLE |

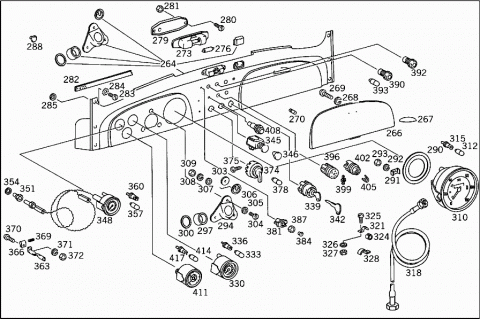

| 264 | H 513126801490 | INSTRUMENT PANEL |
| 266 | H 513126800082 | FLAP |
| 267 | A 0006890570 | HANDLE |
| 268 | N 000127003206 | LOCK WASHER |
| 269 | N 000084003101 | SCREW |
| 270 | A 0009870240 | RUBBER BUFFER |
| 273 | A 0008200052 | READING LAMP |
| 276 | N 072601012130 | BULB |
| 279 | A 0008250097 | PAD |
| 280 | N 000964004012 | SCREW |
| 281 | N 000934004000 | NUT |
| 282 | A 0009830710 | STRIP |
| 283 | N 000085006102 | SCREW |
| 284 | N 006797006140 | TOOTHED WASHER |
| 285 | N 009021006100 | WASHER |
| N 000096005016 | WOOD SCREW | |
| N 900056006300 | COUNTERSUNK WASHER | |
| N 000095005009 | WOOD SCREW | |
| 288 | A 0129870140 | RUBBER BUFFER |
| A 0129870040 | RUBBER BUFFER | |
| 290 | A 3125101090 | LOCKING CAP |
| 291 | A 3125131091 | BRACKET |
| 292 | N 000127005206 | LOCK WASHER |
| 293 | N 000934005000 | NUT |
| 294 | H 813218900110 | FIXTURE |
| 297 | H 813218940098 | SEAL |
| 300 | H 813218940099 | RING |
| 303 | H 813218940013 | WASHER |
| 304 | N 000091006131 | SCREW |
| 305 | N 900056006301 | COUNTERSUNK WASHER |
| 306 | H 513128900093 | SHIM |
| 307 | N 000125006421 | WASHER |
| 308 | N 000127006206 | LOCK WASHER |
| 309 | N 000934006007 | NUT |
| 310 | A 0005424206 | SPEEDOMETER |
| A 0005426406 | SPEEDOMETER | |
| 312 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 312 | A 3785440094 | BULB |
| 315 | A 0005450719 | SOCKET |
| 318 | A 0015425007 | FLEXIBLE SHAFT |
| 1500 MM | ||
| 321 | A 1819950020 | CLAMP |
| 324 | A 3129972982 | HOSE |
| 325 | N 000084005106 | SCREW |
| CLAMP TO FIRE WALL | ||
| 326 | N 000127005206 | LOCK WASHER |
| CLAMP TO FIRE WALL | ||
| 327 | N 000934005000 | NUT |
| CLAMP TO FIRE WALL | ||
| 328 | A 3129952420 | CLAMP |
| 330 | A 0005421002 | OIL PRESSURE GAUGE |
| Repalced by: A 0005420602 | ||
| A 0005420902 | OIL PRESSURE GAUGE | |
| Repalced by: A 0005420602 | ||
| A 0005428802 | OIL PRESSURE GAUGE | |
| Repalced by: A 0005420602 | ||
| A 0005429302 | OIL PRESSURE GAUGE | |
| Repalced by: A 0005420602 | ||
| 330 | A 0005420602 | OIL PRESSURE GAUGE |
| 333 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 333 | A 3785440094 | BULB |
| 336 | A 0005450719 | SOCKET |
| 339 | A 0005451213 | SWITCH BOX |
| A 0005450635 | KEY | |
| Repalced by: A 0005451235 | ||
| 342 | A 0005451235 | KEY |
| 345 | A 0005451417 | SWITCH |
| A 0005451817 | SWITCH | |
| 346 | A 0005451137 | BUTTON |
| 348 | A 0005423205 | TEMPERATURE GAUGE |
| Repalced by: A 0035422705 | ||
| 348 | A 0015423505 | TEMPERATURE GAUGE |
| Repalced by: A 0035422705 | ||
| 348 | A 0015429505 | TEMPERATURE GAUGE |
| Repalced by: A 0035422705 | ||
| 348 | A 0125420105 | TEMPERATURE GAUGE |
| Repalced by: A 0035422705 | ||
| 348 | A 0035422705 | TEMPERATURE GAUGE |
| 351 | A 0005420084 | PROTECTIVE SLEEVE |
| AS REQUIRED | ||
| A 0125420084 | PROTECTIVE SLEEVE | |
| AS REQUIRED | ||
| 354 | N 007603014402 | SEAL RING |
| 357 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 357 | A 3785440094 | BULB |
| 360 | A 0005450719 | SOCKET |
| 363 | A 3125421040 | BRACKET |
| N 040621014200 | INSULATING HOSE | |
| 366 | A 3129952801 | CLAMP |
| 369 | A 3129973282 | HOSE |
| 370 | N 000084005177 | SCREW |
| 371 | N 000127005206 | LOCK WASHER |
| 372 | N 000934005000 | NUT |
| A 3129973282 | HOSE | |
| 374 | A 0005452324 | SWITCH,AUTOMATIC |
| 375 | N 000085004100 | SCREW |
| A 0005451010 | SWITCH | |
| N 000084004105 | SCREW | |
| N 000127004205 | LOCK WASHER | |
| 378 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 378 | A 3785440094 | BULB |
| 381 | A 0005455111 | SWITCH |
| 384 | A 0005450537 | BUTTON |
| Repalced by: A 0005450837 | ||
| 384 | A 0005450837 | BUTTON |
| 387 | A 0005450272 | NUT |
| 390 | A 0005453115 | TELL-TALE LAMP |
| ALTERNATOR | ||
| 390 | A 0005453115 | TELL-TALE LAMP |
| TRAILER BLINKER | ||
| 392 | A 0005453215 | TELL-TALE LAMP |
| 393 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 393 | A 3785440094 | BULB |
| ALTERNATOR | ||
| 393 | A 3785440094 | BULB |
| LOW BEAM | ||
| 393 | A 3785440094 | BULB |
| TRAILER BLINKER | ||
| 396 | A 0005451120 | HEATER PLUG CONTROL |
| 399 | A 0005450721 | INCANDESCENT SPIRAL |
| 402 | A 0005451820 | HEATER PLUG CONTROL |
| 405 | A 0005450621 | INCANDESCENT SPIRAL |
| 408 | A 0005450525 | PLUG SOCKET |
| 411 | A 0005421408 | AIR PRESSURE GAUGE |
| A 0005425108 | AIR PRESSURE GAUGE | |
| 414 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 414 | A 3785440094 | BULB |
| 417 | A 0005450719 | SOCKET |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
