Transporto priemonė: L 312; VIN numerio dalis: 312056

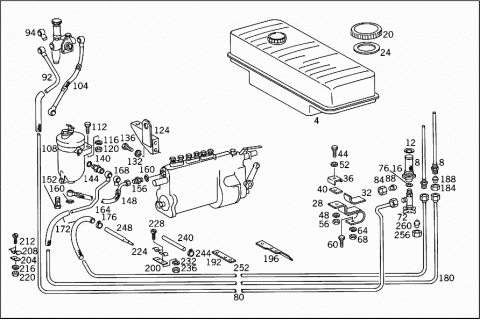

Grupė: 47 FUEL SYSTEM
56517
# Kodas Pavadinimas
004 A 3124701201 FUEL TANK
92 L
008 A 3124701026 RISING PIPE
012 N 007603035301 SEAL RING
016 A 3124701106 FUEL STRAINER
020 A 3124701205 FILLER CAP
024 A 1369970640 SEAL RING
028 A 3124701481 BRACKET
032 A 3124751090 SHIM
036 A 9904750130 LEDGE
040 A 9904751484 SHIM
044 N 000931010018 SCREW
048 N 000127010205 LOCK WASHER
052 N 009021010100 WASHER
056 N 000934010000 NUT
060 N 000933008048 SCREW
BRACKET TO SIDE MEMBER
064 N 912004008104 LOCK WASHER
BRACKET TO SIDE MEMBER
068 N 000934008000 NUT
BRACKET TO SIDE MEMBER
072 N 900121008200 VALVE
076 N 007603016300 SEAL RING
080 A 3124701064 LINE
084 N 915017010203 UNION NUT
088 N 915003008204 SEAL CONE
092 A 3124701071 LINE
094 N 915010008203 BANJO UNION
A 3120701232 LINE
Repalced by: A 3210701232
A 3120700932 LINE
Repalced by: A 3210701232
104 A 3210701232 LINE
108 A 0004774601 FUEL FILTER
112 N 000933012018 SCREW
FUEL FILTER TO BRACKET
116 N 000127012203 LOCK WASHER
FUEL FILTER TO BRACKET
120 N 000934012021 NUT
FUEL FILTER TO BRACKET
124 A 3124701381 BRACKET
A 3520920042 REINFORCEMENT
132 N 000127010205 LOCK WASHER
BRACKET TO ENGINE
136 N 000933010011 SCREW
BRACKET TO ENGINE
140 N 007603014405 SEAL RING
144 A 0004770229 VALVE
A 0004770329 VALVE
A 3210700432 LINE
Repalced by: A 0210700032
148 A 0210700032 LINE
Repalced by: A 3210701032
148 A 3210701032 LINE
152 N 915036010100 HOLLOW SCREW
156 N 007611006000 DOUBLE FITTING
TO 321 070 04 32
160 N 007603014405 SEAL RING
164 A 3124701472 LINE
168 N 915010008203 BANJO UNION
172 A 3124760026 HOSE
176 N 600264005000 PART NAME MISSING
N 900262005000 LOOM TIE
N 900263005000 STRAP
180 A 3124701070 LINE
184 N 915017010203 UNION NUT
188 N 915003008204 SEAL CONE
192 A 3124761535 BRACKET
196 A 3124761735 BRACKET
200 A 3124761236 BRACKET
065 MM
204 A 3124761036 BRACKET
Repalced by: A 3124761236
208 A 3179950832 CLAMP
212 N 000084006114 SCREW
216 N 000127006206 LOCK WASHER
220 N 000934006007 NUT
224 A 3129950232 CLAMP
228 N 000084006114 SCREW
232 N 000127006206 LOCK WASHER
236 N 000934006007 NUT
240 A 3125821083 PART NAME MISSING
244 N 600264005001 PART NAME MISSING
N 900262005000 LOOM TIE
N 900263005000 STRAP
248 A 3124701670 LINE
252 A 3124701370 LINE
256 N 915017010203 UNION NUT
260 N 915003008204 SEAL CONE
