Transporto priemonė: L 312; VIN numerio dalis: 312056

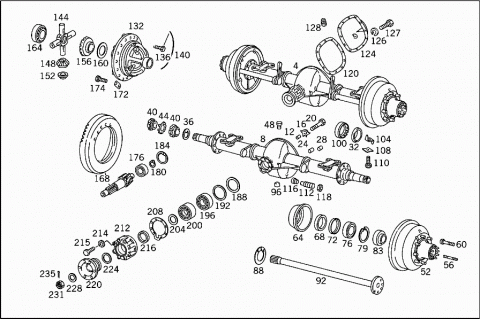

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3123507000 | REAR AXLE | |
| Repalced by: A 3123507600 | ||
| 004 | A 3123507600 | REAR AXLE |
| RATIO: | ||
| 6:41 | ||
| A 3123508400 | REAR AXLE | |
| RATIO: | ||
| 6:41 | ||
| A 3123509500 | REAR AXLE | |
| RATIO: | ||
| 6:41 | ||
| A 3123509500 | REAR AXLE | |
| RATIO: | ||
| 6:41 | ||
| A 3123507200 | REAR AXLE | |
| RATIO 7:40 | ||
| 008 | A 3123503620 | AXLE HOUSING |
| 012 | N 000007006221 | CYLINDRICAL PIN |
| 016 | A 3129941009 | LOCK |
| 020 | A 3129902201 | SCREW |
| Repalced by: N 914126016004 | ||
| 020 | N 914126016004 | SCREW |
| COVER TO REAR AXLE HOUSING | ||
| A 3419907004 | SCREW | |
| COVER TO REAR AXLE HOUSING | ||
| 024 | A 3123511074 | PIN |
| 028 | A 3129971002 | PLUG |
| 032 | A 3123571082 | OIL COLLECTOR |
| Repalced by: A 3853570082 | ||
| 032 | A 3853570082 | OIL COLLECTOR |
| Repalced by: A 3023570282 | ||
| 032 | A 3023570282 | OIL COLLECTOR |
| N 071412010100 | GREASE NIPPLE | |
| 036 | A 3123571052 | SPACER WASHER |
| 040 | A 3123571026 | GROOVED NUT |
| 044 | A 3123571073 | LOCK |
| 048 | A 3123501090 | VALVE |
| 052 | A 3123503047 | DRUM HUB |
| 056 | A 3129901605 | STUD |
| Repalced by: A 3129902105 | ||
| 056 | A 3129902105 | STUD |
| 060 | A 3124021071 | WHEEL MOUNTING BOLT |
| 064 | A 3123561082 | OIL COLLECTOR |
| 068 | A 0009976747 | SEAL RING |
| 072 | A 3123561151 | SPACER RING |
| A 3129810001 | CYLINDR. ROLLER BEARING | |
| Repalced by: A 0009819305 | ||
| 076 | A 0019818105 | TAPERED ROLLER BEARING |
| A 0019818005 | TAPERED ROLLER BEARING | |
| A 0009819305 | TAPERED ROLLER BEARING | |
| 079 | N 000472110000 | LOCK RING |
| A 3129810101 | CYLINDR. ROLLER BEARING | |
| Repalced by: A 0019817905 | ||
| 083 | A 0019818205 | TAPERED ROLLER BEARING |
| A 0019817905 | TAPERED ROLLER BEARING | |
| A 0019812405 | TAPERED ROLLER BEARING | |
| 088 | A 3123561079 | GASKET |
| 092 | A 3123573001 | REAR AXLE SHAFT |
| A 3123573501 | REAR AXLE SHAFT | |
| N 000934012004 | NUT | |
| A 0009970506 | PLUG | |
| Repalced by: A 1869970032 | ||
| 096 | A 1869970032 | SCREW PLUG |
| 100 | A 3123531125 | SCREW COLLAR |
| Repalced by: A 3403350025 | ||
| 100 | A 3403350025 | ADJUSTING NUT |
| 104 | A 3123531173 | LOCK |
| 108 | A 3129941201 | LOCK |
| 110 | N 000933008014 | SCREW |
| 112 | A 3123531076 | SET SCREW |
| 116 | A 3123531049 | SLIDE |
| 118 | N 000936022000 | NUT |
| 120 | A 3123511080 | GASKET |
| 124 | A 3123501521 | COVER |
| 126 | N 000127010205 | LOCK WASHER |
| 127 | N 000933010011 | SCREW |
| A 0009970506 | PLUG | |
| Repalced by: A 1869970032 | ||
| 128 | A 1869970032 | SCREW PLUG |
| A 3123501224 | WHEEL HUB DRIVE | |
| Repalced by: A 9903500024 | ||
| A 9903500024 | WHEEL HUB DRIVE | |
| Repalced by: A 3233500423 | ||
| 132 | A 3233500423 | DIFFERENTIAL GEAR |
| Repalced by: A 3803500623 | ||
| 132 | A 3803500623 | DIFFERENTIAL GEAR |
| A 3123501527 | DIFFERENTIAL CASE | |
| Repalced by: A 3233300027 | ||
| A 3233300027 | DIFFERENTIAL CASE | |
| Repalced by: A 3803300027 | ||
| A 3803300027 | DIFFERENTIAL CASE | |
| N 000960012054 | SCREW | |
| 136 | N 900170014004 | SCREW |
| 140 | N 000177010000 | WIRE |
| A 3123531120 | DIFFERENTIAL SPIDER | |
| Repalced by: A 3213530020 | ||
| 144 | A 3213530020 | DIFFERENTIAL SPIDER |
| A 3123531414 | DIFFERENTIAL PINION | |
| Repalced by: A 9903531414 | ||
| 148 | A 9903531414 | DIFFERENTIAL PINION |
| 152 | A 3123531224 | SPHERICAL WASHER |
| 156 | A 3123531015 | SIDE GEAR |
| A 3123531162 | THRUST WASHER | |
| Repalced by: A 3123531062 | ||
| A 3123531262 | THRUST WASHER | |
| Repalced by: A 3123531062 | ||
| A 3123531362 | THRUST WASHER | |
| Repalced by: A 3123531062 | ||
| A 3123531462 | THRUST WASHER | |
| Repalced by: A 3123531062 | ||
| A 3123531562 | THRUST WASHER | |
| Repalced by: A 3123531062 | ||
| A 3123531662 | THRUST WASHER | |
| Repalced by: A 3123531062 | ||
| 160 | A 3123531062 | THRUST WASHER |
| 164 | A 0019818205 | TAPERED ROLLER BEARING |
| A 0019817905 | TAPERED ROLLER BEARING | |
| A 0019812405 | TAPERED ROLLER BEARING | |
| A 3123501739 | RING GEAR AND PINION | |
| Repalced by: A 3233500439 | ||
| A 3233500439 | RING GEAR AND PINION | |
| Repalced by: A 3233501139 | ||
| 168 | A 3233501139 | RING GEAR AND PINION |
| Repalced by: A 3833300439 | ||
| 168 | A 3833300439 | RING GEAR AND PINION |
| A 3123501439 | RING GEAR AND PINION | |
| Repalced by: A 3233500339 | ||
| A 3233500339 | RING GEAR AND PINION | |
| Repalced by: A 3233501439 | ||
| A 3233501439 | RING GEAR AND PINION | |
| 172 | A 3129941032 | LOCK |
| 174 | A 3129901001 | SCREW |
| A 3129810601 | CYLINDR. ROLLER BEARING | |
| Repalced by: A 0009819001 | ||
| 176 | A 0009819001 | CYLINDR. ROLLER BEARING |
| A 0009818701 | CYLINDR. ROLLER BEARING | |
| 180 | N 000471025000 | LOCK RING |
| 184 | A 3129940141 | LOCK |
| 188 | A 3123533052 | SPACER WASHER |
| AS REQUIRED | ||
| 1 MM | ||
| 192 | A 3123531352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 3123531452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.25 MM | ||
| A 3123533252 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| 196 | N 005412000504 | CYLINDR. ROLLER BEARING |
| 200 | A 0009810027 | ANGULAR CONTACT BEARING |
| 204 | A 3123531951 | SPACER RING |
| 208 | A 3123532852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 3123532952 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.25 MM | ||
| A 3123533152 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.50 MM | ||
| 212 | A 3123511515 | FLANGE |
| Repalced by: A 3123511915 | ||
| 212 | A 3123511915 | FLANGE |
| 214 | N 000127010205 | LOCK WASHER |
| 215 | N 000931010080 | SCREW |
| 216 | A 0009976647 | SEAL RING |
| Repalced by: A 0019973247 | ||
| 216 | A 0019973247 | SEAL RING |
| A 0419970047 | SEAL RING | |
| 220 | A 3123501245 | FLANGE |
| 224 | A 3122621063 | PROTECTIVE PLATE |
| 228 | A 3129901740 | WASHER |
| Repalced by: A 3243530072 | ||
| 228 | A 3243530072 | NUT |
| A 3853510372 | NUT | |
| 231 | N 000937028000 | NUT |
| 235 | N 000094005040 | COTTER PIN |
