Transporto priemonė: L 312; VIN numerio dalis: 312056

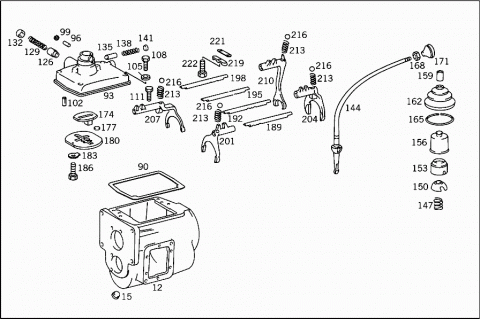

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3122605000 | TRANSMISSION | |
| Repalced by: A 3412600600 | ||
| A 3122607000 | TRANSMISSION | |
| Repalced by: A 3412600600 | ||
| 003 | A 3412600600 | TRANSMISSION |
| WITH SHIFT LEVER | ||
| A 0412600000 | TRANSMISSION | |
| LESS SHIFT LEVER | ||
| 006 | N 000127014203 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 009 | N 000933014004 | SCREW |
| BELL HOUSING TO TRANSMISSION CASE | ||
| A 3122611601 | TRANSMISSION CASE | |
| Repalced by: A 3412610001 | ||
| 012 | A 3412610001 | TRANSMISSION CASE |
| A 0009970506 | PLUG | |
| Repalced by: A 1869970032 | ||
| 015 | A 1869970032 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 018 | A 3122611079 | GASKET |
| Repalced by: A 3142610580 | ||
| 018 | A 3142610580 | GASKET |
| Repalced by: A 3142611680 | ||
| 018 | A 3142611680 | GASKET |
| BETWEEN COVER AND TRANSMISSION | ||
| 021 | A 3122611633 | COVER |
| FRONT | ||
| 024 | N 912004008104 | LOCK WASHER |
| COVER TO TRANSMISSION | ||
| 027 | N 000933008036 | SCREW |
| COVER TO TRANSMISSION | ||
| 030 | N 000933008048 | SCREW |
| COVER TO TRANSMISSION | ||
| 033 | A 3122612179 | GASKET |
| Repalced by: A 3122611180 | ||
| 033 | A 3122611180 | GASKET |
| BETWEEN CASE COVER AND TRANSMISSION | ||
| 036 | A 3122611918 | TRANSMISSION CASE COVER |
| TOP | ||
| 039 | N 912004008104 | LOCK WASHER |
| CASE COVER TO TRANSMISSION | ||
| 042 | N 000931008085 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 045 | A 3122625362 | THRUST WASHER |
| AS REQUIRED | ||
| 2.85 MM | ||
| A 3122625462 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.9 MM | ||
| A 3122625562 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.95 MM | ||
| A 3122623462 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.0 MM | ||
| A 3122624362 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.05 MM | ||
| A 3122624462 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.1 MM | ||
| A 3122623562 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.15 MM | ||
| A 3122623662 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.2 MM | ||
| A 3122623762 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.25 MM | ||
| A 3122623862 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.3 MM | ||
| A 3122624662 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.35 MM | ||
| A 3122624762 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.4 MM | ||
| A 3122624862 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.45 MM | ||
| A 3122624962 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.5 MM | ||
| A 3122625062 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.55 MM | ||
| A 3122625162 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.60 MM | ||
| A 3122501315 | RELEASE BEARING | |
| Repalced by: A 3222500215 | ||
| 048 | A 3222500215 | RELEASE BEARING |
| Repalced by: A 3522500515 | ||
| 048 | A 3522500515 | RELEASE BEARING |
| A 3122541110 | RELEASE COLLAR | |
| TO A 322 250 02 15 | ||
| A 3522540110 | RELEASE COLLAR | |
| TO 352 250 05 15 | ||
| A 3122501016 | FLANGED BEARING | |
| Repalced by: A 0002540020 | ||
| 051 | A 0002540020 | RELEASE BEARING |
| A 0002540120 | RELEASE BEARING | |
| 054 | A 3129870110 | STRIP |
| 057 | A 3122611279 | GASKET |
| BETWEEN CASE COVER AND TRANSMISSION | ||
| 060 | A 3122601916 | TRANSMISSION CASE COVER |
| REAR | ||
| 063 | A 3122611520 | TRANSMISSION CASE COVER |
| REAR | ||
| 066 | A 1532640055 | PLUG |
| 069 | A 0009976647 | SEAL RING |
| Repalced by: A 0089970546 | ||
| 069 | A 0089970546 | SEAL RING |
| A 0419970047 | SEAL RING | |
| 072 | A 3122611131 | THREADED BUSHING |
| 075 | N 001473004016 | GROOVED PIN |
| 078 | N 912004008104 | LOCK WASHER |
| CASE COVER TO TRANSMISSION | ||
| 081 | N 000931008072 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 084 | N 000931008081 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 087 | N 000933008066 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 090 | A 3122611179 | GASKET |
| BETWEEN CASE COVER AND TRANSMISSION | ||
| A 3122602214 | TRANSMISSION CASE COVER | |
| Repalced by: A 3412600214 | ||
| 093 | A 3412600214 | TRANSMISSION CASE COVER |
| TOP | ||
| A 3129911162 | DOWEL PIN | |
| Repalced by: A 3129911362 | ||
| 096 | A 3129911362 | DOWEL PIN |
| 099 | N 009045007000 | SNAP RING |
| 102 | N 001473005010 | GROOVED PIN |
| 105 | N 000125008400 | WASHER |
| CASE COVER TO TRANSMISSION | ||
| 108 | N 000931008085 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 111 | N 000931008091 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 114 | A 3122611080 | GASKET |
| BETWEEN COVER AND TRANSMISSION | ||
| 117 | A 3122611019 | TRANSMISSION CASE COVER |
| Repalced by: A 3142610019 | ||
| 117 | A 3142610019 | TRANSMISSION CASE COVER |
| LATERAL | ||
| 120 | N 000127010205 | LOCK WASHER |
| CASE COVER TO TRANSMISSION | ||
| 123 | N 000933010011 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 126 | A 3122651316 | THRUST PIECE |
| TRANSMISSION CASE TOP COVER | ||
| 129 | A 3129932301 | SPRING |
| TRANSMISSION CASE TOP COVER | ||
| 132 | A 3129971103 | PLUG |
| TRANSMISSION CASE TOP COVER | ||
| A 3122651148 | INTERLOCK PIN | |
| Repalced by: A 3122651248 | ||
| 135 | A 3122651248 | INTERLOCK PIN |
| TRANSMISSION CASE TOP COVER | ||
| 138 | A 3129931901 | SPRING |
| TRANSMISSION CASE TOP COVER | ||
| 141 | N 071022014000 | SLOTTED PLUG |
| TRANSMISSION CASE TOP COVER | ||
| 144 | A 3122602139 | SHIFT LEVER |
| 147 | A 3129936501 | SPRING |
| 150 | A 3122671308 | SPHERICAL PIECE |
| GEARSHIFT LEVER LOWER PART | ||
| 153 | A 3122671006 | COVER |
| GEARSHIFT LEVER LOWER PART | ||
| 156 | A 3122671096 | BOOT |
| GEARSHIFT LEVER LOWER PART | ||
| 159 | A 3129970982 | HOSE |
| SHIFT LEVER | ||
| 162 | A 1362670296 | BOOT |
| SHIFT LEVER | ||
| 165 | A 1369940035 | SNAP RING |
| SHIFT LEVER | ||
| 168 | N 000936010002 | NUT |
| A 3122601340 | HANDLE | |
| Repalced by: A 3222600040 | ||
| 171 | A 3222600040 | HANDLE |
| GEARSHIFT LEVER KNOB | ||
| A 3122601446 | PLATE | |
| Repalced by: A 3122601646 | ||
| 174 | A 3122601646 | PLATE |
| (DETENT PLATE) | ||
| 177 | A 3129911035 | SPACER RING |
| SHIFT GUIDE TO CASE TOP COVER | ||
| 180 | A 3122651445 | SHIFTING GUIDE |
| 183 | N 000093008402 | LOCK PLATE |
| SHIFT GUIDE TO CASE TOP COVER | ||
| 186 | N 000933008036 | SCREW |
| SHIFT GUIDE TO CASE TOP COVER | ||
| A 3122651905 | SHIFTING ROD | |
| Repalced by: A 3122652905 | ||
| 189 | A 3122652905 | SHIFTING ROD |
| 4TH AND 5TH SPEED | ||
| A 3122651505 | SHIFTING ROD | |
| Repalced by: A 3122652805 | ||
| 192 | A 3122652805 | SHIFTING ROD |
| 2ND AND 3RD SPEED | ||
| A 3122652505 | SHIFTING ROD | |
| Repalced by: A 3122652705 | ||
| 195 | A 3122652705 | SHIFTING ROD |
| 1ST SPEED | ||
| A 3122652605 | SHIFTING ROD | |
| Repalced by: A 3122653005 | ||
| 198 | A 3122653005 | SHIFTING ROD |
| REVERSE SPEED | ||
| A 3122652202 | SHIFTING FORK | |
| Repalced by: A 3122652602 | ||
| 201 | A 3122652602 | SHIFTING FORK |
| 4TH AND 5TH SPEED | ||
| A 3122652102 | SHIFTING FORK | |
| Repalced by: A 3122652502 | ||
| 204 | A 3122652502 | SHIFTING FORK |
| 2ND AND 3RD SPEED | ||
| A 3122652302 | SHIFTING FORK | |
| Repalced by: A 3122652402 | ||
| 207 | A 3122652402 | SHIFTING FORK |
| 1ST SPEED | ||
| A 3122651403 | SHIFTING FORK | |
| Repalced by: A 3122651503 | ||
| 210 | A 3122651503 | SHIFTING FORK |
| REVERSE SPEED | ||
| 213 | A 3129931001 | SPRING |
| SHIFTING FORK | ||
| 216 | N 005401311000 | BALL |
| SHIFTING FORK | ||
| 219 | A 3122651036 | BRACKET |
| SHIFTING ROD | ||
| 221 | A 3129940332 | LOCK |
| BRACKET TO TRANSMISSION CASE | ||
| 222 | N 000933008153 | SCREW |
| BRACKET TO TRANSMISSION CASE | ||

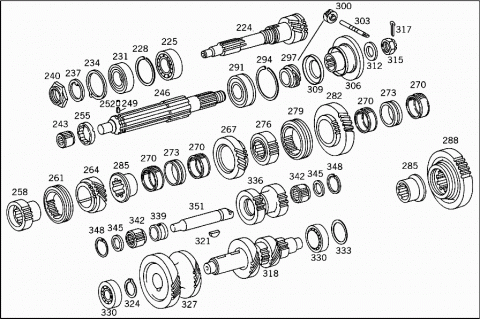

| 224 | A 3122622202 | DRIVE SHAFT |
| TO 312 260 50 00,312 260 70 00 | ||
| A 3412620002 | DRIVE SHAFT | |
| Repalced by: A 3412620102 | ||
| A 3412620102 | DRIVE SHAFT | |
| TO 341 260 06 00 | ||
| A 3122621852 | SPACER WASHER | |
| Repalced by: A 0019813101 | ||
| N 005412300209 | CYLINDR. ROLLER BEARING | |
| Repalced by: A 0019813101 | ||
| A 0009816201 | CYLINDR. ROLLER BEARING | |
| Repalced by: A 0019813101 | ||
| A 0009817101 | CYLINDR. ROLLER BEARING | |
| Repalced by: A 0019813101 | ||
| A 0009817201 | CYLINDR. ROLLER BEARING | |
| Repalced by: A 0019813101 | ||
| 225 | A 0019813101 | CYLINDR. ROLLER BEARING |
| 228 | N 005417085001 | SNAP RING |
| 231 | A 0009810527 | ANGULAR CONTACT BEARING |
| Repalced by: A 3459817327 | ||
| 231 | A 3459817327 | ANGULAR CONTACT BEARING |
| A 0009812827 | ANGULAR CONTACT BEARING | |
| A 0009814327 | ANGULAR CONTACT BEARING | |
| Repalced by: A 3459817027 | ||
| A 3459817027 | ANGULAR CONTACT BEARING | |
| 234 | A 3122625362 | THRUST WASHER |
| AS REQUIRED | ||
| 2.85 MM | ||
| A 3122625462 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.9 MM | ||
| A 3122625562 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.95 MM | ||
| A 3122623462 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.0 MM | ||
| A 3122624362 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.05 MM | ||
| A 3122624462 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.1 MM | ||
| A 3122623562 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.15 MM | ||
| A 3122623662 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.2 MM | ||
| A 3122623762 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.25 MM | ||
| A 3122623862 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.3 MM | ||
| A 3122624662 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.35 MM | ||
| A 3122624762 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.4 MM | ||
| A 3122624862 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.45 MM | ||
| A 3122624962 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.5 MM | ||
| A 3122625062 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.55 MM | ||
| A 3122625162 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.60 MM | ||
| 237 | A 3122623162 | THRUST WASHER |
| 240 | A 3122621172 | NUT |
| A 0009810112 | ROLLER ASSEMBLY | |
| Repalced by: A 0009817112 | ||
| 243 | A 0009811012 | ROLLER ASSEMBLY |
| TO 312 260 50 00,312 260 70 00 | ||
| A 0009817112 | ROLLER ASSEMBLY | |
| TO 341 260 06 00 | ||
| 246 | A 3122622105 | MAIN SHAFT |
| TO 341 260 50 00,312 260 70 00 | ||
| A 3412620005 | MAIN SHAFT | |
| Repalced by: A 0412620005 | ||
| A 0412620005 | MAIN SHAFT | |
| Repalced by: A 3412620105 | ||
| A 3412620105 | MAIN SHAFT | |
| TO 341 260 06 00 ; 041 260 00 00 | ||
| 249 | A 3129931701 | SPRING |
| 252 | A 3122621074 | PIN |
| 255 | A 3122622762 | THRUST WASHER |
| AS REQUIRED | ||
| 8.0 MM | ||
| A 3122624262 | THRUST WASHER | |
| AS REQUIRED | ||
| 8.05 MM | ||
| A 3122623262 | THRUST WASHER | |
| AS REQUIRED | ||
| 8.10 MM | ||
| A 3122624162 | THRUST WASHER | |
| AS REQUIRED | ||
| 8.15 MM | ||
| A 3122623362 | THRUST WASHER | |
| AS REQUIRED | ||
| 8.2 MM | ||
| A 3122622336 | FOLLOWER RING | |
| Repalced by: A 3122622536 | ||
| 258 | A 3122622536 | FOLLOWER RING |
| 4TH AND 5TH SPEED | ||
| A 3122621923 | SLIDING COLLAR | |
| Repalced by: A 3412620123 | ||
| 261 | A 3412620123 | SLIDING COLLAR |
| 4TH AND 5TH SPEED | ||
| A 3122621614 | GEAR | |
| Repalced by: A 3412620014 | ||
| 264 | A 3412620014 | GEAR |
| 4TH SPEED | ||
| A 3122622213 | GEAR | |
| Repalced by: A 3412620013 | ||
| 267 | A 3412620013 | GEAR |
| 3RD SPEED | ||
| N 005402004203 | CYLINDRICAL ROLLER | |
| Repalced by: A 0019819810 | ||
| 270 | A 0019819810 | NEEDLE BEARING |
| 2ND AND 3RD SPEED | ||
| 273 | A 3122621453 | SPACER TUBE |
| 2ND AND 3RD SPEED | ||
| 276 | A 3122622436 | FOLLOWER RING |
| 2ND AND 3RD SPEED | ||
| A 3122621723 | SLIDING COLLAR | |
| Repalced by: A 3412620023 | ||
| 279 | A 3412620023 | SLIDING COLLAR |
| 2ND AND 3RD SPEED | ||
| A 3122622112 | GEAR | |
| Repalced by: A 3412620012 | ||
| 282 | A 3412620012 | GEAR |
| 2ND SPEED | ||
| 285 | A 3122621750 | BUSHING |
| 2ND AND 3RD SPEED | ||
| A 3122621611 | GEAR | |
| Repalced by: A 3412620011 | ||
| 288 | A 3412620011 | GEAR |
| 1ST SPEED | ||
| 291 | A 3129811325 | BALL BEARING |
| 294 | N 005417090001 | SNAP RING |
| A 3122641620 | GEAR | |
| Repalced by: A 3122641830 | ||
| 297 | A 3122641830 | DRIVE GEAR |
| A 3122641231 | DRIVE GEAR | |
| Repalced by: A 3122641331 | ||
| 300 | A 3122641331 | DRIVE GEAR |
| SPEEDOMETER | ||
| A 3122641232 | SHAFT | |
| Repalced by: A 3142640032 | ||
| 303 | A 3142640032 | SHAFT |
| SPEEDOMETER | ||
| 306 | A 3122601517 | FLANGE |
| 309 | A 3122621063 | PROTECTIVE PLATE |
| 312 | A 3129901740 | WASHER |
| Repalced by: A 3243530072 | ||
| 312 | A 3243530072 | NUT |
| A 3853510372 | NUT | |
| 315 | N 000937028000 | NUT |
| 317 | N 000094005040 | COTTER PIN |
| A 3122632402 | COUNTERSHAFT | |
| Repalced by: A 3412630002 | ||
| 318 | A 3412630002 | COUNTERSHAFT |
| Repalced by: A 3412630102 | ||
| 318 | A 3412630102 | COUNTERSHAFT |
| 321 | N 006888008003 | WOODRUFF KEY |
| 324 | N 900055045300 | LOCK RING |
| A 3122631814 | GEAR | |
| Repalced by: A 3412630014 | ||
| 327 | A 3412630014 | GEAR |
| N 000720030306 | TAPERED ROLLER BEARING | |
| Repalced by: A 0019815705 | ||
| A 0009819805 | TAPERED ROLLER BEARING | |
| Repalced by: A 0019815705 | ||
| 330 | A 0019815705 | TAPERED ROLLER BEARING |
| A 0019817105 | TAPERED ROLLER BEARING | |
| A 0019819105 | TAPERED ROLLER BEARING | |
| A 0059819705 | TAPERED ROLLER BEARING | |
| 333 | A 3122632152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.050 MM | ||
| A 3122632352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.070 MM | ||
| A 3122631452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.125 MM | ||
| A 3122631552 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.240 MM | ||
| A 3122631652 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.500 MM | ||
| A 3122632052 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.000 MM | ||
| A 3122631831 | REVERSE IDLER GEAR | |
| Repalced by: A 3412630031 | ||
| 336 | A 3412630031 | REVERSE IDLER GEAR |
| REVERSE SPEED | ||
| 339 | A 3122631153 | SPACER TUBE |
| 342 | A 0009810712 | ROLLER ASSEMBLY |
| 345 | A 3122631262 | THRUST WASHER |
| 348 | N 000472042001 | LOCK RING |
| 351 | A 3122631730 | REVERSE IDLER SHAFT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
