Transporto priemonė: L 312; VIN numerio dalis: 312062

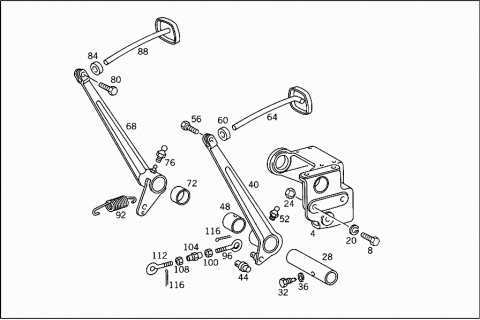

Grupė: 29 PEDAL ASSEMBLY
26757
# Kodas Pavadinimas
A 3122942501 BEARING BRACKET
Repalced by: A 3122943001
004 A 3122943001 BEARING BRACKET
008 N 000933010090 SCREW
N 000933010056 SCREW
N 000931010282 SCREW
020 N 000127010205 LOCK WASHER
024 N 000934010000 NUT
028 A 3122941704 BEARING TUBE
032 A 3129900017 SCREW
036 N 000127012203 LOCK WASHER
040 A 3122901316 PEDAL
044 A 3122911274 PIN
048 A 3122911250 BUSHING
052 N 071412010100 GREASE NIPPLE
056 N 000933010026 SCREW
060 A 3122911097 SEAL WASHER
064 A 3122901724 PEDAL PLATE
A 3122905118 PEDAL
Repalced by: A 3122906218
068 A 3122906218 PEDAL
072 A 3122911550 BUSHING
076 N 071412010100 GREASE NIPPLE
080 N 000933010026 SCREW
084 A 3122911097 SEAL WASHER
088 A 3122901924 PEDAL PLATE
092 A 3129931510 SPRING
096 A 3129901138 SCREW
LEFT
100 N 000934008004 NUT
104 N 001479008000 TURNBUCKLE
108 N 000934008000 NUT
112 A 3129901038 SCREW
116 N 000094004048 COTTER PIN
