Transporto priemonė: L 312; VIN numerio dalis: 312062

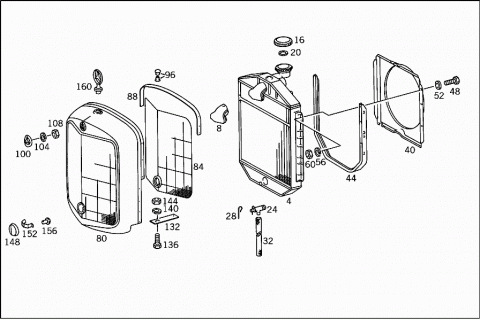

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3125002901 | RADIATOR | |
| Repalced by: A 0415000301 | ||
| A 0415000301 | RADIATOR | |
| Repalced by: A 0415010601 | ||
| 004 | A 0415010601 | RADIATOR |
| A 0415010701 | RADIATOR | |
| A 0415010801 | RADIATOR | |
| A 3125011056 | PIPE ELBOW | |
| Repalced by: A 0005010456 | ||
| A 0005010456 | PIPE ELBOW | |
| 70 MM,TO 041 500 03 01 | ||
| 008 | A 0005010556 | PIPE ELBOW |
| 80 MM,TO 041 501 06 01,041 501 07 01, 041 501 08 01 | ||
| N 007974003200 | SHEET METAL SCREW | |
| 016 | A 3125001806 | FILLER CAP |
| 020 | A 3125011081 | RUBBER SEAL RING |
| 024 | A 0009970436 | VALVE |
| 028 | A 0009930225 | SPRING |
| 032 | A 3129970682 | HOSE |
| N 916017016000 | CLAMP | |
| Repalced by: N 000000000666 | ||
| N 000000000666 | CLAMP | |
| 040 | A 3215050455 | FAN SHROUD |
| Repalced by: A 3415050055 | ||
| 040 | A 3415050055 | FAN SHROUD |
| A 9905001427 | SUPPORT | |
| Repalced by: A 0415000027 | ||
| 044 | A 0415000027 | SUPPORT |
| 048 | N 000933008147 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 052 | N 000433008400 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 056 | N 000127008203 | LOCK WASHER |
| FAN SHROUD TO RADIATOR | ||
| 060 | N 000934008010 | NUT |
| FAN SHROUD TO RADIATOR | ||
| N 000933010026 | SCREW | |
| FAN SHROUD TO RADIATOR | ||
| N 000125010511 | WASHER | |
| N 000127010202 | LOCK WASHER | |
| N 000934010005 | NUT | |
| 080 | A 3125004415 | RADIATOR GRILL SHELL |
| 084 | A 3125001117 | PROTECTIVE GRILL |
| 088 | N 274018020101 | PART NAME MISSING |
| N 274018020002 | PART NAME MISSING | |
| 096 | N 007331004111 | RIVET |
| 100 | A 3125001011 | MERCEDES BADGE |
| 104 | N 000127004206 | LOCK WASHER |
| 108 | N 000934004000 | NUT |
| N 000933008115 | SCREW | |
| N 009021008100 | WASHER | |
| A 3129971240 | SEAL RING | |
| N 912004008104 | LOCK WASHER | |
| N 000934008000 | NUT | |
| 132 | A 3125021234 | RETAINING PLATE |
| Repalced by: A 0415020034 | ||
| 132 | A 0415020034 | RETAINING PLATE |
| 136 | N 000933006024 | SCREW |
| 140 | N 000127006206 | LOCK WASHER |
| 144 | N 000934006007 | NUT |
| 148 | A 3125001036 | COVER |
| 152 | A 3125021035 | RETAINING SPRING |
| 156 | N 910006003001 | RIVET |
| 160 | A 3125001009 | MERCEDES STAR |
| A 3129971440 | SEAL RING | |
| N 009021015100 | WASHER | |
| N 000934014003 | NUT | |

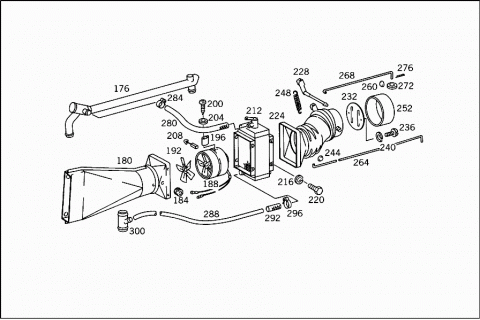

| 176 | A 3122002451 | LINE |
| 180 | A 3125001961 | AIR DUCT |
| 184 | A 0009971781 | GROMMET |
| 188 | A 0005002993 | BLOWER |
| 192 | H 101208350185 | FAN |
| 196 | A 0005060293 | RUBBER MAT |
| 200 | N 007981005209 | SHEET METAL SCREW |
| 204 | N 000126005801 | WASHER |
| 208 | A 0008350175 | CARBON BRUSH SET |
| 212 | A 3125061301 | HEATER |
| 216 | N 000127005206 | LOCK WASHER |
| 220 | N 000933005058 | SCREW |
| 224 | A 3125002461 | AIR DUCT |
| 228 | A 3125501232 | PART NAME MISSING |
| 232 | A 3125061373 | FLAP |
| 236 | N 000084005101 | SCREW |
| 240 | N 000127005206 | LOCK WASHER |
| 244 | A 3129971681 | GROMMET |
| 248 | A 3129932010 | SPRING |
| A 3129976482 | HOSE | |
| Repalced by: A 9909976482 | ||
| 252 | A 9909976482 | HOSE |
| 130X117X50 MM | ||
| N 600264009004 | PART NAME MISSING | |
| 260 | A 0009971981 | GROMMET |
| Repalced by: A 0009972081 | ||
| 260 | A 0009972081 | GROMMET |
| 264 | A 3215060072 | ROD |
| 695 MM | ||
| 268 | A 3125061472 | ROD |
| 260 MM | ||
| 272 | N 000125005303 | WASHER |
| 276 | N 000094001604 | COTTER PIN |
| 280 | N 900272015032 | HOSE |
| 284 | A 0419970590 | LOOM TIE |
| Repalced by: N 916017040000 | ||
| 284 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 284 | N 000000000671 | CLAMP |
| 288 | A 3215061560 | PIPE |
| 292 | N 900272015005 | HOSE |
| 296 | A 0419970390 | LOOM TIE |
| Repalced by: N 916017020000 | ||
| 296 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 296 | N 000000000667 | CLAMP |
| 300 | A 3125003272 | T-FITTING |
| A 9905060040 | BRACKET | |
| N 600285006000 | PART NAME MISSING | |
| N 000933006024 | SCREW | |
| N 000127006206 | LOCK WASHER | |
| N 000934006007 | NUT | |
