Transporto priemonė: L 328; VIN numerio dalis: 328009
Grupė: 42 BRAKES
44206

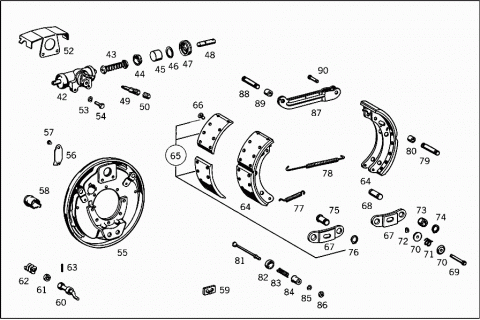

44207
44208
44209
44210
44211
44212
44213
44214
44215
44216
44217
44218
44219
44220
# Kodas Pavadinimas

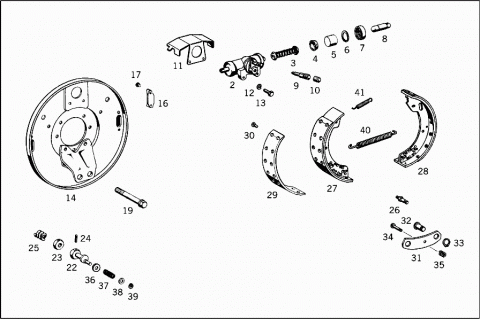

002 A 0014209418 WHEEL BRAKE CYLINDER
N 007603014405 SEAL RING
A 0004230284 FITTING
003 A 0004300289 SPRING RETAINER
WITH SPRING RETAINER
004 A 0004230186 CUP
005 A 0004212883 PISTON
Repalced by: A 0004213883
005 A 0004213883 PISTON
006 A 0009948241 LOCK
007 A 0004230187 PROTECTIVE CAP
008 A 0004230888 THRUST PIN
008 A 0004211888 THRUST PIN
Repalced by: A 0004230888
009 A 0004200055 BLEEDER VALVE
010 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
010 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
010 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
010 A 0004210887 PROTECTIVE CAP
A 0005864842 REPAIR KIT
011 A 3214230120 PROTECTIVE PLATE
012 N 912004010102 LOCK WASHER
013 N 000933010128 SCREW
014 A 3124201116 BRAKE ANCHOR PLATE
014 A 3214200316 BRAKE ANCHOR PLATE
016 A 3124211068 INSPECTION HOLE COVER
017 A 3129900096 RIVET
A 3214210006 BRAKE ANCHOR
N 000960012008 SCREW
BRAKE ANCHOR PLATE TO STEERING KNUCKLE
N 000960012008 SCREW
BRAKE ANCHOR PLATE TO STEERING KNUCKLE
N 000960012021 SCREW
BRAKE ANCHOR PLATES AND BRAKE ANCHORS TO STEERING KNUCKLES
019 A 3289900013 SCREW
BRAKE ANCHOR PLATE AND STEERING ARM TO STEERING KNUCKLE
N 000094003029 COTTER PIN
BRAKE ANCHOR PLATE AND STEERING ARM TO STEERING KNUCKLE
A 3273320171 SCREW
BRAKE ANCHOR PLATES, BRAKE ANCHORS, AND STEERING ARMS TO STEERING KNUCKLES
N 000935016001 NUT
BRAKE ANCHOR PLATES, BRAKE ANCHORS, AND STEERING ARMS TO STEERING KNUCKLES
N 000094004065 COTTER PIN
BRAKE ANCHOR PLATES, BRAKE ANCHORS, AND STEERING ARMS TO STEERING KNUCKLES
A 3124201038 ADJUSTER
Repalced by: A 3234200038
022 A 3234200038 ADJUSTER
023 A 3124211172 NUT
N 000934014019 NUT
Repalced by: N 308673014001
N 308673014001 NUT
024 N 001481004023 CLAMPING SLEEVE
025 A 3124211190 SPRING
025 A 3129934901 SPRING
A 1869904540 WASHER
A 3285860142 REPAIR KIT
Repalced by: A 3284200138
A 3284200138 REPAIR KIT
BRAKE READJUSTMENT
026 A 3124211374 PIN
026 A 3124211774 PIN
N 912004008102 LOCK WASHER
SPRING SUSPENSION PIN TO BRAKE ANCHOR PLATES
N 304032008006 NUT
SPRING SUSPENSION PIN TO BRAKE ANCHOR PLATES
027 A 3234201720 BRAKE SHOE
Repalced by: A 3224200319
028 A 3234201520 BRAKE SHOE
Repalced by: A 3224200319
028 A 3224200319 BRAKE SHOE
LESS LINING
028 A 3124203219 BRAKE SHOE
LESS LINING
029 A 3214210610 BRAKE LINING
6.6 MM
029 A 3804211210 BRAKE LINING
ASBESTOS-FREE
6.60 MM
029 A 3234210310 BRAKE LINING
6.6 MM
029 A 3804211510 BRAKE LINING
ASBESTOS-FREE
6.60 MM
029 A 3214210710 BRAKE LINING
7.3 MM
029 A 3804211310 BRAKE LINING
ASBESTOS-FREE
7.30 MM
029 A 3234210410 BRAKE LINING
7.3 MM
029 A 3804211610 BRAKE LINING
ASBESTOS-FREE
7.30 MM
029 A 3214210810 BRAKE LINING
8.3 MM
029 A 3804211410 BRAKE LINING
ASBESTOS-FREE
8.30 MM
029 A 3234210510 BRAKE LINING
8.3 MM
029 A 3804211710 BRAKE LINING
ASBESTOS-FREE
8.30 MM
029 A 3214210310 BRAKE LINING
10.6 MM
029 A 3224211810 BRAKE LINING
10.6 MM
029 A 3804212110 BRAKE LINING
ASBESTOS-FREE
10.60 MM
029 A 3214210410 BRAKE LINING
11.6 MM
029 A 3224211910 BRAKE LINING
11.6 MM
029 A 3214210510 BRAKE LINING
12.6 MM
029 A 3804212310 BRAKE LINING
ASBESTOS-FREE
12.60 MM
029 A 3224212010 BRAKE LINING
12.6 MM
029 A 3804212210 BRAKE LINING
ASBESTOS-FREE
12.60 MM
030 A 3129900195 RIVET
BRAKE LINING
A 3129900395 RIVET
Repalced by: N 007338008310
030 N 007338008310 RIVET
031 A 3124231094 BRACKET
A 3214210213 SHACKLE
032 A 3124211218 PIVOT PIN
Repalced by: A 3124211318
032 A 3124211318 PIVOT PIN
033 N 900055022300 LOCK RING
033 N 900055022301 LOCK RING
034 A 3124211974 PIN
Repalced by: A 3385860442
034 A 3224210074 PIN
Repalced by: A 3385860442
034 A 3385860442 REPAIR KIT
Repalced by: A 3384200182
034 A 3384200182 REPAIR KIT
BRAKE SHOE SHACKLE SPACER PIN
035 A 3124211090 SPRING
Repalced by: A 3385860442
036 A 3129901040 WASHER
036 A 3129933801 SPRING
Repalced by: A 3529930501
037 A 3529930501 SPRING
038 N 000125010500 WASHER
039 N 006799007007 LOCK PLATE
040 A 3234230092 SPRING
A 3214210092 SPRING
041 A 3029930310 SPRING
A 3584200082 PIN
BRAKE SHOE MOUNTING BOLT
042 A 0014208518 WHEEL BRAKE CYLINDER
043 A 0004231793 SPRING
WITH SPRING RETAINER
044 A 0004230886 CUP
045 A 0004232083 PISTON
046 N 000472045000 LOCK RING
047 A 0004232187 PROTECTIVE CAP
048 A 0004230888 THRUST PIN
049 A 0004200055 BLEEDER VALVE
050 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
050 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
050 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
050 A 0004210887 PROTECTIVE CAP
A 0005863142 REPAIR KIT
052 A 3214230020 PROTECTIVE PLATE
053 N 912004010102 LOCK WASHER
054 N 000933010105 SCREW
055 A 3214200717 BRAKE ANCHOR PLATE
LEFT
056 A 3124211068 INSPECTION HOLE COVER
057 A 3129900096 RIVET
058 A 3274270054 PIPE SOCKET
N 000961012164 SCREW
BRAKE ANCHOR PLATES TO REAR AXLE CASING
059 A 3124201070 STUD
060 A 3124201338 ADJUSTER
Repalced by: A 3285860142
061 N 000934014019 NUT
Repalced by: N 308673014001
061 N 308673014001 NUT
062 A 3129934901 SPRING
063 N 001473004013 GROOVED PIN
A 3285860142 REPAIR KIT
Repalced by: A 3284200138
A 3284200138 REPAIR KIT
BRAKE READJUSTMENT
064 A 3224200119 BRAKE SHOE
LESS LINING
064 A 3224200219 BRAKE SHOE
LESS LINING
064 A 3404200019 BRAKE SHOE
LESS LINING
064 A 3214230010 BRAKE LINING
10.30 MM
064 A 3224230610 BRAKE LINING
ASBESTOS-FREE
10.30 MM
065 A 3224230310 BRAKE LINING
(PARTS KIT)
10.30 MM;8X 322 423 00 10)
A 3214230110 BRAKE LINING
11.30 MM
A 3224230710 BRAKE LINING
ASBESTOS-FREE
11.30 MM
065 A 3224230910 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
10.30 MM,8X 322 423 06 10)
065 A 3224230410 BRAKE LINING
(PARTS KIT) (BRAKE LINING
11.30 MM;8X 322 423 01 10)
A 3214230210 BRAKE LINING
12.30 MM
A 3224230810 BRAKE LINING
ASBESTOS-FREE
12.30 MM
065 A 3224231010 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
11.30 MM,8X 322 423 07 10)
065 A 3224230510 BRAKE LINING
(PARTS KIT) (BRAKE LINING
12.30 MM;8X 322 423 02 10)
065 A 3224231110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
12.30 MM,8X 322 423 08 10)
066 A 3129900395 RIVET
Repalced by: N 007338008310
066 N 007338008310 RIVET
067 A 3124231594 BRACKET
Repalced by: A 3404200027
067 A 3404200027 THRUST SHACKLE
Repalced by: A 3385860142
067 A 3385860142 REPAIR KIT
Repalced by: A 3384200389
067 A 3384200389 REPAIR KIT
Repalced by: A 3404200027
067 A 3404200027 THRUST SHACKLE
068 A 3124231618 PIVOT PIN
Repalced by: A 3124231718
068 A 3124231718 PIVOT PIN
Repalced by: A 3124231918
068 A 3124231918 PIVOT PIN
069 A 3124231174 PIN
Repalced by: A 3385860542
A 3385860542 REPAIR KIT
Repalced by: A 3384200282
A 3384200282 REPAIR KIT
BRAKE SHOE SHACKLE SPACER PIN
A 3124231052 SPACER WASHER
Repalced by: A 3385860542
070 A 3404210052 SPACER WASHER
Repalced by: A 3385860542
071 A 3129933901 SPRING
Repalced by: A 3385860542
072 A 3124211073 LOCK
073 A 3124231153 SPACER TUBE
074 N 900055022300 LOCK RING
074 N 900055022301 LOCK RING
075 A 3124231418 PIVOT PIN
Repalced by: A 3124231818
075 A 3124231818 PIVOT PIN
076 N 900055022300 LOCK RING
076 N 900055022301 LOCK RING
077 A 3029930310 SPRING
078 A 3124232192 SPRING
079 A 3124231318 PIVOT PIN
N 006799009002 LOCK PLATE
080 A 3124231453 SPACER TUBE
081 A 3124231274 PIN
Repalced by: A 3585860142
081 A 3585860142 REPAIR KIT
Repalced by: A 3584200082
081 A 3584200082 PIN
BRAKE SHOE MOUNTING BOLT
082 A 3124231089 FILLER
083 A 3129933801 SPRING
Repalced by: A 3529930501
083 A 3529930501 SPRING
084 A 3124231189 FILLER
HIGH
085 N 912004008102 LOCK WASHER
086 N 304032008006 NUT
087 A 3274200327 THRUST SHACKLE
088 A 3124231318 PIVOT PIN
089 A 3124231453 SPACER TUBE
090 N 001434014001 PIN
N 000094004024 COTTER PIN
091 A 0004305501 BRAKE MASTER CYLINDER
Repalced by: A 0024306101
092 A 0024306101 BRAKE MASTER CYLINDER
092 A 0004308501 BRAKE MASTER CYLINDER
092 A 0024304101 BRAKE MASTER CYLINDER
093 A 0004310503 HOUSING
093 A 0004311303 HOUSING
094 A 0004310260 SEAL RING
095 A 0004311356 SCREW PLUG
Repalced by: A 0004311756
095 A 0004311756 SCREW PLUG
096 A 0004311756 SCREW PLUG
097 A 0004311234 STRAINER
098 A 0004310265 VALVE
Repalced by: A 3075530107
098 A 3075530107 VALVE
099 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
099 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
099 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
099 A 0004210887 PROTECTIVE CAP
100 N 007603035101 SEAL RING
101 A 0004310975 THREADED UNION
102 A 0004310760 SEAL RING
Repalced by: A 0004300381
102 A 0004300381 VALVE
103 A 0004300081 VALVE
Repalced by: A 0004300381
103 A 0004300381 VALVE
104 A 0009930605 SPRING
105 A 0004311876 WASHER
106 A 0004313793 SPRING
107 A 0004310089 SPRING RETAINER
108 A 0004310186 CUP
PRIMARY
109 A 0004312683 PISTON
110 A 0004310685 FILLER RING
111 A 0004310086 CUP
SECONDARY
112 A 0004312176 WASHER
113 A 0009940135 SNAP RING
A 0005861143 REPAIR KIT
114 A 0004280124 DISTRIBUTOR
115 N 007603014405 SEAL RING
116 A 0004280026 HOLLOW SCREW
118 A 0004310335 CONNECTOR
119 N 007603022102 SEAL RING
A 0005861743 REPAIR KIT
TO 001 430 24 01,002 430 41 01
TO 002 430 41 01
A 0004318702 RESERVOIR
A 0004312833 FILLER CAP
Repalced by: A 0004315533
A 0004315533 FILLER CAP

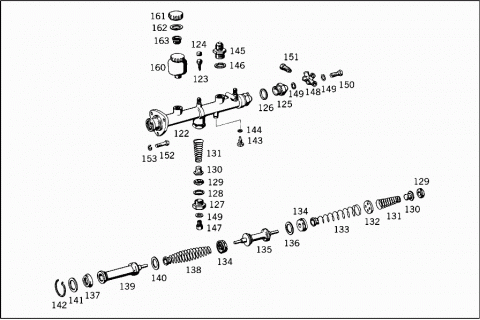

122 A 0014305001 BRAKE MASTER CYLINDER
123 A 0004310365 VALVE
Repalced by: A 0004201055
123 A 0004201055 BLEEDER VALVE
124 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
124 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
124 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
124 A 0004210887 PROTECTIVE CAP
125 A 0004310975 THREADED UNION
126 N 007603035101 SEAL RING
127 A 0004310475 THREADED UNION
128 N 007603032101 SEAL RING
129 A 0004310760 SEAL RING
Repalced by: A 0004300381
129 A 0004300381 VALVE
130 A 0004300081 VALVE
Repalced by: A 0004300381
130 A 0004300381 VALVE
131 A 0009930605 SPRING
132 A 0004311876 WASHER
133 A 0004314393 SPRING
WITH SPRING RETAINER
134 A 0004310586 CUP
134 A 0004310586 CUP
135 A 0004313083 PISTON
SECONDARY
135 A 0004314383 PISTON
SECONDARY
136 A 0004310685 FILLER RING
137 A 0004310086 CUP
137 A 0004310086 CUP
A 0004314886 CUP
Repalced by: A 0059974746
A 0059974746 SEAL RING
138 A 0004315493 SPRING
WITH SPRING RETAINER
139 A 0004313183 PISTON
140 A 0004310685 FILLER RING
141 A 0004312176 WASHER
142 A 0009940135 SNAP RING
143 A 0004310671 SCREW
144 N 007603008109 SEAL RING
A 0005864343 REPAIR KIT
TO 000 430 85 01
145 A 0004310335 CONNECTOR
146 N 007603022102 SEAL RING
A 0004230284 FITTING
147 A 0004230184 FITTING
147 A 0004230184 FITTING
148 A 0004280124 DISTRIBUTOR
149 N 007603014405 SEAL RING
150 A 0004280026 HOLLOW SCREW
151 A 0004280032 SCREW PLUG
N 000931010040 SCREW
N 000931010040 SCREW
N 000931010051 SCREW
152 N 000933010129 SCREW
Repalced by: N 304017010002
152 N 304017010002 SCREW
153 N 912004010102 LOCK WASHER
154 A 0005452209 SWITCH
Repalced by: A 0005456109
154 A 0005456109 SWITCH
Repalced by: A 0015450809
154 A 0015450809 SWITCH
155 A 0005450445 BOOT
156 A 0004310902 RESERVOIR
Repalced by: A 0004311302
156 A 0004311302 RESERVOIR
LESS WARNING DEVICE
157 A 0004311033 FILLER CAP
WITH WARNING DEVICE
158 A 0004310933 FILLER CAP
Repalced by: A 0004315133
A 0004313233 FILLER CAP
Repalced by: A 0004315133
A 0004315133 FILLER CAP
Repalced by: A 0004315433
159 A 0009972940 SEAL RING
43.7X30 MM
A 0004310034 STRAINER
Repalced by: A 0004313734
A 0004313734 STRAINER
Repalced by: A 0004314334
A 0004314334 STRAINER
A 0004310443 CLAMP
FLUID RESERVOIR
A 0004310435 CONNECTOR
AT BRAKE FLUID RESERVOIR, TO CONNECT BRAKE FLUID LINE
A 0004310802 RESERVOIR
0.25 L. ON FRONT PANEL
A 0004313533 FILLER CAP
Repalced by: A 0004315433
A 0009972940 SEAL RING
43.7X30 MM
A 0004310034 STRAINER
Repalced by: A 0004313734
A 0004313734 STRAINER
Repalced by: A 0004314334
A 0004314334 STRAINER
A 0004311040 CLAMP
A 0004310435 CONNECTOR
160 A 0004311602 RESERVOIR
BOLTED ON BRAKE MASTER CYLINDER
0.13 L.
160 A 0004311602 RESERVOIR
BOLTED ON BRAKE MASTER CYLINDER
0.13 L.
A 0002951815 RESERVOIR
Repalced by: A 0004311602
161 A 0004310933 FILLER CAP
Repalced by: A 0004315133
A 0002950237 SCREW PLUG
Repalced by: A 0004315433
A 0004315433 FILLER CAP
BUTTRESS THREAD
TO 000 295 18 15
162 A 0009972940 SEAL RING
43.7X30 MM
A 0039976440 SEAL RING
42X21.5 MM
163 A 0004310034 STRAINER
Repalced by: A 0004313734
163 A 0004313734 STRAINER
Repalced by: A 0004314334
163 A 0004314334 STRAINER
164 A 3214310440 BRACKET
N 000933006102 SCREW
BRAKE FLUID RESERVOIR TO BRACKET OR TO BODY, RESP.
N 000125006421 WASHER
BRAKE FLUID RESERVOIR TO BRACKET OR TO BODY, RESP.
N 912004006102 LOCK WASHER
BRAKE FLUID RESERVOIR TO BRACKET OR TO BODY, RESP.
N 000934006007 NUT
BRAKE FLUID RESERVOIR TO BRACKET OR TO BODY, RESP.
166 A 3214200934 LINE
Repalced by: A 3214202434
166 A 3214202434 LINE
FROM BRAKE FLUID RESERVOIR TO BRAKE MASTER CYLINDER, FIRST PART
A 0009970273 FITTING
167 N 007613006401 FITTING
168 A 0004287235 BRAKE HOSE
FROM BRAKE FLUID RESERVOIR TO BRAKE MASTER CYLINDER, SECOND PART
A 3224201728 LINE
FROM BRAKE FLUID RESERVOIR TO TANDEM BRAKE MASTER CYLINDER, REAR AXLE CONNECTION
A 0009970273 FITTING
169 A 0009973781 GROMMET
170 A 3129952001 CLAMP
170 A 3129952001 CLAMP
171 A 3219970882 HOSE
171 A 3219970882 HOSE
N 000086006110 SCREW
MOUNTING CLAMPS TO SUBSTRUCTURE
N 000086006110 SCREW
MOUNTING CLAMPS TO SUBSTRUCTURE
N 912004006102 LOCK WASHER
MOUNTING CLAMPS TO SUBSTRUCTURE
N 000934006007 NUT
MOUNTING CLAMPS TO SUBSTRUCTURE
A 3214200128 LINE
Repalced by: A 3404204629
A 3404204629 LINE
FROM BRAKE MASTER CYLINDER TO BRAKE HOSE AT LEFT FRONT WHEEL BRAKE
172 A 3224209728 LINE
Repalced by: A 3404202129
172 A 3404202129 LINE
172 A 3404202129 LINE
A 3404203829 LINE
A 3224209828 LINE
Repalced by: A 3404204029
A 3404204029 LINE
A 3284202428 LINE
Repalced by: A 3404203929
A 3404203929 LINE
173 A 0004280072 UNION SCREW
174 A 3129970582 HOSE
A 3224203229 LINE
Repalced by: A 3404200229
A 3404200229 LINE
FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR
A 0004280072 UNION SCREW
A 0004290437 DISTRIBUTOR
A 0004294337 DISTRIBUTOR
N 000931008046 SCREW
Repalced by: N 304017008018
N 304017008018 SCREW
DISTRIBUTOR TO FRAME
N 912004008102 LOCK WASHER
DISTRIBUTOR TO FRAME
N 304032008006 NUT
DISTRIBUTOR TO FRAME
A 3224203329 LINE
Repalced by: A 3404201529
A 0004280072 NUT
FROM DISTRIBUTOR TO LEFT FRONT WHEEL
A 3129970582 HOSE
A 0004284035 BRAKE HOSE
FROM DISTRIBUTOR TO TEST CONNECTION, FIRST PART
A 0004280473 BRACKET
Repalced by: A 6525040038
A 6525040038 MOUNTING PLATE
A 3524206428 LINE
Repalced by: A 3404200929
A 3404200929 LINE
FROM TEST CONNECTION TO DISTRIBUTOR
A 3524204729 LINE
A 0004280072 UNION SCREW
A 0009971881 GROMMET
BRAKE LINE THRU CAB FLOOR
A 0004311231 TEST CONNECTION
IN CAB
A 0004316631 TEST CONNECTION
IN CAB
A 0004280032 SCREW PLUG
A 3524280040 BRACKET
TEST CONNECTION
A 3524281240 BRACKET
BRACKET TO SEAT BOX
N 000933006130 SCREW
BRACKET TO SEAT BOX
A 3524281140 BRACKET
BRACKET TO SEAT BOX
A 3524281340 BRACKET
BRACKET TO SEAT BOX
N 000934006007 NUT
BRACKET TO SEAT BOX
N 000931008029 SCREW
TEST CONNECTION TO BRACKET
N 304032008006 NUT
TEST CONNECTION TO BRACKET
A 3214200129 LINE
Repalced by: A 3404201529
A 3404201529 LINE
FROM BRAKE MASTER CYLINDER TO BRAKE HOSE AT RIGHT FRONT WHEEL BRAKE
176 A 3224209928 LINE
Repalced by: A 3404203829
176 A 3404203829 LINE
A 3214200329 LINE
Repalced by: A 3404203929
A 3404203929 LINE
A 3214200229 LINE
Repalced by: A 3404201529
A 3404201529 LINE
A 3224200029 LINE
Repalced by: A 3404201529
A 3404201529 LINE
A 3284203028 LINE
Repalced by: A 3404202329
A 3404202329 LINE
177 A 0004280072 UNION SCREW
178 A 3129970582 HOSE
179 A 3129950935 CLAMP
N 000084004102 SCREW
N 000934004006 NUT
180 A 3129951401 CLAMP
A 3129950332 CLAMP
Repalced by: A 3609950101
A 3609950101 CLAMP
A 3124761036 BRACKET
Repalced by: A 3124761236
A 3124761236 BRACKET
Repalced by: A 3604293140
A 3604293140 BRACKET
N 000084006107 SCREW
FOR PIPE CLAMPS
N 000084006137 SCREW
FOR PIPE CLAMPS
N 009021006400 WASHER
FOR PIPE CLAMPS
N 000125006421 WASHER
FOR PIPE CLAMPS
N 912004006102 LOCK WASHER
FOR PIPE CLAMPS
N 000934006007 NUT
FOR PIPE CLAMPS
181 A 0004284735 BRAKE HOSE
Repalced by: A 0004288235
181 A 0004288235 BRAKE HOSE
550 MM, TO FRONT WHEEL BRAKES
182 A 0004280235 BRAKE HOSE
Repalced by: A 0024280535
182 A 0024280535 BRAKE HOSE
TO REAR AXLE
500 MM
182 A 0014285535 BRAKE HOSE
TO REAR AXLE
500 MM
183 A 0004280473 BRACKET
Repalced by: A 6525040038
183 A 6525040038 MOUNTING PLATE
184 A 3404280243 ANGLE
TO FRONT WHEEL BRAKE HOSES
A 3404280343 ANGLE
TO FRONT WHEEL BRAKE HOSES
N 000933008145 SCREW
N 912004008102 LOCK WASHER
N 304032008006 NUT
185 A 3284200128 LINE
Repalced by: A 3404204629
185 A 3404204629 LINE
FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR ON REAR AXLE
A 3404204129 LINE
A 3404204929 LINE
A 3404204429 LINE
A 3404205229 LINE
A 3404204729 LINE
A 3404204429 LINE
A 3404203929 LINE
A 3404204629 LINE
A 3404203329 LINE
A 3404204929 LINE
A 3404204429 LINE
A 3404205229 LINE
A 3404204829 LINE
A 3404204429 LINE
A 3404203929 LINE
187 A 0004280072 UNION SCREW
A 3404204029 LINE
FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
A 3404203929 LINE
A 3404203829 LINE
A 3404202729 LINE
A 0004280072 UNION SCREW
A 3224204628 LINE
Repalced by: A 3404202329
A 3404202329 LINE
FROM BRAKE PRESSURE REGULATOR TO BRAKE HOSE AT DISTRIBUTOR ON REAR AXLE
A 0004280072 UNION SCREW
A 3404204928 LINE
Repalced by: A 3404200529
A 3404200529 LINE
FROM BRAKE POWER REGULATOR TO TEST CONNECTION
A 0004280072 UNION SCREW
A 0004311031 TEST CONNECTION
Repalced by: A 0004311231
A 0004311231 TEST CONNECTION
A 0004316631 TEST CONNECTION
A 3224202929 LINE
Repalced by: A 3404201429
A 3404201429 LINE
FROM TEST CONNECTION TO DISTRIBUTOR
A 0004280072 UNION SCREW
A 3224202829 LINE
Repalced by: A 3404201729
A 3404201729 LINE
FROM BRAKE MASTER CYLINDER TO TEST CONNECTION
A 0004280072 UNION SCREW
A 0004311231 TEST CONNECTION
A 0004316631 TEST CONNECTION
N 000931008046 SCREW
Repalced by: N 304017008018
N 304017008018 SCREW
TEST CONNECTION TO SIDE MEMBER
N 912004008102 LOCK WASHER
TEST CONNECTION TO SIDE MEMBER
N 304032008006 NUT
TEST CONNECTION TO SIDE MEMBER
A 3234200228 LINE
Repalced by: A 3404204329
A 3404204329 LINE
FROM TEST CONNECTION TO REAR AXLE
A 3234200328 LINE
Repalced by: A 3404200229
A 3404200229 LINE
A 3234200428 LINE
Repalced by: A 3404204929
A 3404204929 LINE
A 3234200528 LINE
Repalced by: A 3404204129
A 3404204129 LINE
A 0004280072 UNION SCREW
A 3124761336 BRACKET
N 000084006137 SCREW
BRACKET TO CROSS MEMBER
N 912004006102 LOCK WASHER
BRACKET TO CROSS MEMBER
N 000934006007 NUT
BRACKET TO CROSS MEMBER
189 A 3124281040 BRACKET
Repalced by: A 3834280140
189 A 3834280140 BRACKET
N 007988008105 SCREW
BRACKET TO FRAME SIDE MEMBER
N 007988008102 SCREW
BRACKET TO FRAME SIDE MEMBER
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO FRAME SIDE MEMBER
A 3219900740 WASHER
BRACKET TO FRAME SIDE MEMBER
N 912004008102 LOCK WASHER
BRACKET TO FRAME SIDE MEMBER
N 304032008006 NUT
BRACKET TO FRAME SIDE MEMBER
190 A 0004290437 DISTRIBUTOR
190 A 0004294337 DISTRIBUTOR
N 912004008102 LOCK WASHER
N 000931008028 SCREW
191 A 3214200130 LINE
Repalced by: A 3524206828
191 A 3524206828 LINE
Repalced by: A 3404202429
191 A 3404202429 LINE
191 A 3224202528 LINE
Repalced by: A 3524206828
191 A 3524206828 LINE
Repalced by: A 3404202429
191 A 3404202429 LINE
192 A 0004280072 UNION SCREW
193 A 3129951020 CLAMP
194 A 3129973482 HOSE
N 912004008102 LOCK WASHER
LEFT BRAKE LINE TO REAR AXLE
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
LEFT BRAKE LINE TO REAR AXLE
195 A 3214200131 LINE
Repalced by: A 3524207028
195 A 3524207028 LINE
Repalced by: A 3404201029
195 A 3404201029 LINE
195 A 3224202628 LINE
Repalced by: A 3524207028
195 A 3524207028 LINE
Repalced by: A 3404201029
195 A 3404201029 LINE
196 A 0004280072 UNION SCREW
197 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
198 N 074305022201 NUT
199 N 074301026201 ELBOW FITTING
A 3224296201 LINE
Repalced by: A 0005516456
A 0005516456 TUBE
18 MM FROM AIR COMPRESSOR TO TIRE INFLATOR CYLINDER, FIRST PART
200 A 3404296202 LINE
18 MM FROM AIR COMPRESSOR TO PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION
201 N 074297026102 UNION NUT
TO 18-MM-DIA. COMPRESSED AIR LINES
202 N 074297018202 SLIP RING
TO 18-MM-DIA. COMPRESSED AIR LINES
203 N 915065018101 THRUST RING
TO 18-MM-DIA. COMPRESSED AIR LINES
204 N 915045014100 SEAL RING
TO 18-MM-DIA. COMPRESSED AIR LINES
N 074298026200 DOUBLE FITTING
A 3224296101 LINE
Repalced by: A 0005516456
A 0005516456 TUBE
18 MM FROM AIR COMPRESSOR TO TIRE INFLATOR CYLINDER, SECOND PART
205 A 3129952320 CLAMP
Repalced by: A 3049950120
205 A 3049950120 CLAMP
Repalced by: A 3609950601
205 A 3609950601 CLAMP
A 0009955801 CLAMP
N 000933006102 SCREW
N 912004006102 LOCK WASHER
N 000934006007 NUT

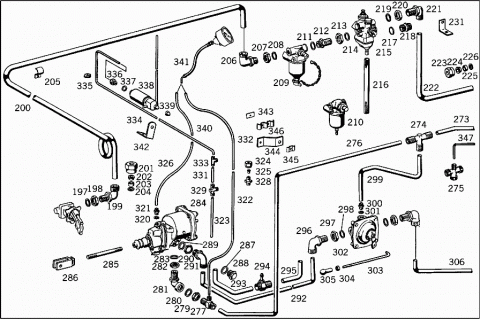

206 N 074301026201 ELBOW FITTING
207 N 074305022201 NUT
208 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
209 A 0005910202 TIRE INFLATOR CYLINDER
BOSCH
210 A 0005910119 AIR CLEANER
GRAU
211 N 007603022102 SEAL RING
212 N 074299022301 DOUBLE FITTING
213 N 074305022201 NUT
214 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
A 0004311006 PRESSURE REGULATOR
A 0004312706 PRESSURE REGULATOR
215 A 0004314706 VALVE
Repalced by: A 0004318906
215 A 0004318906 PRESSURE REGULATOR
A 0025864143 REPAIR KIT
TO 000 431 89 06
A 0025864143 REPAIR KIT
TO 000 431 89 06
BOSCH 0 481 039 009,005
A 0025865043 REPAIR KIT
TO 000 431 89 06
A 0025865043 REPAIR KIT
TO 000 431 89 06
BOSCH 0 481 039 009,005
A 0004315687 PROTECTIVE CAP
216 N 900271015038 HOSE
N 900262005100 LOOM TIE
RUBBER HOSE TO PRESSURE REGULATOR
N 900263005002 STRAP
RUBBER HOSE TO PRESSURE REGULATOR
217 N 007603022102 SEAL RING
218 N 074298022201 DOUBLE FITTING
AT PRESSURE REGULATOR, TO CONNECT COMPRESSED AIR LINE TO AIR RESERVOIR
219 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
220 N 074305022201 NUT
221 N 074301022200 ELBOW FITTING
A 0005516256 TUBE
222 A 3524292801 LINE
15 MM
223 N 915018015000 UNION NUT
TO 15-MM-DIA. COMPRESSED AIR LINES
224 N 074297015202 SLIP RING
TO 15-MM-DIA. COMPRESSED AIR LINES
225 N 915065015101 THRUST RING
TO 15-MM-DIA. COMPRESSED AIR LINES
226 N 915045012100 SEAL RING
Repalced by: N 007603012121
226 N 007603012121 SEAL RING
TO 15-MM-DIA. COMPRESSED AIR LINES
227 N 074298022201 DOUBLE FITTING
228 A 0005516256 TUBE
15 MM FROM PRESSURE REGULATOR TO AIR RESERVOIR, SECOND PART
230 A 3129974282 HOSE
COMPRESSED AIR LINE AT PASSAGE THRU FRAME
231 A 3124291940 BRACKET
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO FRAME
N 912004008102 LOCK WASHER
BRACKET TO FRAME
N 304032008006 NUT
BRACKET TO FRAME
232 A 3124291640 BRACKET
72 MM
233 A 3124293340 BRACKET
40 MM
234 A 3224291640 BRACKET
140 MM
235 A 3124761535 BRACKET
123 MM
236 A 3129955110 CLAMP
237 A 3129952420 CLAMP
Repalced by: A 1109950401
237 A 1109950401 CLAMP
N 000084006107 SCREW
FOR MOUNTING CLAMPS AND BRACKETS
N 912004006102 LOCK WASHER
BRACKET AND MOUNTING CLAMP TO FRAME
N 000934006007 NUT
BRACKET AND MOUNTING CLAMP TO FRAME
N 000933010157 SCREW
BRACKET AND MOUNTING CLAMP TO FRAME
N 912004010102 LOCK WASHER
BRACKET AND MOUNTING CLAMP TO FRAME
N 000934010014 NUT
BRACKET AND MOUNTING CLAMP TO FRAME
N 000933006102 SCREW
BRACKET AND MOUNTING CLAMP TO FRAME
N 912004006102 LOCK WASHER
BRACKET AND MOUNTING CLAMP TO FRAME
N 000934006007 NUT
BRACKET AND MOUNTING CLAMP TO FRAME
238 N 074298022201 DOUBLE FITTING
239 N 007603022102 SEAL RING
A 0004310715 ANTI-FREEZE DEVICE
Repalced by: A 0004312615
A 0004312615 ANTI-FREEZE DEVICE
A 0004316787 PROTECTIVE CAP
TO 000 431 26 15,WEST 432 199 03 00
A 0004321107 VALVE
TO 000 431 26 15,WEST 432 199 03 00
A 0004314476 WASHER
TO 000 431 26 15 WEST 432 199 03 00
A 0009890679 WICK
PARTS KIT
TO 000 431 26 15,WEST 432 199 03 00
A 0025861143 REPAIR KIT
TO 000 431 26 15,WEST 432 199 03 00
240 A 0004311715 ANTI-FREEZE DEVICE
A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
N 074305022201 NUT
N 074299022301 DOUBLE FITTING
REAR BRAKE HOSE,REAR AXLE I
N 007603022102 SEAL RING
241 A 3214300205 RESERVOIR
Repalced by: A 0034322501
241 A 0034322501 RESERVOIR
40 L
A 3274300005 RESERVOIR
Repalced by: A 0034322701
A 0034322701 RESERVOIR
60 L
242 A 3124302705 RESERVOIR
40 L
243 N 007603022102 SEAL RING
244 A 0004320106 SCREW
Repalced by: A 0004321107
245 A 0004320306 SCREW
Repalced by: A 0004321107
A 0004321107 VALVE
DRAIN VALVE
A 0004322107 VALVE
DRAIN VALVE
A 0004322407 VALVE
DRAIN VALVE
A 0004320107 VALVE
Repalced by: A 0004320807
246 N 074305022201 NUT
247 A 0004320032 VALVE
248 A 0009931505 SPRING
249 A 0004320030 LEVER
N 000007003107 CYLINDRICAL PIN
250 A 0004320407 VALVE
Repalced by: A 0004320807
251 N 900397000201 RING
Repalced by: A 0005830296
251 A 0005830296 RING
252 A 3214320015 CONSOLE
Repalced by: A 3224300111
252 A 3224300111 CONSOLE
Repalced by: A 3224320215
252 A 3224320215 CONSOLE
253 A 3214750084 SHIM
Repalced by: N 007349013003
253 N 007349013003 WASHER
Repalced by: N 007349013005
253 N 007349013005 WASHER
254 A 3209906040 WASHER
N 000961012151 SCREW
CONSOLE TO FRAME SIDE MEMBER
N 000960012015 SCREW
N 912004012100 LOCK WASHER
N 000934012022 NUT
255 A 3219870214 RUBBER STRIP
460X45X2.5 MM
256 A 3214300240 STRAP
N 000934010014 NUT
N 912004010102 LOCK WASHER
257 N 001433010000 PIN
N 000094003219 COTTER PIN
N 007603022102 SEAL RING
N 007604022100 SCREW PLUG
Repalced by: A 3469970230
A 3469970230 SCREW PLUG
AT REAR BOTTOM OF TWO-CHAMBER AIR RESERVOIR
259 N 074305022201 NUT
260 N 074301022201 ELBOW FITTING
261 A 3124291006 LINE
Repalced by: A 0005516256
261 A 0005516256 TUBE
FROM ELBOW FITTING TO VALVE
N 007603022102 SEAL RING
N 074298022201 DOUBLE FITTING
A 3524290802 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
262 N 074299022202 DOUBLE FITTING
263 N 007603022102 SEAL RING
264 A 0004290044 VALVE
265 N 007603022102 SEAL RING
266 N 074299022301 DOUBLE FITTING
267 N 074305022201 NUT
A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
268 N 074301022301 ELBOW FITTING
269 N 074305022201 NUT
A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
270 N 007603022102 SEAL RING
271 N 074298022201 DOUBLE FITTING
272 A 0004310531 TEST CONNECTION
WITH TIRE INFLATING CONNECTION
A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
N 074305022201 NUT
273 A 0005516256 TUBE
15 MM
A 3284295002 LINE
15 MM
274 N 074302022103 T-FITTING
275 A 0004292837 DISTRIBUTOR
276 A 0005516256 TUBE
15 MM
277 N 074302022303 T-FITTING
279 N 074305022201 NUT
280 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
281 N 074301022301 ELBOW FITTING
282 N 074305022201 NUT
283 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
284 A 0004312405 BRAKE BOOSTER
N 000936012000 NUT
ON PUSH ROD, REAR
A 0004312986 CUP
TO 000 431 24 05
A 0004350390 VALVE DISC
TO 000 431 24 05
A 0004292395 AIR CLEANER
TO 000 431 24 05
A 0004311087 PROTECTIVE CAP
TO 000 431 24 05
285 A 3124312092 ROD
N 000936012002 NUT
ON PUSH ROD, FRONT
286 A 3124311097 YOKE
A 3529910007 PIN
N 000094003002 COTTER PIN
287 N 007603022102 SEAL RING
288 N 007604022100 SCREW PLUG
Repalced by: A 3469970230
288 A 3469970230 SCREW PLUG
289 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
290 N 074305022201 NUT
291 N 074301022201 ELBOW FITTING
292 A 0005516256 TUBE
15 MM
A 3214296302 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
15 MM
293 A 3284294102 LINE
15 MM
294 A 0004310531 TEST CONNECTION
WITH TIRE INFLATING CONNECTION
295 A 3284294202 LINE
15 MM
296 N 074301022201 ELBOW FITTING
297 N 074305022201 NUT
298 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
A 3214295602 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
15 MM
299 A 3224296402 LINE
Repalced by: A 0005516256
299 A 0005516256 TUBE
15 MM
A 3214295702 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
15 MM
300 N 074298022201 DOUBLE FITTING
301 N 007603022102 SEAL RING
302 A 0004312505 BRAKE VALVE
N 000125008400 WASHER
N 000094003219 COTTER PIN
303 A 3219961025 ROD
304 N 304032008006 NUT
305 N 071805013100 BALL SOCKET
N 071805013300 SNAP RING
N 071803013100 BALL PIVOT
AT INTERMEDIATE LEVER
N 912004008102 LOCK WASHER
N 304032008006 NUT
BALL PIVOT
A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
N 074305022201 NUT
N 074301022201 ELBOW FITTING
306 A 0005516256 TUBE
15 MM
307 A 0005516256 TUBE
15 MM FROM TRAILER BRAKE VALVE "A" CONNECTION, TO SHUT-OFF COCK
308 N 074298022201 DOUBLE FITTING
309 A 0005516256 TUBE
15 MM
309 A 0005516256 TUBE
15 MM
A 3214296404 LINE
15 MM
A 3284291602 LINE
15 MM
A 3284292402 LINE
15 MM
311 N 074298022201 DOUBLE FITTING
312 N 007603022102 SEAL RING
313 A 0004291630 BRAKE LINE COUPLING
Repalced by: A 0004297530
A 0004294830 BRAKE LINE COUPLING
KNORR
A 0004296730 BRAKE LINE COUPLING
WESTINGHOUSE
A 0004297530 BRAKE LINE COUPLING
BOSCH
A 0004350390 VALVE DISC
TO 000 429 16 30
A 0004350391 VALVE DISC
TO 000 429 16 30
A 0009933201 SPRING
TO 000 429 16 30
A 0004350780 GASKET
TO 000 429 16 30
A 0004350291 VALVE TAPPET
TO 000 429 16 30
N 009045026000 SNAP RING
TO 000 429 16 30
N 000094005045 COTTER PIN
TO 000 429 16 30
A 0004350053 SPRING CAPSULE
TO 000 429 16 30
A 0019970541 SEAL RING
TO 000 429 48 30
A 0069974648 SEAL RING
TO 000 429 48 30
A 0004290074 PIN
TO 000 429 48 30
A 0004291090 COVER
TO 000 429 48 30
A 0004291390 COVER
TO 000 429 67 30
A 0004290391 VALVE CONE
TO 000 429 75 30
A 0079971248 SEAL RING
TO 000 429 75 30
A 0025864942 REPAIR KIT
TO 000 429 67 30
A 0004291930 BRAKE LINE COUPLING
A 0004291930 BRAKE LINE COUPLING
314 A 0004290631 SHUT-OFF COCK
Repalced by: A 0004291431
314 A 0004291431 SHUT-OFF COCK
314 A 0004291631 SHUT-OFF COCK
A 0004292684 SEAL RING
TO 000 429 16 31
A 0004292293 SPRING
TO 000 429 16 31
A 0119976748 SEAL RING
TO 000 429 16 31
A 0009974077 HANDLE
TO 000 429 16 31
A 0004292393 SPRING
TO 000 429 16 31
A 0005866342 REPAIR KIT
TO 000 429 14 31
315 A 0004290141 FITTING
Repalced by: N 074304022201
315 N 074304022201 FITTING
316 A 0004290181 GROMMET
N 074301022201 ELBOW FITTING
COMPRESSED AIR LINE TO SHUT-OFF COCK
N 074305022201 NUT
ELBOW FITTING
A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
317 A 3224290042 BRACKET
318 A 3124291640 BRACKET
319 A 3129952420 CLAMP
Repalced by: A 1109950401
319 A 1109950401 CLAMP
N 000084006107 SCREW
BRACKETS AND MOUNTING CLAMPS TO FRAME
N 912004006102 LOCK WASHER
BRACKETS AND MOUNTING CLAMPS TO FRAME
N 000934006007 NUT
BRACKETS AND MOUNTING CLAMPS TO FRAME
320 N 007603012405 SEAL RING
321 N 074298012200 DOUBLE FITTING
322 A 3225426543 PIPE LINE
Repalced by: A 0004290001
322 A 0004290001 LINE
A 3225426443 PIPE LINE
Repalced by: A 0004290001
A 0004290001 LINE
323 A 3225421843 PIPE LINE
324 N 915017006100 UNION NUT
325 N 003861006007 GLAND
Repalced by: A 0019901667
325 A 0019901667 SEAL CONE
326 A 3225426643 PIPE LINE
Repalced by: A 0004290001
326 A 0004290001 LINE
A 3225426743 PIPE LINE
Repalced by: A 0004290001
A 0004290001 LINE
328 A 0009977172 FITTING
N 006797012153 TOOTHED WASHER
DOUBLE FITTING, OR T-FITTING TO FRONT PANEL
N 000125013008 WASHER
N 000936012002 NUT
DOUBLE FITTING, OR T-FITTING TO FRONT PANEL
329 A 0004291632 T-FITTING
329 A 0004291632 T-FITTING
A 3209970286 PLUG
TO PLUG TEST PRESSURE GAUGE CONNECTION
N 074297012101 UNION NUT
TO PLUG TEST PRESSURE GAUGE CONNECTION
A 3285420543 PIPE LINE
A 3285420343 PIPE LINE
331 A 3225422143 PIPE LINE
Repalced by: A 0004290001
331 A 0004290001 LINE
332 A 3405421244 PIPE LINE
Repalced by: A 0004290001
332 A 0004290001 LINE
A 3405421344 PIPE LINE
Repalced by: A 0004290001
A 0004290001 LINE
A 3225421943 PIPE LINE
Repalced by: A 0004290001
A 0004290001 LINE
333 N 003908006000 T-FITTING
A 3225427243 PIPE LINE
FROM T-FITTING TO TEST CONNECTION
N 003902006000 CONNECTION FITTING
N 007603010103 SEAL RING
Repalced by: N 007603010110
N 007603010110 SEAL RING
A 0004310731 TEST CONNECTION
334 A 3225422243 PIPE LINE
Repalced by: A 0004290001
334 A 0004290001 LINE
A 3225422043 PIPE LINE
Repalced by: A 0004290001
A 0004290001 LINE
335 A 0009972481 GROMMET
A 0009971981 GROMMET
Repalced by: A 0009972081
A 0009972081 GROMMET
336 N 074298012200 DOUBLE FITTING
337 N 007603012405 SEAL RING
338 A 0005420027 WARNING INDICATOR
N 912004010102 LOCK WASHER
339 N 001587010002 CAP NUT
340 A 3405421444 PIPE LINE
Repalced by: A 0004290001
340 A 0004290001 LINE
A 3405421544 PIPE LINE
Repalced by: A 0004290001
A 0004290001 LINE
341 A 3215420035 HOSE
A 3525420235 HOSE
FROM T-FITTING TO AIR PRESSURE GAUGE
342 A 3225420640 BRACKET
WARNING INDICATOR
N 007973004211 SHEET METAL SCREW
343 A 3125421039 PLATE
28 MM TO MOUNT AIR PRESSURE GAUGE LINES
344 A 3125424940 BRACKET
73 MM TO MOUNT AIR PRESSURE GAUGE LINES
345 A 3129950332 CLAMP
Repalced by: A 3609950101
345 A 3609950101 CLAMP
TO MOUNT AIR PRESSURE GAUGE LINES
346 A 3129950033 CLAMP
TO MOUNT AIR PRESSURE GAUGE LINES
N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
N 000000000460 SCREW
TO MOUNT AIR PRESSURE GAUGE LINES
N 000084004106 SCREW
TO MOUNT AIR PRESSURE GAUGE LINES
N 000127004206 LOCK WASHER
TO MOUNT AIR PRESSURE GAUGE LINES
N 000934004006 NUT
TO MOUNT AIR PRESSURE GAUGE LINES
A 3224298802 LINE
Repalced by: A 0004290001
A 0004290001 LINE
FROM CROSS FITTING TO PRESSURE SENDER UNIT
A 3224298902 LINE
Repalced by: A 0004290001
A 0004290001 LINE
A 3224298602 LINE
Repalced by: A 0004290001
A 0004290001 LINE
A 3224298702 LINE
Repalced by: A 0004290001
A 0004290001 LINE
347 A 3224293105 LINE
Repalced by: A 0004290001
347 A 0004290001 LINE
6 MM FROM CROSS FITTING TO OVERFLOW VALVE
A 3224290106 LINE
Repalced by: A 0004290001
A 0004290001 LINE
348 N 007603022102 SEAL RING
349 A 0004293034 ADAPTER FITTING
Repalced by: A 0039972072
349 A 0039972072 FITTING
350 N 074279006300 PART NAME MISSING
Repalced by: A 0004296444
A 0004296444 VALVE
A 3524312640 BRACKET
OVERFLOW VALVE
N 007985006109 SCREW
OVERFLOW VALVE TO BRACKET
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
BRACKET TO CROSS MEMBER
N 912004008102 LOCK WASHER
BRACKET TO CROSS MEMBER
N 304032008006 NUT
BRACKET TO CROSS MEMBER
351 A 3224293205 LINE
Repalced by: A 0004290001
351 A 0004290001 LINE
6 MM FROM OVERFLOW VALVE TO PRESSURE SENDER UNIT
A 3224293305 LINE
Repalced by: A 0004290001
A 0004290001 LINE
6 MM
A 3224293405 LINE
Repalced by: A 0004290001
A 0004290001 LINE
6 MM
A 3224293505 LINE
Repalced by: A 0004290001
A 0004290001 LINE
6 MM
352 N 074298012201 DOUBLE FITTING
353 N 007603012405 SEAL RING
354 A 0004314506 PRESSURE SENDER UNIT
355 A 3224310592 ROD
Repalced by: N 900331008281
A 0004311992 ROD
Repalced by: N 900331008281
356 N 900331008426 PULL ROD
357 N 304032008006 NUT
A 0004310267 YOKE
Repalced by: A 0004310667
A 0004310667 YOKE
358 A 3224300210 BRACKET
359 N 000933008212 SCREW
Repalced by: N 304017008016
359 N 304017008016 SCREW
360 N 912004008102 LOCK WASHER
N 304032008006 NUT
OPERATING ROD TO PRESSURE SENDER UNIT AND TO BRACKET
N 912004008102 LOCK WASHER
OPERATING ROD TO PRESSURE SENDER UNIT AND TO BRACKET
361 A 3224299202 LINE
Repalced by: A 0004290001
361 A 0004290001 LINE
FROM PRESSURE SENDER UNIT TO BRAKE PRESSURE REGULATOR
362 N 074298012201 DOUBLE FITTING
363 N 007603012405 SEAL RING
364 A 0004311612 BRAKE PRESSURE REGULATOR
Repalced by: A 0004314112
364 A 0004314112 BRAKE PRESSURE REGULATOR
365 N 074297012101 UNION NUT
FOR 6-MM-DIA. COMPRESSED AIR LINES
366 N 074297006206 SLIP RING
FOR 6-MM-DIA. COMPRESSED AIR LINES
A 3129951401 CLAMP
N 000084006107 SCREW
MOUNT CLAMP
N 912004006102 LOCK WASHER
N 000934006007 NUT
N 000934006007 NUT
TWO-CIRCUIT AIR BRAKE
368 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
369 N 074305022201 NUT
370 N 074301026201 ELBOW FITTING
A 3224296201 LINE
Repalced by: A 0005516456
A 0005516456 TUBE
18 MM FROM AIR COMPRESSOR TO TIRE INFLATOR CYLINDER, FIRST PART
371 A 3404296202 LINE
18 MM FROM AIR COMPRESSOR TO PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION
372 N 074297026102 UNION NUT
TO 18-MM-DIA. COMPRESSED AIR LINES
373 N 074297018202 SLIP RING
TO 18-MM-DIA. COMPRESSED AIR LINES
374 N 915065018101 THRUST RING
TO 18-MM-DIA. COMPRESSED AIR LINES
375 N 915045014100 SEAL RING
TO 18-MM-DIA. COMPRESSED AIR LINES
N 074298026200 DOUBLE FITTING
A 3224296101 LINE
Repalced by: A 0005516456
A 0005516456 TUBE
18 MM FROM AIR COMPRESSOR TO TIRE INFLATOR CYLINDER, SECOND PART
376 A 3129952320 CLAMP
Repalced by: A 3049950120
376 A 3049950120 CLAMP
Repalced by: A 3609950601
376 A 3609950601 CLAMP
A 0009955801 CLAMP
N 000933006102 SCREW
N 912004006102 LOCK WASHER
N 000934006007 NUT
377 N 074301026201 ELBOW FITTING
378 N 074305022201 NUT
379 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
380 A 0005910202 TIRE INFLATOR CYLINDER
MAKE BOSCH
381 N 007603022102 SEAL RING
382 N 074299022301 DOUBLE FITTING
383 N 074305022201 NUT
384 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
A 0004311006 PRESSURE REGULATOR
385 A 0004314706 VALVE
Repalced by: A 0004318906
385 A 0004318906 PRESSURE REGULATOR
A 0025864143 REPAIR KIT
TO 000 431 89 06
A 0025864143 REPAIR KIT
TO 000 431 89 06
BOSCH 0 481 039 009,005
A 0025865043 REPAIR KIT
TO 000 431 89 06
A 0025865043 REPAIR KIT
TO 000 431 89 06
BOSCH 0 481 039 009,005
A 0004315687 PROTECTIVE CAP
A 0059970982 HOSE
386 N 900271015038 HOSE
N 900262005100 LOOM TIE
RUBBER HOSE TO PRESSURE REGULATOR
N 900263005002 STRAP
RUBBER HOSE TO PRESSURE REGULATOR
387 N 007603022102 SEAL RING
388 N 074298022201 DOUBLE FITTING
389 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
390 N 074305022201 NUT
391 N 074301026200 ELBOW FITTING
A 3214297402 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
15 MM FROM PRESSURE REGULATOR TO AIR RESERVOIR FIRST PART
A 3214297502 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
15 MM
392 A 3524292801 LINE
15 MM
393 N 915018015000 UNION NUT
TO 15-MM-DIA. COMPRESSED AIR LINES
394 N 074297015202 SLIP RING
TO 15-MM-DIA. COMPRESSED AIR LINES
395 N 915065015101 THRUST RING
TO 15-MM-DIA. COMPRESSED AIR LINES
396 N 915045012100 SEAL RING
Repalced by: N 007603012121
396 N 007603012121 SEAL RING
TO 15-MM-DIA. COMPRESSED AIR LINES
397 N 074298022201 DOUBLE FITTING
A 3214299502 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
15 MM
A 3224295402 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
15 MM
398 A 3224294504 LINE
15 MM
398 A 3224294604 LINE
15 MM
A 3224294904 LINE
15 MM
A 3224295004 LINE
15 MM
399 A 3129974282 HOSE
400 A 3124291940 BRACKET
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO FRAME
N 912004008102 LOCK WASHER
BRACKET TO FRAME
N 304032008006 NUT
BRACKET TO FRAME
401 A 3124761535 BRACKET
123 MM
402 A 3129952420 CLAMP
Repalced by: A 1109950401
402 A 1109950401 CLAMP
N 000084006107 SCREW
FOR MOUNTING CLAMPS AND BRACKETS
N 912004006102 LOCK WASHER
N 000934006007 NUT
403 N 074302022200 T-FITTING
N 074305022200 NUT
Repalced by: N 074305022202
N 074305022202 NUT
A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
404 N 007603022102 SEAL RING
A 0004311606 VALVE
Repalced by: A 0014293544
A 0014293544 VALVE
406 A 0004313506 VALVE
Repalced by: A 0004316706
A 0004316706 VALVE
407 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
408 N 074305022200 NUT
Repalced by: N 074305022202
408 N 074305022202 NUT
409 N 074299022300 DOUBLE FITTING
410 N 007603022102 SEAL RING
411 A 3124302905 RESERVOIR
20 X 20 L.
412 N 007603022102 SEAL RING
413 N 007604022100 SCREW PLUG
Repalced by: A 3469970230
413 A 3469970230 SCREW PLUG
414 N 007603022102 SEAL RING
417 A 0004320106 SCREW
Repalced by: A 0004321107
417 A 0004320306 SCREW
Repalced by: A 0004321107
417 A 0004321107 VALVE
DRAIN VALVE
417 A 0004322107 VALVE
DRAIN VALVE
417 A 0004322407 VALVE
DRAIN VALVE
417 A 0004321107 VALVE
EMPTY
418 N 900397000201 RING
Repalced by: A 0005830296
418 A 0005830296 RING
419 A 3214320015 CONSOLE
Repalced by: A 3224300111
419 A 3224300111 CONSOLE
Repalced by: A 3224320215
419 A 3224320215 CONSOLE
420 A 3214750084 SHIM
Repalced by: N 007349013003
420 N 007349013003 WASHER
Repalced by: N 007349013005
420 N 007349013005 WASHER
421 A 3209906040 WASHER
N 000961012151 SCREW
CONSOLES TO SIDE MEMBER
N 912004012100 LOCK WASHER
CONSOLES TO SIDE MEMBER
N 000934012022 NUT
CONSOLES TO SIDE MEMBER
422 A 3219870214 RUBBER STRIP
423 A 3214300240 STRAP
N 000934010014 NUT
FOR STRAPS
N 912004010102 LOCK WASHER
424 N 001433010000 PIN
N 000094003219 COTTER PIN
A 3214299602 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
15 MM
425 N 074298022200 DOUBLE FITTING
AT PRESSURE SAFETY VALVE
426 N 007603022102 SEAL RING
427 A 3224294404 LINE
15 MM
A 3224295304 LINE
15 MM
N 007603022102 SEAL RING
N 074299022202 DOUBLE FITTING
IN PRESSURE SAFETY VALVE
A 0004311606 VALVE
Repalced by: A 0014293544
A 0014293544 VALVE
AT REAR CHAMBER OF AIR RESERVOIR
A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
N 074305022201 NUT
N 074299022301 DOUBLE FITTING
TO CONNECT PRESSURE SAFETY VALVE TO AIR RESERVOIR
N 007603022102 SEAL RING
FOR DOUBLE FITTING
A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0009974140 SEAL RING
A 0004290227 THRUST RING
ELBOW FITTING
A 0004290227 THRUST RING
ELBOW FITTING
A 0009870446 SEALING CORD
ELBOW FITTING
A 0009870446 SEALING CORD
ELBOW FITTING
N 074305022201 NUT
ELBOW FITTING
N 074305022201 NUT
ELBOW FITTING
428 N 074301022201 ELBOW FITTING
TO CONNECT COMPRESSED AIR LINES TO AIR RESERVOIR
428 N 074301022201 ELBOW FITTING
TO CONNECT COMPRESSED AIR LINES TO AIR RESERVOIR
429 A 0005516256 TUBE
15 MM
A 3224295404 LINE
15 MM
A 3224295504 LINE
15 MM
A 3214299802 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
15 MM
A 3224295802 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
15 MM
430 A 3224293204 LINE
15 MM
A 3224295604 LINE
15 MM
A 3224295704 LINE
15 MM
431 N 074302022102 T-FITTING
432 A 3224293304 LINE
15 MM
A 3224295804 LINE
15 MM
433 N 074302022302 T-FITTING
434 N 074301022300 ELBOW FITTING
435 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
436 N 074305022201 NUT
437 N 074302022302 T-FITTING
438 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
439 N 074305022201 NUT
A 0004312407 VALVE
Repalced by: A 0004312707
440 A 0004312707 VALVE
Repalced by: A 0004312307
440 A 0004312307 VALVE
441 N 007603022102 SEAL RING
442 A 0004312405 BRAKE BOOSTER
A 0004312986 CUP
TO 000 431 24 05
A 0004350390 VALVE DISC
TO 000 431 24 05
A 0004292395 AIR CLEANER
TO 000 431 24 05
A 0004311087 PROTECTIVE CAP
TO 000 431 24 05
N 000936012000 NUT
PUSH ROD
443 A 3124312092 ROD
N 000936012002 NUT
PUSH ROD
444 A 3124311097 YOKE
445 N 001434010009 PIN
N 000094003002 COTTER PIN
446 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
447 N 074305022201 NUT
448 N 074301022201 ELBOW FITTING
449 A 3214296202 LINE
Repalced by: A 0005526256
449 A 0005516256 TUBE
15 MM
A 3214296302 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
15 MM
N 074301022201 ELBOW FITTING
N 074305022200 NUT
Repalced by: N 074305022202
N 074305022202 NUT
A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
A 3214299902 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
15 MM FROM DOUBLE CHECK VALVE TO TRAILER BRAKE VALVE, "V" CONNECTION
450 A 3224293404 LINE
15 MM
A 3224295904 LINE
15 MM
451 N 007603022102 SEAL RING
452 N 074298022201 DOUBLE FITTING
453 A 0004312505 BRAKE VALVE
N 000125008400 WASHER
PULL ROD TO TRAILER BRAKE VALVE OPERATING LEVER
N 000094003219 COTTER PIN
PULL ROD TO TRAILER BRAKE VALVE OPERATING LEVER
454 A 3219961025 ROD
N 304032008006 NUT
455 N 071805013100 BALL SOCKET
N 071805013300 SNAP RING
N 071803013100 BALL PIVOT
AT INTERMEDIATE LEVER
N 912004008102 LOCK WASHER
BALL PIVOT
N 304032008006 NUT
BALL PIVOT
A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
N 074305022201 NUT
N 074301022201 ELBOW FITTING
A 3214292202 LINE
Repalced by: A 0005516256
A 0005516256 TUBE
15 MM
456 A 0005516256 TUBE
15 MM
457 N 074298022201 DOUBLE FITTING
458 A 0005516256 TUBE
15 MM
A 0005516256 TUBE
15 MM
A 3214296404 LINE
15 MM
459 N 074298022201 DOUBLE FITTING
460 N 007603022102 SEAL RING
461 A 0004291630 BRAKE LINE COUPLING
Repalced by: A 0004297530
A 0004294830 BRAKE LINE COUPLING
KNORR
A 0004296730 BRAKE LINE COUPLING
WESTINGHOUSE
A 0004297530 BRAKE LINE COUPLING
BOSCH
A 0004350390 VALVE DISC
TO 000 429 16 30
A 0004350391 VALVE DISC
TO 000 429 16 30
A 0009933201 SPRING
TO 000 429 16 30
A 0004350780 GASKET
TO 000 429 16 30
N 009045026000 SNAP RING
TO 000 429 16 30
N 000094005045 COTTER PIN
TO 000 429 16 30
A 0019970541 SEAL RING
TO 000 429 48 30
A 0069974648 SEAL RING
TO 000 429 48 30
A 0004290074 PIN
TO 000 429 48 30
A 0004291090 COVER
TO 000 429 48 30
A 0004291390 COVER
TO 000 429 67 30
A 0004290391 VALVE CONE
TO 000 429 75 30
A 0079971248 SEAL RING
TO 000 429 75 30
A 0004303460 REPAIR KIT
TO 000 429 48 30
A 0025864942 REPAIR KIT
TO 000 429 67 30
462 A 3224290042 BRACKET
A 3129952420 CLAMP
Repalced by: A 1109950401
A 1109950401 CLAMP
N 000084006107 SCREW
MOUNTING CLAMP
N 912004006102 LOCK WASHER
MOUNTING CLAMP
N 000934006007 NUT
MOUNTING CLAMP
463 N 007603012405 SEAL RING
464 N 074298012200 DOUBLE FITTING
465 A 3225425643 PIPE LINE
Repalced by: A 0004290001
465 A 0004290001 LINE
6 MM
A 3225425743 PIPE LINE
Repalced by: A 0004290001
A 0004290001 LINE
6 MM
466 N 915017006100 UNION NUT
467 N 003861006007 GLAND
Repalced by: A 0019901667
467 A 0019901667 SEAL CONE
468 A 3405421444 PIPE LINE
Repalced by: A 0004290001
468 A 0004290001 LINE
6 MM
A 3405421544 PIPE LINE
Repalced by: A 0004290001
A 0004290001 LINE
6 MM
469 A 0009977172 FITTING
N 006797012150 TOOTHED WASHER
N 000936012002 NUT
DOUBLE FITTING TO FRONT PANEL
470 A 3215424543 PIPE LINE
Repalced by: A 0004290001
470 A 0004290001 LINE
6 MM
A 3225426543 PIPE LINE
Repalced by: A 0004290001
A 0004290001 LINE
6 MM
471 A 3405421244 PIPE LINE
Repalced by: A 0004290001
471 A 0004290001 LINE
6 MM
A 3405421344 PIPE LINE
Repalced by: A 0004290001
A 0004290001 LINE
6 MM
472 A 3215424543 PIPE LINE
Repalced by: A 0004290001
472 A 0004290001 LINE
6 MM
A 3215426743 PIPE LINE
6 MM
A 3225425843 PIPE LINE
6 MM
473 A 3225424543 PIPE LINE
Repalced by: A 0004290001
473 A 0004290001 LINE
6 MM
A 3225426043 PIPE LINE
6 MM
474 A 3215420035 HOSE
475 A 3125421039 PLATE
28 MM
476 A 3125424940 BRACKET
73 MM
477 A 3129950332 CLAMP
Repalced by: A 3609950101
477 A 3609950101 CLAMP
478 A 3129950033 CLAMP
N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
N 000000000460 SCREW
TO MOUNT AIR PRESSURE GAUGE LINES
N 000084004106 SCREW
TO MOUNT AIR PRESSURE GAUGE LINES
N 000127004206 LOCK WASHER
TO MOUNT AIR PRESSURE GAUGE LINES
N 000934004006 NUT
TO MOUNT AIR PRESSURE GAUGE LINES
N 000934004006 NUT
TO MOUNT AIR PRESSURE GAUGE LINES
479 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
480 N 074305022201 NUT
481 N 074301026201 ELBOW FITTING
482 A 3404296202 LINE
18 MM FROM AIR COMPRESSOR TO PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION
483 N 074297026102 UNION NUT
TO 18-MM-DIA. COMPRESSED AIR LINES
484 N 074297018202 SLIP RING
TO 18-MM-DIA. COMPRESSED AIR LINES
485 N 915065018101 THRUST RING
TO 18-MM-DIA. COMPRESSED AIR LINES
486 N 915045014100 SEAL RING
TO 18-MM-DIA. COMPRESSED AIR LINES
487 A 3129952320 CLAMP
Repalced by: A 3049950120
487 A 3049950120 CLAMP
Repalced by: A 3609950601
487 A 3609950601 CLAMP
A 0009955801 CLAMP
N 000933006102 SCREW
N 912004006102 LOCK WASHER
N 000934006007 NUT
488 N 074301026201 ELBOW FITTING
489 N 074305022201 NUT
490 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
491 A 0004314006 VALVE
Repalced by: A 0004319106
A 0004319106 PRESSURE REGULATOR
A 0025864243 REPAIR KIT
TO 000 431 91 06,BOSCH 0 481 039 011
A 0025864143 REPAIR KIT
TO 000 431 40 06,BOSCH 0 481 039 007
A 0004315687 PROTECTIVE CAP
492 N 900271015038 HOSE
N 900262005100 LOOM TIE
N 900263005002 STRAP
493 N 007603022102 SEAL RING
495 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
496 N 074305022201 NUT
497 N 074301022200 ELBOW FITTING
498 A 3404296402 LINE
15 MM
499 N 915018015000 UNION NUT
TO 15-MM-DIA. COMPRESSED AIR LINES
500 N 074297015202 SLIP RING
TO 15-MM-DIA. COMPRESSED AIR LINES
501 N 915065015101 THRUST RING
TO 15-MM-DIA. COMPRESSED AIR LINES
502 N 915045012100 SEAL RING
Repalced by: N 007603012121
502 N 007603012121 SEAL RING
TO 15-MM-DIA. COMPRESSED AIR LINES
503 N 074298022201 DOUBLE FITTING
504 A 3224293804 LINE
15 MM
505 A 3129974282 HOSE
A 3124761535 BRACKET
123 MM
508 A 3129952420 CLAMP
Repalced by: A 1109950401
508 A 1109950401 CLAMP
N 000084006107 SCREW
FOR MOUNTING CLAMPS AND BRACKETS
N 912004006102 LOCK WASHER
N 000934006007 NUT
509 N 074298022201 DOUBLE FITTING
510 N 007603022102 SEAL RING
511 A 3274300005 RESERVOIR
Repalced by: A 0034322701
511 A 0034322701 RESERVOIR
60 L.
512 N 007603022102 SEAL RING
513 A 0004320106 SCREW
Repalced by: A 0004321107
514 A 0004320306 SCREW
Repalced by: A 0004321107
A 0004321107 VALVE
DRAIN VALVE
A 0004322107 VALVE
DRAIN VALVE
A 0004322407 VALVE
DRAIN VALVE
515 A 3214320015 CONSOLE
516 A 3214750084 SHIM
Repalced by: N 007349013003
516 N 007349013003 WASHER
Repalced by: N 007349013005
516 N 007349013005 WASHER
517 A 3209906040 WASHER
N 000960012015 SCREW
CONSOLE TO FRAME SIDE MEMBER
N 912004012100 LOCK WASHER
CONSOLE TO FRAME SIDE MEMBER
N 000934012022 NUT
CONSOLE TO FRAME SIDE MEMBER
518 A 3219870214 RUBBER STRIP
460X45X2.5 MM
519 A 3214300240 STRAP
N 000934010014 NUT
N 912004010102 LOCK WASHER
520 N 001433010000 PIN
N 000094003219 COTTER PIN
521 N 007603022102 SEAL RING
522 N 074298022201 DOUBLE FITTING
523 A 3284295102 LINE
15 MM
524 N 074298022201 DOUBLE FITTING
525 N 007603022102 SEAL RING
526 A 3124290037 DISTRIBUTOR
527 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
528 N 074305022201 NUT
529 N 074302022302 T-FITTING
531 A 3124291520 LINE
15 MM
532 N 074302022200 T-FITTING
533 N 074305022201 NUT
534 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
535 A 0004312405 BRAKE BOOSTER
A 0004312986 CUP
TO 000 431 24 05
A 0004350390 VALVE DISC
TO 000 431 24 05
A 0004292395 AIR CLEANER
TO 000 431 24 05
A 0004311087 PROTECTIVE CAP
TO 000 431 24 05
536 N 000936012000 NUT
537 A 3124312092 ROD
538 N 000936012002 NUT
539 A 3124311097 YOKE
540 N 001434010009 PIN
N 009021010100 WASHER
N 000094003002 COTTER PIN
541 N 007603022102 SEAL RING
542 N 007604022100 SCREW PLUG
Repalced by: A 3469970230
542 A 3469970230 SCREW PLUG
543 A 3224299204 LINE
15 MM
544 N 074299022200 DOUBLE FITTING
545 N 007603022102 SEAL RING
546 A 0004311207 VALVE
550 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
551 N 074305022201 NUT
552 N 074299022301 DOUBLE FITTING
553 N 007603022102 SEAL RING
554 A 0004290631 SHUT-OFF COCK
Repalced by: A 0004291431
554 A 0004291431 SHUT-OFF COCK
FRONT
A 0004291631 SHUT-OFF COCK
FRONT
A 0004292684 SEAL RING
TO 000 429 16 31
A 0004292293 SPRING
TO 000 429 16 31
A 0119976748 SEAL RING
TO 000 429 16 31
A 0009974077 HANDLE
TO 000 429 16 31
A 0004292393 SPRING
TO 000 429 16 31
A 0005866342 REPAIR KIT
TO 000 429 14 31
555 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
556 N 074305022201 NUT
557 N 074299022301 DOUBLE FITTING
558 N 007603022102 SEAL RING
559 A 0004291330 BRAKE LINE COUPLING
Repalced by: A 0004291130
559 A 0004291130 BRAKE LINE COUPLING
Repalced by: A 0004292830
559 A 0004292830 BRAKE LINE COUPLING
A 0004290684 SEAL RING
IN HOUSING
560 N 007603022102 SEAL RING
561 A 0004291234 ADAPTER FITTING
Repalced by: A 0009970171
561 A 0009970171 FITTING
562 A 3124295307 LINE
8 MM
563 A 0004291234 ADAPTER FITTING
Repalced by: A 0009970171
563 A 0009970171 FITTING
564 N 007603022102 SEAL RING
565 A 0004290047 TWO-WAY VALVE
A 0004293044 VALVE
TWO-WAY
A 0014292944 VALVE
TWO-WAY
A 0004290784 SEAL RING
TO 000 429 00 47
A 0004290582 VALVE
TO 000 429 00 47
A 0004291993 SPRING
TO 000 429 00 47
A 0004292093 SPRING
TO 000 429 00 47
A 0099970545 SEAL RING
TO 000 429 00 47
A 0004290183 VALVE TAPPET
TO 000 429 30 44
A 0004290282 VALVE
TO 000 429 30 44
A 0004291195 AIR CLEANER
TO 000 429 30 44
566 A 0004290784 SEAL RING
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
N 912004010102 LOCK WASHER
N 000934010014 NUT
TWO-WAY VALVE TO BEARING BRACKET
567 N 007603022102 SEAL RING
568 A 0004291234 ADAPTER FITTING
Repalced by: A 0009970171
568 A 0009970171 FITTING
569 A 3284294302 LINE
8 MM
570 A 0004291834 ADAPTER FITTING
Repalced by: A 0019972572
570 A 0019972572 FITTING
571 N 007603012405 SEAL RING
572 A 0004290844 VALVE
573 A 3124297040 BRACKET
N 000933010128 SCREW
N 912004010102 LOCK WASHER
N 000934010200 NUT
574 N 007603022102 SEAL RING
575 A 0004291234 ADAPTER FITTING
Repalced by: A 0009970171
575 A 0009970171 FITTING
576 A 3224291901 LINE
8 MM
577 A 0004291434 ADAPTER FITTING
Repalced by: N 003902008001
577 N 003902008001 CONNECTION FITTING
Repalced by: A 0039978972
577 A 0039978972 FITTING
Repalced by: A 0029905971
577 A 0029905971 FITTING
578 A 3224291704 LINE
8 MM
N 003910008000 BULKHEAD FITTING
N 912004014100 LOCK WASHER
N 080705014002 NUT
579 A 3224291701 LINE
580 A 0004291834 ADAPTER FITTING
Repalced by: A 0019972572
580 A 0019972572 FITTING
581 N 007603012405 SEAL RING
582 A 0004310016 VALVE
583 A 3224291501 LINE
8 MM
584 N 003910008000 BULKHEAD FITTING
585 N 912004014100 LOCK WASHER
586 N 080705014002 NUT
587 A 3224291504 LINE
8 MM
588 A 0004291434 ADAPTER FITTING
Repalced by: N 003902008001
588 N 003902008001 CONNECTION FITTING
Repalced by: A 0039978972
588 A 0039978972 FITTING
Repalced by: A 0029905971
588 A 0029905971 FITTING
589 A 3224291301 LINE
8 MM
590 A 0004291834 ADAPTER FITTING
Repalced by: A 0019972572
590 A 0019972572 FITTING
591 N 007603012405 SEAL RING
A 3124761135 BRACKET
593 A 3124761036 BRACKET
Repalced by: A 3124761236
593 A 3124761236 BRACKET
Repalced by: A 3604293140
593 A 3604293140 BRACKET
595 A 3379950332 CLAMP
N 000084006426 SCREW
N 912004006102 LOCK WASHER
N 000934006007 NUT
596 A 0009900654 NUT
Repalced by: N 003870008101
596 N 915017008100 UNION NUT
FOR 8-MM-DIA. COMPRESSED AIR LINES
597 N 915017008100 UNION NUT
FOR 8-MM-DIA. COMPRESSED AIR LINES
598 N 074297008200 SLIP RING
FOR 8-MM-DIA. COMPRESSED AIR LINES
599 N 003861008008 GLAND
FOR 8-MM-DIA. COMPRESSED AIR LINES
601 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
602 N 074305022201 NUT
603 N 074301022201 ELBOW FITTING
604 A 3284294402 LINE
15 MM
605 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
606 N 074305022201 NUT
607 N 074301022201 ELBOW FITTING
608 A 0004291444 VALVE
Repalced by: A 0014296644
608 A 0014296644 VALVE
609 A 3129912840 SPACER TUBE
N 000931010331 SCREW
N 912004010102 LOCK WASHER
610 N 007603022102 SEAL RING
611 N 074299022200 DOUBLE FITTING
612 A 3284294702 LINE
15 MM
614 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
615 N 074305022201 NUT
616 N 074301022201 ELBOW FITTING
617 A 3284294502 LINE
15 MM
618 N 074299022201 DOUBLE FITTING
619 N 007603022102 SEAL RING
620 A 3284294602 LINE
15 MM
623 N 074301022201 ELBOW FITTING
624 A 0009974140 SEAL RING
Repalced by: A 0004290227
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
625 N 074305022201 NUT
628 A 0004290631 SHUT-OFF COCK
Repalced by: A 0004291431
628 A 0004291431 SHUT-OFF COCK
628 A 0004291631 SHUT-OFF COCK
A 0004292684 SEAL RING
TO 000 429 16 31
A 0004292293 SPRING
TO 000 429 16 31
A 0119976748 SEAL RING
TO 000 429 16 31
A 0009974077 HANDLE
TO 000 429 16 31
A 0004292393 SPRING
TO 000 429 16 31
A 0005866342 REPAIR KIT
TO 000 429 14 31
629 A 0004290141 FITTING
Repalced by: N 074304022201
629 N 074304022201 FITTING
N 007603022102 SEAL RING
630 A 0004290181 GROMMET
636 N 007603012405 SEAL RING
637 N 074298012200 DOUBLE FITTING
638 A 3225426443 PIPE LINE
Repalced by: A 0004290001
638 A 0004290001 LINE
6 MM
639 A 3225426743 PIPE LINE
Repalced by: A 0004290001
639 A 0004290001 LINE
6 MM
640 A 0009977172 FITTING
N 000936012002 NUT
N 000125013008 WASHER
641 A 3405421344 PIPE LINE
Repalced by: A 0004290001
641 A 0004290001 LINE
6 MM
642 A 3405421542 LEVER
6 MM
643 A 3215420035 HOSE
644 N 915017006100 UNION NUT
FOR 6-MM-DIA. AIR PRESSURE GAUGE LINES
645 N 003861006007 GLAND
Repalced by: A 0019901667
645 A 0019901667 SEAL CONE
FOR 6-MM-DIA. AIR PRESSURE GAUGE LINES
646 A 3125421039 PLATE
28 MM
648 A 3129950033 CLAMP
FOR 6-MM-DIA. PIPES
649 A 3129950332 CLAMP
Repalced by: A 3609950101
649 A 3609950101 CLAMP
N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
N 000000000460 SCREW
N 000084004106 SCREW
N 000127004206 LOCK WASHER
N 000934004006 NUT
651 A 0005910202 TIRE INFLATOR CYLINDER
MAKE BOSCH
652 N 005401308000 BALL
653 A 0009938601 SPRING
654 A 0005910256 SCREW PLUG
655 A 0005910168 GUIDE SLEEVE
656 A 0005910060 SEAL RING
657 A 0005910220 FILTER ELEMENT
658 N 009045016001 SNAP RING
659 A 0005910356 SCREW PLUG
660 A 0005910360 SEAL RING
661 A 0029931601 SPRING
662 A 0005910190 VALVE DISC
663 A 0005910074 PIN
664 A 0005910260 SEAL RING
665 N 009045010000 SNAP RING
666 N 007603026300 SEAL RING
667 A 0005910456 SCREW PLUG
668 A 0005910119 AIR CLEANER
MAKE GRAU
N 000931008189 SCREW
TIRE INFLATOR CYLINDER TO FIRE WALL
N 912004008102 LOCK WASHER
TIRE INFLATOR CYLINDER TO FIRE WALL
669 A 0004311006 PRESSURE REGULATOR
A 0004312706 PRESSURE REGULATOR
670 A 0004311060 SEAL RING
671 A 0004310212 COMPENSATOR
672 A 0004311560 SEAL RING
673 A 0004311081 VALVE DISC
674 N 000084004165 SCREW
675 N 000127004206 LOCK WASHER
676 A 0004312193 SPRING
677 A 0004311089 BUSHING
678 A 0004310856 SCREW PLUG
679 N 912004008102 LOCK WASHER
680 N 304032008006 NUT
681 N 000933008153 SCREW
Repalced by: N 304017008034
681 N 304017008034 SCREW
682 A 0004310070 STUD
684 N 304032005002 NUT
Repalced by: N 304032005005
684 N 304032005005 NUT
685 A 0004310681 VALVE DISC
686 A 0004312393 SPRING
687 A 0004312293 SPRING
688 N 007603026100 SEAL RING
689 A 0004310956 SCREW PLUG
690 A 0004312493 SPRING
691 A 0004312383 PISTON
692 N 007603035100 SEAL RING
693 A 0004311476 WASHER
694 A 0004311056 SCREW PLUG
695 A 0004310934 STRAINER
696 A 0004311160 SEAL RING
697 A 0004310073 BREATHER PIPE
698 N 000063010122 SCREW
699 A 0004314706 VALVE
Repalced by: A 0004318906
699 A 0004318906 PRESSURE REGULATOR
A 0025864143 REPAIR KIT
TO 000 431 89 06
A 0025864143 REPAIR KIT
TO 000 431 89 06
BOSCH 0 481 039 009,005
A 0025865043 REPAIR KIT
TO 000 431 89 06
A 0025865043 REPAIR KIT
TO 000 431 89 06
BOSCH 0 481 039 009,005
A 0004314006 VALVE
Repalced by: A 0004319106
A 0004319106 PRESSURE REGULATOR
BOSCH
700 A 0007630253 SLEEVE
Repalced by: A 0007630553
700 A 0007630553 SLEEVE
701 A 0004311434 STRAINER
702 A 0004310681 VALVE DISC
703 A 0004311381 VALVE DISC
A 0004311081 VALVE DISC
PRESSURE VALVE
A 0004314787 PROTECTIVE CAP
Repalced by: A 0009979486
A 0009979486 PLUG
TIRE INFLATING CONNECTION
A 0025864143 REPAIR KIT
TO 000 431 40 06,BOSCH 0 481 039 007
A 0025864243 REPAIR KIT
TO 000 431 91 06
TO 000 431 91 06,BOSCH 0481 039 011
A 0004315687 PROTECTIVE CAP
704 A 3124291446 PAD
705 N 000931008281 SCREW
706 N 912004008102 LOCK WASHER
A 3524311740 BRACKET
PRESSURE REGULATOR
N 000931008046 SCREW
Repalced by: N 304017008018
N 304017008018 SCREW
BRACKET, OR PRESSURE REGULATOR, TO FRONT PANEL
N 000939008116 STUD BOLT
BRACKET, OR PRESSURE REGULATOR, TO FRONT PANEL
N 912004008102 LOCK WASHER
BRACKET, OR PRESSURE REGULATOR, TO FRONT PANEL
N 304032008006 NUT
BRACKET, OR PRESSURE REGULATOR, TO FRONT PANEL
708 A 0004310715 ANTI-FREEZE DEVICE
Repalced by: A 0004312615
708 A 0004312615 ANTI-FREEZE DEVICE
A 0004316787 PROTECTIVE CAP
TO 000 431 26 15,WEST 432 199 03 00
709 A 0039978746 SEAL RING
710 A 0004315360 SEAL RING
711 A 0019872146 SEALING CORD
712 A 0019872246 SEALING CORD
713 A 0019971245 SEAL RING
714 A 0009890279 WICK
715 N 915035000022 SEAL RING
716 A 0009978530 SCREW PLUG
A 0004321107 VALVE
TO 000 431 26 15,WEST 432 199 03 00
A 0004314476 WASHER
TO 000 431 26 15 WEST 432 199 03 00
A 0009890679 WICK
PARTS KIT
TO 000 431 26 15,WEST 432 199 03 00
A 0025861143 REPAIR KIT
TO 000 431 26 15,WEST 432 199 03 00
717 A 0004311715 ANTI-FREEZE DEVICE
718 A 0004317086 CUP
719 A 0004350390 VALVE DISC
720 A 0004312405 BRAKE BOOSTER
721 A 0004312786 CUP
722 A 0004312886 SEAL RING
723 A 0004312986 CUP
TO 000 431 24 05
724 A 0004350390 VALVE DISC
TO 00 431 24 05
725 A 0004350391 VALVE DISC
726 A 0009933201 SPRING
727 N 007603030100 SEAL RING
728 N 071752012000 YOKE
729 N 001433012015 PIN
730 A 0004290176 WASHER
N 000094004000 COTTER PIN
731 N 000417008002 HEADLESS SETSCREW
732 A 0004310594 WASHER
N 304032008006 NUT
733 A 0004290695 AIR CLEANER
A 0004292395 AIR CLEANER
TO 00 431 24 05
N 000094003022 COTTER PIN
734 A 0004311087 PROTECTIVE CAP
TO 000 431 24 05
735 N 912004010102 LOCK WASHER
736 N 000933010129 SCREW
Repalced by: N 304017010002
736 N 304017010002 SCREW
737 A 3124294840 BRACKET
A 3124295640 BRACKET
738 A 3224310540 BRACKET
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
BRACKET TO FRAME
N 000125010500 WASHER
BRACKET TO FRAME
N 000127010005 LOCK WASHER
BRACKET TO FRAME
N 000934010014 NUT
BRACKET TO FRAME
740 A 0004314506 PRESSURE SENDER UNIT
741 A 0004314883 PISTON
742 A 0003270032 VALVE PART
A 3224311840 BRACKET
PRESSURE SENDER UNIT
743 A 3224300310 BRACKET
PRESSURE SENDER UNIT
N 000933010062 SCREW
CONSOLE OR BRACKET TO FRAME
N 000933010128 SCREW
CONSOLE OR BRACKET TO FRAME
N 912004010102 LOCK WASHER
CONSOLE OR BRACKET TO FRAME
N 000934010014 NUT
CONSOLE OR BRACKET TO FRAME
N 304014008004 SCREW
Repalced by: N 304014008001
N 304014008001 SCREW
PRESSURE SENDER UNIT TO BRACKET
N 000127008006 LOCK WASHER
PRESSURE SENDER UNIT TO BRACKET
N 304032008006 NUT
PRESSURE SENDER UNIT TO BRACKET
744 A 0004311612 BRAKE PRESSURE REGULATOR
Repalced by: A 0004314112
744 A 0004314112 BRAKE PRESSURE REGULATOR
745 A 0004314160 SEAL RING
746 A 0004315786 CUP
747 A 0004314060 SEAL RING
Repalced by: A 0129975448
747 A 0129975448 SEAL RING
748 A 3224311040 BRACKET
N 000933010164 SCREW
BRACKET TO FRAME
N 912004010102 LOCK WASHER
BRACKET TO FRAME
N 000936010008 NUT
BRACKET TO FRAME
749 A 0004290044 VALVE
750 A 0004290382 VALVE
751 A 0004290193 SPRING
752 A 0004290092 VALVE NIPPLE
753 A 0004290073 LOCK
754 A 0004290045 DIAPHRAGM
755 A 0004290062 THRUST WASHER
756 A 0004290293 SPRING
757 A 0004290089 SPRING RETAINER
N 912004008102 LOCK WASHER
PRESSURE ADJUSTMENT
N 304032008006 NUT
PRESSURE ADJUSTMENT
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
PRESSURE ADJUSTMENT
N 912004008102 LOCK WASHER
SPRING CASE
N 000933008154 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
N 000960012216 SCREW
Repalced by: N 308765012007
N 308765012007 SCREW
BRAKE POWER REGULATOR TO BRACKET
N 912004012100 LOCK WASHER
BRAKE POWER REGULATOR TO BRACKET
N 000934012022 NUT
BRAKE POWER REGULATOR TO BRACKET
A 0004311606 VALVE
Repalced by: A 0014293544
A 0004290145 DIAPHRAGM
A 0004290362 THRUST WASHER
FOR DIAPHRAGM
N 912004008102 LOCK WASHER
N 304032008006 NUT
N 912004008102 LOCK WASHER
N 000933008154 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
759 A 0004313506 VALVE
Repalced by: A 0004316706
759 A 0004316706 VALVE
760 A 0007630454 SEAL
761 A 0004311181 VALVE DISC
Repalced by: A 0004311981
761 A 0004311981 VALVE DISC
762 A 0019935501 SPRING
VALVE RETAINER
763 A 0004315086 CUP
764 N 000472036000 LOCK RING
765 A 0019935601 SPRING
PRESSURE PLATE
767 A 0004312505 BRAKE VALVE
768 A 0004313086 CUP
769 A 0004313186 CUP
770 A 0004350390 VALVE DISC
771 A 0004350391 VALVE DISC
N 000931010040 SCREW
IN CASE COVER
N 000933010069 SCREW
CASE COVER AND BRAKE VALVE TO BEARING BRACKET
N 912004010102 LOCK WASHER
N 000934010014 NUT
TRAILER BRAKE VALVE TO BEARING BRACKET
N 912004010102 LOCK WASHER
772 A 0004291630 BRAKE LINE COUPLING
Repalced by: A 0004297530
A 0004294830 BRAKE LINE COUPLING
KNORR
A 0004296730 BRAKE LINE COUPLING
WESTINGHOUSE
A 0004297530 BRAKE LINE COUPLING
BOSCH
773 A 0004350390 VALVE DISC
TO 000 429 16 30
774 A 0004350391 VALVE DISC
TO 000 429 16 30
775 A 0009933201 SPRING
TO 000 429 16 30
776 A 0004350236 VALVE PART
TO 000 429 16 30
777 A 0004350780 GASKET
TO 000 429 16 30
778 A 0004350172 NUT
TO 000 429 16 30
779 A 0004350291 VALVE TAPPET
TO 000 429 16 30
780 N 009045026000 SNAP RING
TO 000 429 16 30
781 A 0004350014 COVER
TO 000 429 16 30
N 000094005045 COTTER PIN
TO 000 429 16 30
782 A 0009938901 SPRING
TO 000 429 16 30
783 A 0004350053 SPRING CAPSULE
TO 000 429 16 30
A 0019970541 SEAL RING
TO 000 429 48 30
A 0069974648 SEAL RING
TO 000 429 48 30
A 0004290074 PIN
TO 000 429 48 30
A 0004291090 COVER
TO 000 429 48 30
A 0004291390 COVER
TO 000 429 67 30
A 0004290391 VALVE CONE
TO 000 429 75 30
A 0079971248 SEAL RING
TO 000 429 75 30
A 0004303460 REPAIR KIT
TO 000 429 48 30
A 0025864942 REPAIR KIT
TO 000 429 67 30
784 A 0004290140 BRACKET
785 A 3213150040 BRACKET
786 A 3213150121 PLATE
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
CLAMP TO BRACKET AND TO CROSS MEMBER, RESP.
N 000931008007 SCREW
BRACKET AND CLAMP TO REAR CROSS MEMBER
N 912004008102 LOCK WASHER
N 304032008006 NUT
787 A 0004291330 BRAKE LINE COUPLING
Repalced by: A 0004291130
787 A 0004291130 BRAKE LINE COUPLING
Repalced by: A 0004292830
787 A 0004292830 BRAKE LINE COUPLING
788 A 0004290684 SEAL RING
IN CASE
789 A 0004290157 DEAD COUPLING
WITH CHAIN
790 A 0005840221 GUIDE SIGN
Repalced by: N 074345000001
790 N 074345000001 PLATE
SUPPLY
792 A 0004290631 SHUT-OFF COCK
Repalced by: A 0004291431
792 A 0004291431 SHUT-OFF COCK
792 A 0004291431 SHUT-OFF COCK
792 A 0004291631 SHUT-OFF COCK
792 A 0004291631 SHUT-OFF COCK
793 A 0004290278 HANDLE
TO 000 429 06 31
793 A 0004290278 HANDLE
TO 000 429 06 31
A 0009974077 HANDLE
TO 000 429 16 31
A 0009974077 HANDLE
TO 000 429 16 31
N 001473004003 GROOVED PIN
TO 000 429 06 31
N 001473004003 GROOVED PIN
TO 000 429 06 31
794 A 0004290162 THRUST WASHER
TO 000 429 06 31
794 A 0004290162 THRUST WASHER
TO 000 429 06 31
795 A 0004290284 SEAL RING
TO 000 429 06 31
795 A 0004290284 SEAL RING
TO 000 429 06 31
A 0004292684 SEAL RING
TO 000 429 16 31
A 0004292684 SEAL RING
TO 000 429 16 31
A 0119976748 SEAL RING
TO 000 429 16 31
A 0119976748 SEAL RING
TO 000 429 16 31
796 A 0004290085 SEAL HOLDER
TO 000 429 06 31
796 A 0004290085 SEAL HOLDER
TO 000 429 06 31
797 A 0004290393 SPRING
TO 000 429 06 31
797 A 0004290393 SPRING
TO 000 429 06 31
A 0004292293 SPRING
TO 000 429 16 31
A 0004292293 SPRING
TO 000 429 16 31
A 0004292393 SPRING
TO 000 429 16 31
A 0004292393 SPRING
TO 000 429 16 31
798 N 007603038100 SEAL RING
TO 000 429 06 31
798 N 007603038100 SEAL RING
TO 000 429 06 31
799 A 0005910156 SCREW PLUG
TO 000 429 06 31
799 A 0005910156 SCREW PLUG
TO 000 429 06 31
A 0005866342 REPAIR KIT
TO 000 429 14 31
A 0005866342 REPAIR KIT
TO 000 429 14 31
800 A 3124295940 BRACKET
UPPER PART
801 A 3124296040 BRACKET
LOWER PART
803 A 3284290240 BRACKET
804 A 3224290840 BRACKET
FRONT SHUT-OFF COCK
805 A 3224290640 BRACKET
SHUT-OFF COCK AND CABLE CONNECTOR, REAR
N 000063008224 SCREW
SHUT-OFF COCKS AND BRAKE LINE COUPLINGS
N 000063008227 SCREW
SHUT-OFF COCKS AND BRAKE LINE COUPLINGS
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
SHUT-OFF COCKS AND BRAKE LINE COUPLINGS
N 000933010164 SCREW
SHUT-OFF COCKS AND BRAKE LINE COUPLINGS
N 000931008254 SCREW
Repalced by: N 304014008002
N 304014008002 SCREW
SHUT-OFF COCKS AND BRAKE LINE COUPLINGS
N 912004008102 LOCK WASHER
SHUT-OFF COCKS AND BRAKE LINE COUPLINGS
N 912004010102 LOCK WASHER
SHUT-OFF COCKS AND BRAKE LINE COUPLINGS
N 304032008006 NUT
SHUT-OFF COCKS AND BRAKE LINE COUPLINGS
N 000934010014 NUT
SHUT-OFF COCKS AND BRAKE LINE COUPLINGS
806 A 0004310016 VALVE
807 A 0004312986 CUP
808 A 0005860343 REPAIR KIT
809 A 0004350390 VALVE DISC
810 A 0004350391 VALVE DISC
811 A 0009971890 LOOM TIE
812 A 0004350274 PIN
813 A 3124291546 PAD
N 000931006041 SCREW
814 A 0004311207 VALVE
815 A 0004350168 FITTING
816 N 007603030400 SEAL RING
817 A 0009933101 SPRING
818 A 0004350390 VALVE DISC
819 A 0004350391 VALVE DISC
820 A 3124271220 HANDLE
A 3604270120 HANDLE
Repalced by: A 3124271220
A 3124271220 HANDLE
N 000091006119 SCREW
N 912004006102 LOCK WASHER
N 001587006000 CAP NUT
821 A 3124271086 DAMPING RING
822 A 3214201274 ROD
A 3224202474 ROD
Repalced by: A 3214201274
A 3214201274 ROD
A 3214201374 ROD
A 3534270095 PROTECTIVE CAP
823 A 3124201578 BEARING BRACKET
Repalced by: A 3124201178
A 3535860042 REPAIR KIT
Repalced by: A 3124201178
A 3124201178 BEARING BRACKET
PISTOL-GRIP HAND BRAKE
824 N 001473004023 GROOVED PIN
826 A 3124271215 PAWL
Repalced by: A 3145860142
827 A 1539930701 SPRING
Repalced by: A 3145860142
828 A 3129900043 PLATE
Repalced by: A 3145860142
829 N 000472015000 LOCK RING
A 3145860142 REPAIR KIT
Repalced by: A 3144200092
A 3144200092 REPAIR KIT
PAWL
A 3224270084 SHIM
BEARING BRACKET
825 N 000933008145 SCREW
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
N 912004008102 LOCK WASHER
N 304032008006 NUT
830 N 001434008006 PIN
Repalced by: A 3529910407
830 A 3529910407 PIN
831 N 000433008406 WASHER
N 000094002032 COTTER PIN
A 3224200112 BRAKE LEVER
FRONT
832 A 3224201712 BRAKE LEVER
FRONT
A 3224201012 BRAKE LEVER
FRONT
A 3224200312 BRAKE LEVER
FRONT
833 A 3124271550 BUSHING
834 N 071412010300 GREASE NIPPLE
835 A 3214200778 BEARING BRACKET
N 000931010009 SCREW
BEARING BRACKET TO FRAME
N 912004010102 LOCK WASHER
BEARING BRACKET TO FRAME
N 000934010014 NUT
BEARING BRACKET TO FRAME
836 A 3129901540 WASHER
837 N 000471022000 LOCK RING
838 A 3214200176 END PIECE
90 MM
839 N 001434010006 PIN
Repalced by: A 3529910007
839 A 3529910007 PIN
N 000094003219 COTTER PIN
840 N 000934010014 NUT
TO SECURE FORKS ON PULL ROD, FRONT AND REAR
841 N 900331010043 PULL ROD
842 A 3224270741 BRACKET
AT ENGINE REAR CROSS MEMBER
843 A 3229970481 GROMMET
843 A 3229970481 GROMMET
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO PEDAL BEARING BRACKET
N 000933008154 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
N 000125008400 WASHER
BRACKET TO PEDAL BEARING BRACKET
N 912004008102 LOCK WASHER
BRACKET TO PEDAL BEARING BRACKET
N 304032008006 NUT
BRACKET TO PEDAL BEARING BRACKET
844 A 3224203578 BEARING BRACKET
A 3224203678 BEARING BRACKET
N 000933010128 SCREW
BEARING BRACKET TO CAB CROSS MEMBER
N 912004010102 LOCK WASHER
BEARING BRACKET TO CAB CROSS MEMBER
N 000934010014 NUT
BEARING BRACKET TO CAB CROSS MEMBER
845 A 3214200481 LEVER
Repalced by: A 3224201281
845 A 3224201281 LEVER
FRONT
A 3224200181 LEVER
FRONT
A 3224201781 LEVER
FRONT
846 A 3529921201 BUSHING
847 N 071412010300 GREASE NIPPLE
848 A 3124261574 PIN
N 000125023000 WASHER
PIVOT PIN
849 N 000471022000 LOCK RING
PIVOT PIN
850 A 3214200176 END PIECE
851 N 001434010006 PIN
Repalced by: A 3529910007
851 A 3529910007 PIN
N 000094003219 COTTER PIN
852 N 000934010014 NUT
TO SECURE FORK
853 N 900331010035 PULL ROD
FROM BRAKE INTERMEDIATE FRONT LEVER TO TURNBUCKLE
853 N 900331010034 PULL ROD
853 N 900331010046 PULL ROD
853 N 900331010045 PULL ROD
853 N 900331010050 PULL ROD
853 N 900331010049 PULL ROD
853 N 900331010024 PULL ROD
853 N 900331010023 PULL ROD
854 A 3214200286 BRACKET
855 A 0009973481 GROMMET
IN BRACKET
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO NO. 4 FRAME CROSS MEMBER
N 000125008400 WASHER
BRACKET TO NO. 4 FRAME CROSS MEMBER
N 912004008102 LOCK WASHER
BRACKET TO NO. 4 FRAME CROSS MEMBER
N 304032008006 NUT
BRACKET TO NO. 4 FRAME CROSS MEMBER
859 N 000934010014 NUT
860 N 001480010200 TURNBUCKLE
861 N 000934010035 NUT
A 3289960025 ROD
862 A 3289960225 ROD
863 A 3214200176 END PIECE
N 000934010014 NUT
TO SECURE FORK
N 001434010006 PIN
Repalced by: A 3529910007
A 3529910007 PIN
N 000094003219 COTTER PIN
A 3214202380 BRAKE INTERMEDIATE SHAFT
WITH INTERMEDIATE LEVERS
864 A 3224201480 BRAKE INTERMEDIATE SHAFT
WITH INTERMEDIATE LEVERS
865 A 3224201680 BRAKE INTERMEDIATE SHAFT
WITH INTERMEDIATE LEVERS
866 A 3214200378 BEARING BRACKET
867 A 3124272350 BUSHING
868 N 071412010100 GREASE NIPPLE
869 A 3129900129 SCREW
N 000933010128 SCREW
N 912004010102 LOCK WASHER
N 000934010014 NUT
A 3214200176 END PIECE
870 A 3214200076 END PIECE
Repalced by: A 3224200347
A 3224200347 YOKE
Repalced by: A 3144200047
A 3144200047 YOKE
N 001434010006 PIN
Repalced by: A 3529910007
A 3529910007 PIN
A 3529910507 PIN
A 3529910707 PIN
N 900055010003 SPRING WASHER
N 000433010505 WASHER
Repalced by: N 000433010510
N 000433010510 WASHER
N 000094003219 COTTER PIN
871 A 3129960825 ROD
A 3214200076 END PIECE
Repalced by: A 3224200347
A 3224200347 YOKE
Repalced by: A 3144200047
A 3144200047 YOKE
872 A 3224200076 END PIECE
N 000934010014 NUT
TO SECURE FORKS ON PULL ROD
N 000934010035 NUT
TO SECURE FORKS ON PULL ROD
A 3529910507 PIN
FORKS TO LEVERS AT REAR AXLE TUBES
N 000433010505 WASHER
Repalced by: N 000433010510
N 000433010510 WASHER
FORKS TO LEVERS AT REAR AXLE TUBES
N 000094003219 COTTER PIN
FORKS TO LEVERS AT REAR AXLE TUBES
A 3124261912 LEVER
LEFT, ON LEFT DOUBLE LEVER SHAFT
873 A 3124261812 LEVER
RIGHT
A 3124201642 BRAKE LEVER
WITH SHAFT
874 A 3224200042 BRAKE LEVER
WITH SHAFT
875 A 3124271196 CUP
876 A 3124231051 SPACER RING
Repalced by: A 3164230151
876 A 3164230151 SPACER RING
877 A 3124231552 SPACER WASHER
0.2 MM
877 A 3124231652 SPACER WASHER
1.0 MM
A 3124231752 SPACER WASHER
2.0 MM
878 A 3124231187 PROTECTIVE CAP
880 A 3124261283 SPHERICAL PIECE
Repalced by: A 3224260183
880 A 3224260183 SPHERICAL PIECE
881 A 3124261550 BUSHING
882 N 070952035101 LOCK PLATE
883 N 070852035000 NUT
892 A 3214200484 PARKING BRAKE
893 A 3224200295 HANDLE
Repalced by: A 3214270126
893 A 3214270126 PAWL ROD HANDLE
894 A 3214270674 PIN
895 A 3214201474 ROD
896 A 3219900075 SCREW
897 A 3524270174 PIN
898 N 006799005000 LOCK PLATE
Repalced by: N 006799005009
898 N 006799005009 LOCK PLATE
899 A 3214270183 SPHERICAL PIECE
900 A 3219900751 NUT
901 A 3214270283 SPHERICAL PIECE
902 A 3214270841 BRACKET
903 A 3044270064 GUIDE BALL
904 N 000933008145 SCREW
905 N 912004008102 LOCK WASHER
906 A 3224202212 BRAKE LEVER
A 3224202312 BRAKE LEVER
907 A 3214270250 BUSHING
908 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
908 N 071412008102 GREASE NIPPLE
909 A 3214200027 STOP
911 A 3214200127 STOP
N 000931008244 SCREW
STOP TO HAND BRAKE LEVER
N 912004008102 LOCK WASHER
STOP TO HAND BRAKE LEVER
A 3214200692 PAWL
A 3204270150 BUSHING
Repalced by: A 3179920101
A 3179920101 BUSHING
N 000471010001 LOCK RING
RELEASE LEVER TO STOP
N 000417006004 HEADLESS SETSCREW
TO ADJUST RELEASE LEVER
N 000934006007 NUT
870 A 3224270013 LEVER
912 N 001434010001 PIN
913 N 000125010500 WASHER
N 000094003219 COTTER PIN
N 000931008046 SCREW
Repalced by: N 304017008018
N 304017008018 SCREW
HAND BRAKE LEVER STOP
N 304032008006 NUT
HAND BRAKE LEVER STOP
914 A 3224270130 PAWL ROD
915 N 001434006035 PIN
916 N 000125006421 WASHER
917 N 071805013203 BALL SOCKET
N 071805013302 SNAP RING
N 071805013402 SECURING CLIP
N 304032008006 NUT
918 A 3529930001 SPRING
919 N 000125008400 WASHER
920 A 3214270941 BRACKET
N 000085004114 SCREW
N 000127004206 LOCK WASHER
N 000934004006 NUT
921 A 3214271041 BRACKET
N 000660004041 RIVET
922 A 3214270074 PIN
923 A 3219932401 SPRING
924 A 3209940035 SNAP RING
A 3214200492 PAWL
925 A 3224200292 PAWL
A 3214200592 PAWL
A 3224200392 PAWL
927 A 3229920201 BUSHING
A 3204271574 PIN
Repalced by: A 3204271274
A 3204271274 PIN
A 3224270874 PIN
Repalced by: A 3524270274
928 A 3524270274 PIN
A 3524270176 WASHER
929 N 000471014000 LOCK RING
930 A 3529930610 SPRING
A 3224200378 BEARING BRACKET
931 A 3224202678 BEARING BRACKET
Repalced by: A 3524200778
A 3524200778 BEARING BRACKET
A 3224202778 BEARING BRACKET
Repalced by: A 3524200878
A 3524200878 BEARING BRACKET
932 A 3214270374 PIN
A 3524270050 BUSHING
A 3214270474 PIN
933 A 3224270974 PIN
934 A 3224271174 PIN
935 A 3224270574 PIN
A 3219932301 SPRING
936 A 3224270150 BUSHING
937 A 3224270184 SHIM
938 A 3224270176 WASHER
1 MM
938 A 3224270276 WASHER
1.5 MM
938 A 3224270276 WASHER
2 MM
N 000934010014 NUT
TO MOUNT STOP PIN
N 000094004000 COTTER PIN
TO MOUNT STOP PIN
N 000931010268 SCREW
Repalced by: N 304017010050
N 304017010050 SCREW
BEARING BRACKET TO FRAME
N 000933010128 SCREW
BEARING BRACKET TO FRAME
N 912004010102 LOCK WASHER
BEARING BRACKET TO FRAME
N 000934010014 NUT
BEARING BRACKET TO FRAME
940 A 0005452809 SWITCH
A 0005454009 SWITCH
941 A 3229900240 WASHER
0.5 MM
942 A 3214270574 PIN
A 3524270574 PIN
Repalced by: A 3524270674
A 3524270674 PIN
943 A 3214200293 CABLE PULLEY
Repalced by: A 3224200193
943 A 3224200193 CABLE PULLEY
A 3214200393 CABLE PULLEY
Repalced by: A 3224200293
A 3224200293 CABLE PULLEY
944 A 3214270250 BUSHING
945 A 3214270076 WASHER
1.7 MM
A 3214270176 WASHER
2 MM
A 3214270276 WASHER
2.3 MM
946 N 000471030000 LOCK RING
A 3224270074 PIN
A 3214270274 PIN
Repalced by: A 3524270374
947 A 3524270374 PIN
N 912004014100 LOCK WASHER
N 000936014010 NUT
Repalced by: N 308675014000
N 308675014000 NUT
Repalced by: N 308675014002
N 308675014002 NUT
A 3214200292 PAWL
948 A 3224200092 PAWL
A 3214200392 PAWL
A 3224200192 PAWL
949 A 3229920201 BUSHING
950 A 3224270114 ROLLER
18.5 MM
A 3224270214 ROLLER
19 MM
A 3224270314 ROLLER
19.5 MM
A 3224270414 ROLLER
16.5 MM
A 3224270514 ROLLER
17 MM
951 N 000471010001 LOCK RING
952 A 3524270176 WASHER
N 912004010102 LOCK WASHER
PAWL AND BRACKET TO PIVOT PIN
N 000934010014 NUT
PAWL AND BRACKET TO PIVOT PIN
953 N 000471014000 LOCK RING
N 912004010102 LOCK WASHER
PAWL AND BRACKET TO PIVOT PIN
N 000934010014 NUT
PAWL AND BRACKET TO PIVOT PIN
A 3214270741 BRACKET
954 A 3224271041 BRACKET
Repalced by: A 3524272641
954 A 3224271041 BRACKET
Repalced by: A 3524272741
A 3524272641 BRACKET
Repalced by: A 3524202386
A 3524272741 BRACKET
Repalced by: A 3524202486
A 3524202386 BRACKET
A 3524202486 BRACKET
955 N 000933010128 SCREW
956 N 912004010102 LOCK WASHER
957 A 3529930610 SPRING
N 000933010145 SCREW
AT BEARING SUPPORT; TO ADJUST STOP
N 000934010014 NUT
A 3224200090 GUIDE
958 A 3224200290 GUIDE
N 000933010238 SCREW
Repalced by: N 304017010028
N 304017010028 SCREW
BRAKE CABLE GUIDE TO BEARING SUPPORT
N 912004010102 LOCK WASHER
BRAKE CABLE GUIDE TO BEARING SUPPORT
960 A 3224200786 BRACKET
961 A 3224200085 BRAKE CABLE
962 A 3214200176 END PIECE
90 MM
963 N 000934010014 NUT
964 N 001434010006 PIN
Repalced by: A 3529910007
964 A 3529910007 PIN
N 000094003219 COTTER PIN
965 A 3224203678 BEARING BRACKET
966 A 3224270341 BRACKET
N 000933010105 SCREW
BEARING BRACKET AND BRACKET TO CAB CROSS MEMBER
N 000933010128 SCREW
BEARING BRACKET AND BRACKET TO CAB CROSS MEMBER
N 912004010102 LOCK WASHER
BEARING BRACKET AND BRACKET TO CAB CROSS MEMBER
N 000934010014 NUT
BEARING BRACKET AND BRACKET TO CAB CROSS MEMBER
N 000933008145 SCREW
BEARING BRACKET AND BRACKET TO CAB CROSS MEMBER
N 912004008102 LOCK WASHER
BEARING BRACKET AND BRACKET TO CAB CROSS MEMBER
N 304032008006 NUT
BEARING BRACKET AND BRACKET TO CAB CROSS MEMBER
967 A 3214201581 LEVER
FRONT
968 A 3529921201 BUSHING
969 N 071412010100 GREASE NIPPLE
970 A 3124261574 PIN
N 000125023000 WASHER
N 000471022000 LOCK RING
971 A 3379935010 SPRING
972 N 071752012002 YOKE
973 A 3529910107 PIN
N 000433013000 WASHER
N 000094004024 COTTER PIN
974 N 900331012003 PULL ROD
974 N 900331012004 PULL ROD
975 N 001480012200 TURNBUCKLE
Repalced by: A 3859960034
975 A 3859960034 NUT
N 000934012021 NUT
976 N 900331012108 PULL ROD
N 000934012020 NUT
N 000934012021 NUT
977 N 071752012002 YOKE
978 A 3529910107 PIN
N 000433013000 WASHER
N 000094004024 COTTER PIN
980 A 3214203780 BRAKE INTERMEDIATE SHAFT
REAR
A 3214203580 BRAKE INTERMEDIATE SHAFT
REAR
981 A 3214200378 BEARING BRACKET
982 A 3124272350 BUSHING
983 N 071412010100 GREASE NIPPLE
N 912004010102 LOCK WASHER
BEARING BRACKET TO CROSS MEMBER
N 000934010014 NUT
BEARING BRACKET TO CROSS MEMBER
984 N 071752012002 YOKE
985 A 3529910207 PIN
N 000433013000 WASHER
N 900055012000 SPRING WASHER
N 000094004024 COTTER PIN
986 N 900331012109 PULL ROD
987 A 3224200047 YOKE
Repalced by: A 3524200047
A 3524200047 YOKE
N 000934012021 NUT
PULL ROD TO YOKES
N 000934012020 NUT
PULL ROD TO YOKES
988 N 001434012003 PIN
Repalced by: A 3529910107
988 A 3529910107 PIN
N 000433013000 WASHER
N 000094004024 COTTER PIN
A 3214260112 LEVER
LEFT
989 A 3214260012 LEVER
RIGHT
990 A 3214200242 BRAKE LEVER
Repalced by: A 3224200042
A 3224200042 BRAKE LEVER
A 3125860042 REPAIR KIT
Repalced by: A 3144200067
A 3144200067 REPAIR KIT
Repalced by: A 3124271196
991 A 3124271196 CUP
HAND BRAKE SHAFT
992 A 3124231051 SPACER RING
Repalced by: A 3164230151
992 A 3164230151 SPACER RING
993 A 3124231552 SPACER WASHER
0.2 MM
993 A 3124231652 SPACER WASHER
1.0 MM
993 A 3124231752 SPACER WASHER
2.0 MM
994 A 3124231187 PROTECTIVE CAP
995 A 3124261283 SPHERICAL PIECE
Repalced by: A 3224260183
995 A 3224260183 SPHERICAL PIECE
996 A 3124261550 BUSHING
997 N 070952035101 LOCK PLATE
998 N 070852035000 NUT
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
